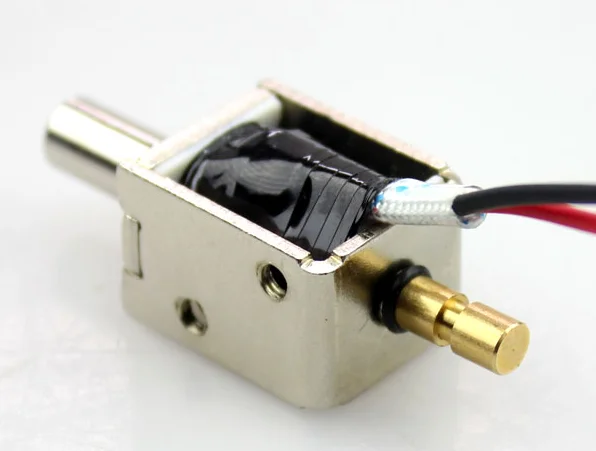

12v 24v dc micro push pull solenoide electronic lock for network cabinet

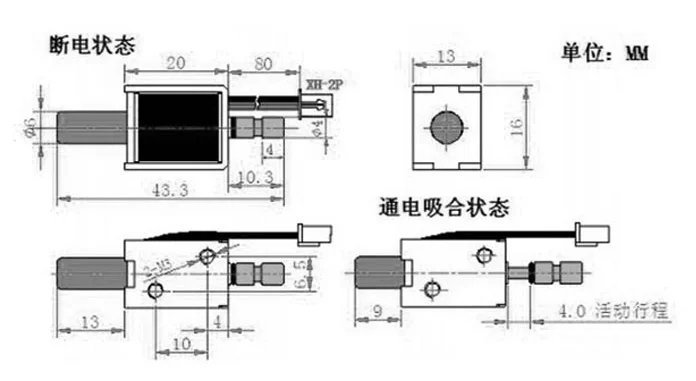

Power on Length of tongue:9mm

Power off :Length of tongue:13mm

Tongue stroke:4mm

Note: Small electric lock is commended to electrify 0-5seconds each time. and electrify again after 3mins at least.

Or the electric lock will be burned over 1 minute continuing electrifition.

sample order packing:1pc/opp bag,then put in box,

routine order:blister  and carton

Delivery time: mostly7-35days according design.

Shipping method:

client can provide their courier account No. if they have,we can delivery by their account.

Or we can help client send goods by cheapest safety courier.

shipping time:3-35days

 Our factory has produce solenoid over 10 years,our engineers work team can design the solenoid according your requirement. Extensive production experience,excellent product quality,short delivery time belong you. Before order,sample for testing.

Our company mainly supply and produce Rotary solenoid,Frame solenoid,keep solenoid,tubular solenoid ,electromagnet and so on. Over 10 years solenoid produce experience,over 300 standard solenoids model, pass Rohs,CE. Quality is the key why our product all over the world,and our client keep long time cooperation with us.

1. Item:

 2. AC/DC Voltage:

 3. Current/Watts(at  20℃):

 4. Stroke:

 5. Force:

 6. Push/Pull type:

 7. On time(Max on time)

 8. Off time(Max off time):

 9. Duty cycle:

10. L*W*H or Outward appearance (diameter/size):

11. Ambient Temp:

12 .Rem:
