Product Overview

Description

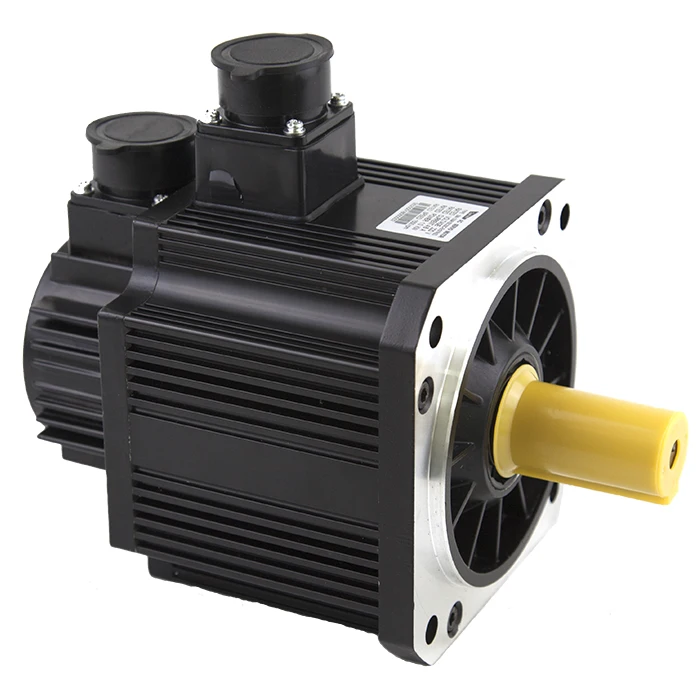

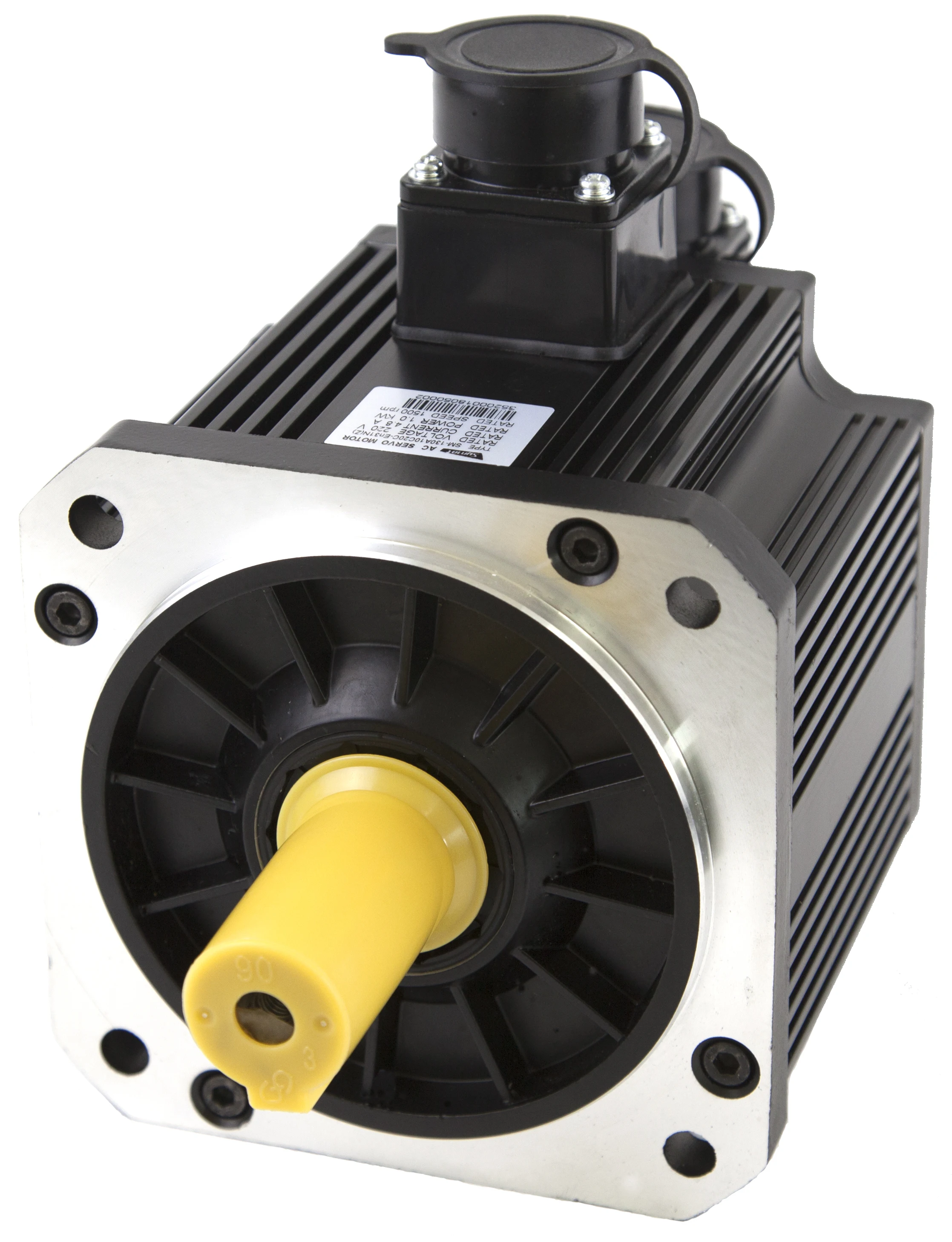

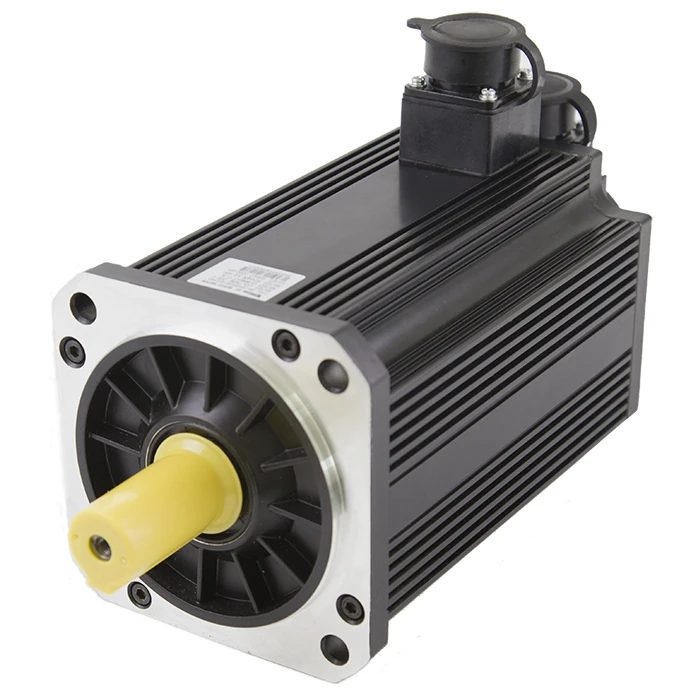

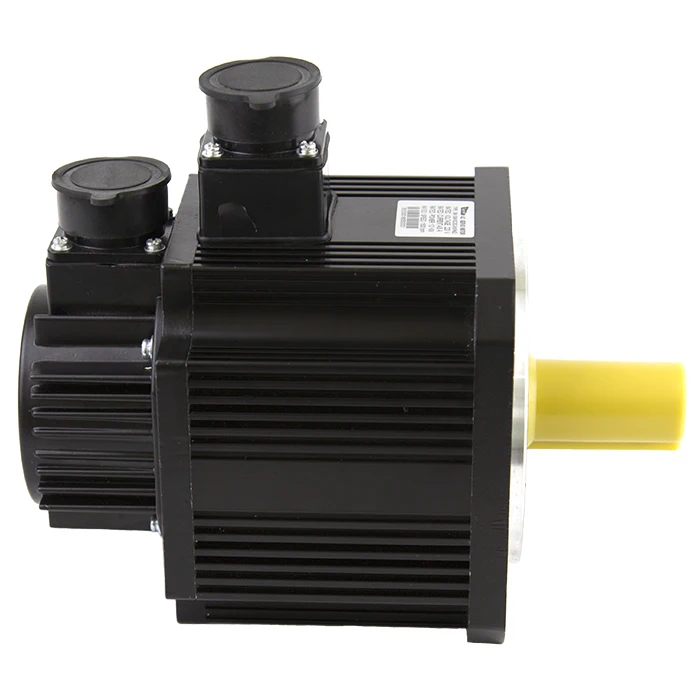

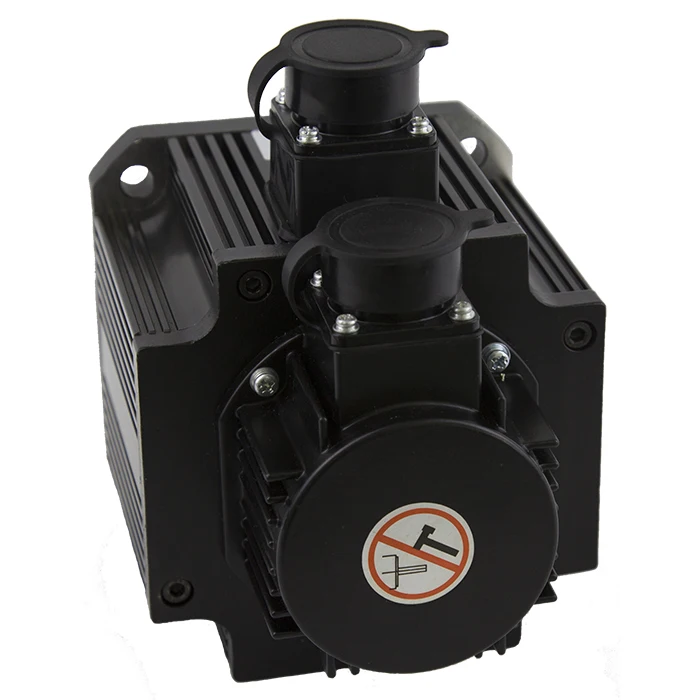

Synmot servo motors are permanent magnet synchronous motors,the main features including :ultra energy-saving .high response and accuracy .low noise and low temperature rise.the rotor is made of high-performance rare-earth permanent magnet material .works reliably and tomaintain less.With low rotary inertia .it is easy to improve the rapidity of system .small volume.high speed and high torque.using the high-resilution encoder (17-bit .33-bit) to improve the position control accuracy.it control the current according to D-P principal axis transformation .which increase the torque control accuracy from 5% to 2% .Synmot servo motor have been widely used in injection molding machienry .textile machinery.CNC machinery etc.

Model	Rated torque	Rated voltage	Rated speed	Rated power	Rated current	Kt	Ke	Max speed	Max torque	Rotor intertia	Poles	weight	length
	N.m	Vac	rpm	kW	A	N.m/A	V/krpm	rpm	N.m	kg.cm2	Poles	Kg	mm
190A33C15C	21	380	1500	3.3	8.5	2.7	165	2000	63	37	10	17	173
190A44C20C	21	380	2000	4.4	10.5	2.2	135	2500	63	37	10	17	173
190A55C25C	21	380	2500	5.5	12	1.9	114	3000	63	37	10	17	173
190A65C30C	21	380	3000	6.5	14	1.6	96	3600	63	37	10	17	173
190A40C15C	26	380	1500	4	10	2.8	170	2000	78	55	10	20	196
190A55C20C	26	380	2000	5.5	13	2.2	135	2500	78	55	10	20	196
190A70C25C	26	380	2500	7	16.5	1.9	114	3000	78	55	10	20	196
190A80C30C	26	380	3000	8	19	1.6	96	3600	78	55	10	20	196
190A55C15C	35	380	1500	5.5	13	2.9	176	2000	105	74	10	23	226
190A75C20C	35	380	2000	7.5	16	2.4	145	2500	105	74	10	23	226
190A90C25C	35	380	2500	9	20	1.9	114	3000	105	74	10	23	226
190A11D30C	35	380	3000	11	23	1.6	96	3600	105	74	10	23	226
190A75C15C	48	380	1500	7.5	17	3.1	191	2000	144	54	10	21	256
190A90C17C	48	380	1700	9	19	2.8	170	2300	144	54	10	21	256
190A11D20C	48	380	2000	11	23	2.3	141	2500	144	54	10	21	256
190A11D15C	70	380	1500	11	24	3.1	193	2000	210	81	10	34	416
190A13D17C	70	380	1700	13	27	2.8	174	2300	210	81	10	34	416
190A15D20C	70	380	2000	15	33	2.4	143	2500	210	81	10	34	416
190A15D15C	96	380	1500	15	32	3.2	198	2000	288	107	10	37	456
190A17D17C	96	380	1700	17	37	2.8	172	2300	288	107	10	37	456
190A20D20C	96	380	2000	20	43	2.4	147	2500	288	107	10	37	456
190A19D15C	118	380	1500	19	40	3.2	195	2000	354	134	10	41	496
190A21D17C	118	380	1700	21	45	2.8	173	2300	354	134	10	41	496
190A25D20C	118	380	2000	25	56	2.4	141	2500	354	134	10	41	496
190A22D15C	140	380	1500	22	48	3.2	195	2000	420	160	10	45	536
190A25D17C	140	380	1700	25	55	2.8	169	2300	420	160	10	45	536
190A29D20C	140	380	2000	29	65	2.4	143	2500	420	160	10	45	536
