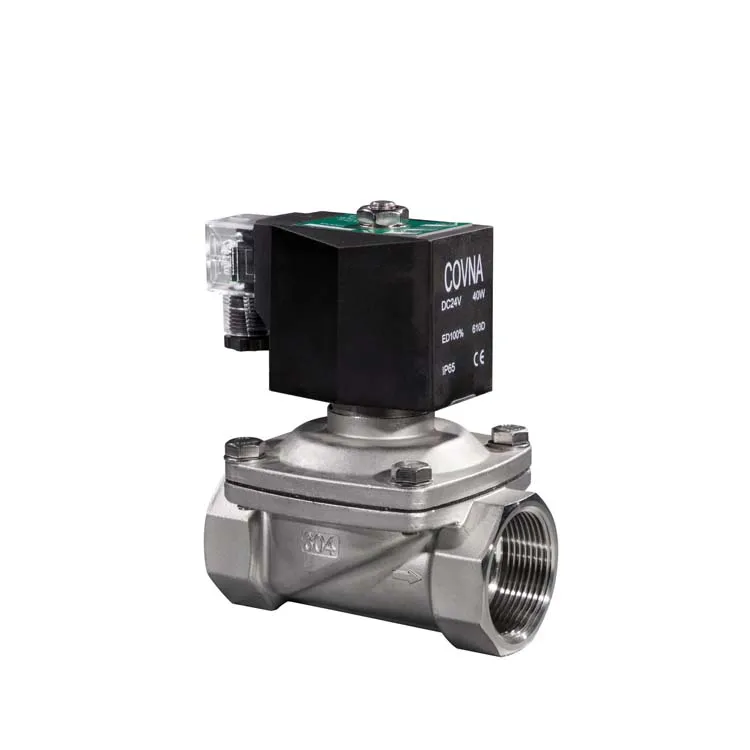

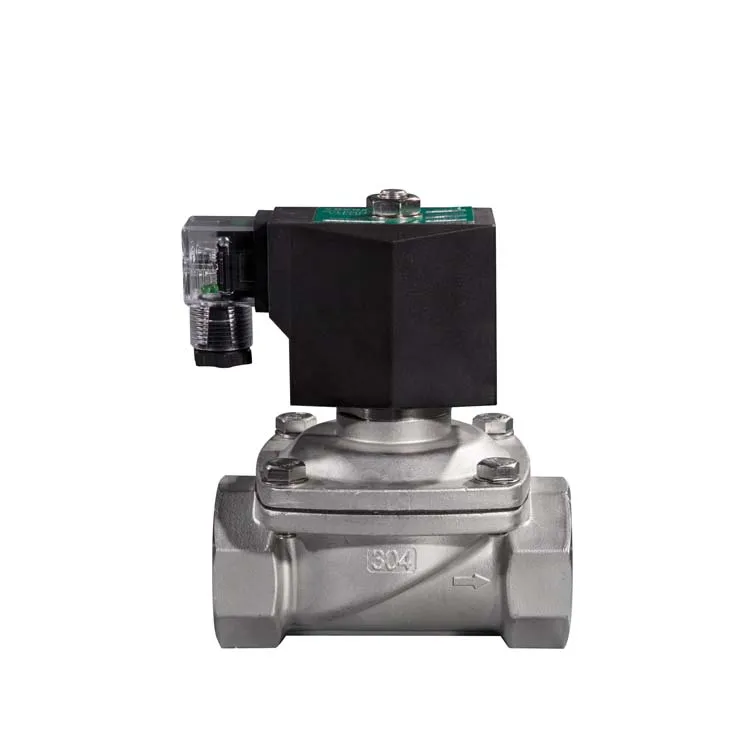

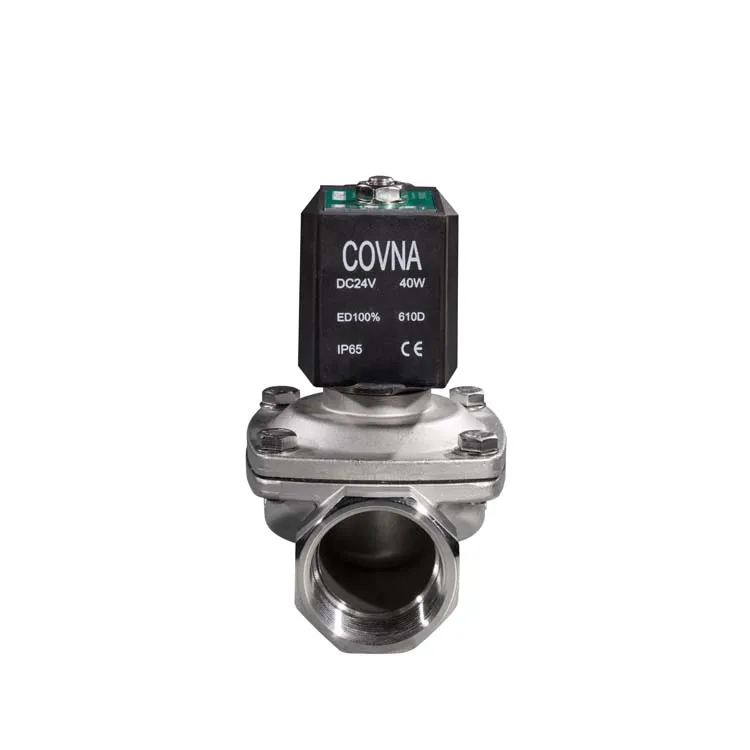

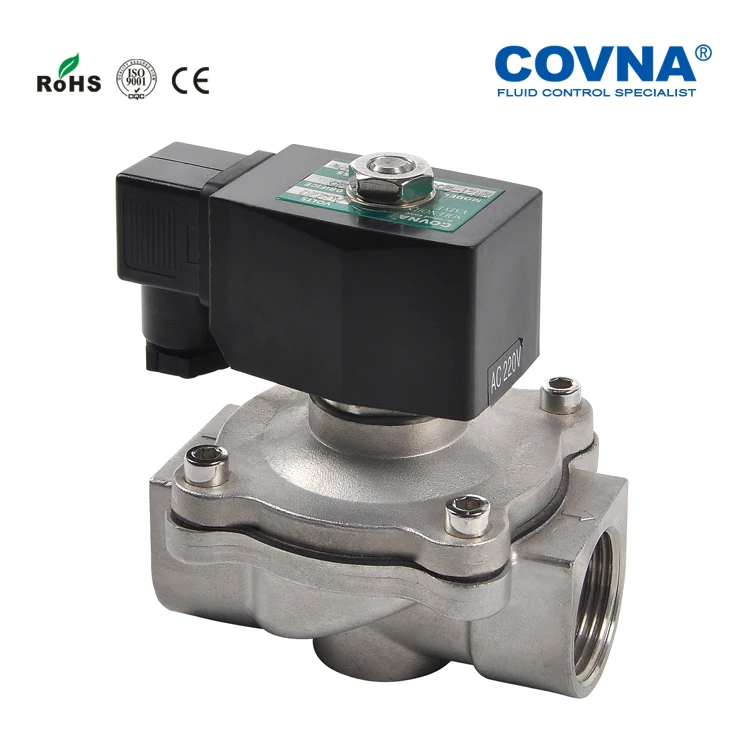

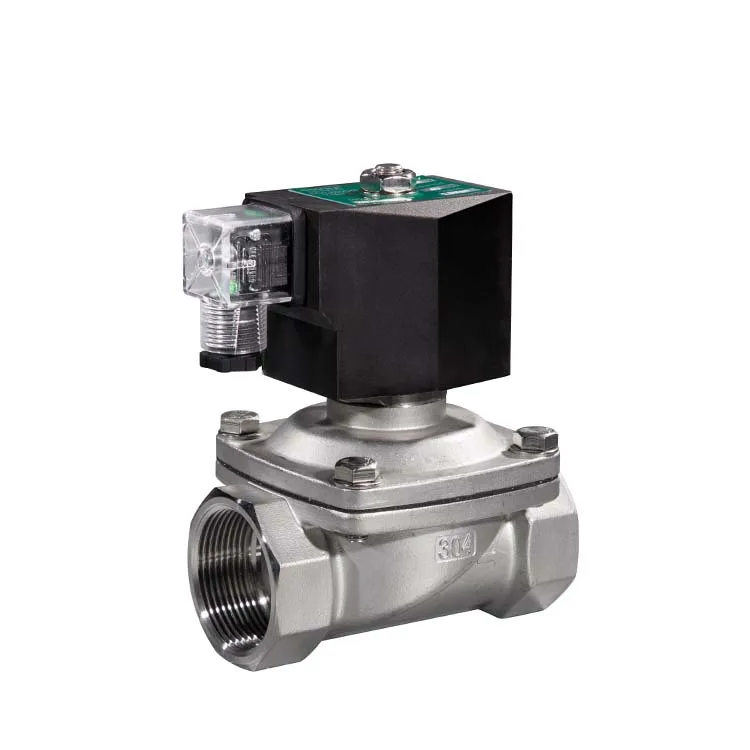

Negotiable Price Automatic 1 Inch 24 Volt DC Water Solenoid Valve
- Category: >>>
- Supplier: Dongguan Chuancheng Pneumatic Components Co. Ltd.
Share on (62294210927):
Product Overview
Description
Product Description
* Any requires please contact us before ordering.
Features:
1. Direct lifting diaphragm construction
2. Open from 0bar for low pressure system use
3. High frequency of flying lead coil
4. Heat-resistant coil and not easy to burn out
5. Zero leakage

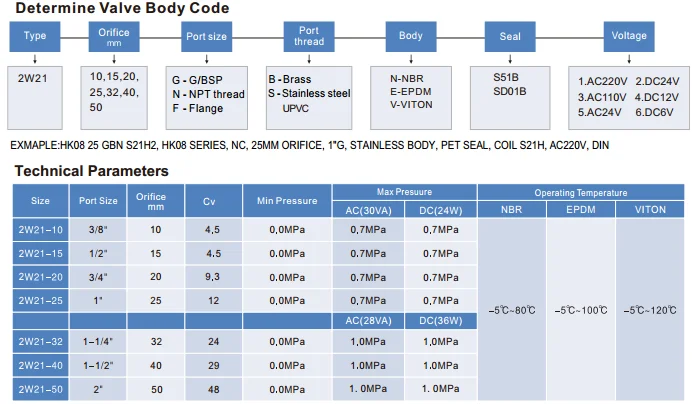

Item | Negotiable Price Automatic 1 Inch 24 Volt DC Water Solenoid Valve |
Medium | Air, water, steam, oil, etc |
Temperature | NBR: -10~80℃ EPDM: -10~120℃ VITON: -10~150 ℃ |
Pressure | 0-1.0MPa |
Port size | 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
Port Thread | G, BSP, NPT, Flange |
Orifice(mm) | 12, 15, 20, 25, 32, 40, 50 |
Voltage | DC-12V, 24V AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz |
Tolerance | ±10% |

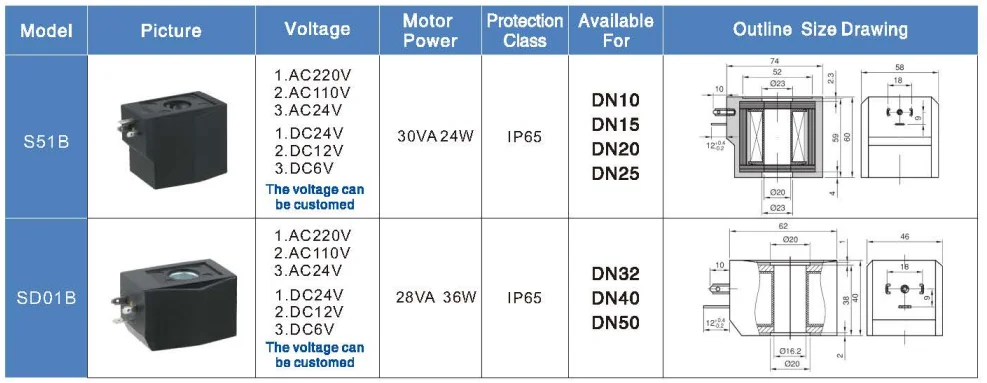

Coils | S51B,30VA(AC),24W(DC),IP65,100%ED S91B,22VA(AC),17W(DC),IP65,100%ED SD01B,28VA(AC),36W(DC),IP65,100%ED Y32B,40VA(AC),18W(DC),IP65,100%ED Y42B,50VA(AC),20W(DC),IP65,100%ED |
Material | Body- Brass or Stainless Steel Seal- VITON, NBR, EPDM Armature Tube- Stainless Steel 304 Plunger- Stainless Steel 430F Stop- SS 403F Springs- SS304 Shading Rings- Stainless Steel 304 |

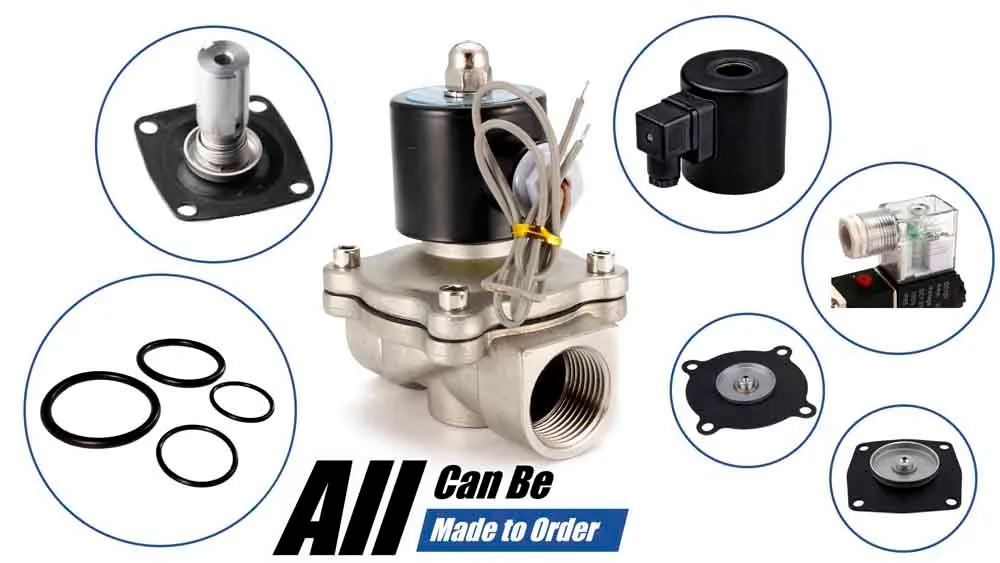

All can be made to order:
1.Voltage: DC 12V 24V, AC 220V
2.Normally closed and normally open
3.Material: Brass, stainless steel 304/316 and plastic
4.Pilot-operated, diaphragm and piston\t
5.Coil with LED light
6.Coil with timer
7.Seal: NBR(≤80℃), VITON(≤130℃), PTFE(≤180℃), EPDM(≤100℃), PPL(≤250℃)
8. Any requires please let us know
About COVNA
COVNA from Dongguan, China is a professional manufacturer of fluid control valves provides performance, safety and long service life products which have to reliably handle the most aggressive of substances, our products stand the test of time in food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
COVNA give comprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.
Together with continual feedback from our customers as well as our experience in manufacturing and quality control, COVNA aims to provide our customers the best quality products with the most competitive pricing，on-time delivery and full warranty service
Our competitive advantage:
● Consistent product quality and reduction of defective rate
● Improved manufacturing process and better productivity
● Significant cost reduction versus competitors
This is COVNA - solve your technical questions with solid experience.
COVNA give comprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.
Together with continual feedback from our customers as well as our experience in manufacturing and quality control, COVNA aims to provide our customers the best quality products with the most competitive pricing，on-time delivery and full warranty service
Our competitive advantage:
● Consistent product quality and reduction of defective rate
● Improved manufacturing process and better productivity
● Significant cost reduction versus competitors
This is COVNA - solve your technical questions with solid experience.
Our Service:
Exhibition:
Project Reference:
Sample room
Certificates
#ALIBABA SELECTION SUPPLIER WITH 17 YEARS MANUFACTURING EXPERIENCE | ||||||
Certifications
COVNA were awarded both nationally and internationally and it's certified TUV SGS RoHS ISO 9001 for the entire process of design and manufacture of valves.
Factory Views
Learn more about us, please feel free to call us at 86-137-24477011
Packing
Packing: Electric valves packed with foam in carton.
Delivery Time: 7-10 working days after payment confirmed.
See All Categories | ||||||
FAQ
Question | Answer |
Can I order some samples? | Yes |
What is the MOQ? | 1 pcs |
What is the delivery time? | It is about 10-15 days after we received the deposit. |
What is the payment term? | T/T, Western Union, PayPal, Ali Trade Assurance and so on |
Do your company have warranty terms? | Yes, 1 year of warranty term. |
Do you have products in stock? | Yes, some standard products we have in stock. |
What certificate do you have? | ISO9001, CE, RoHs |
How can I trust you? | We have 18 years experience about valves and we have a professional and reliable quality inspection team. And our products have certificate. |
