YKS51100CNC 4Axis CNC Gear Shaping Machine




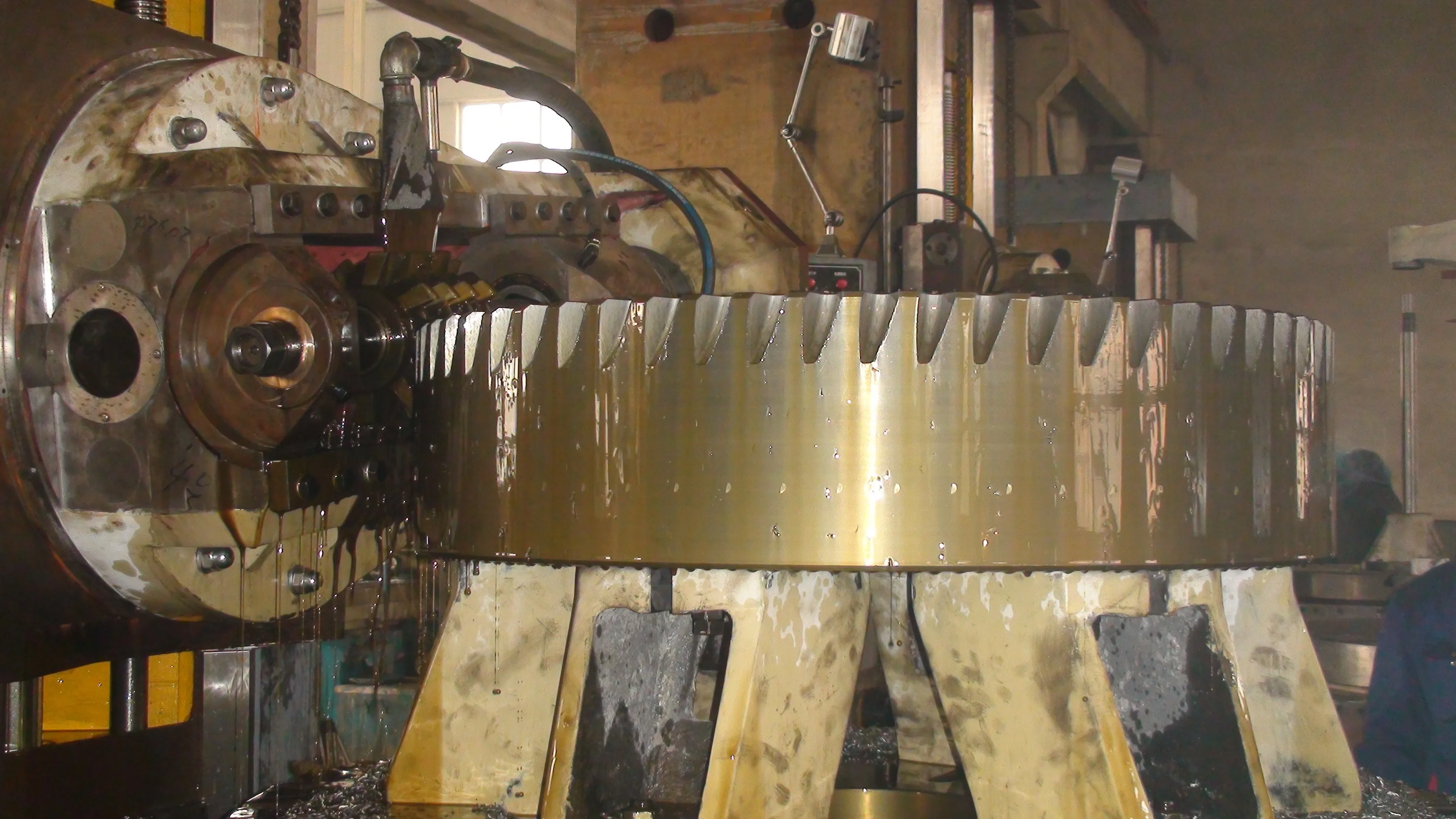

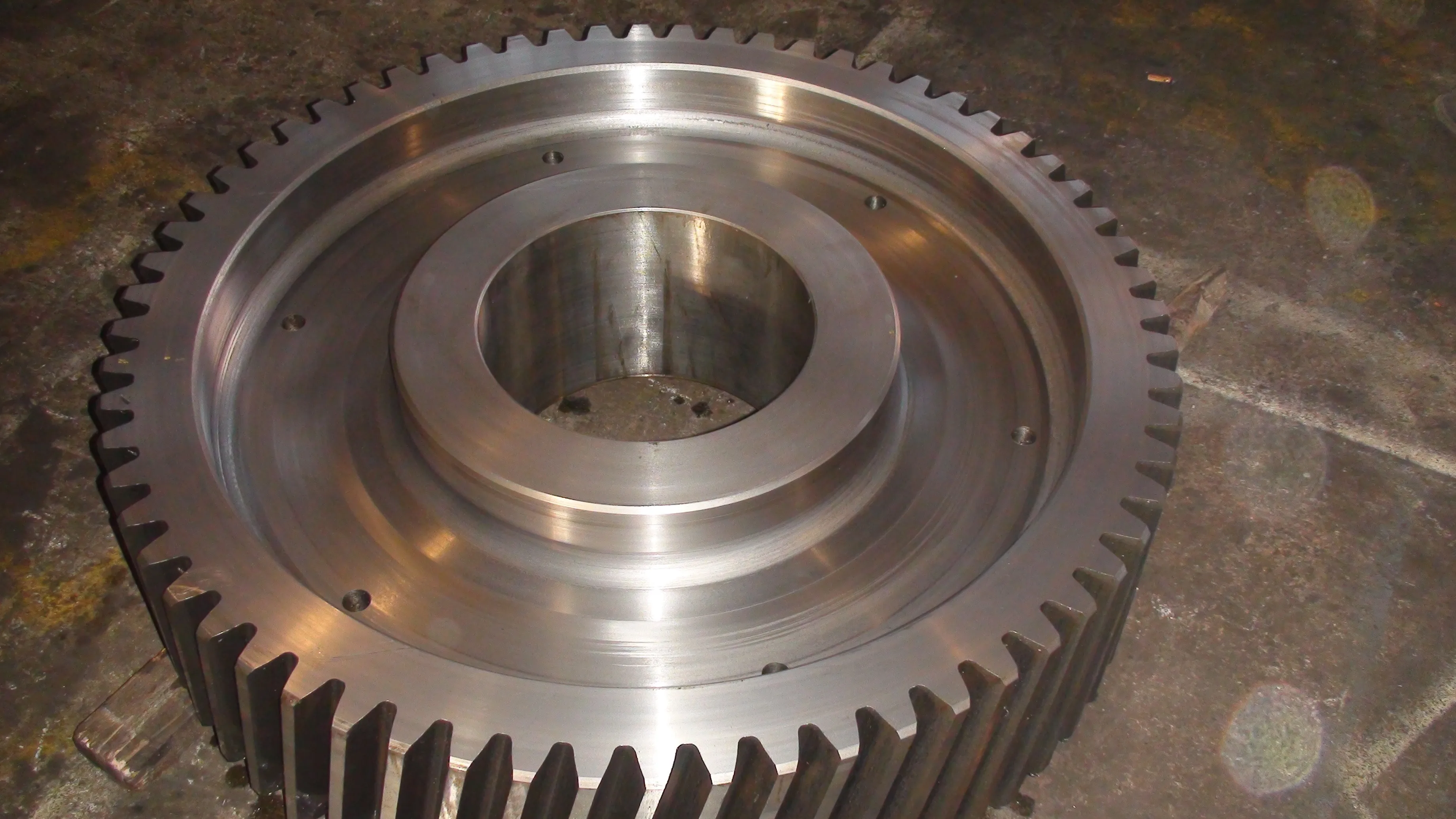

Brief Introduction


Such cnc gear shaping machine has following features:


This YKS51100CNC is a 4-axis CNC gear shaping machine with 3 of the 4 axes working under gang control.


The 4-axis are:


X-axis: Radial feed motion


C-axis: Worktable rotation motion


B-axis: cutter rotation motion


cutter spindle stroke controlled by frequency motor.


The machine has high rigidity, new structure, perfect function, and easy adjustment.


the YKS31100CNC is equipped with Siemens 828D and the X-axis, B-axis and C-axis are driven separately by the separate AC Servo Motors.


* As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice.  NE





Main Technical Data


































































































Specifications



Unit



Parameter



Max. workpiece dia. external gear



mm



1000



Internal gear



mm



1000



Max. module



mm



14



Max face width



mm



200



Max. stroke length



mm



230



Spindle stroke speed



str/min



30~300



Spindle diameter



mm



120



Distance from spindle end face to work table surface



mm



230~460



Distance from cutter centerline to work table centerline



mm



0~650



Diameter of worktable



mm



1000



Diameter of worktable hole



mm



250



Cutter spindle back-off at its upmost position



mm



>0.7



Offset of inclined back-off column



mm



±25



Radial feeding speed., infinitely variable



mm/str



0.001~0.02



Max. rotating speed of work table



rpm



4.6



Main motor power



kW



18.5



Overall dimensions of machine



mm



4520x3800x3090








Free Std Accessories


















































S.N



Name



Remark



1



Main machine



1 set



2



Hydraulic, lubricate, coolant system and chip conveyor



yes



3



Electrical box with the A/C



yes



4



Semi safety cover



yes



5



 Cutter arbor)



1



6



Machine wedge plates and operation tools



1 set



7



Documents In English



1 full set






Optional Accessories


 Pls send inquiry to me for optioanl accessories and other further information about such cnc gear shaping machine.





Our Services


1, Your inquiry will be replied in 24 hours;


2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;


3, To offer free spare parts and service within one year of warranty;


4, Technical Support Provide operation video for training;


5, Professional after-sales service team;


6, Call us at any time: +86-1313 046 5353/156 411 21240|Wechat: 1313 046 5353


7, Fax us:+86-411-84410129

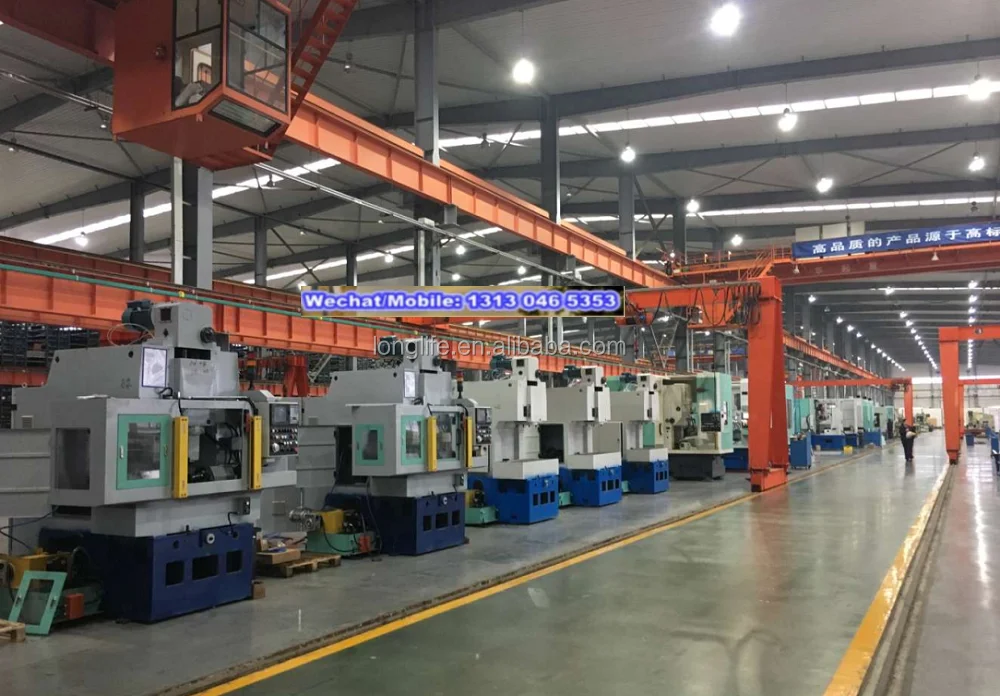

Factory Overview
