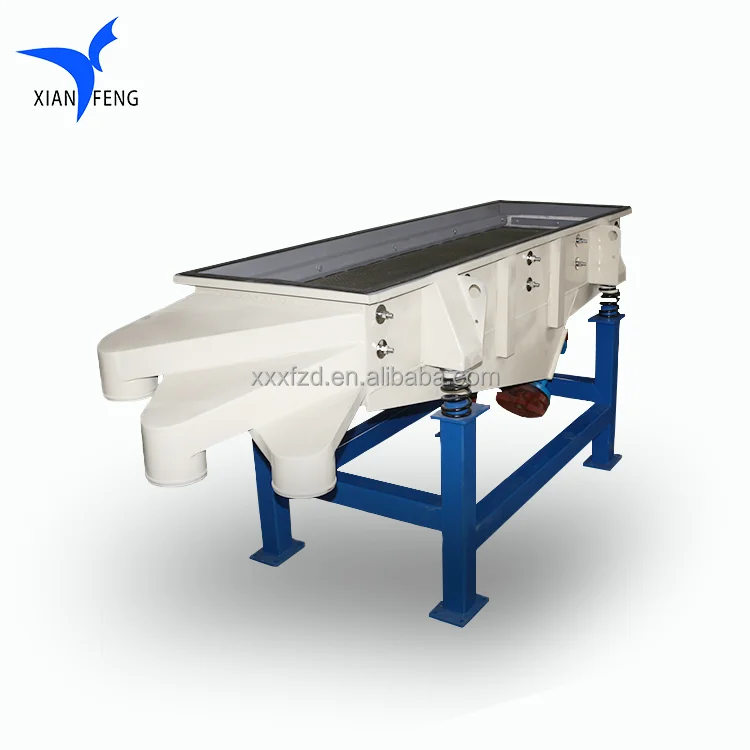

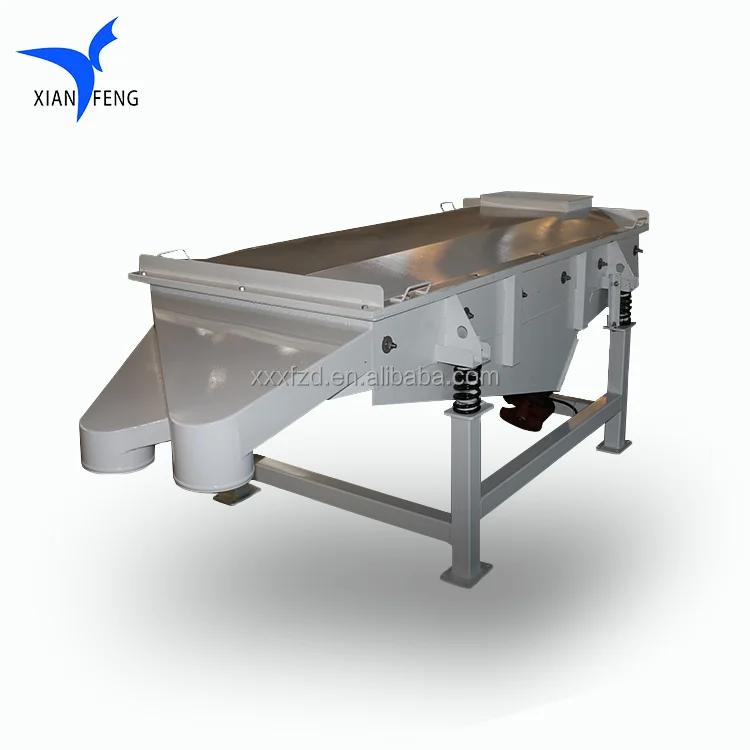

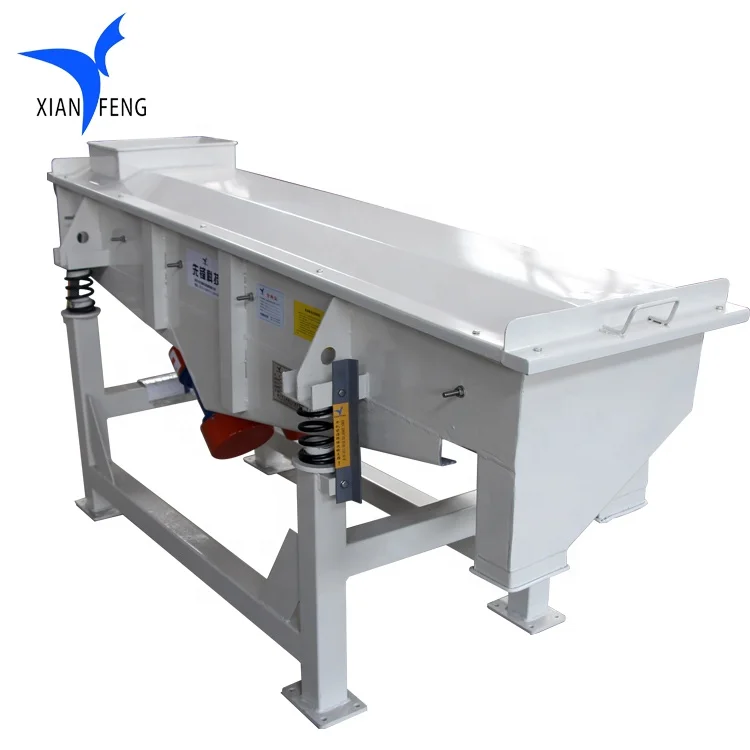

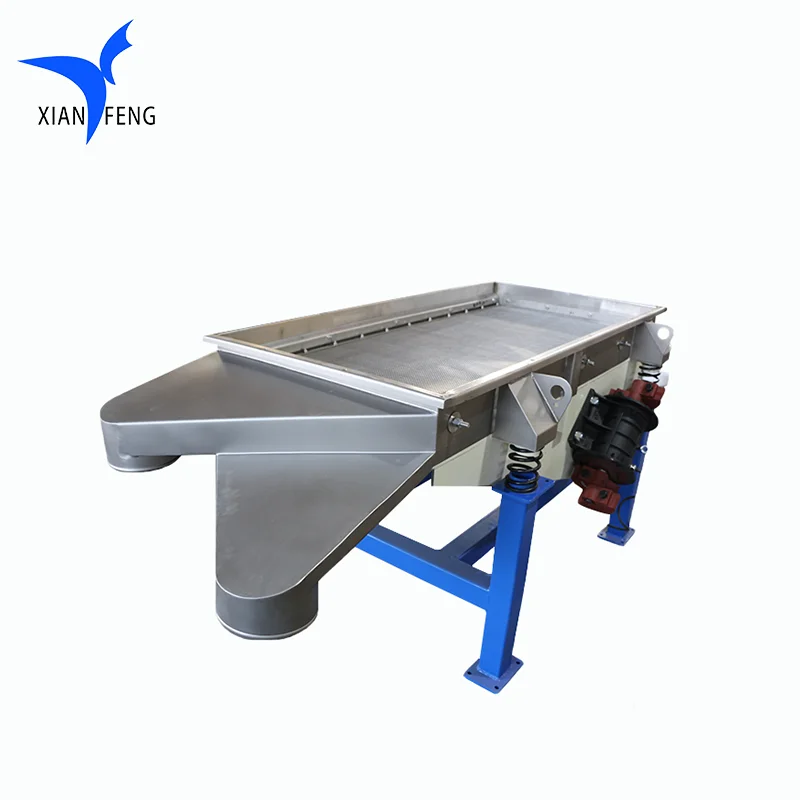

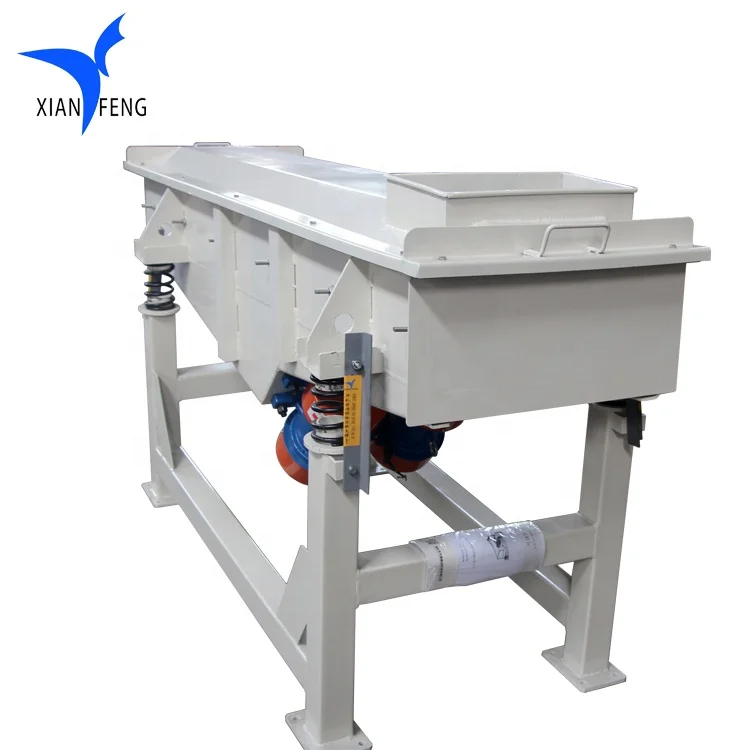

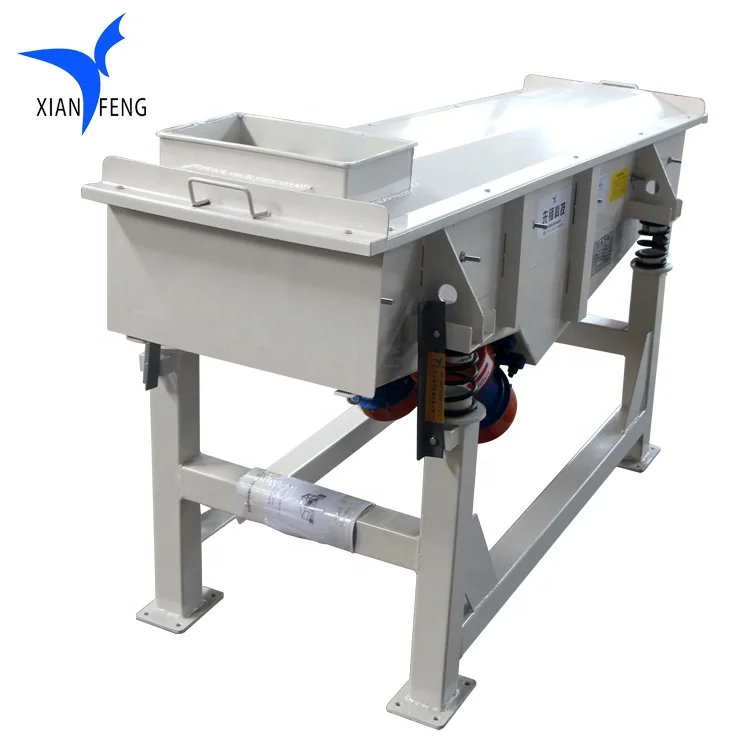

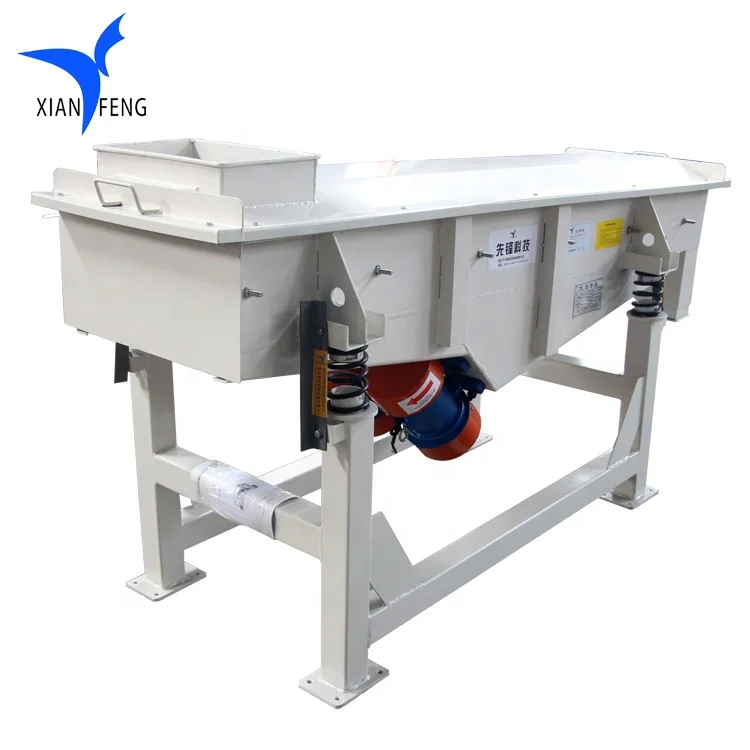

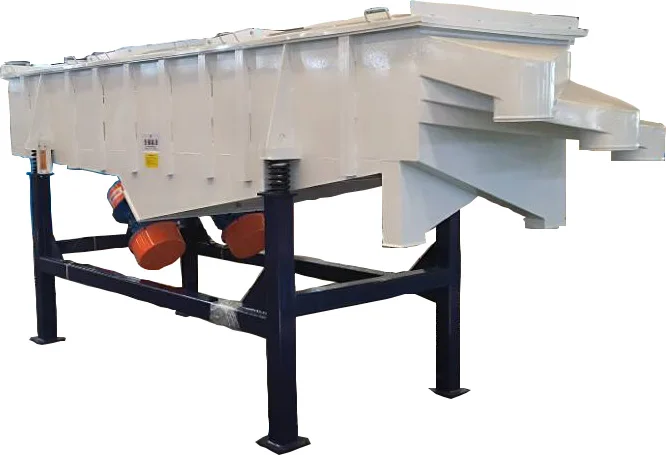

2000 kg/hour charcoal linear vibrating screen sieve machine high capacity
2000 kg/hour charcoal linear vibrating screen sieve machine high capacity
2000 kg/hour charcoal linear vibrating screen sieve machine high capacity
2000 kg/hour charcoal linear vibrating screen sieve machine high capacity
2000 kg/hour charcoal linear vibrating screen sieve machine high capacity
2000 kg/hour charcoal linear vibrating screen sieve machine high capacity
2000 kg/hour charcoal linear vibrating screen sieve machine high capacity

2000 kg/hour charcoal linear vibrating screen sieve machine high capacity

Share on (62294757739):


Price:$1,360.00 - $3,250.00

Quantity:


Product Overview

Description



Product Description

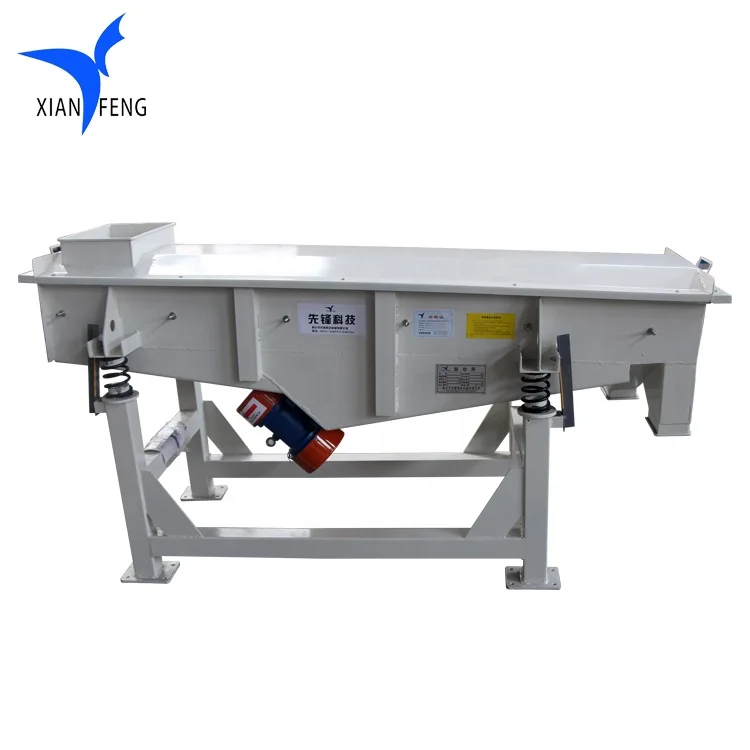

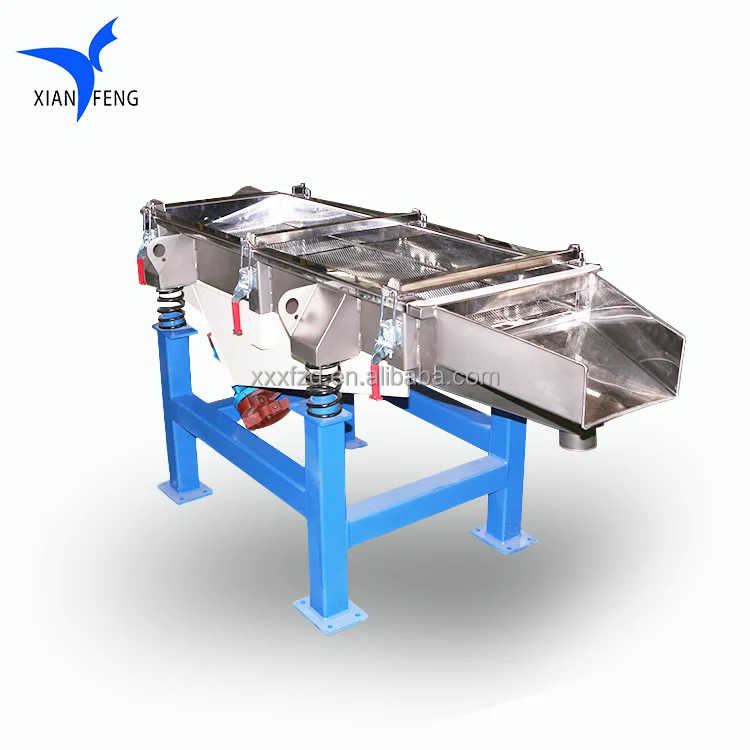

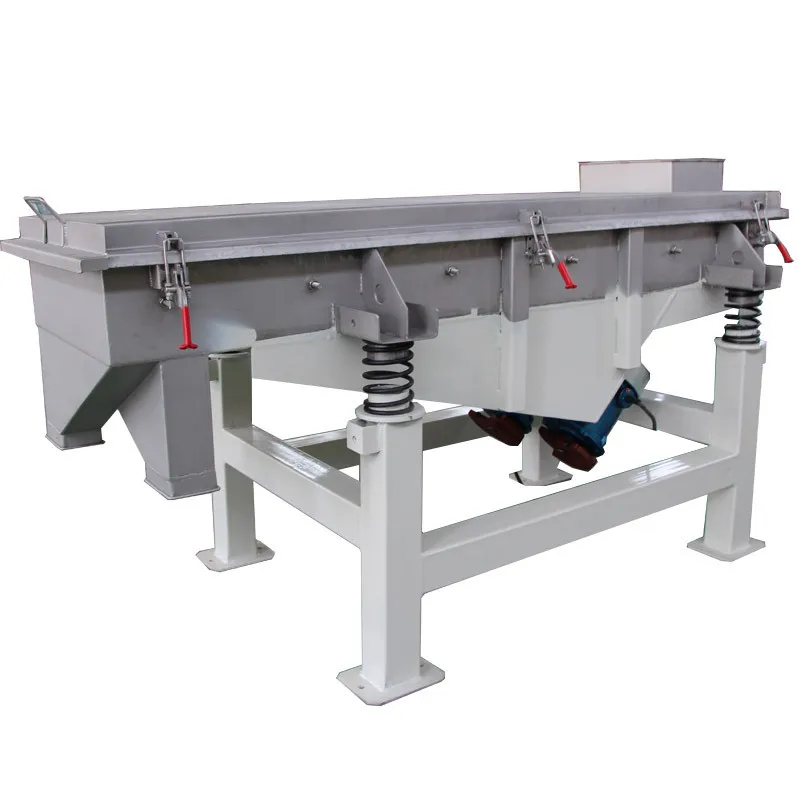

Linear vibrating screen is widely used in metallurgy, building material, chemical industry, cement, ceramic, grain and food industry. It is used to classify different levels of materials. It also can be applied in flowing line to achieve automatic
operation.

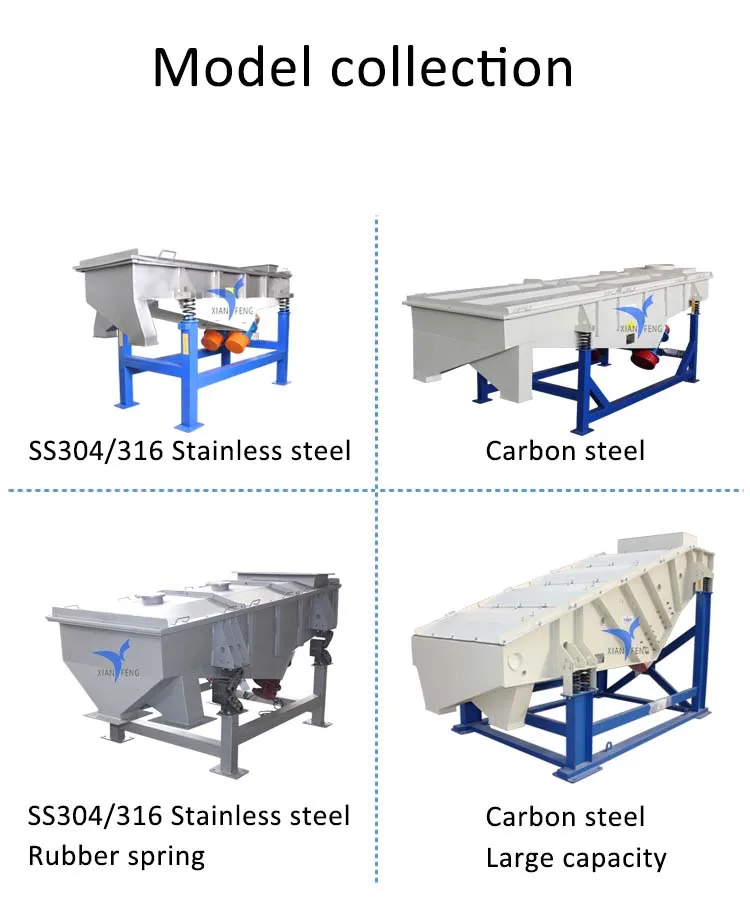

XFZ0520-2 XFZ0515-1 XFZ0820-1 XFZ1020-1
L * W * H L * W * H L * W * H L * W * H
2150 * 766 * 1145 2650 * 1066 * 1200 2650 * 1066 * 1360 3050 * 1538 * 1200




Model
Overall dimensions
(mm)
Material particle size
Screen surface inclination
(°)
Amplitude
(mm)
Layer(s)
Power(kw)
XFZ0520
500×2000










0.074-10










0°-10°










3-8










1-7
2×(0.37-0.75)
XFZ0525
500×2500
2×(0.37-0.75)
XFZ0530
500×3000
2×(0.55-1.1)
XFZ0535
500×3500
2×(0.55-1.1)
XFZ1020
1000×2000
2×(0.55-1.1)
XFZ1025
1000×2500
2×(1.1-1.5)
XFZ1030
1000×3000
2×(1.1-1.5)
XFZ1035
1000×3500
2×(1.5-2.2)
XFZ1040
1000×4000
2×(1.5-2.2)
XFZ1225
1200×2500
2×(1.5-2.2)
XFZ1230
1200×3000
2×(1.5-3)
XFZ1235
1200×3500
2×(1.5-3)
XFZ1530
1500×3000
2×(2.2-3)
XFZ1535
1500×3500
2×(2.2-3)
XFZ1540
1500×4000
2×(2.2-4)


The technical data above is just parts of our standard products, if you need other model or even customized machine, please feel free contact us.

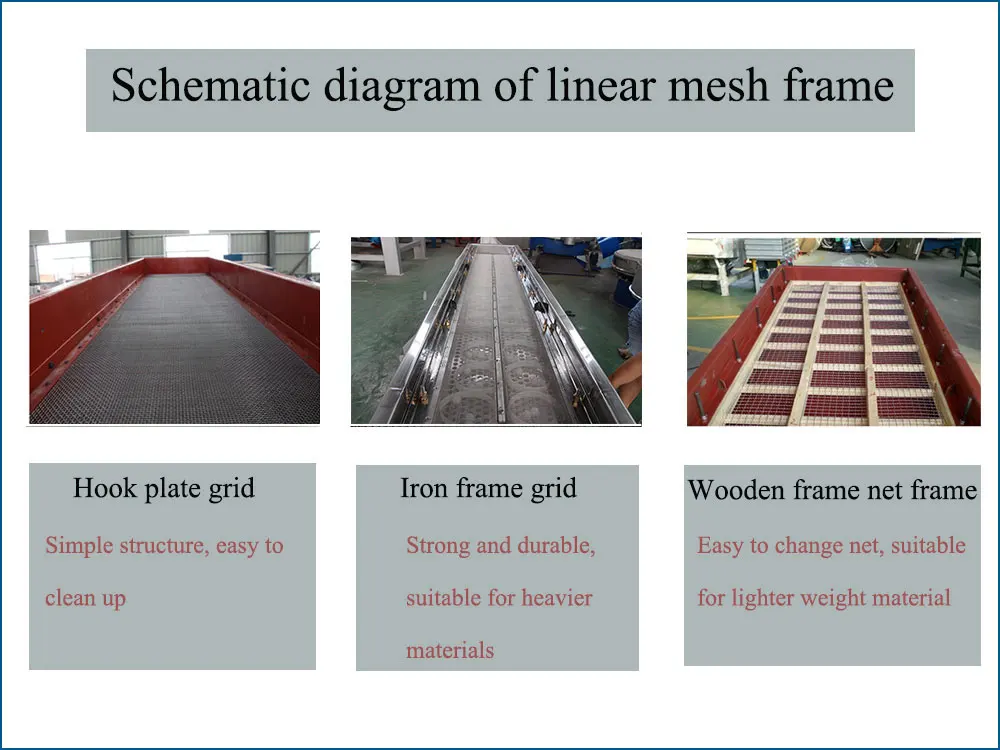

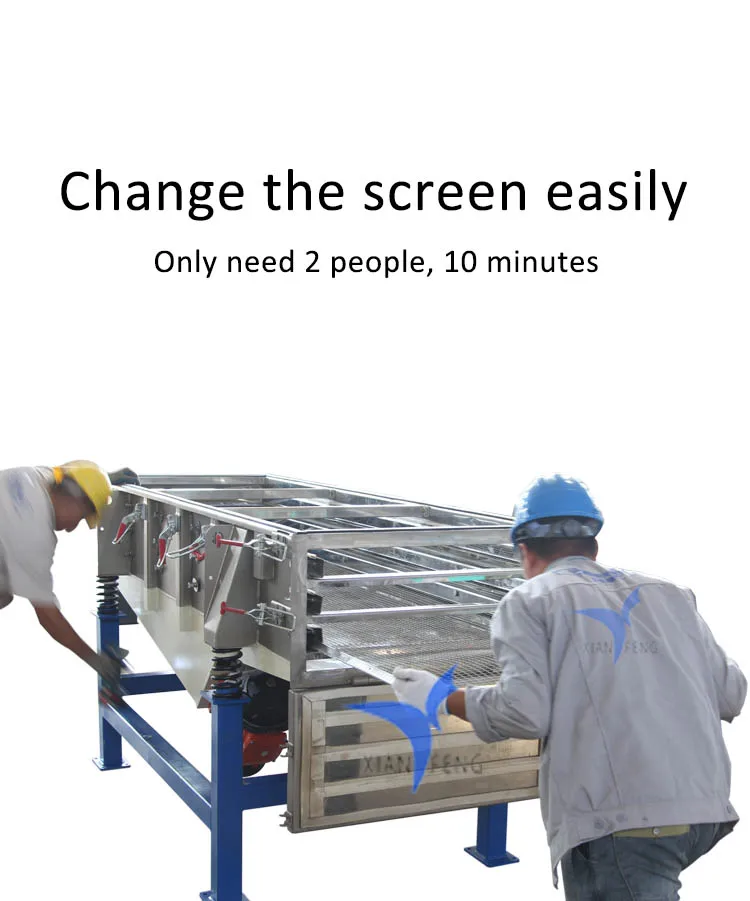

Different screen type according to your requirement

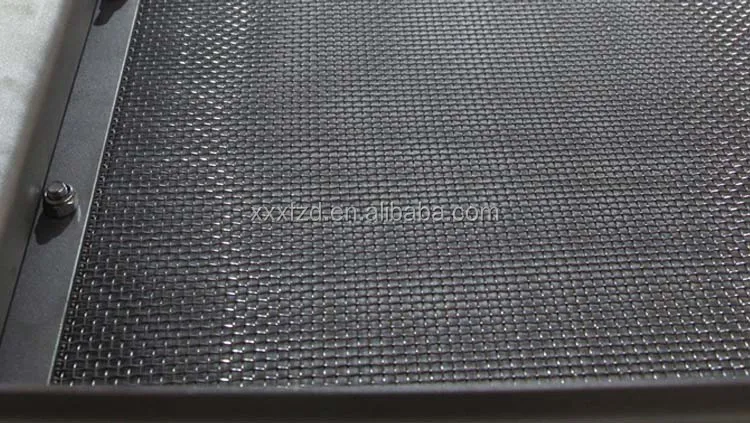

PU screen Wire mesh
Polyurethane 304/316 stainless steel

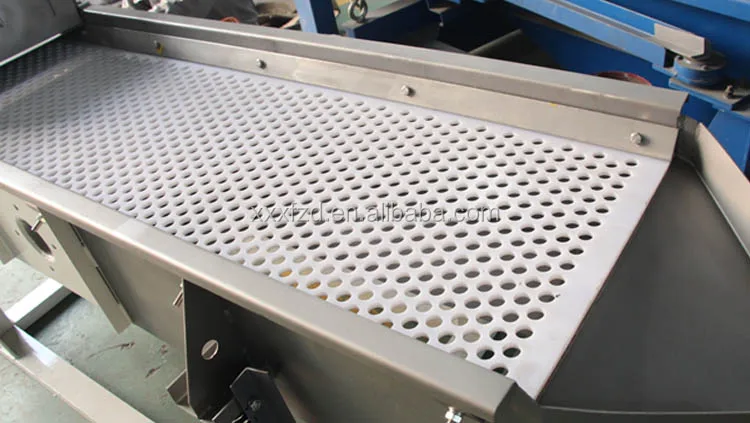

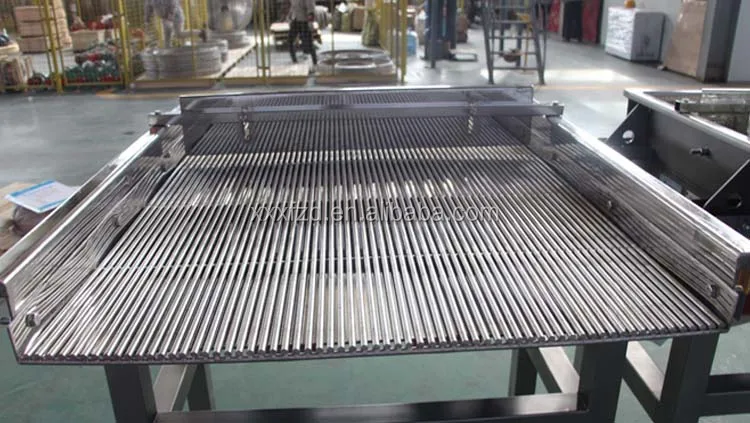

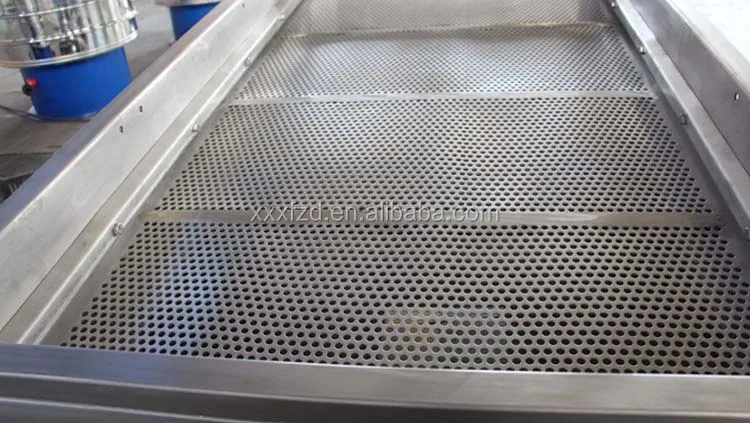

Rod screen Punching plate
304/316 stainless steel 304/316 stainless steel






Application




Food industry: sugar, spices, starch, soybeans, salt, instant potatoes, animal feed, powdered milk, cereals and grains, tobacco, teff, instant coffee granules, chocolate powder, soybean flour, broth concentrate, potato granules, sugar beets, ice cream, fruit juices, vegetable and pickle canneries, soybean oil.

Construction Industry: sand, glass beads, plaster, abrasives Grit/shot, borax.

Chemical Industry: fertilizer, rubber, polystyrene beads, paint, detergents, latex, catalyst, casein.

Recycle: animal blood, paper effluent, brewer yeast, sewage, manure, brewery waste, laundry waste, potato peelings and waste, tallow.

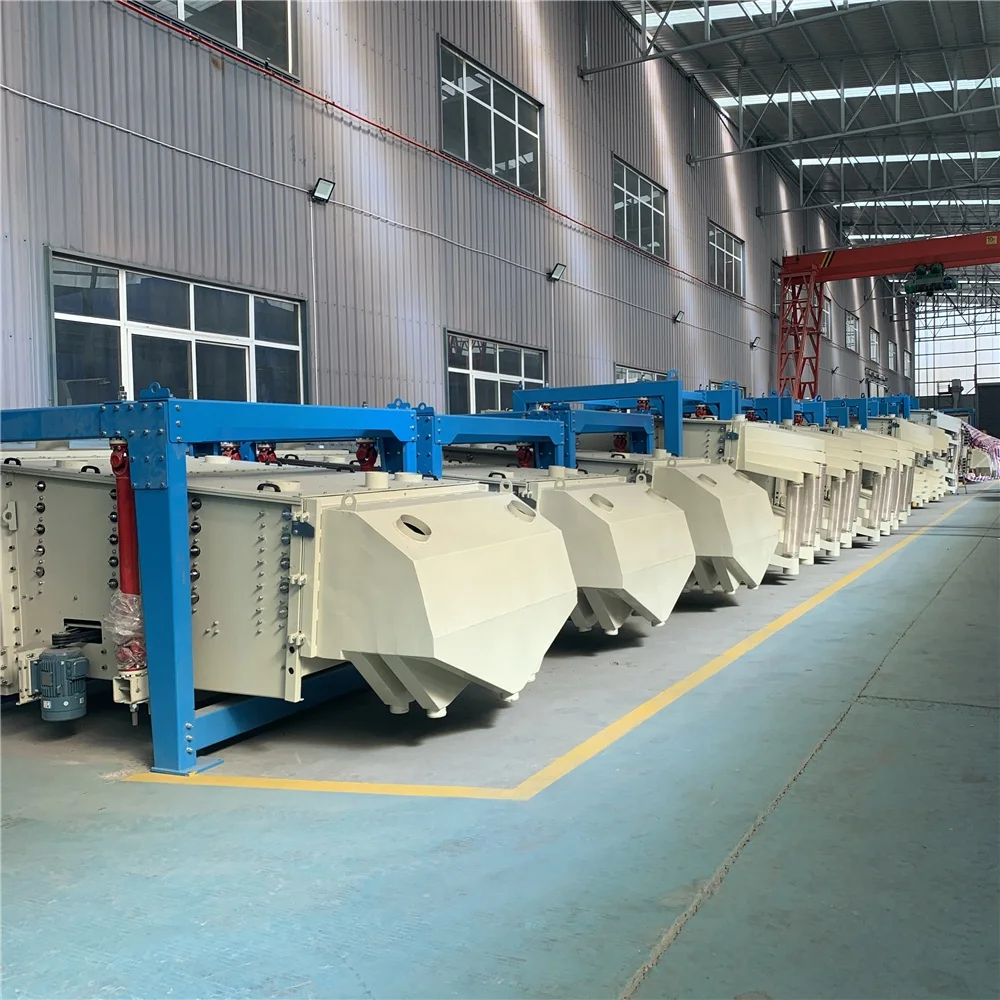

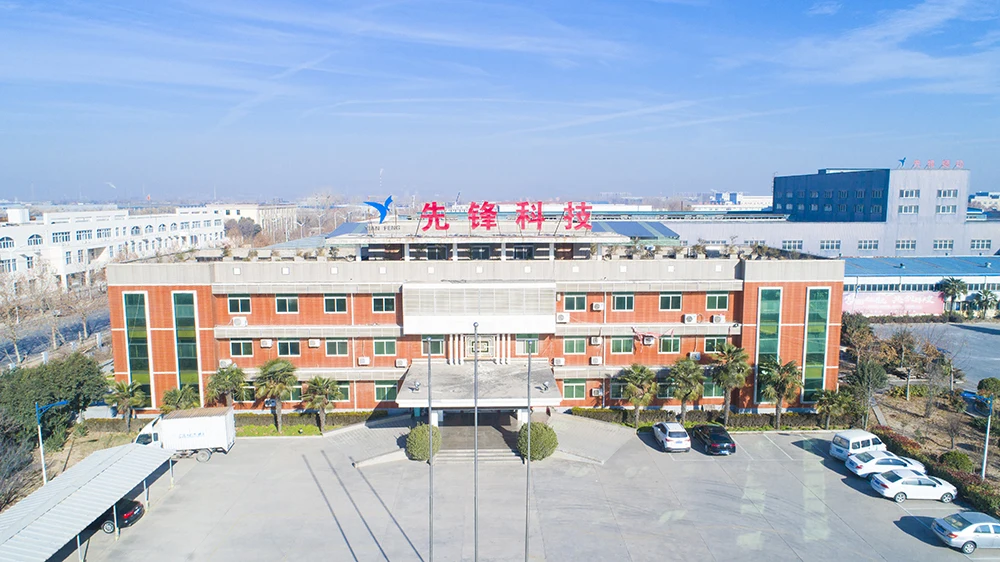

Company Profile

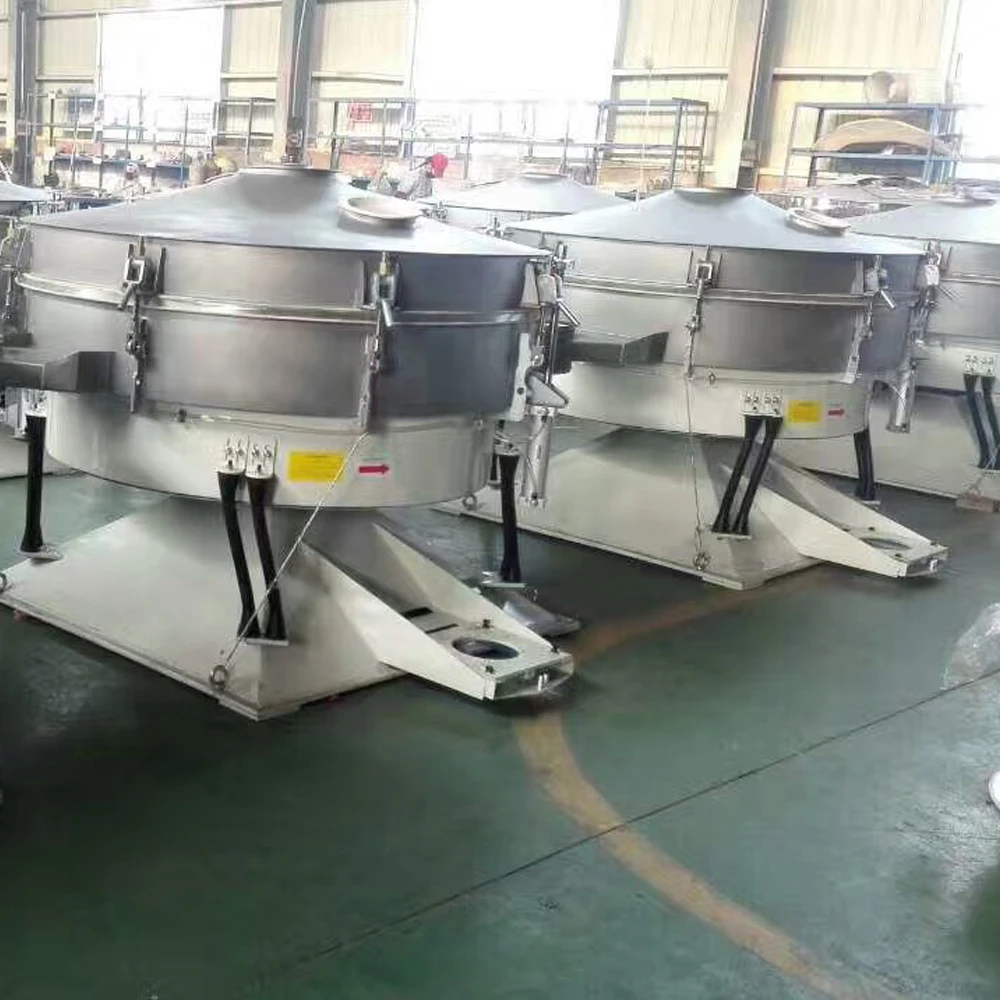

XIANFENG is a leading manufacture of customized industrial separation equipment. We manufacture round, rectangular and pharmaceutical vibrating sieves and product lines of separation products, including conveyor, elevating, feeding, packing and a wide variety of aftermarket screens and parts.

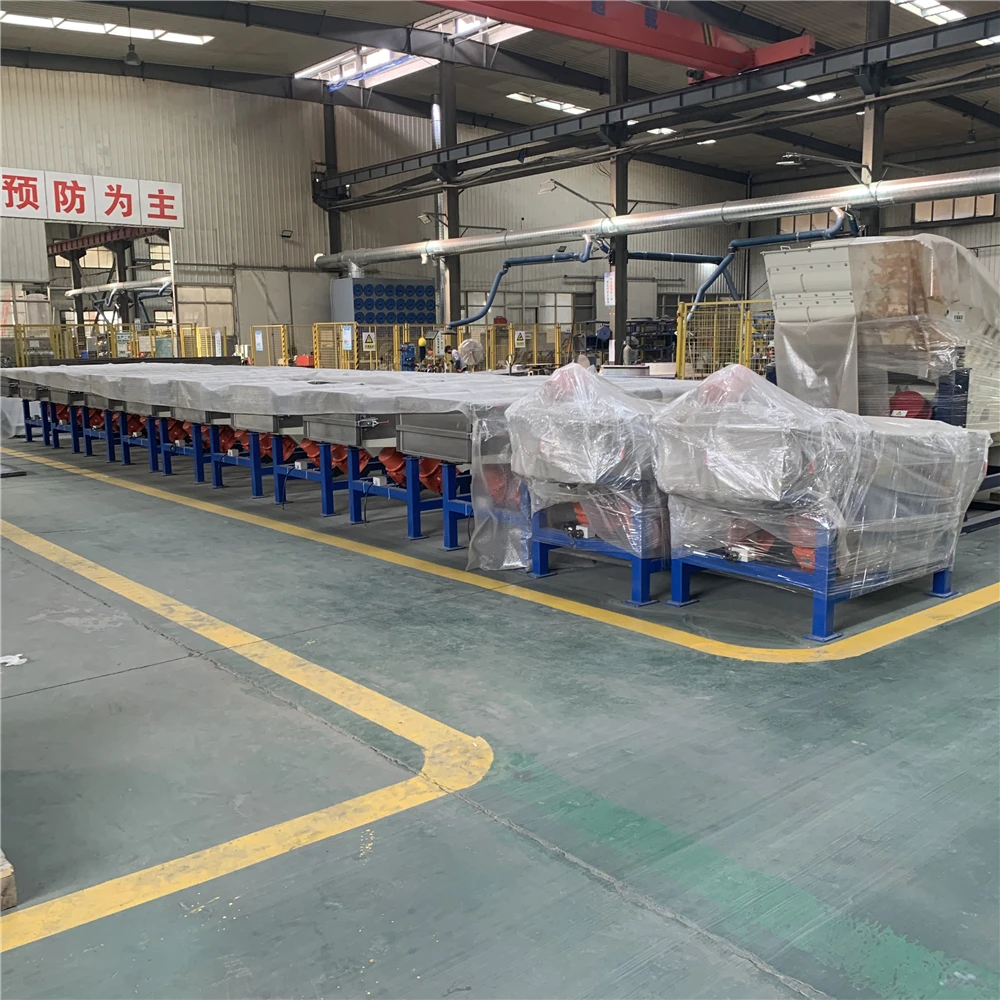

Packing & Delivery




FAQ


Q : What details do I need to provide if I want to confirm the precise model?
A : 1. Material 's name to be screened or conveyed.
2. The particle size of material.
3. Whether the material contains water, and what's the water content.
4. Production of required equipment.
5. The voltage and frequency.

Q : What are your payment terms?
A : We accept T/T, L/C, west union and other payment terms.

Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;

Q: What can you buy from us?
A: Vibrating Screen Machine,Conveyor Equipment,Feeding Equipment,Screening Separation Equipment
