TCA Semi automatic 50kg/h cassava yam plantain banana potato chips making machine chips processing

Share on (62294870456):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

Product Application

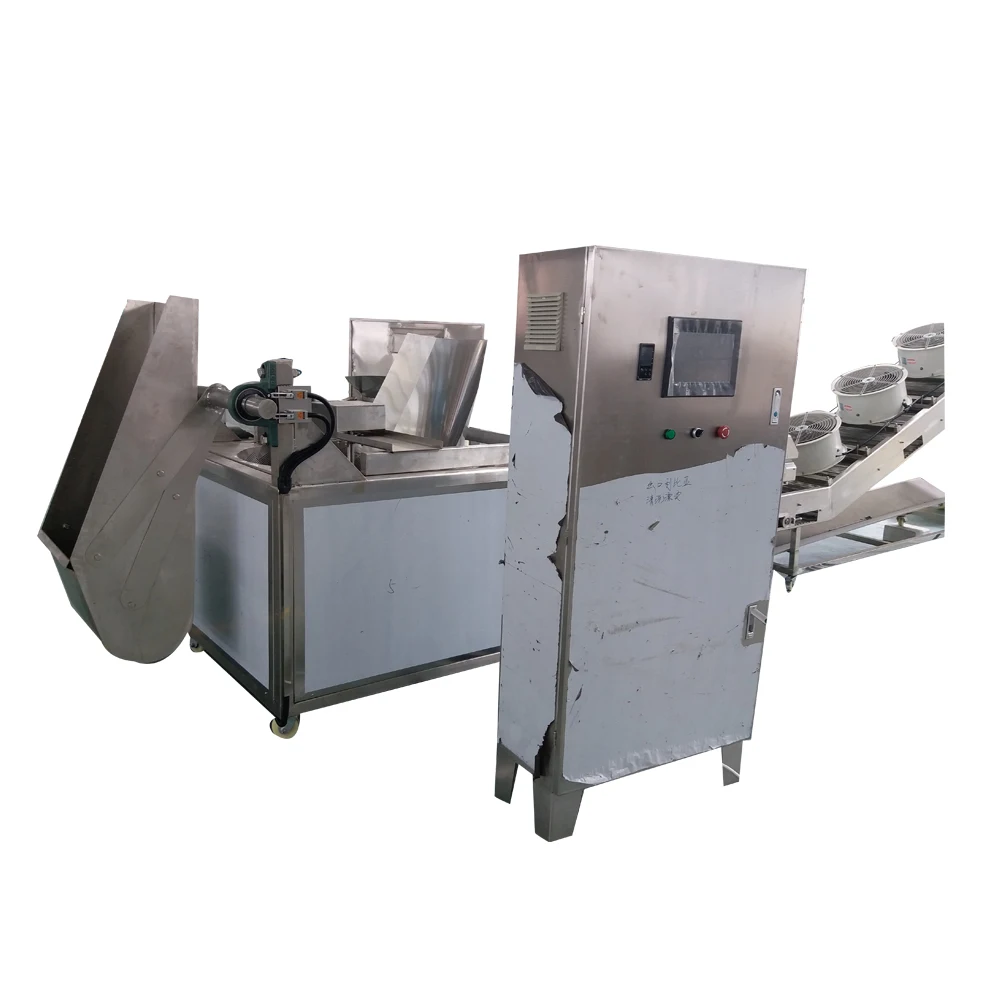

Semi-automatic chips making machine


1) machines including:

Washing peeling machine

Cutter

Frying machine

Vibrating deoil machine

Seasoning machine

Banana chips/ yam chips cutter


2)Output capacity

30-50kg/h
4)fresh potato chips requirement
For fresh potato or cassava or banana or yam
Chips: it is about1.5- 2mm; size and thickness is in uniform, surface is smooth

Main Features

1) a complete line from A to Z
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Good experience for this line
4) All is SUS304
5) Good service

Certifications
Detailed Images

Suitable for different products

Name: Potato chips, taro chips, cassava chips, banana chips and so on

Brand: Xinxudong

Original: China

One line can make different products.


Continous Frying Machine

Wash and peel of the fresh potatoes. Water is from the above tubes can wash the fresh potato. The hard brushers can peel the potatoes

Model:WPJ-800

Dimension:1280*830*1010mm

Brush length: 800mm

Brush qty: 6 piece

Power:1.5kw/380v/50hz

capacity: 600-800kg/h

weight: 200kg

Material: SUS304

Thickness: 3mm

Cutter

Brand: Xinxudong
Original: China

It is used for cutting carrot, potato, sweet potato, taro, bamboo shoot, onion, eggplant and apple and other fruit and vegetables.

It can cut different shapes and size by changing the blades.

Easy to wash

Model:QPJ-800

Size: 780*880*930mm

Power: 0.75KW/380V/50HZ

Capacity: 600kg-1000kg/h

Chips: 2-8mm

French Fries:3-10mm.(3*3, 4*4,….10*10)

Dices: 6MM8MM10MM12MM15MM20MM

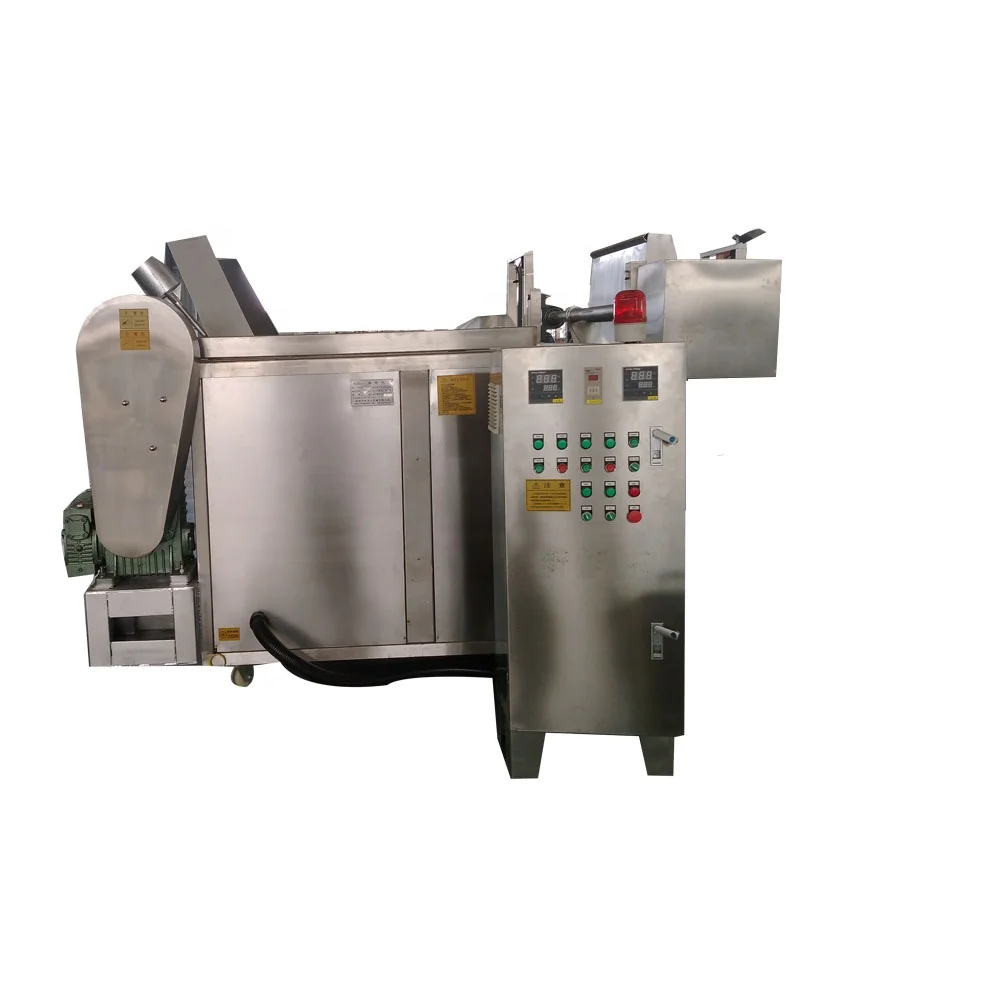

Frying machine

Brand: Xinxudong
Original: China

Frying potato chips or french fries. For french fries, the frying time is 40-60seonds, for potato chips the frying time is 2-4 minutes

The frying time and temperature can be adjustable and based on ur request



Model: XDF-1200*1200

Dimension: 2500*2200*1200mm

Power:72kw OR gas heating or diesel or lpg heating

Material: SUS304

Capacity:200kg/h for fresh potato, 50kg/h

Automatic feeding, mixing and discharging
For gas heting, the design is different from electricity and need burner.
Vibrating deoil machine

It is for removing the oil after frying

  1. Model:SSJ-1500
  2. Power: 0.55KW/ 380V/ 50HZ

Overall SUS304 stainless steel Material: SUS304

frame thickness: 2.5 mm

Size: 1500*1200*1800mm

Seasoning machine

To make different flavors by the machine

Model: TWJ-800

Diameter: 700mm

Capacity: 200kg/h

Size:1500*800*1540mm
Yam, cassava, banana chips cutter

It can cut different sizes of vegetables; by choose positive and slope outlet, it can cut positive chips or slope chips;

We can design and manuafacure based on customer’s requirement

  1. Model: QPJ
  2. Size:600*800*1050mm
  3. Thickness: 0.5-4mm adjustable
  4. Material: SUS304
  5. QTY: 1SET
With water cleaning
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Finished Products

Potato chips

This line can be used for making potato chips from fresh potato

Cassava chips

Can make cassava chips from fresh cassva

Banana chips

Can make banana chips from fresh banana

Packaging
Size
Based on machine
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.
