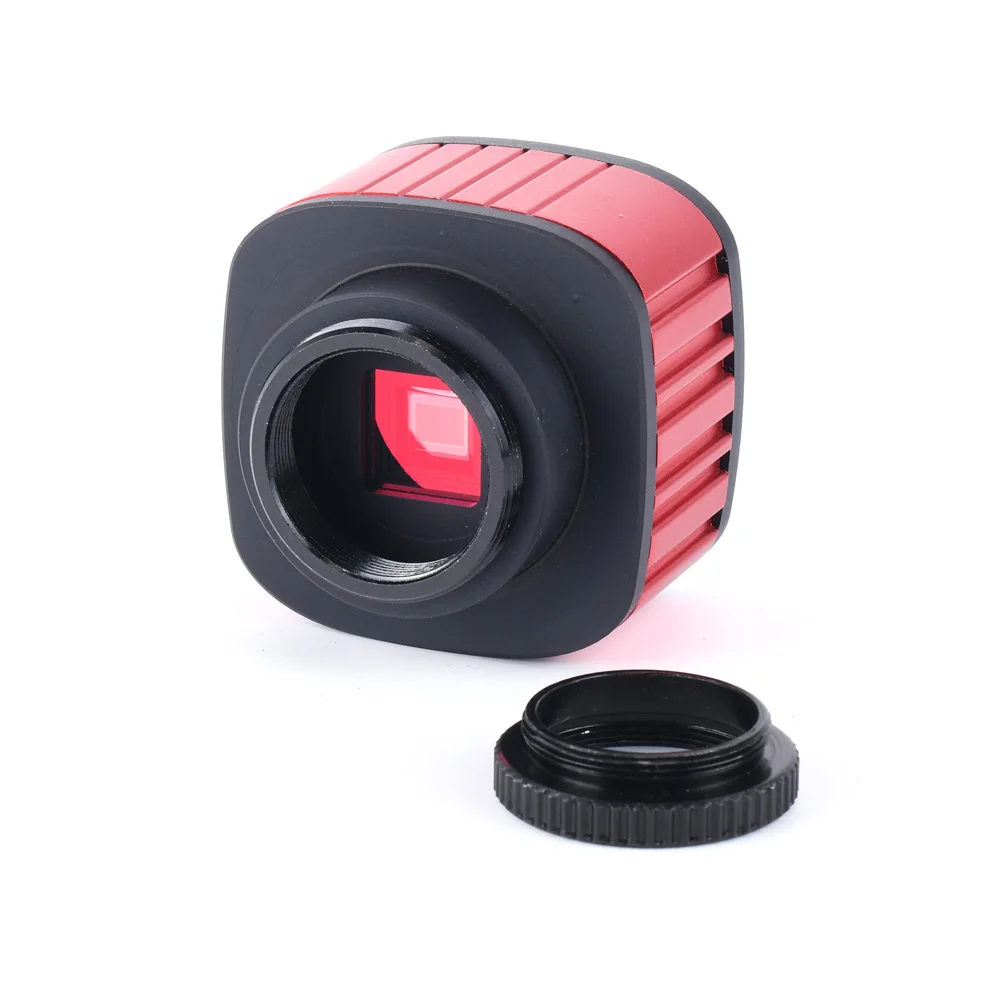

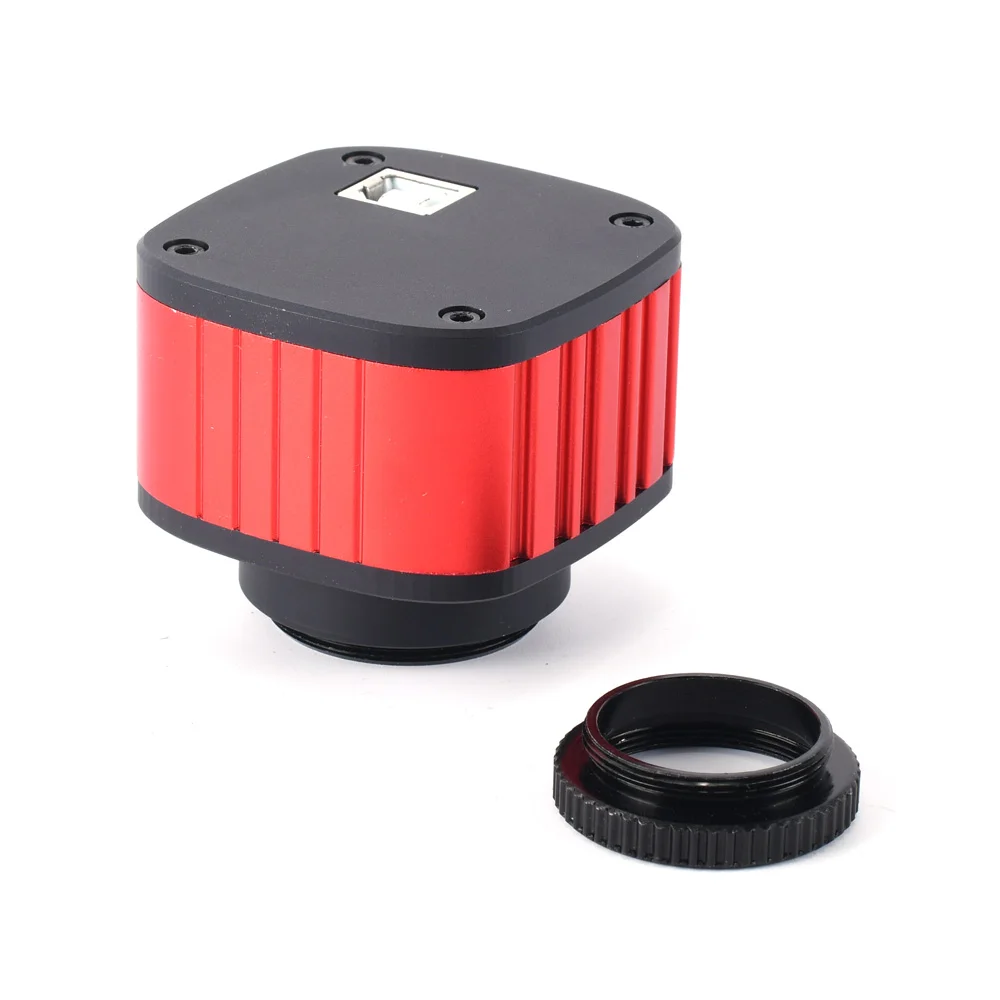

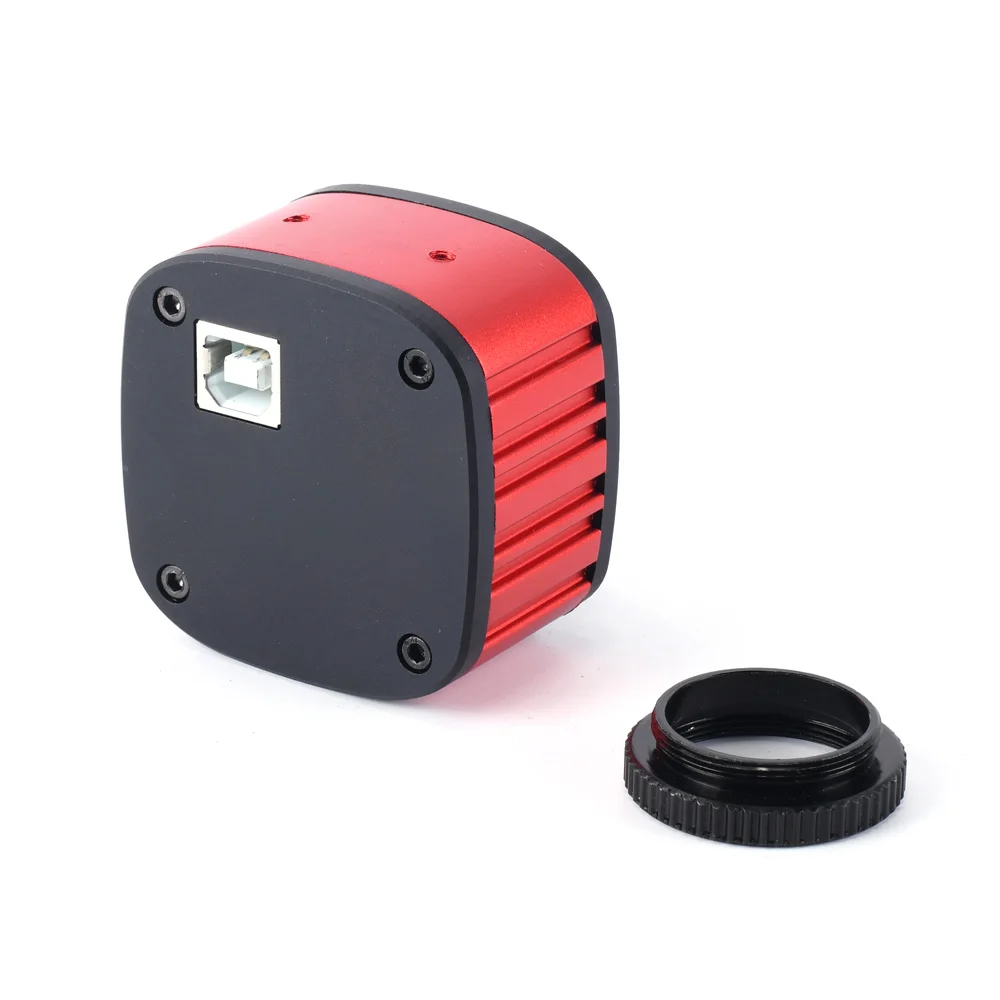

HAYEAR HD 12MP 1080p 30fps Microscope Camera SONY Sensor Trinocular C mount Digital Video USB Industrial Camera Soldering

Feature

Output

 USB2.0 output

Full resolution

 3840 x 2880

Exposure & Gain

 Adjustble

White Balance

 Adjustble

Color Adjustament

 hue /saturation / brightness / contrast / gamma adjustble

Power Frequency

 AC (50 Hz) / AC (60 Hz) / DC

Color

 gray

Flip

 horizontal /vertical

Sharpness

 adjustbe

Specification

Model

 USB Output

Sensor

 12MP, 1/2.3 inch

Image equipment

 SONY IMX CMOS

Sensor

 12.0MP

Full Resolution

 3840 x 2880

Frame rate

 (MJPEG) 3840 x 2880@15FPS; 3840 x 2160@25FPS; 3264x2448@15FPS; 2592 x 1944@25FPS; 1920 x 1080@25FPS; 1024 x 768@30FPS; 800 x 600@30FPS; 640 x 480@30FPS

Frame rate

 (YUV )3840 x 2880@1FPS; 3840 x 2160@1FPS; 3264 x 2448@1FPS; 2592 x 1944@1FPS; 1920 x 1080@5FPS; 1600 x 1200@5FPS; 800 x 600@20FPS; 640 x 480@30FPS

Pixel size

 1.55μmm x 1.55μm

Programmable control

 The size of the image, image photographing, exposure time, gain, GAMMA,

White Balance

 Adjustable

Data output

 16bit

Light

 Auto

Electronic shutter

 20-100000

White balance (dB)

 38.1 dB,

Color

 Color

Sensitivity

 1.4V/lux-sec@550nm

Spectral response

 400nm-1000nm
