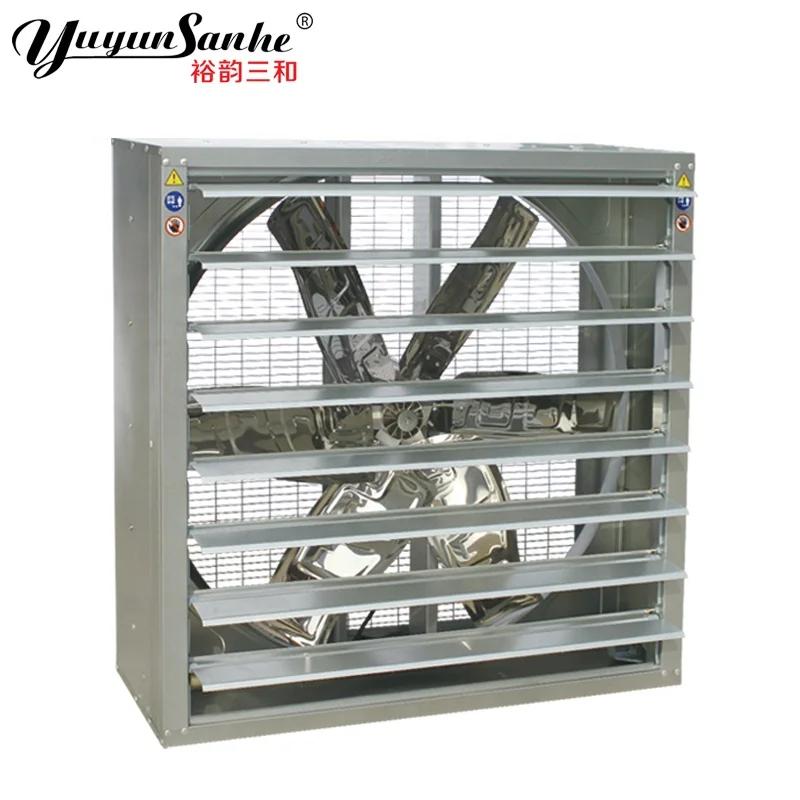

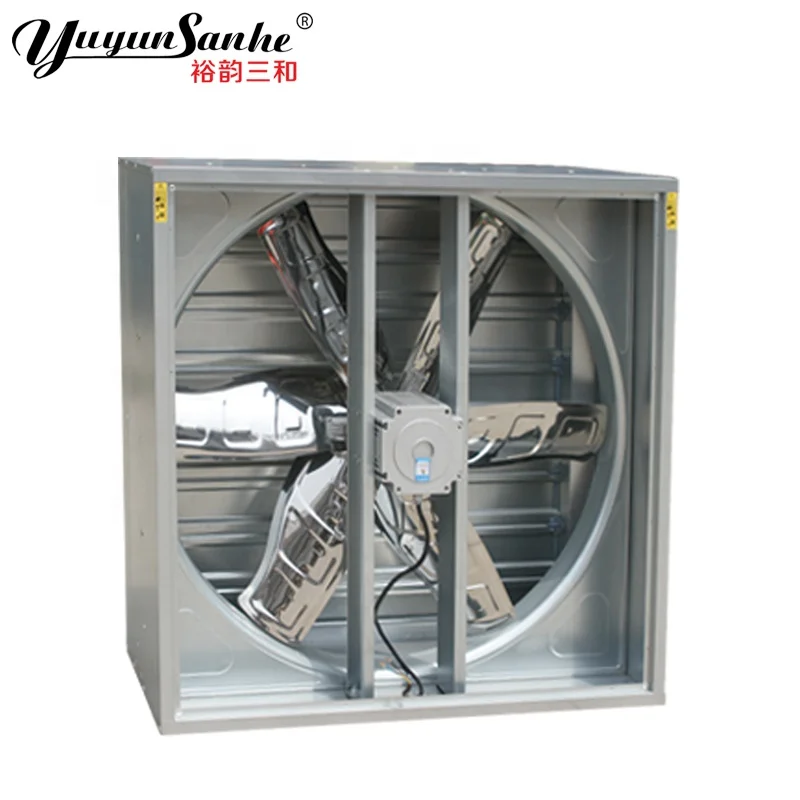

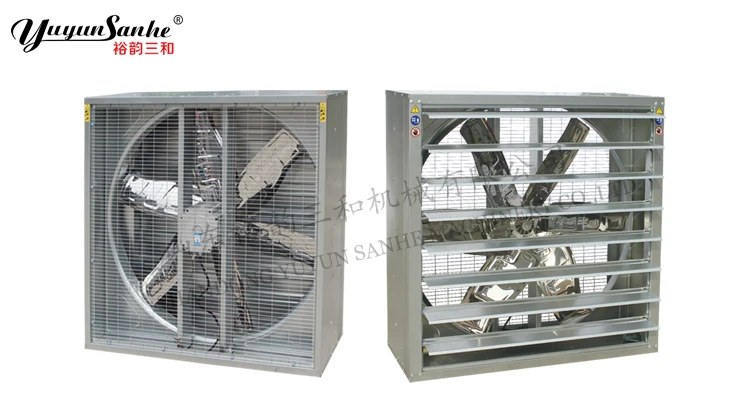

1100 mm exhaust fan 40 inch motor drive directly swung drop hammer fan industrial extractor fans
- Category: >>>
- Supplier: Shandong Yuyun Sanhe Machinery Co. Ltd.
Share on (62294943059):
Product Overview
Description
VR
Product Description
Product Application
DJF(k) Series Motor-drive directly Swung Drop Hammer Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.

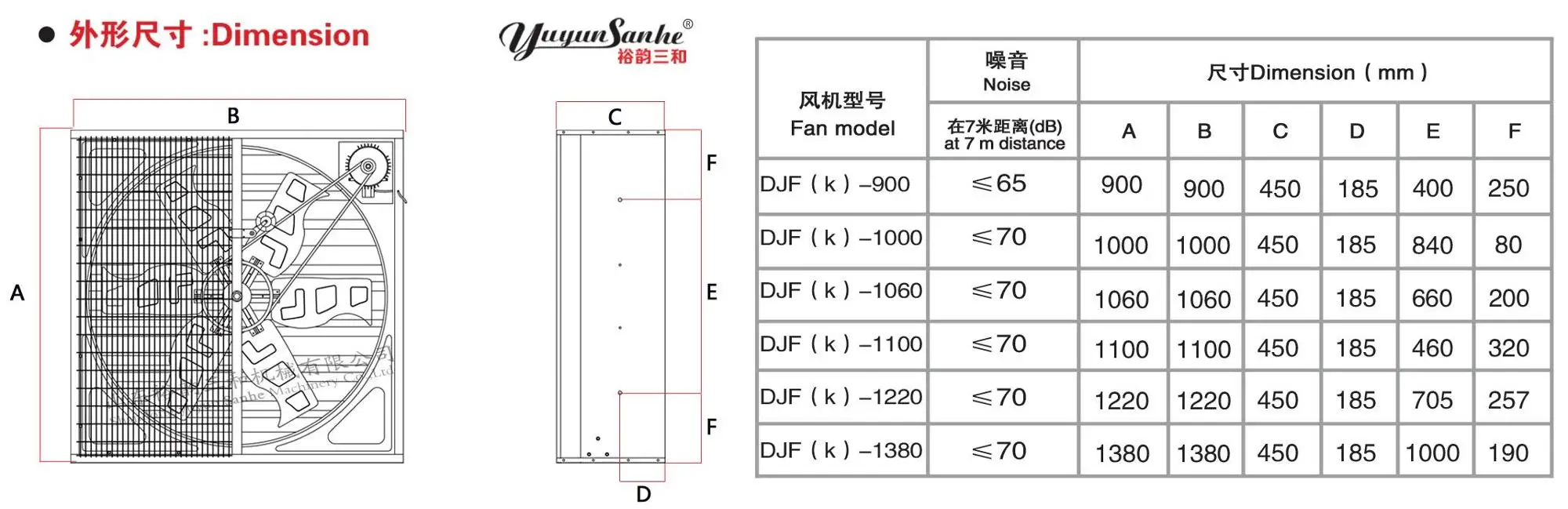

Technical Data: | ||||||||||||||
Model | Drive | Blades Diameter(mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed(rpm) | Air Flow (m³/h) | Input Power (W) | Noise (db) | |||||||
DJF(k)-900 | Motor-drive | 750 | 560 | 560 | 21000 | 370 | <65 | |||||||
DJF(k)-1000 | Motor-drive | 900 | 560 | 560 | 24000 | 750 | <65 | |||||||
DJF(k)-1060 | Motor-drive | 1010 | 560 | 560 | 28000 | 750 | <65 | |||||||
DJF(k)-1100 | Motor-drive | 1000 | 560 | 560 | 31000 | 750 | <64 | |||||||
DJF(k)-1220 | Motor-drive | 1100 | 560 | 560 | 40000 | 750 | <64 | |||||||
DJF(k)-1380 | Motor-drive | 1270 | 460 | 460 | 45000 | 1100 | <64 | |||||||
Main Features
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
Detailed Images
Drive type
Blades are directly driven by motor
Advantage:
High efficiency, low fault rate, no need to change the belt to reduce service cost.

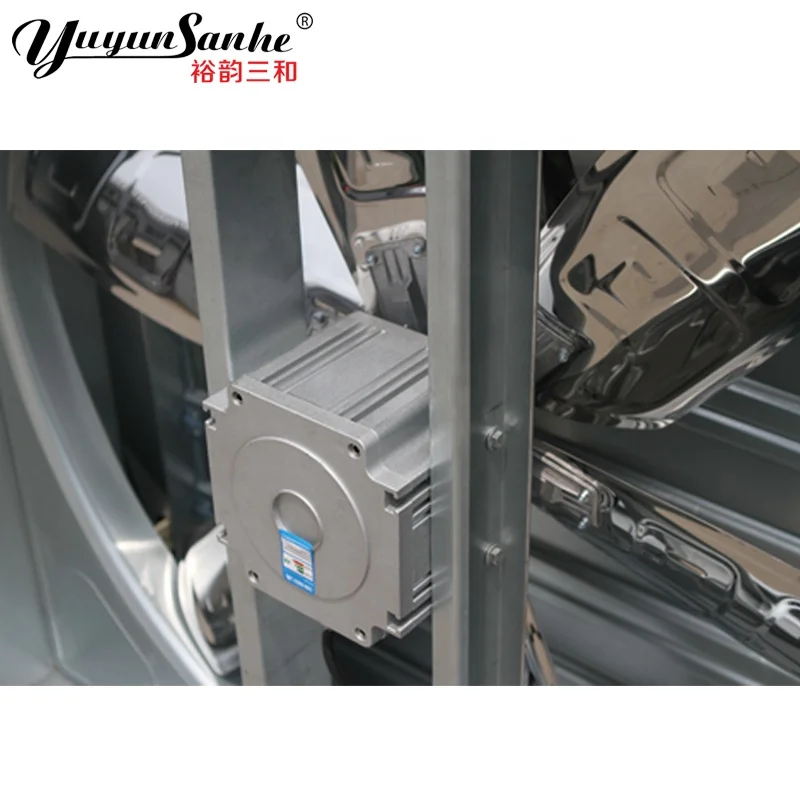

Motor
Certificate: CCC
Protection class: IP55 grade
Insulation class: F grade
Advantage:
High-efficiency,Energy-saving.
High-efficiency,Energy-saving.
Double upright column
Adopt updated double upright column design, together with thickened hot-dip galvanized motor fixed plate
Advantage:
Excellent stability and outstanding performance of motor with blades
Excellent stability and outstanding performance of motor with blades

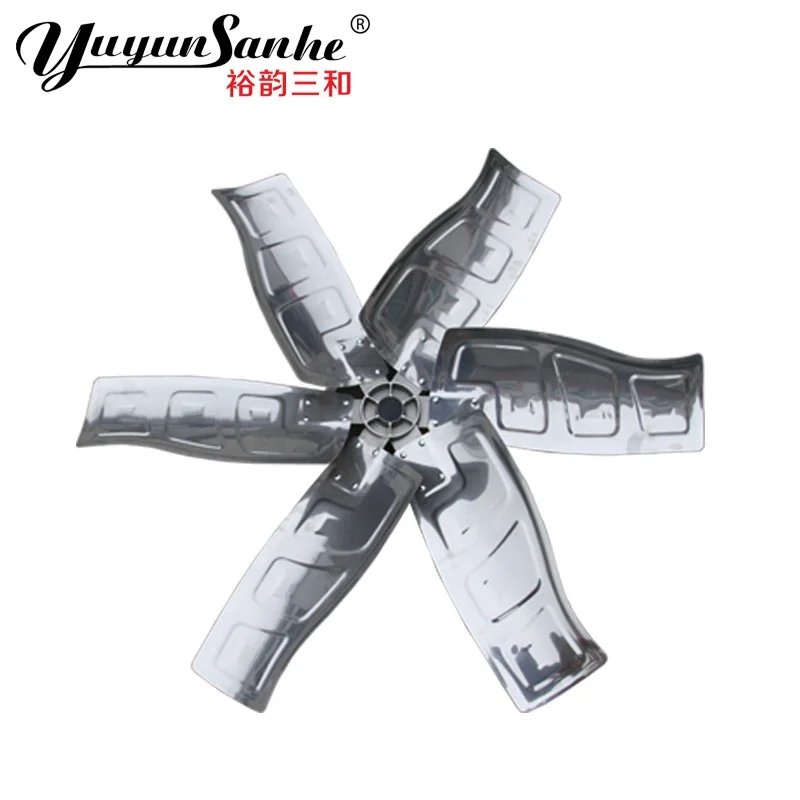

Fan blades
1. Material : 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
Italligent Dynamic-balance Tester
Fan blades are adjusted by Intalligent dynamic-balance tester, the weight tolerance of each blade is controlled within 1g.
Advantage:Ensure the fan smooth running,lower vibration,less noise,increase stability.
Opening System
1.Material: High quality Nylon PA66
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.
Bearing
Imported double-row bearing with special waterproof design.
Advantage:
High strength, low noise, free maintenance and long service life.
Safe Net
Material: Hot-dip galvanized wire is coated with Plastic
Advantage:
Double Protection to ensure never rust.
Certificate
Yuyun Sanhe Company have gotten many titles such as "China Ten Top Brands Fan" "AAA level of National Quality Company" "Honesty and Qualitative Enterprise", "Alibaba Assessed Supplier". International authority certified, Trustworthy
Yuyun Sanhe Products have passed "CE Certificate ", "CCC Certificate" and "Quality Management System Certificate"
Yuyun Sanhe Products have passed "CE Certificate ", "CCC Certificate" and "Quality Management System Certificate"

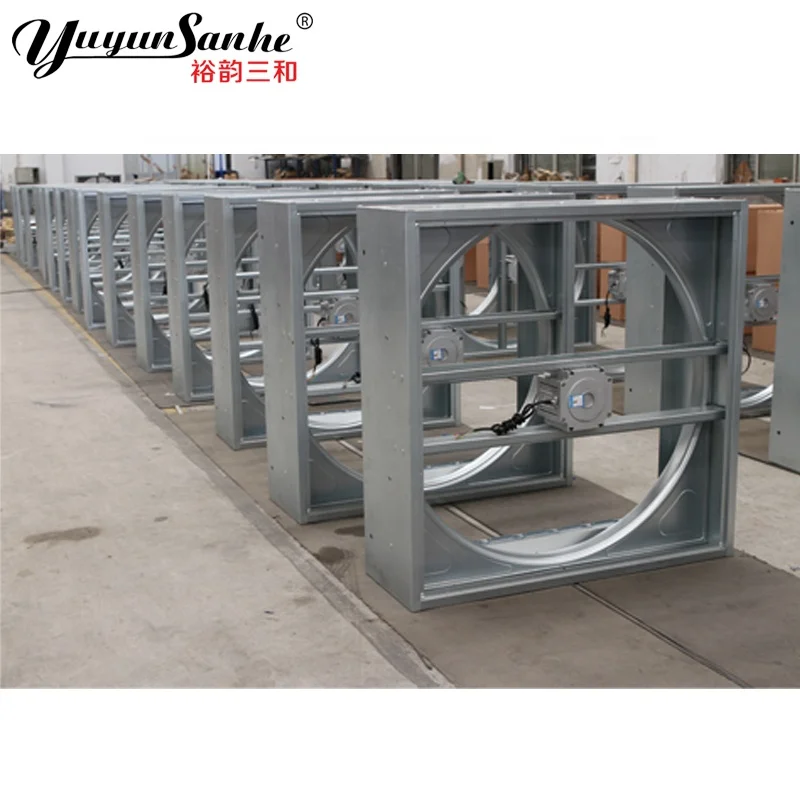

Factory&Workshop
No.1 ventilation equipment manufacturer in China, equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.
95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
Many customers from all over the world come to visit our company every year. Our company is highly praised by customers
Yuyun Sanhe Products have been exported to more than 70 countries in Asia, Europe, America, Australia, etc.
Global service, Annual sales over $ 30 million
Yuyun Sanhe Company attend many domestic exhibitions and abroad exhibitions every year to promote our products, Continuous improvement in communication with customers
Our Service
Yuyun Sanhe has 20+ years of professional design and production experience, more than 300 efficient R & D and production team.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
Main Product
Yuyun Sanhe Main Products are Ventilation fan, Evaporative Cooling Pad, Evaporative Cooling Pad Production Line, Greenhouse Fan, Cow House Fan, Shutter Louver, Heater, Air Inlet, Light Filter, Winch, Pulley, Time/Temperature Controller, Laying Nest etc.
