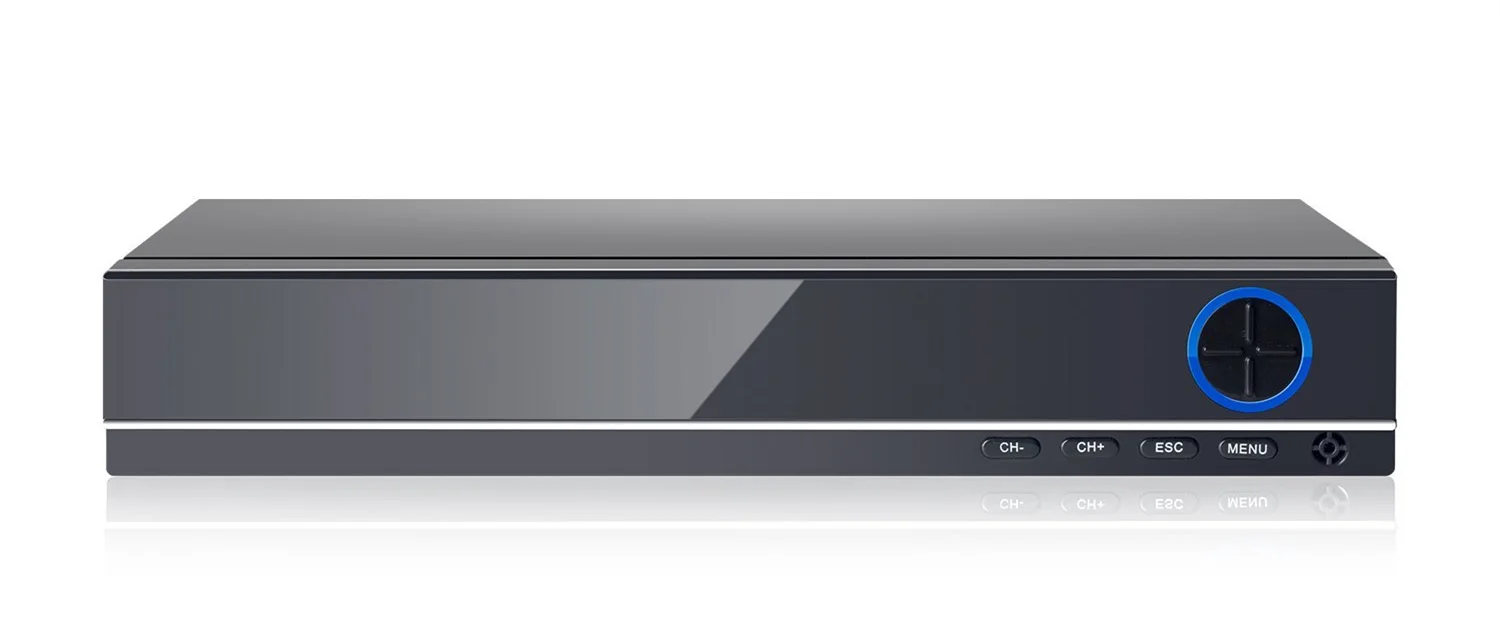

16CH 8MP HD 5 in1 AHD TVI CVI CVBS IPC Output Embedded DVR XVR Digital Video Recorder
- Category: >>>
- Supplier: Shenzhen Aiseeing Technology Co. Ltd.
Share on (62295082006):
Product Overview
Description
Key Feature: Support H.265+ encoding, ultra-low bitrates, compatible with H.265 surroundings; Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions; Support web, CMS, center platform management software MYEYE, provide SDK development; Support various mobile monitoring (iPhone, Android); Remote Access, With DNS (ARSP),easy to monitor remotely Support UTC, control signal& video stream transmit through one single coaxial Support XVI/AHD/TVI/CVI/CVBS/IP six signals; Support intelligent analysis: functions like Perimeter alert,item retention,Video diagnosis,intelligent fast play and intelligent retrieval Specification: |
| Model | AI-TVR8116 | |
| System | Main processor | Hi3531D |
| Interface | Preview | 1/4/8/9/16 |
| Video | Codec | H.265+ |
| Monitor quality | VGA(1080P at most);HDMI(4K at most) | |
| Preview ability | 16*4K-N/15fps(6 in 1)/16*5M/12.5fps(6 in 1)/ | |
| 16*4M/15fps(6 in 1)/16*3M/18fps(6 in 1)/16*1080P(6 in 1) | ||
| Encode ability | 16*4K-N/7fps(6 in 1)/16*5M/6fps(6 in 1)/ | |
| 16*4M/8fps(6 in 1)/16*3M/10fps(6 in 1)/16*1080P/12fps(6 in 1) | ||
| Decode ability | 4*4K-N/7fps(6 in 1)/4*5M/6fps(6 in 1)/ | |
| 16*4M/8fps(6 in 1)/16*3M/10fps(6 in 1)/16*1080P/12fps(6 in 1) | ||
| Multi-mode input | Analog:16*5M;16*4M;16*1080P; | |
| Digital to analog conversion:support(except 16+16 hybrid mode) hybrid:16*4M(analog)+16*4M(network) | ||
| 8*4M(analog)+8*4M(network) | ||
| network:8*3M;4*5M | ||
| Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set | ||
| Motion Detection | (Limited local channel) | |
| Audio | Audio compression | G.711A |
| Intercom | support | |
| Record & playback | Record mode | manual>alarm>motion detection>timing |
| Local Playback | 16ch(analog input mode) | |
| Search mode | Search by time, calendar, event, channel | |
| Storage & | Video storage | HDD, network |
| backup | Backup mode | Network, USB hard disk, USB burner, SATA burner |
| External Interface | Video input | 16ch BNC |
| Video output | ||
| Loop Vout | N/A | |
| Audio I/O | 2(Can be extended to 6ch)/1 | |
| Alarm I/O | 0(Can be extended to 4ch)/0(Can be extended to 1ch) | |
| Network interface | RJ45 10M/100M self-adaption | |
| PTZ control | 1*RS485, Support kinds of PTZ protocols | |
| USB | 2* USB 2.0 ports | |
| HDD | 2*SATA ports (Max 8TB/per) | |
| Wireless | 3G, WIFI (extend via USB) | |
| General | Power supply | 12V/4A |
| Power Consumption | <15W (without HDD) | |
| Working environment | Temperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—106kpa | |
| Dimension | 270mm*90mm | |
| Weight | 250g | |
