DIY easy operate entry level 2 call panel 1 indoor monitor video monitor system
- Category: >>>
- Supplier: Guangdong Bcom Electronic Technology Co. LtdGuangdong Ltd
Share on (62295117770):
Product Overview
Description
DIY easy operate entry level 2 call panel 1 indoor monitor video monitor system
Product Description
♦ 4.3'' TFT LCD, resolution is 320(H)*3(RGB)*240(V) |
Parameter |
Indoor Monitor | Model | 84407-EM | 84407-EMB | |
Monitor | 4" TFT LCD video doorphone | |||
Resolution | 320(H)*3(RGB)*240(V) | |||
Intercom Mode | Hands-free dual-way communication | |||
Conversation duration | 120s | |||
Keypad | Sensor button | |||
Power Consumption | 300mA Max. | |||
Power Supply | External power DC12V | Built-in power AC100-240V | ||

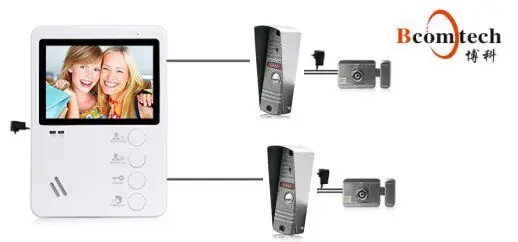

Support | 2 call panerl + 1 indoor monitor | |||
Material | Acrylic wire drawing shell | |||
Operation Temp | -10℃ +60℃ | |||
Installation | Surface mount | |||
EM as suffix-sensor's key + memory | ||||
EMB as suffix-sensor's key + memory + built-in power | ||||
Outdoor Unit | Model | 84201-CP42 | 84201-CP60 | 84201-CP80 |
Camera Sensor | 1/4" CMOS, 420TVL | 1/3" CMOS, 600TVL | 1/3" CMOS, 800TVL | |
3.7mm lens | 3.7mm lens | 3.7mm lens | ||
View Angle | pinhole lens:3.7mm 110º wide angle lens | |||
LEDs For Night LED | IR LEDs(120º) | |||
Power Consumption | 200mA Max. | |||
Power Supply | Supplied from indoor monitor | |||
Material | Aluminum alloy panel | |||
Waterproof | IP65 | |||
Operation Temp | -40℃ +50℃ | |||
Istallation | Surface mount | |||
Support multi language
Support Electronic Lock, CCD Camera, Alarm | |
Our 7" video doorbell set supports connecting with PIR detector, CCD camera and alarm system. It can protect your home and property in all aspects. |
Dual-way Intercom, Call Transfer Among Monitors | |
This item is handsfree and available for dual-way communication. It supports communication between indoor monitor and outdoor camera, but also supports communication between monitor and monitor. |
IP65 Waterproof, Anti-thunderstorm Design | |
The outdoor panel can also works well even in bad weather. |
Built-in IR cut, IR LED light for better night vision
Indoor Monitor ♦4.3" TFT display, acrylic wire drawing shell ♦Each call panel can set different ringtones & morning/afernoon/night with different volume size(10 level) ♦Support 2 call panels +1 indoor monitor ♦Key-unlock, monitoring,internal-communication among indoor monitors, call transfer, recording & picture ♦External motion detection (triggle alarm recording or picture optional) ♦Monitor built-in battery for time memory (re-start machine, need reset time) ♦Support setting un-lock time, suitable for different electronic lock ♦Built-in or external power optional |  |

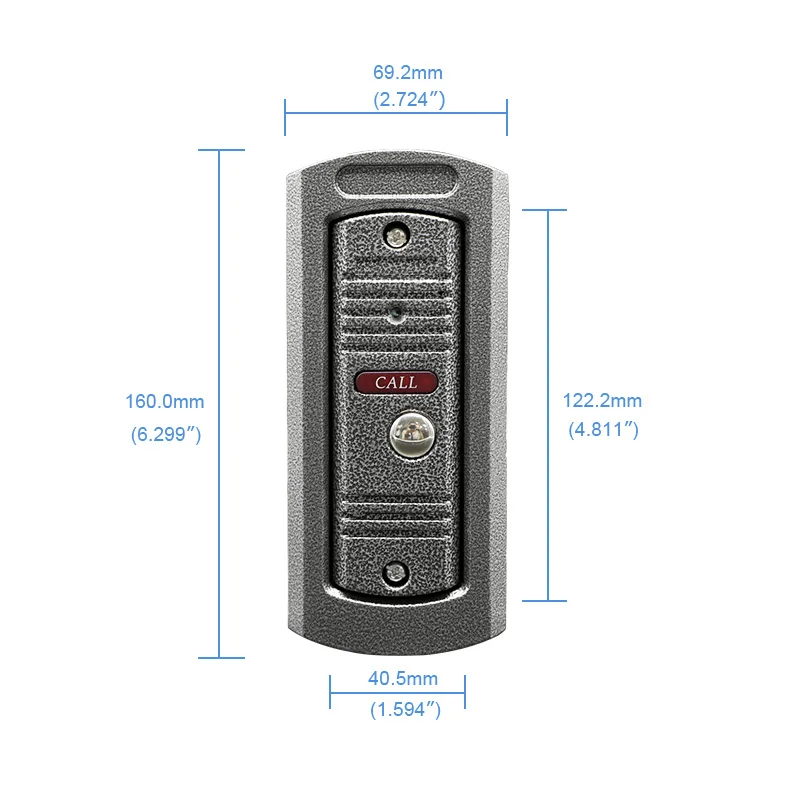

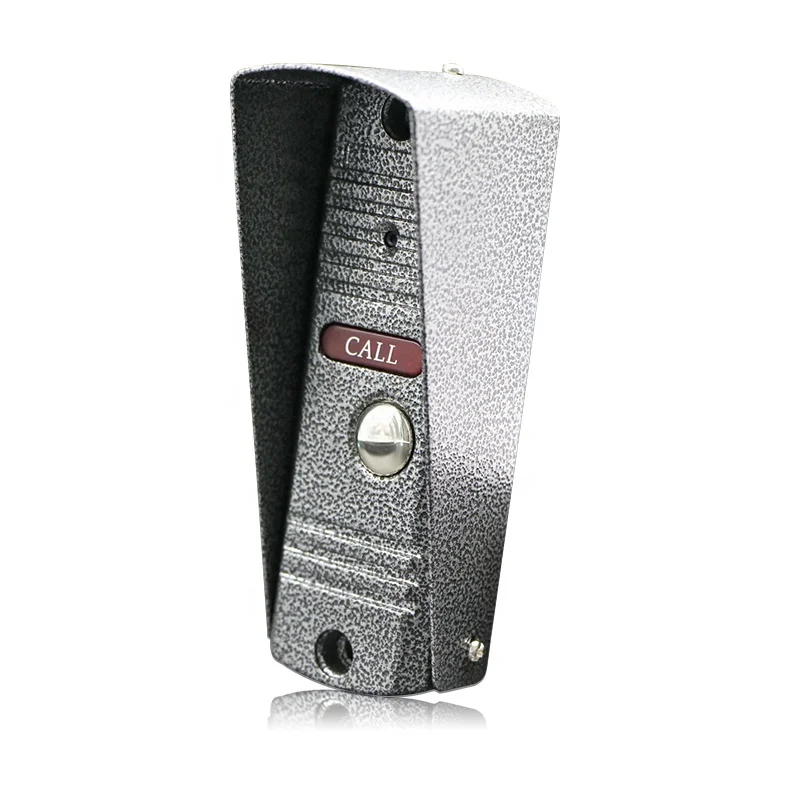

 | Outdoor Call Panel ♦Anti-vandal pin-hole camera 3.7mm lens ♦Rain cover, corner bracket including ♦Easy To Install And DIY Installation ♦Rust-proof Aluminium Alloy Anti Vandal Panel ♦Weatherproof IP65 aluminium ally panel ♦Adjustable Intercom Volume ♦CMOS 420TVL, 600TVL,800TVL optional ♦IR LED Offset Lighting Can Obtain Better Evening Viewing |

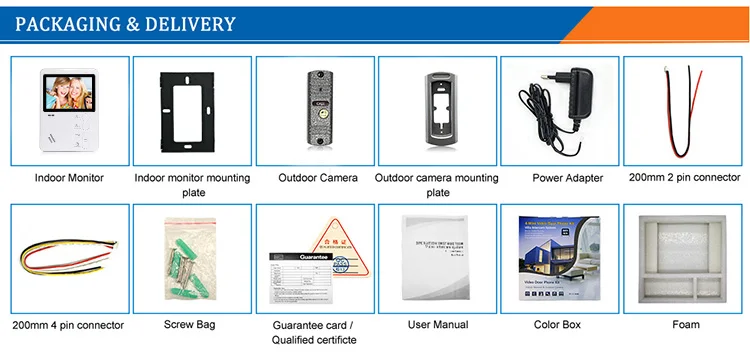

Accessories
Company Information
Our serves
1.18 months warranty or give 1% spare parts for repair
2. 24 hours online service
3. OEM & ODM service
4. Silk print LOGO on the product.
5. LOGO shows on the start screen.
6. Product housing, color box, user manual and multi-language on menu customization.
7. All the products would be strictly tested before shipment.
