Product Overview

Description

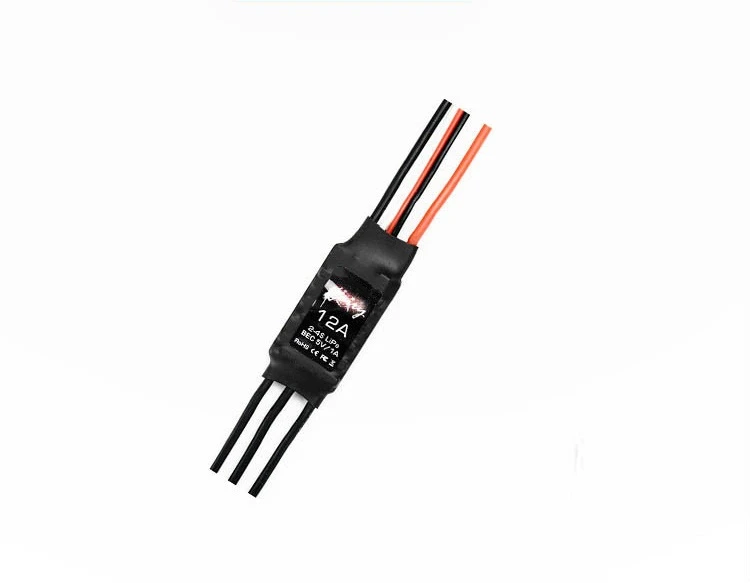

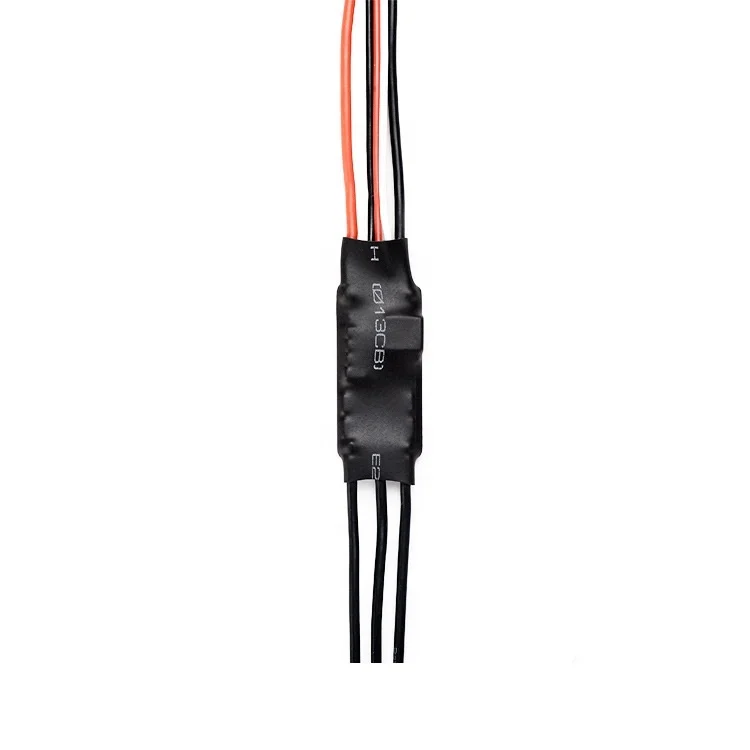

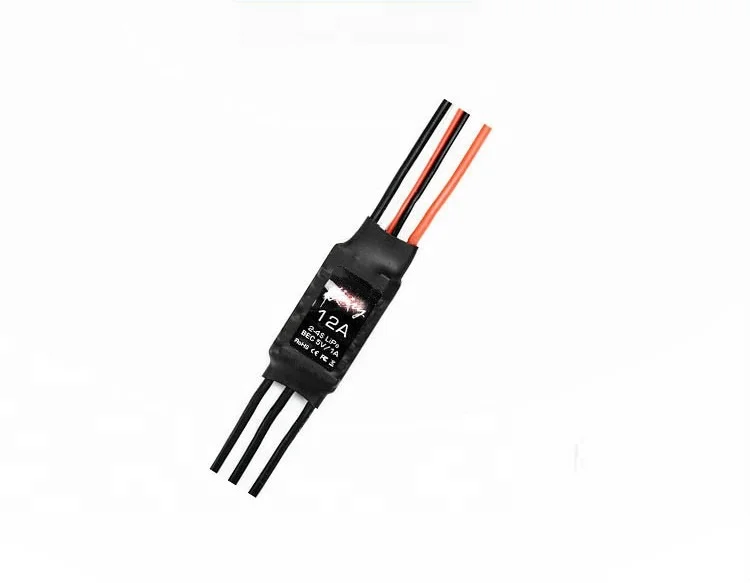

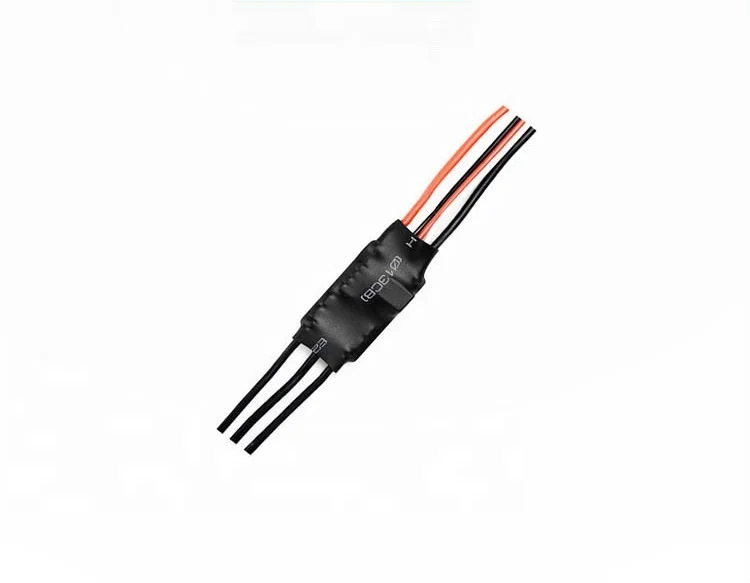

RC 200-300 multi rotor FPV parts smart electric motor 2-4S brushless esc 12a

1. Support OneShot 125.

2. Excellent stall protection.

3. Smaller, lighter weight design.

4. Firmware specially designed for disc motor optimization has excellent compatibility.

5. Special for multi-rotor design procedures, the throttle adjustment response is rapid in flight.

6. Firmware has strong self-adapting ability, retains four entry angle settings, and is very simple to use, taking into account both stability and battery life.

7. It can support up to 500Hz throttle signal and is compatible with various flight controls (Note: >=500Hz throttle signal is non-standard throttle signal).

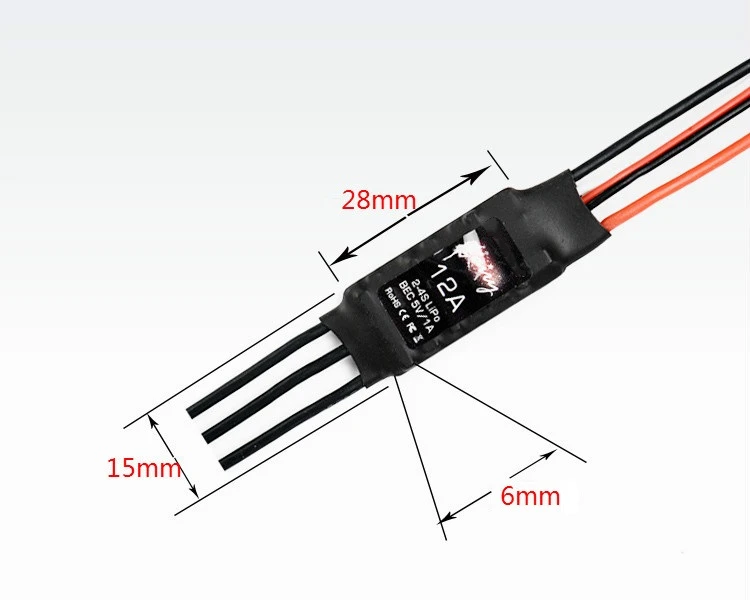

Size:



Technical Parameters:



Model Number	Continuous current	Burst current	LiPo Cells	BEC	Weight	Size
Fairy-6A	6A	8A	2-4S	5V/1A	6.7g	28*13*5mm
Fairy-12A	12A	18A	2-4S	5V/1A	9.5g	28*15*6mm
Fairy-20A	20A	30A	2-4S	5V/1A	10g	28*15*6mm
Fairy-30A	30A	40A	2-4S	5V/1A	11g	28*15*6mm
Fairy-40A	40A	50A	2-6S	OPTO	15g	45*21*7mm
Fairy-50A	50A	60A	2-6S	OPTO	16g	45*21*7mm

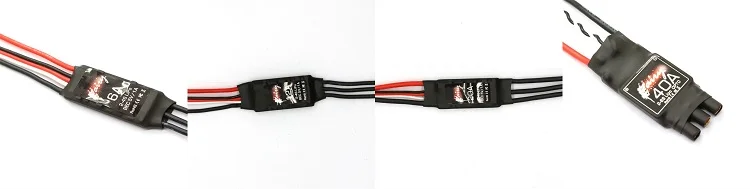

If you need the other current, pls click the following picture. Then you can choose the other type of Fairy series.





Standard export carton.

Delivery time:

Pls feel free to contact us and inform the quantity you need. Then we will check to see if we have products in stock or not. If yes, we will send products out in 7 days. If not, we need some days to prepare your orders. The specific delivery time will be different according to your quantity.



1. We can accept L/C, T/T, Western Union and MoneyGram.

2. 30% TT advance, 70% before shipment.

How to order:

1. If you have any questions, pls feel free to contact us. And pls let us know the model and the quantity you need.

2. After confirming all details, we will send you a quotation.

3. Sample confirmation. We will prepare the sample you need and send out in 7 days.

4. After you confirm the bulk order, we will send you the PI.

5. After confirming the PI, you transfer 30% deposit.

6. After receiving your deposit, we arrange to produce your order.

7. After testing and packing, we will send product pictures and packing pictures for your confirmation.

8. You transfer the 70% balance. After we receive your payment, we will ship out and offer you the tracking number.

9. If the details of the page are all ok for you, you can place a trade assurance order directly. We wil prepare your order asap.

10. After-sale services and feedback.



After-Sale Service:

We will track the order until you received.



If you have any questions, pls feel free to contact us. Thank you!
