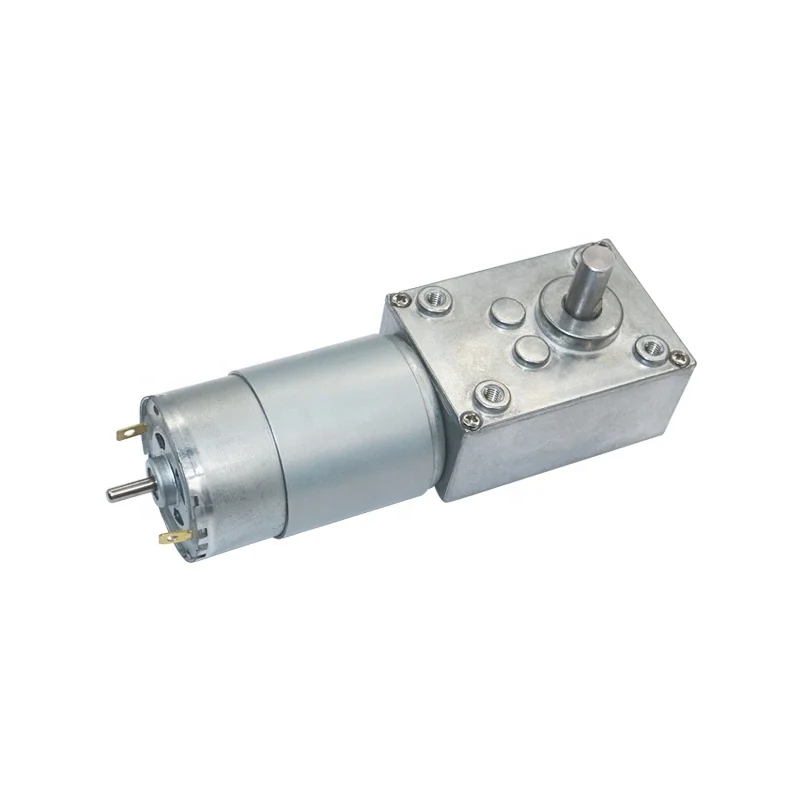

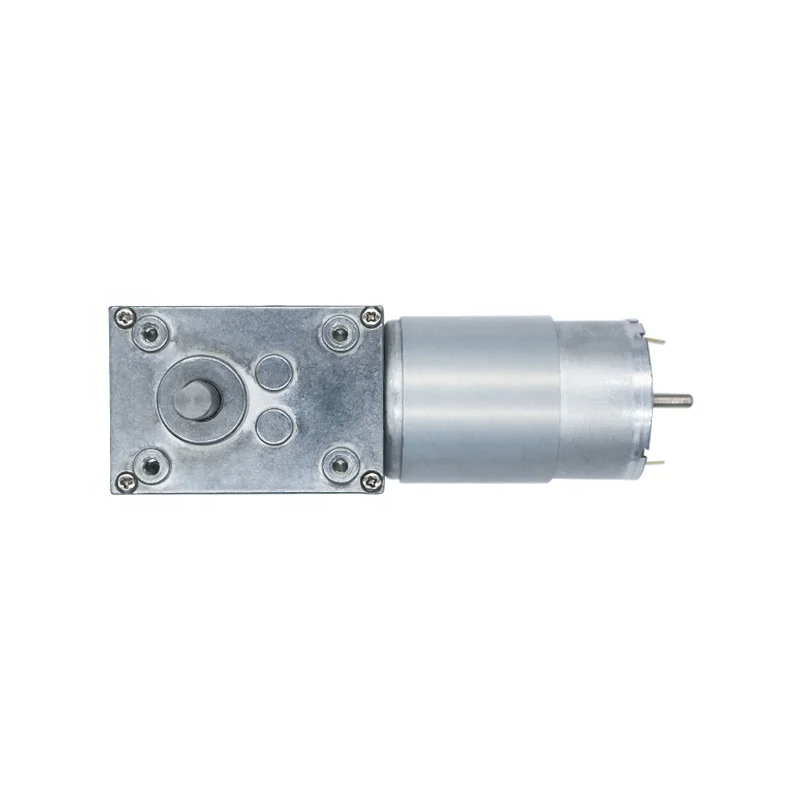

high torque low speed high rpm gear box motor 30kg
- Category: >>>
- Supplier: Dongguan City Well Motor Co. Ltd.
Share on (62295746919):
Product Overview
Description
Product Display
***** Many different Gear ratio for different speed, toruqe requirement
***** Low noice,Metal gears,Long working hours, Have ability self lock, two way rotation
***** Can matching with encoder, Can matching with different motor for different torque.
***** Big torque gear motor
***** Can Customized based on different requirement .
| Basic motor Performance | |||||||||
| Model No. | Rated Voltage (V) | No load current(mA) | No load speed r/min | Rated torque(gf.cm) | Rated current(mA) | Rated Speed(r/min) | Stall torque(gf.cm) | Stall current(A) | Maximum Power (W) |
| RS-555SH-1250 | 12 | 250 | 5000 | 200 | 1400 | 4300 | 1400 | 7.8 | 46.8 |
| RS-555SH-2440 | 24 | 150 | 4000 | 200 | 800 | 3200 | 1000 | 4.2 | 50.4 |
| Basic Gear motor Performance | |||||||||
| Model No. | Voltage (V) | Reduction ratio | 80 | 135 | 205 | 250 | 405 | 620 | |
| Gear box length(mm) | 58 | 58 | 58 | 58 | 58 | 58 | |||
| 4058-555-1250 | 12V | No load speed r/min | 59 | 35 | 23 | 19 | 12 | 8 | |
| Rated Speed(r/min) | 51 | 30 | 20 | 16 | 10 | 7 | |||
| Rated torque(kg.cm) | 12 | 12 | 12 | 12 | 12 | 12 | |||
| Stall torque(kg.cm) | 40 | 65 | 100 | 120 | 200 | 300 | |||
| Model No. | Voltage (V) | Reduction ratio | 80 | 135 | 205 | 250 | 405 | 620 | |
| Gear box length(mm) | 58 | 58 | 58 | 58 | 58 | 58 | |||
| 4058-555-2440 | 24V | No load speed r/min | 48 | 28 | 19 | 15 | 9 | 6 | |
| Rated Speed(r/min) | 38 | 23 | 15 | 12 | 8 | 5 | |||
| Rated torque(kg.cm) | 12 | 12 | 12 | 12 | 12 | 12 | |||
| Stall torque(kg.cm) | 40 | 65 | 100 | 120 | 200 | 300 | |||
