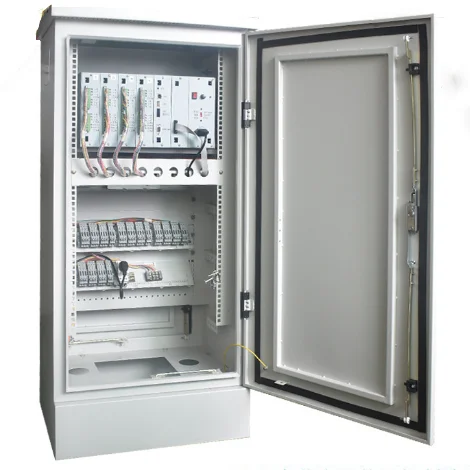

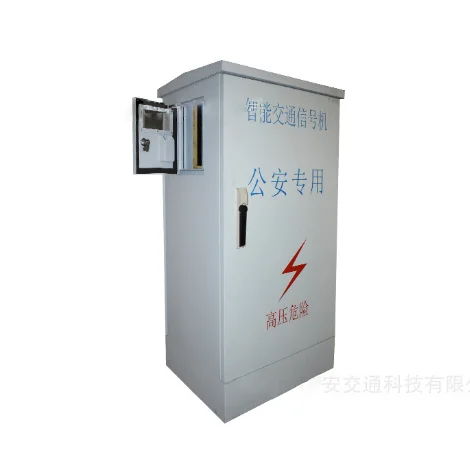

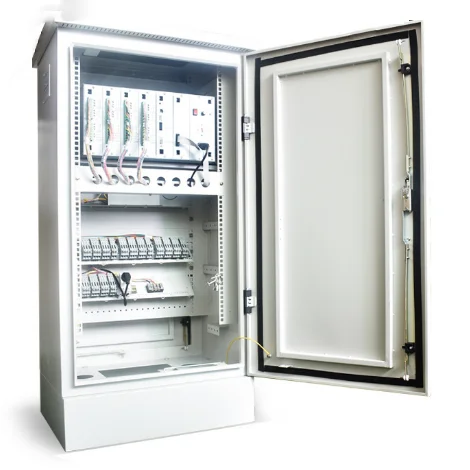

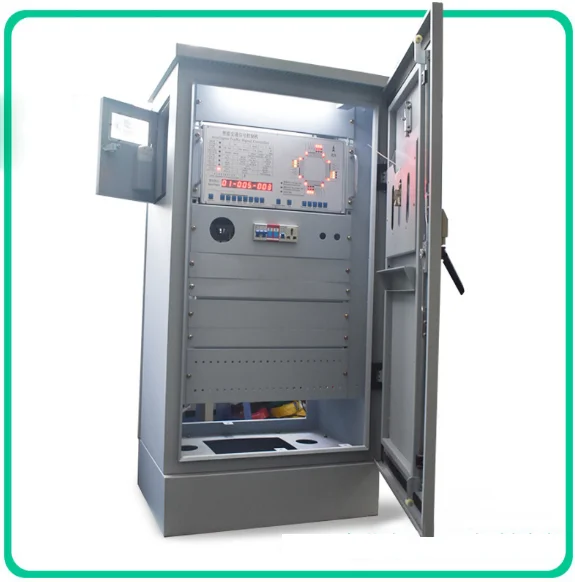

Intelligent LED remote control traffic light control system

Product Overview

Description

Intelligent LED remote control traffic light control system

Features

1. Embedded central control system, the work is more stable and reliable;

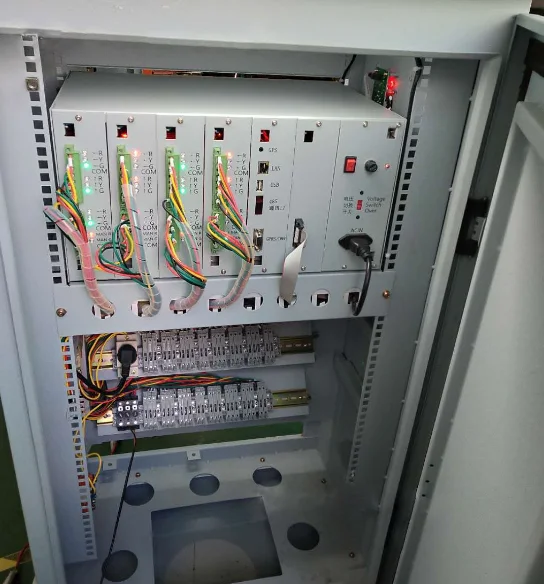

2. The whole machine adopts modular design for easy maintenance;

3. The input voltages AC110V and AC220V can be compatible through switch switching;

4. Communicate with the host computer using RS-232 or LAN interface;

5. It can set normal day and holiday operation plan, and each operation plan can set 48 working hours;

6. Up to 32 working menus (one of which can be set by customers 1 to 30) can be called multiple times at any time;

7. The flashing on and off status of each green signal light can be set, and the blinking time can be adjusted;

8. You can set the night yellow flash or turn off the light;

9. The current step running time can be modified immediately in the running state;

10. There are full red, yellow flash, step manual, phase jump manual, remote manual (optional) function;

11. Hardware fault detection (red light failure, green light detection) function, downgrade to yellow flash when fault occurs and cut off red and green power supply (optional;)

12. The output part adopts zero-crossing detection technology, and the state change is switched under the state of AC zero-crossing, which makes the drive more safe and reliable;

13. Each output has an independent lightning protection circuit

14. There is installation test function, which can test and confirm the correctness of installation of each lamp when the intersection signal light is installed;

15. The customer can set up backup and recovery of the default menu No. 30;

16. The setting software on the computer can be operated offline, and the program data can be saved on the computer and can be copied.





Product parameters

Project implementation standard: GB252802010

Working voltage: AC110V220V soil 20% (voltage can be switched on and off)

Working frequency: 47Hz - -63Hz

No-load power: <15W

The rated load power of the whole machine: 2200W

Maneuvering run timing (special timing state production money needs to be declared): full red (settable) → green light → green flash (settable) → yellow light → red light

Pedestrian running timing: full red (settable) → green light → green flash (settable) → red light

Rated drive current for each channel: 2A

Each road is resistant to surge current: ≥100A

Maximum independent output channel number: 44

Maximum independent output phase number: 16

Number of menus that can be called: 32

User can set the menu (running phase timing scheme) number: 30

The maximum number of steps that can be set per menu: 24

Maximum number of sessions per day: 48

The running time setting range of each step: 1~255

Full red transition time setting range 0~5S

Yellow light transition time setting range: 1~9S

Green flash setting range: 0~9S

Easy to use temperature range: -40 ° C ~ +80 ° C

Relative humidity: <95%

Set the plan to save (when power is off): 10 years

Time error: annual error <2.5 minutes (at 25±1 °C)

One-piece cabinet size: 1250* 630*500mm

Freestanding cabinet size: 472.6*215.3*280mm
