Product Overview

Description


DTNX-60Y Mechanical Hand Style Filling, Plugging And Capping Machine

Brief introduction:
This machine is the new machine which in these years we design and make it. Man can set the number of steps peristaltic pumps with microcomputer to perform metering filling (special occasions with ceramic pump). It has the functions: automatic filling, automatic plugging and capping. The machine is equipped with special internally unique mechanical hand. These can ensure the plug and the out cover to enter the bottle, so that it achieves fully automatically. The machine fully meets with new GMP requirements.

Characteristic:

•      Mechanical hand pick and place cap

•      Servo capping system do pre-capping and final capping

•      Capping speed and torque adjustable from the touch screen

•      Overloading, safety door, low air pressure protection system

•      Caps and bottles lack protection system

•      No cap feeding when no bottle feeding

•      No Capping when no cap on the bottle

•      No vacuum when cap failed to be picked up



Main technical parameters:

Filling Volume  2-300ml
Productivity    40-60 bottles per min
Filling Precision  ≤±1%
Power Supply  220V/50Hz
Capping Rate   ≥99%
Stoppering rate ≥99%
Air Supply 2 m3/h 0.4-0.8Mpa
Power 1.0 kw
Weight  700 kg
Dimension 2400*1100*1500mm

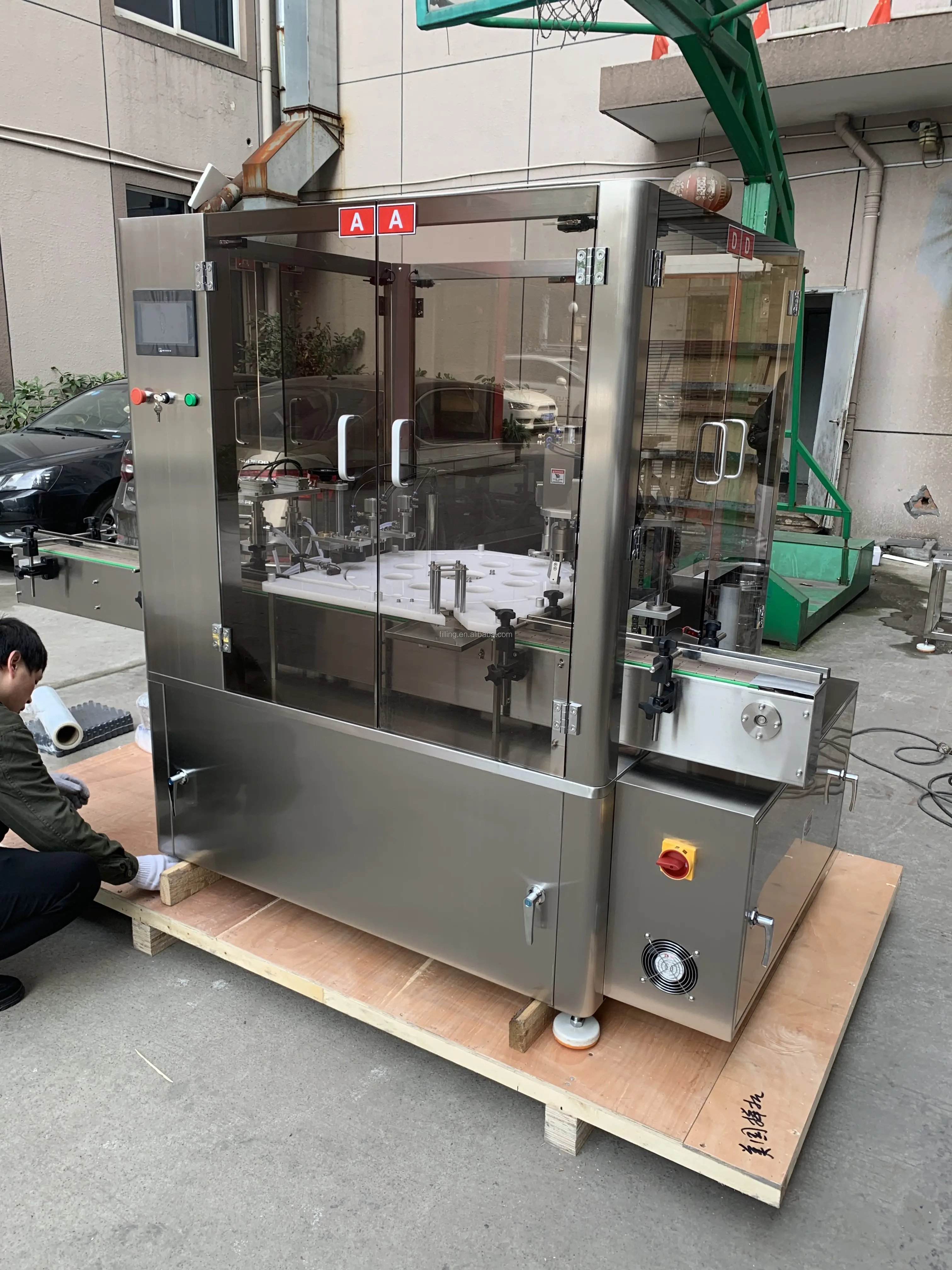

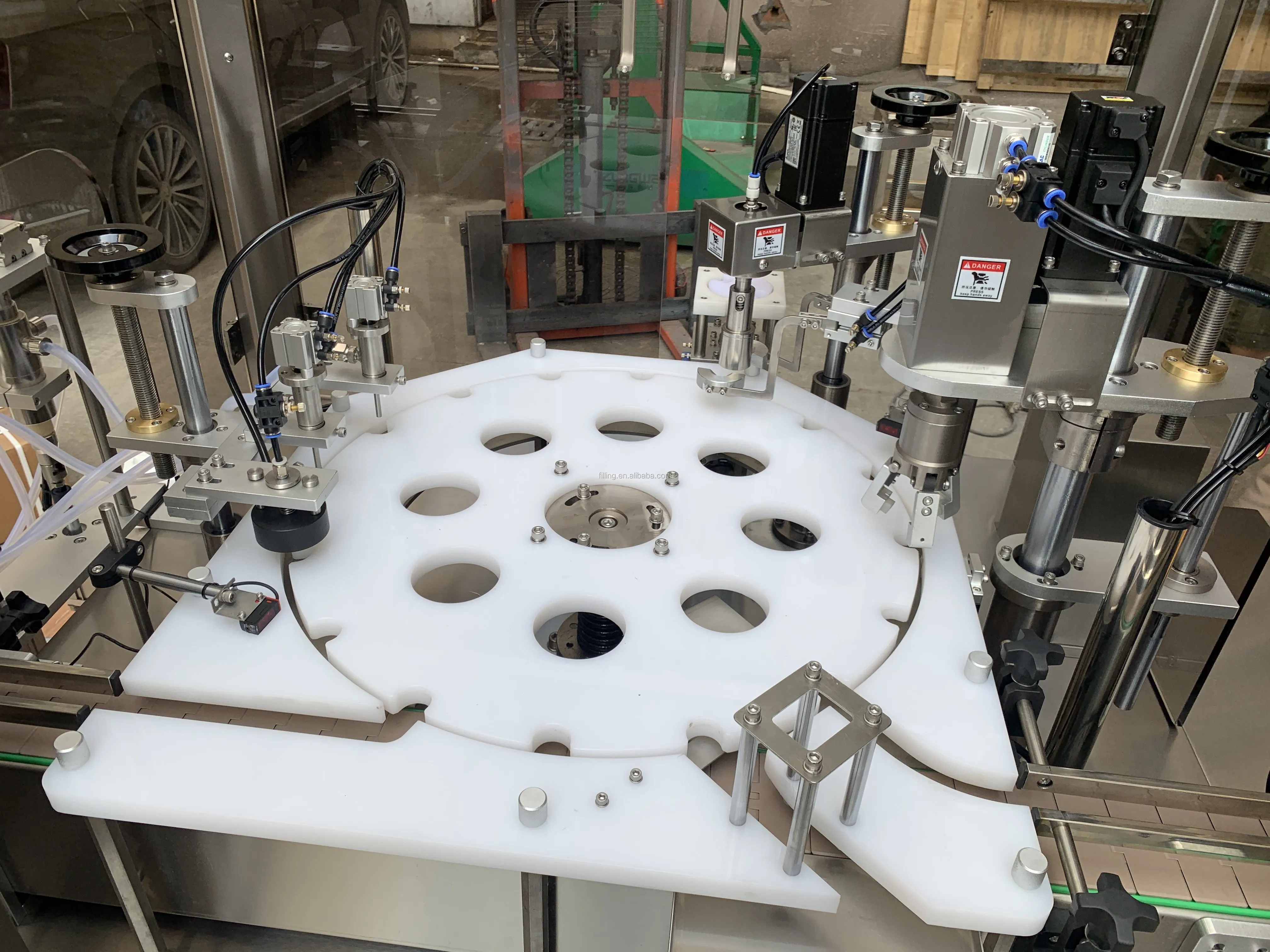

IMG_4673 2.jpgIMG_3597.jpg
