High Temperature Electrical Insulating Mica Tube
- Category: >>>
- Supplier: Yangzhou Tuanrui Electric Co. Ltd.
Share on (62295852124):
Product Overview
Description
Detailed Images
Product Description

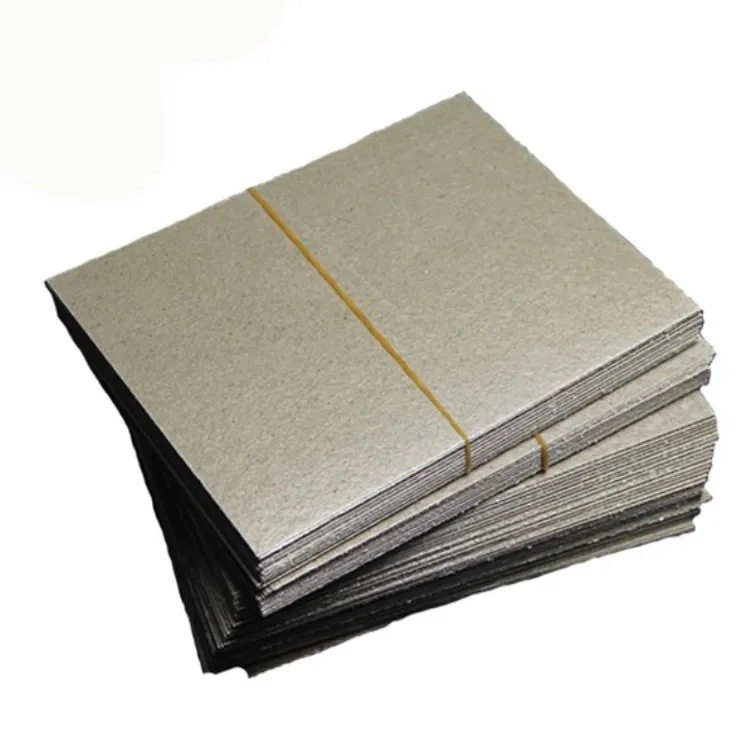

Natural Mica Plate
Natural Mica plate is a kind of natural material from rock,contain muscovite,quartz, rutile,have good stability of heat resistance,more than 600℃,flogopite mica sheet can resistance of 800 ℃.
It is stripping from thicker pure mica sheet ,have its fixed size and thickness,thiner small piece is white color.
Pollution-free and high dieletrical strength.

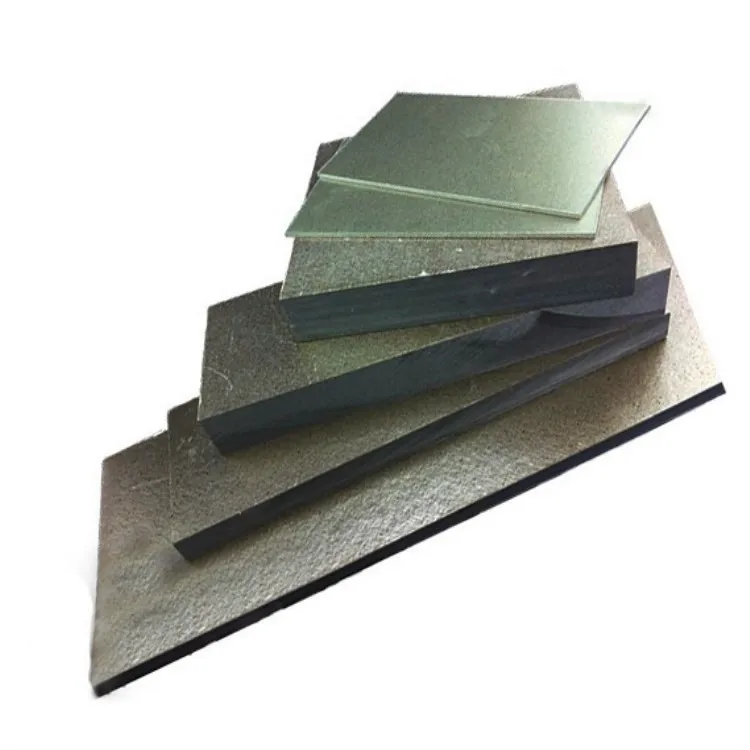

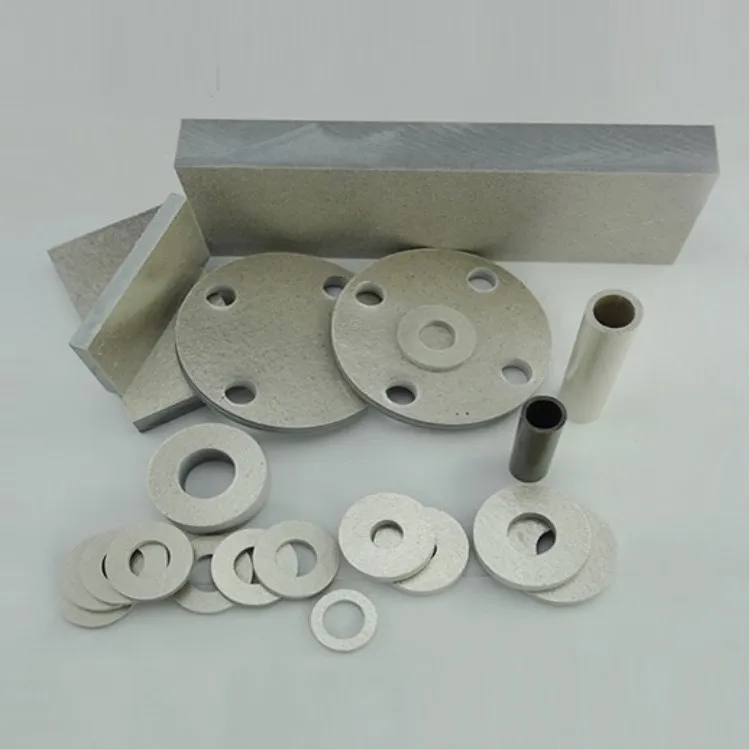

Rigid Mica Plate
Rigid Mica Plate is a kind of rigid laminated material, constructed of muscovite or phologpite mica paper with silicon resin.
They are known by its excellent thermal resistance, good flame resistance, high dielectric strength, excellent physical strength, and little smoke by heating.
The products have been widely used in the industries of household electric appliances (clothes irons, hair dryers, toaster, kettles, cooking appliances, microwave ovens, air heaters), metallurgy(frequency furnace, intermediate frequency furnace, arc furnace), medical appliances, etc.
Flexible Mica Plate
Flexible Mica Plate is a kind of flexible laminated material, it has excellent dielectric, excellent tensile strength and easy to form at room temperature. They are often used for hair dryers, curlers, electric irons, motors and so on.

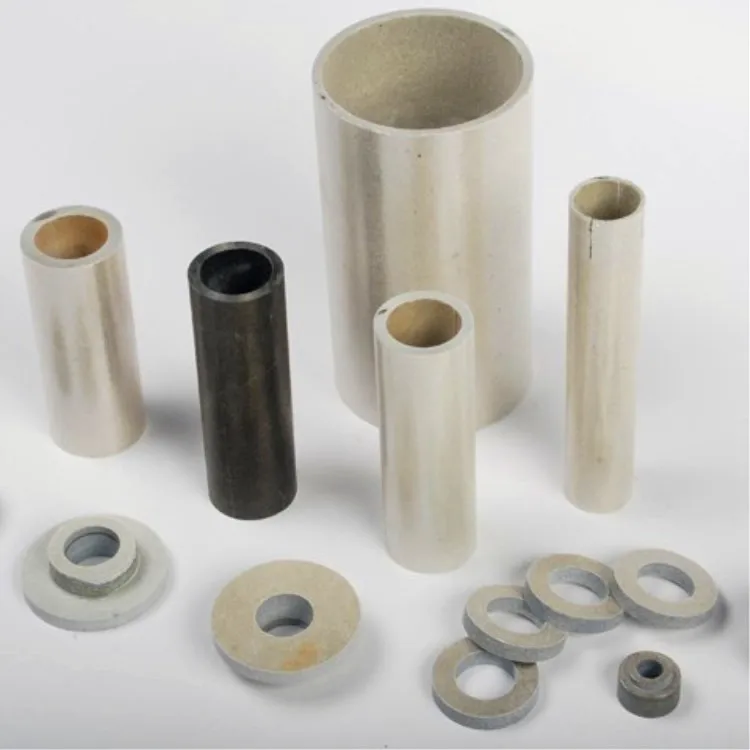

Mica plate (mica tube)is formed by muscovite paper or phlogopite paper mixed with silicon resin, and processed by roll form.
It has good dielectric capability and excellent mechanical strength, and often used as the insulating tube form material in all kinds of electric equipment, motors, furnaces, electric-arc furnaces, other metallurgy industry equipment
Technical Data
No. | Item | Unit | Indication |
1 | Size | mm | As below |
2 | Mica Content | % | ≥88 |
3 | Binder Content | % | ≤12 |
4 | Density | g/cm3 | ≥1.4 |
5 | Electric Strength | kV/mm | ≥7 |
Dimension Details
*Length:10-1000mm
*Diameter: Internal diameter is 8-300 mm, diameter tolerance is according the follow table.
Special size and tolerance can be determined by agreement.
Wall thickness: The thinnest 1 mm.
Sandard Internal Diameter(mm) | Tolerance of Internal Diameter(mm) | Tolerance of External Diameter(mm) |
<10 | ±0.2 | ±0.3 |
10-20 | ±0.2 | ±0.3 |
21-50 | ±0.2 | ±0.5 |
51-100 | ±0.4 | ±0.5 |
101-200 | ±0.6 | ±1.0 |
201-300 | ±0.6 | ±1.0 |
Can be customized according to customer drawings / sample requirements
Packaging and delivery
• Packaging Details Carton box or wooden box for Electric Heating Heater
• Delivery Time 10 days for Electric Heater .
• Delivery Time 10 days for Electric Heater .
Why Choose Us
Our Company
Yangzhou Tuanrui Electric Co., Ltd. Located in the beautiful historical and cultural city of Yangzhou. The company is a factory that integrates R&D, design, production, and sales services. Our factory specializes in PTC heaters,MCH Ceramic Heater, mica heaters, ceramic heaters, cast aluminum heaters, cast copper heaters, cast iron heaters, electric heaters, Quartz Heater, Explosion-Proof Heater, Foil Heater, Teflon Heater, Track Heater, Hot Runner Heater, Armored Heater, Ceramic Fiber Heater, Far Infrared Ceramic Heater, Hot Melt Machine heater, electric heating film, silicon carbide heater, silicon molybdenum heater, metal heating tube, heating coil, heating plate, heating rod, silicone rubber heater, radiant heater, heating cable, temperature sensor, thermal resistance , thermocouples, high temperature wire and cable, instrumentation, slip line bridge, bus switchgear, insulation materials, test instruments, ceramic ignition pin and other electrical complete sets of equipment. Products are mainly used in military, chemical, power, electronics, steel, metallurgy, medicine, machinery, automobiles, air conditioning, industrial furnaces, home appliances and other heating industry equipment. All products can be customized according to the requirements of customers, many products have now filled the domestic blank, instead of imports. At present, our heaters, temperature sensors, etc. have been sold to countries in the world and are well received by customers. Welcome new and old customers at home and abroad to visit us.
Manufacturing Technique
Exhibition and certification
FAQ
Q1. Can I have a sample order forCeramic Heater?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks
Q3. Do you have any MOQ limit for Ceramic Heater?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly provide the heater size , voltage, wattage, quantity
Secondly We quote according to your size
Thirdly customer confirms the order
Fourthly We arrange the production.
Q6. Is it OK to print my logo?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee?
A: Yes, we offer 8000 hours warranty to our products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new heater with new order for small quantity.
