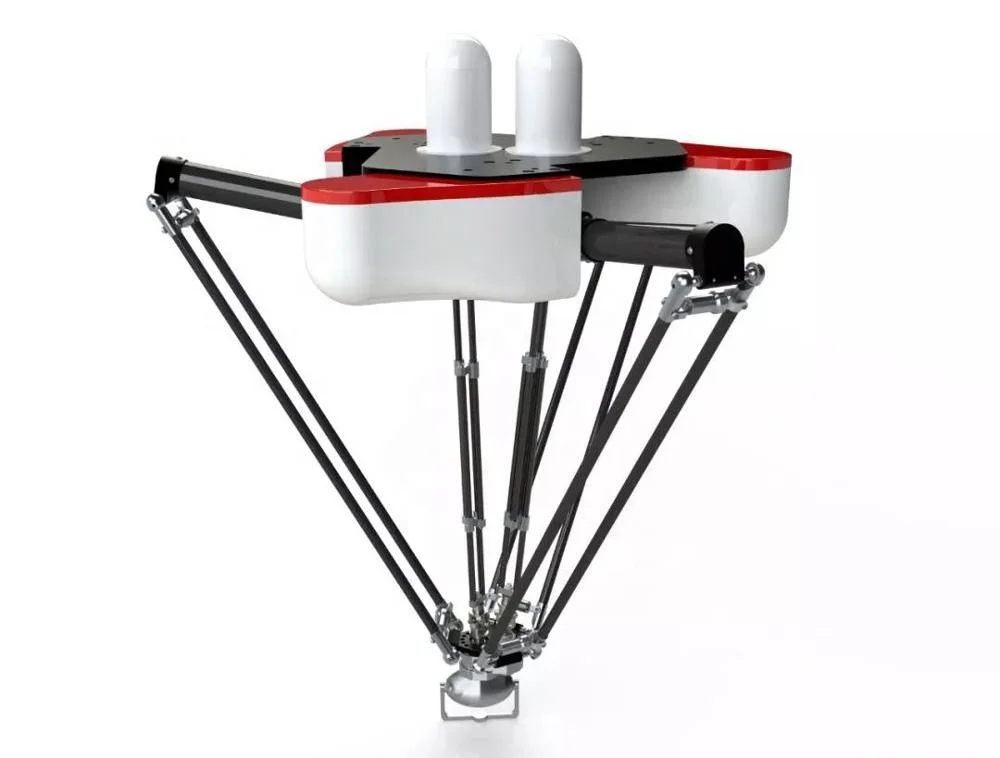

5 axis delta robot spider robot

Product Overview

Description



Fastest delta robot industrial spider robot,

delta robot, spider robot,









5 axis delta robot spider robot,

5-axis robot flattened and erected,

Mainly for the rotation of the flat material to stand upright.

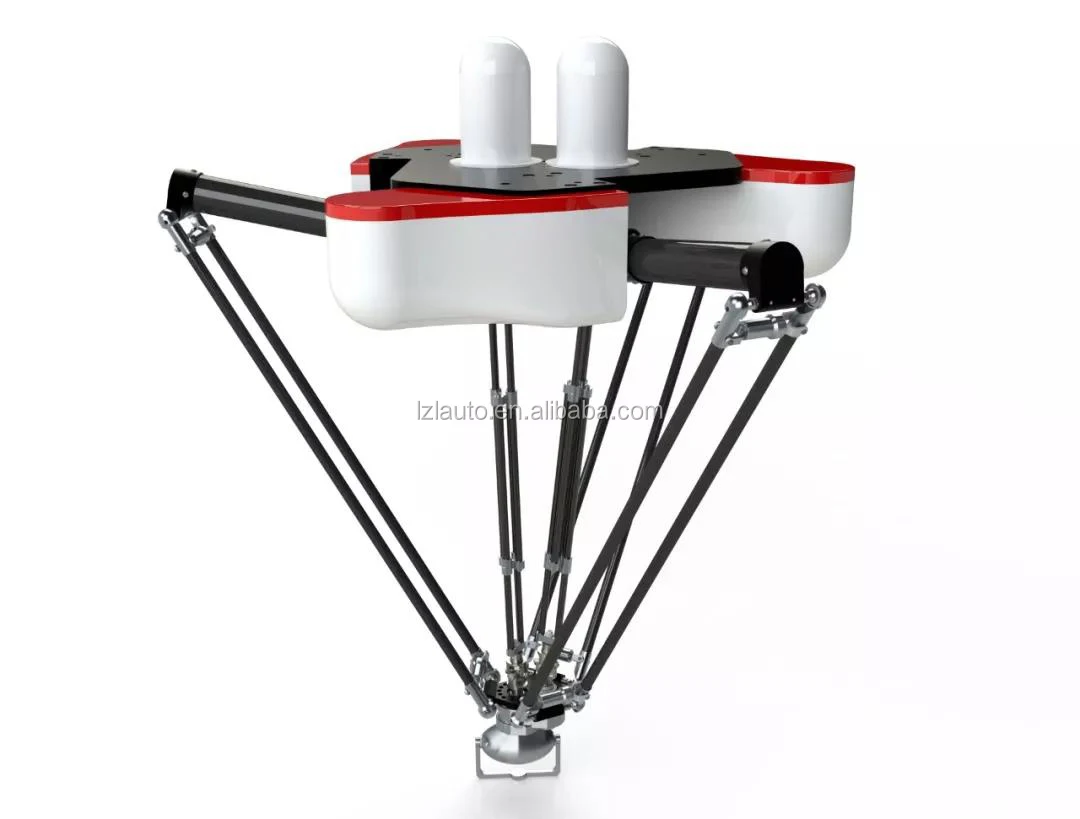

The activity dimension of the parallel robot is increased; the application field of the parallel robot is expanded. The principle is that on the basis of the traditional three-axis parallel robot, two parallel rotating shafts are added, one horizontally controls the horizontal rotation, and the other shaft controls the vertical rotation; the horizontal rotation is ±180°, and the vertical rotation is ±90°. The two intermediate shafts are controlled by servo coupling, which has higher precision and faster speed (to be tested) for a longer service life than the conventional structure that uses the cylinder to achieve this function.

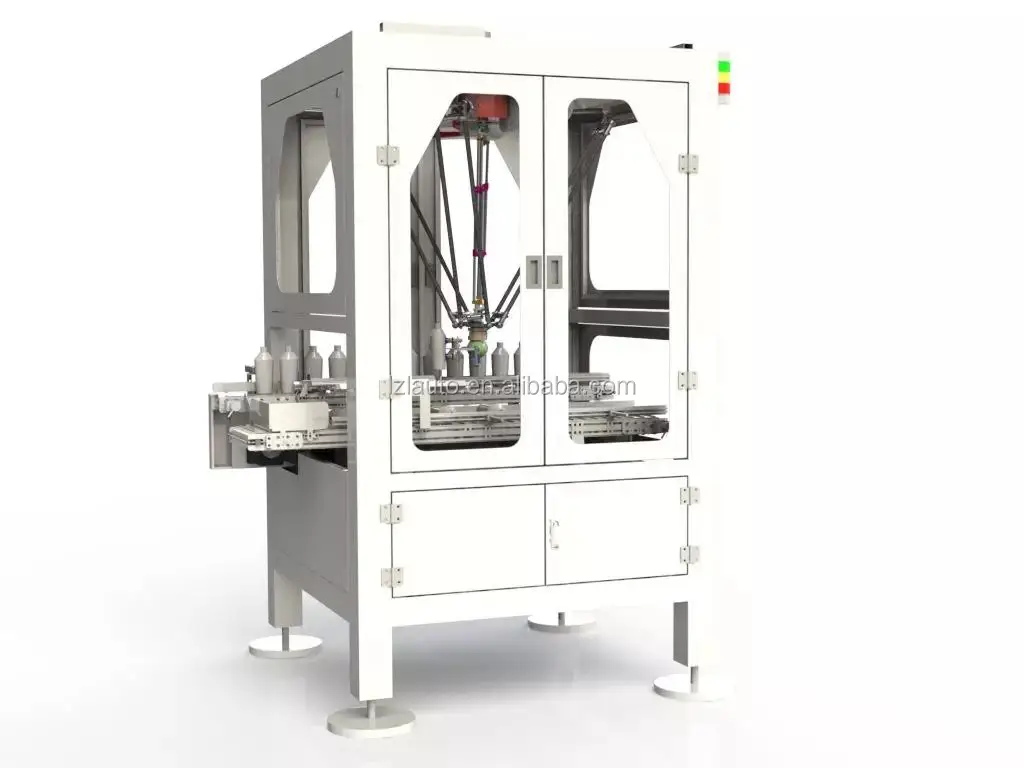

Peripheral size: length * width * height: 1.7 * 1.4 * 2.3 m
configuration list:
Robot model: D5-B-1100
Number of axes: 5 axes
Work space: 1100×350mm
Maximum load: 3kg
No-load speed range: 350-420 beats / min
Actual load speed range: 50-120 times / min
Application industry: electronics, daily chemicals, etc.
Product features: Realize five-degree-of-freedom operation. Accurate positioning, stable and reliable, flexible, unique compression spring design, extended service life, improved safety, top-mounted installation, good tracking performance.
