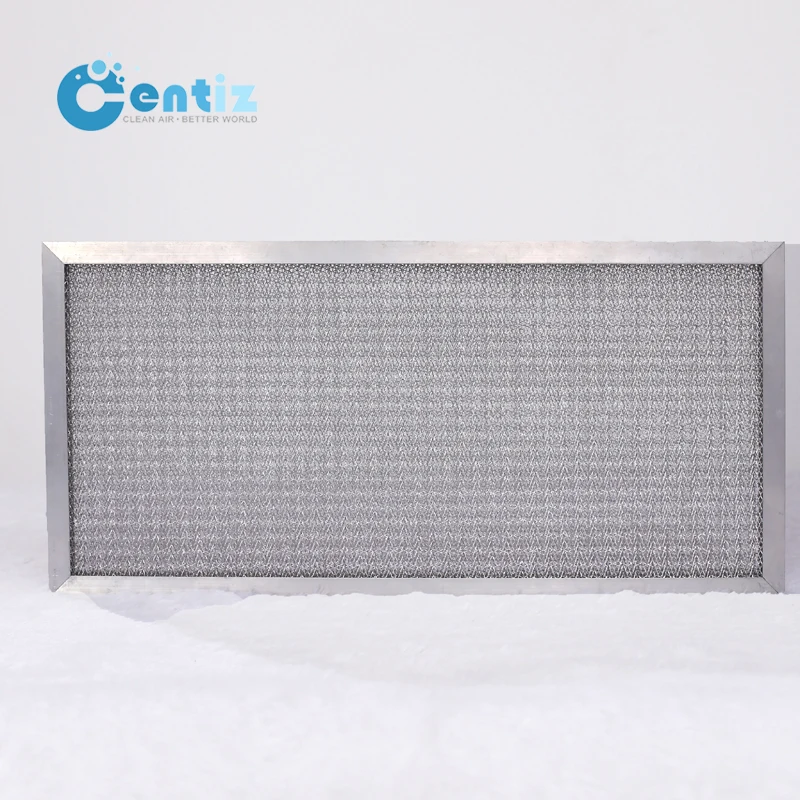

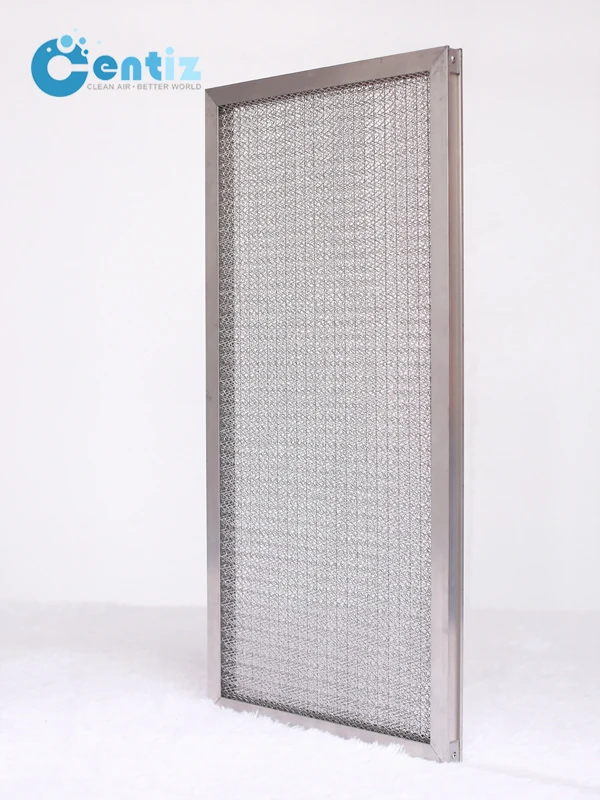

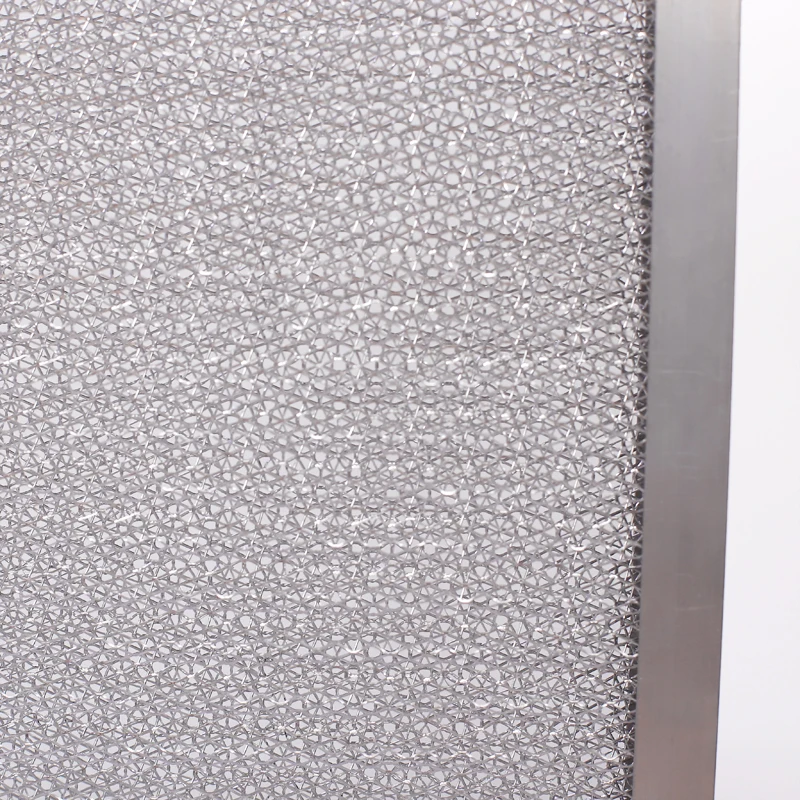

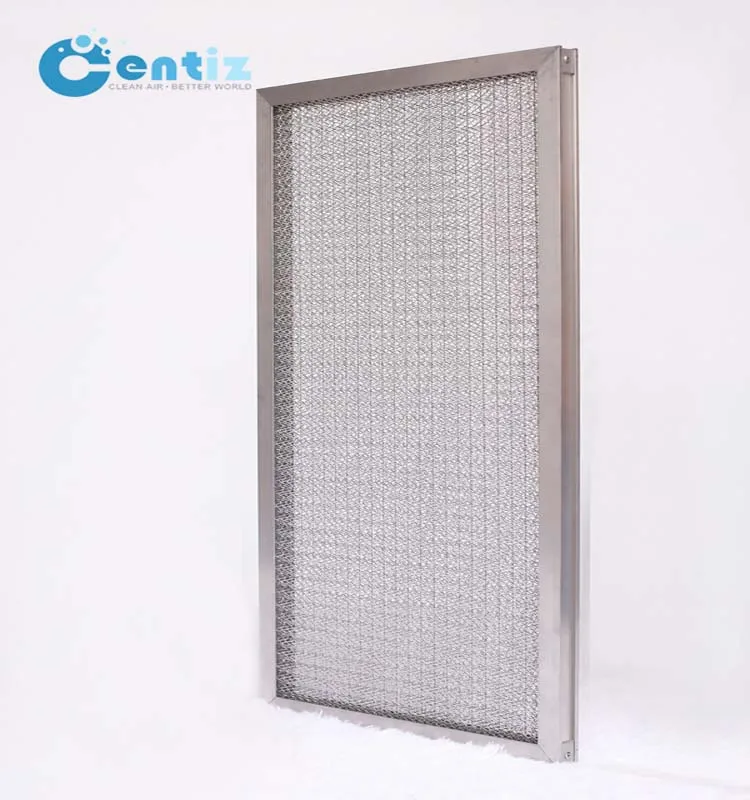

Manufacturers direct sell Aluminum Build metal G4 Mesh filter for Air Condition pre air filter

Product Overview

Description

Manufacturers direct sell Aluminum Build metal G4 Mesh filter for Air Condition pre air filter



Product features

High dust holding capacity

Low resistance

M-WASH board type washable filter uses light board structure, high quality polyester synthetic fiber with low initial resistance and good fire resistance



Application of product

      Pre-filtration of air conditioning and ventilation systems to avoid ash pollution inside the system

      Pre-filtration of large air compressor

      Clean room centralized ventilation and air conditioning system and return air filtration to extend the service life of the high efficiency filter in the rear section

      Ventilation system for general industrial plants to meet general cleaning requirements for air

      Rough dust filtration system of air conditioning in general construction building



Product specification



Nominal size	Actual size	Efficiency	Rated air volume	Initial resistance under different air volumes			Recommended final resistance
(inch)	(mm)	EN779	(m3/h)	(Pa)			(Pa)
W×H×D	W×H×D			70%	100%	120%	Initial resistance 2-2.5 times
12×24×2	290×595×46	G2	1700	25	40	55
20×24×2	490×595×46	G2	2800	25	40	55
24×24×2	595×595×46	G2	3400	25	40	55
12×24×2	290×595×46	G3	1700	35	55	70
20×24×2	490×595×46	G3	2800	35	55	70
24×24×2	595×595×46	G3	3400	35	55	70
12×24×2	290×595×46	G4	1700	40	60	75
20×24×2	490×595×46	G4	2800	40	60	75
24×24×2	595×595×46	G4	3400	40	60	75



Remarks: The tolerance of performance initial resistance is ±10% /it can provide special size production



FAQ:

1.Certificates:

RoHs,UL,SGS,MSDS,DIN53438

2.Payment terms:

50% deposit upon getting the order,balance against the B/L copy.

3.Delivery date:

About 7 working days(≤500pcs), special order is negotiable to be quicker.

4.Sample Terms:

We can supply 1-2 small samples for tree but express cost is covered by your side.

5.Minimum Order Quantity:

No strict principle for standard sizes,but 50pcs for non-standard dimensions or types.

6.Price Terms:

EX-WORKS, FOB, CNF, CIF OR DDU is available and up to you.

7.Lead time:

3 Days for a 40ft container, weeks for two 40ft container.

8.Factory:

Our factory located in Jiangsu, about 2000sqm, with 30 workers.
