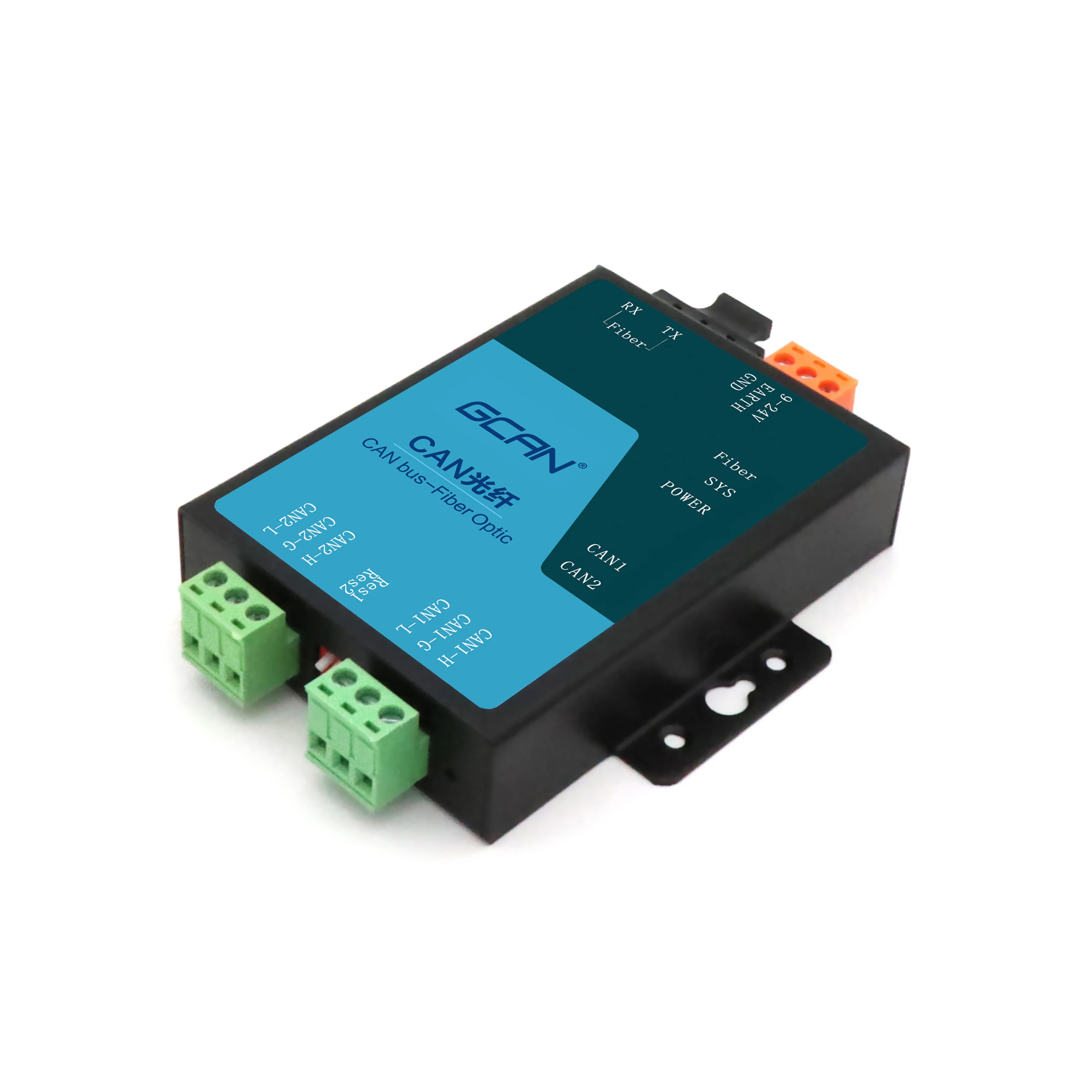

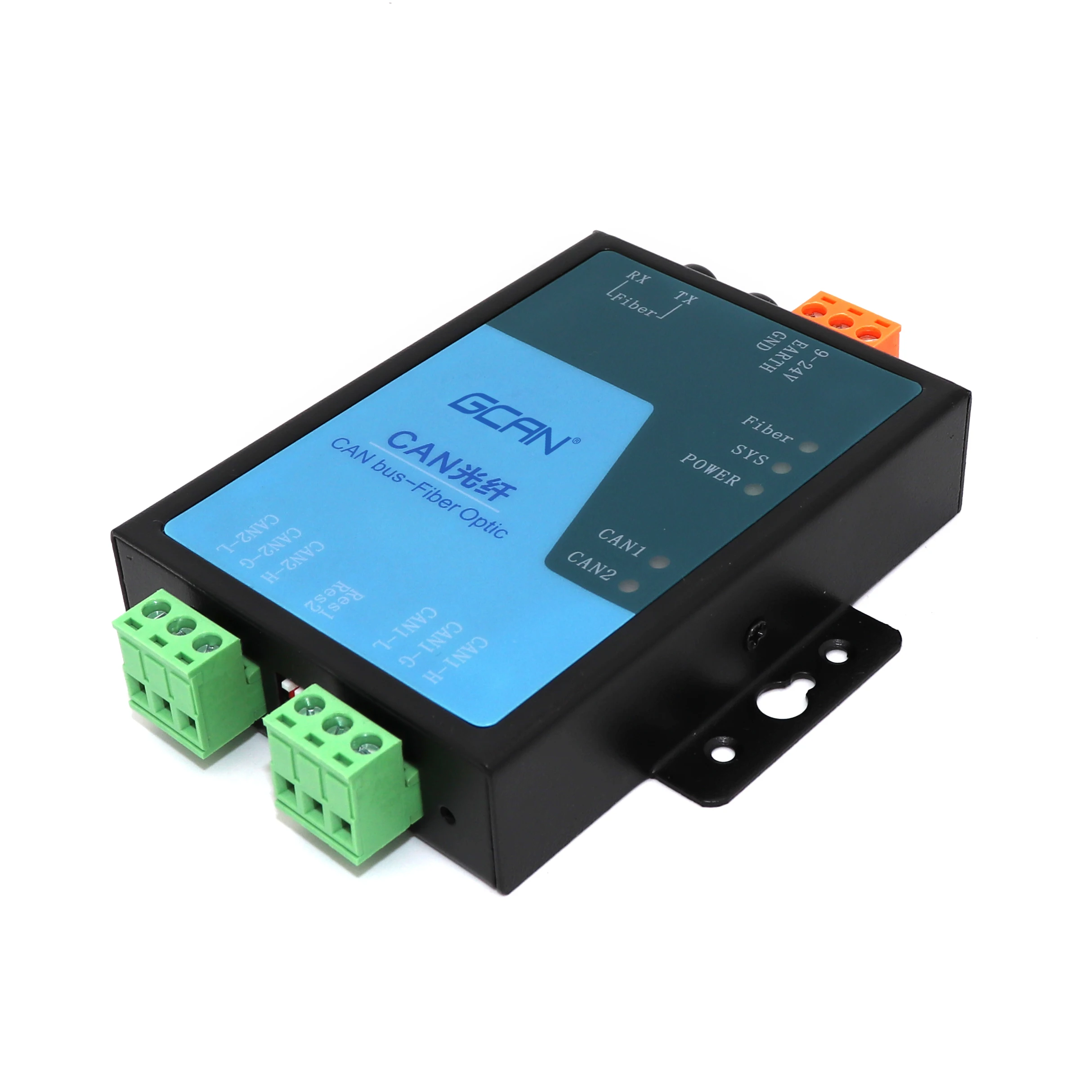

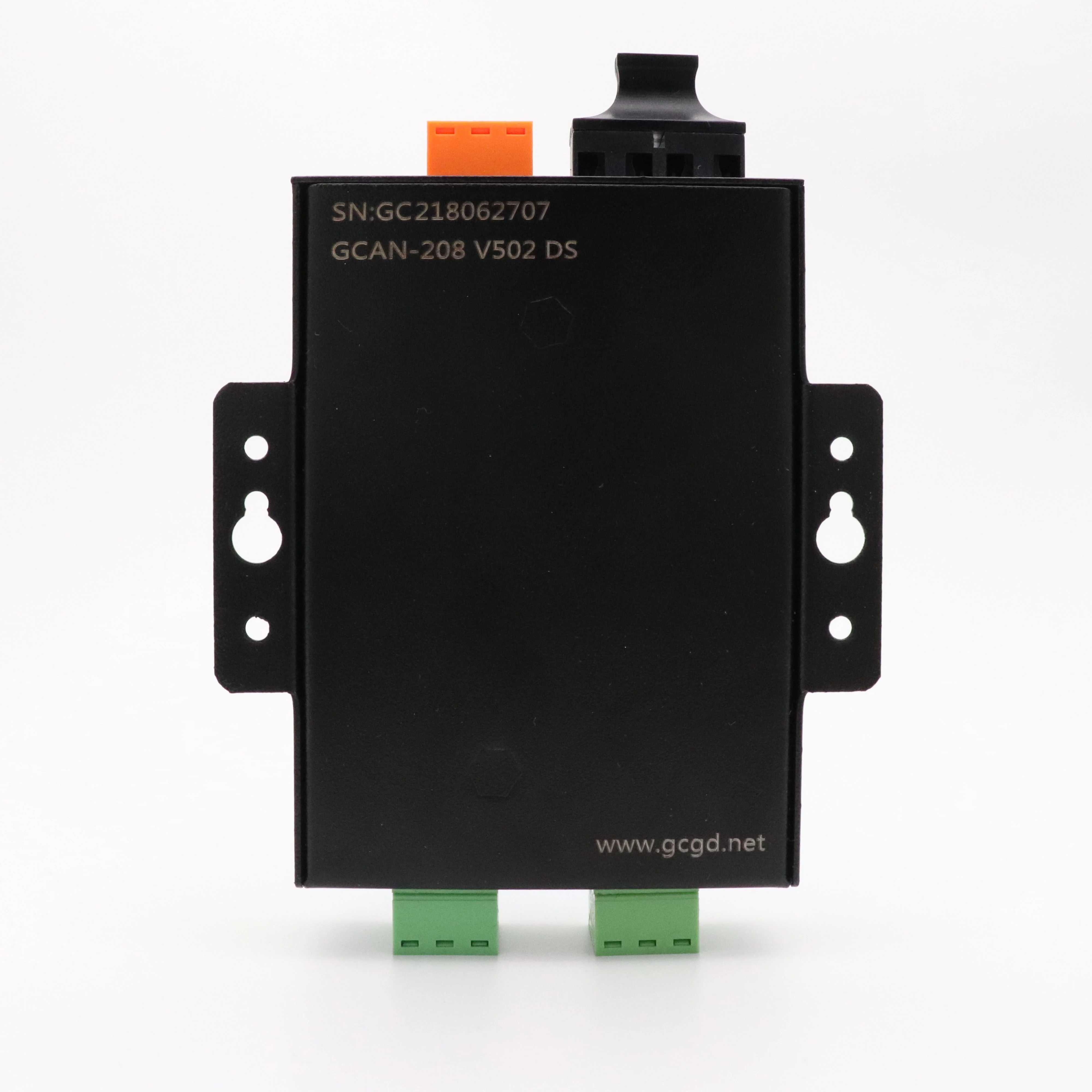

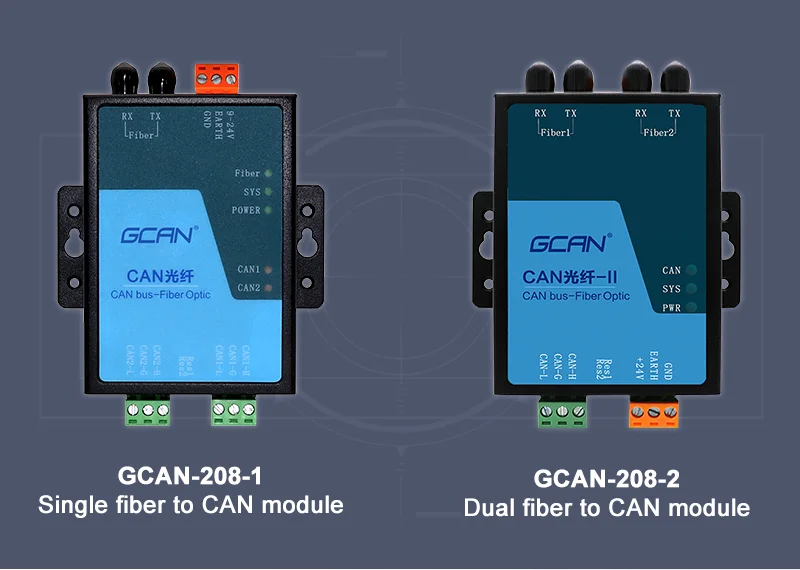

The GCAN-208-1 module is a CAN Bus converter, used for CAN Bus converting fiber. It is an industrial-grade CAN Bus converter, whose function is to realize long-distance CAN Bus communication and can eliminate communication interference.
Detailed parameters
Hardware Features

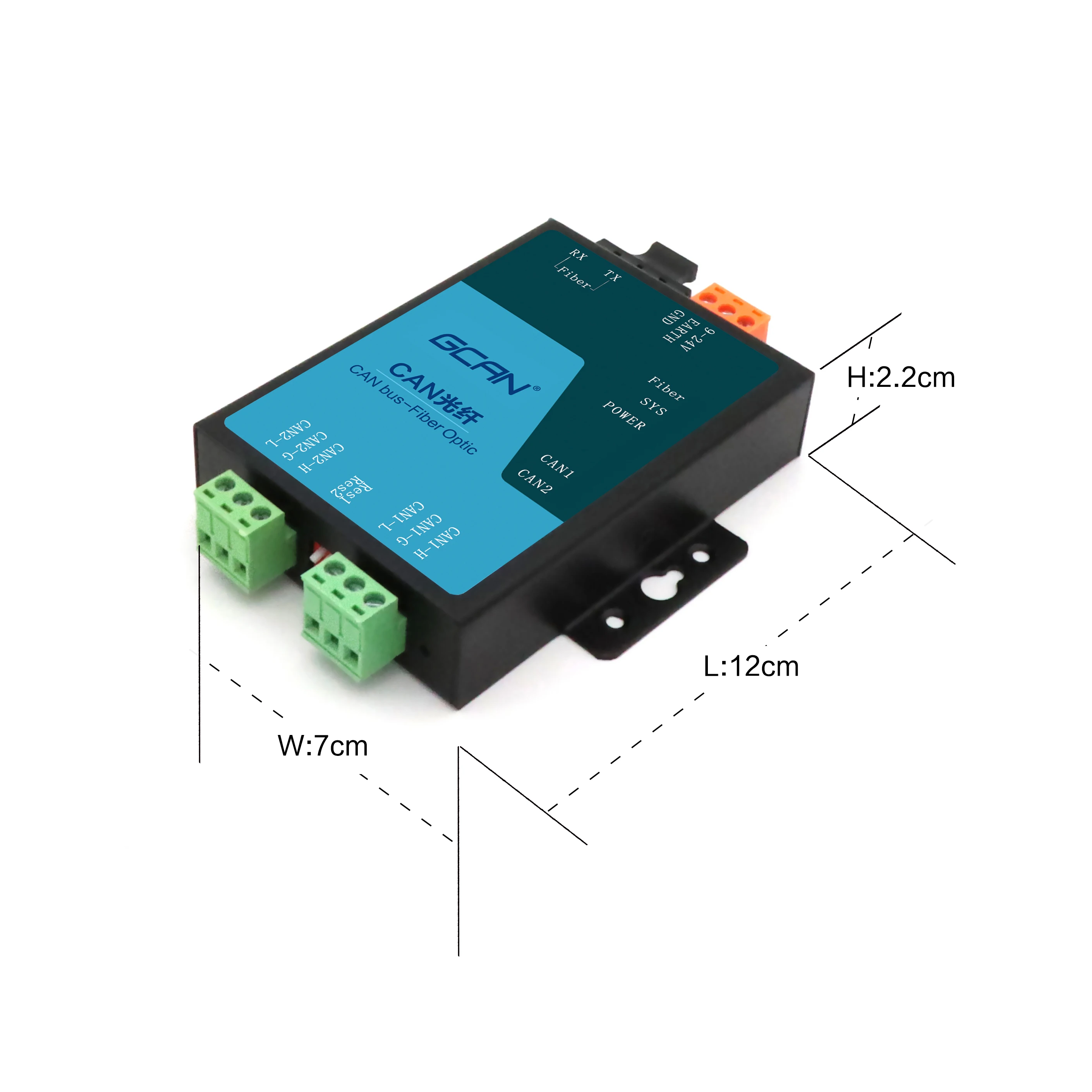

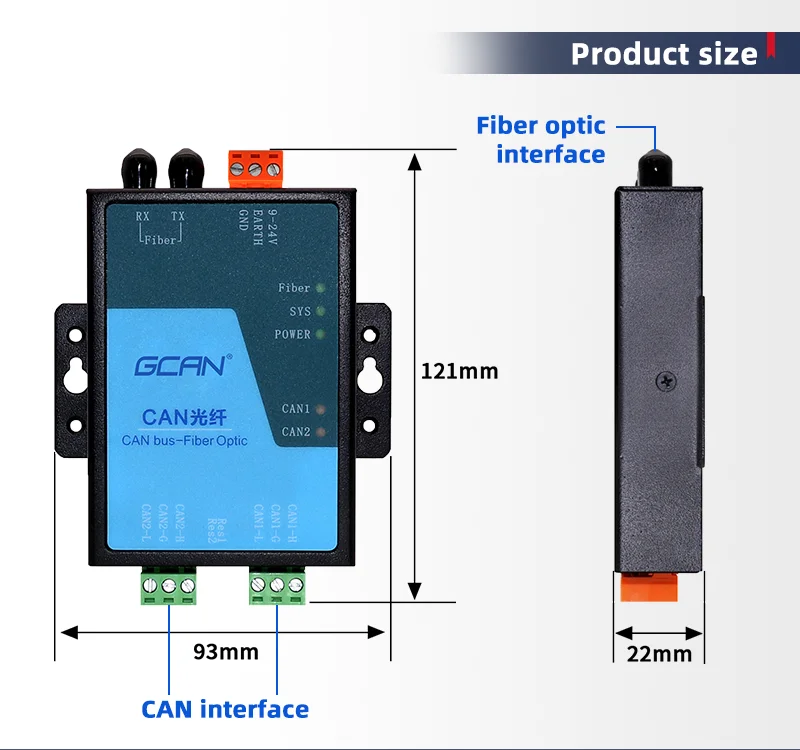

1. High speed 32-bit industrial grade processor 2. Embedded Watchdog timer 3. External voltage (DC+9~30V, 200mA) 4. Electrostatic discharge (ESD) Immunity level: Contact Discharge±2KV, Air Discharge±15KV 5. Fast transient Burst Impedance Level: ±1KV 6. Surge immunity level: ±1KV 7. Working temperature: -40.00℃~ 85.00℃ 8. Working humidity: 5%~95%, no condensation 9. Dimensions: 121mm (L) * 93mm (W) * 23mm (H) 10. Support customization and OEM
CAN Features
1. Two CAN Bus channels, with terminal connection 2. Support CAN2.0A and CAN2.0B, conform to ISO/DIS11898 3. Support communication baud rate: 5Kbps~1Mbps 4. Electric isolation, insulation level:
DC 1500V
Ethernet Features

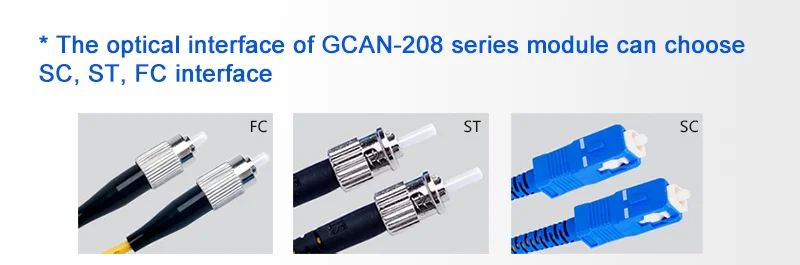

1. Fiber interface: SC or ST 2. Fiber transfer mode: SM, MM
Function & Application
Connection mode 1. Connect node to node: some node need long-distance communication or need electric isolation due to strong interference. 2. Connect with nodes: several nodes need long-distance communication or need electric isolation due to strong interference.
Our Company
Packing & Delivery

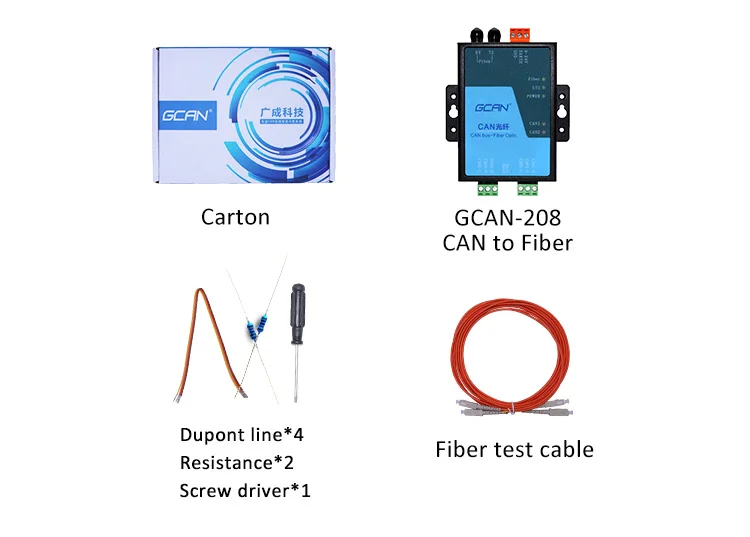

Packing
