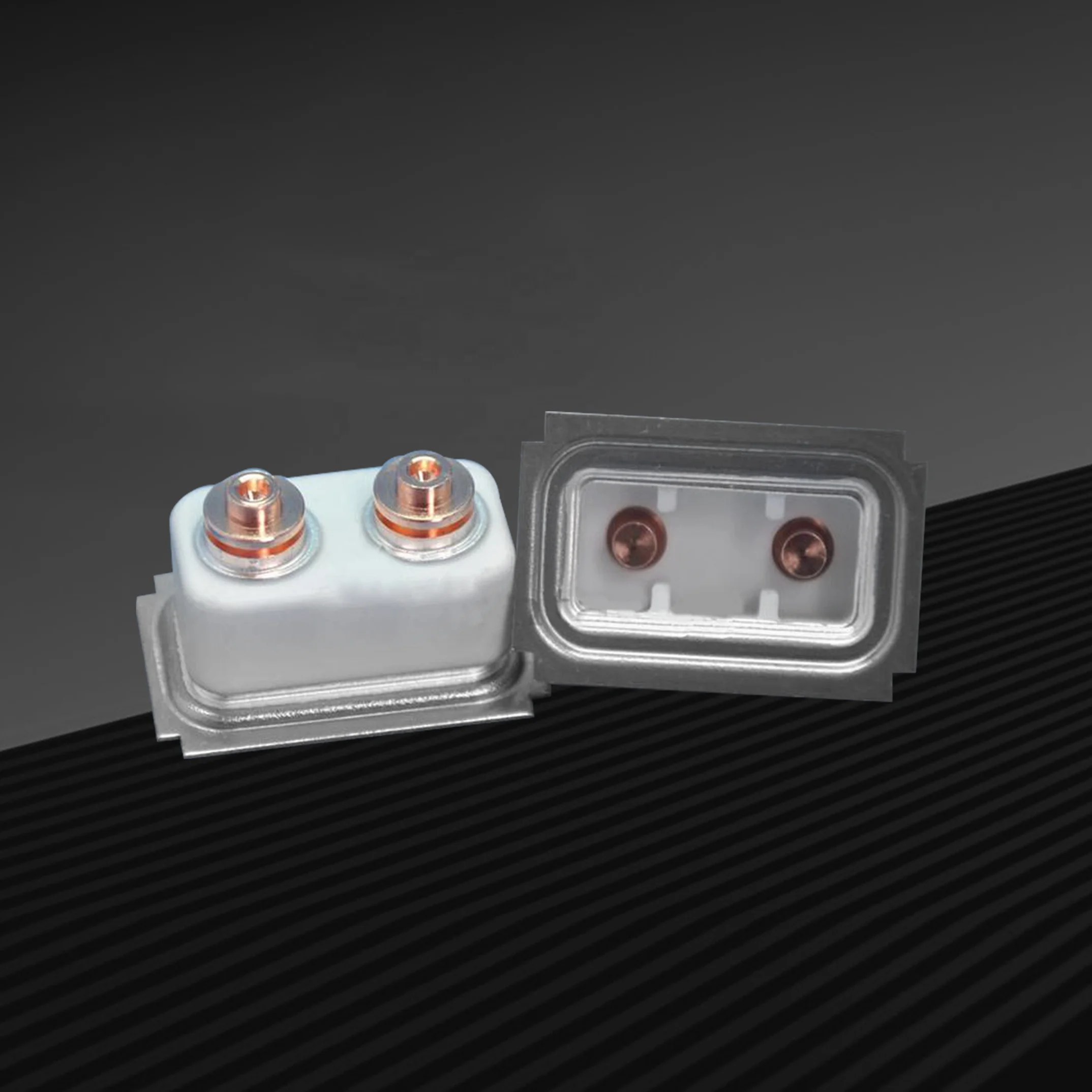

Customized Advanced Industrial Metalized Alumina Cases with High Precision
- Category: >>>
- Supplier: Shanghai Fine-Boon Science & Technology Co. Ltd.
Share on (62296022566):
Product Overview
Description
Product Description

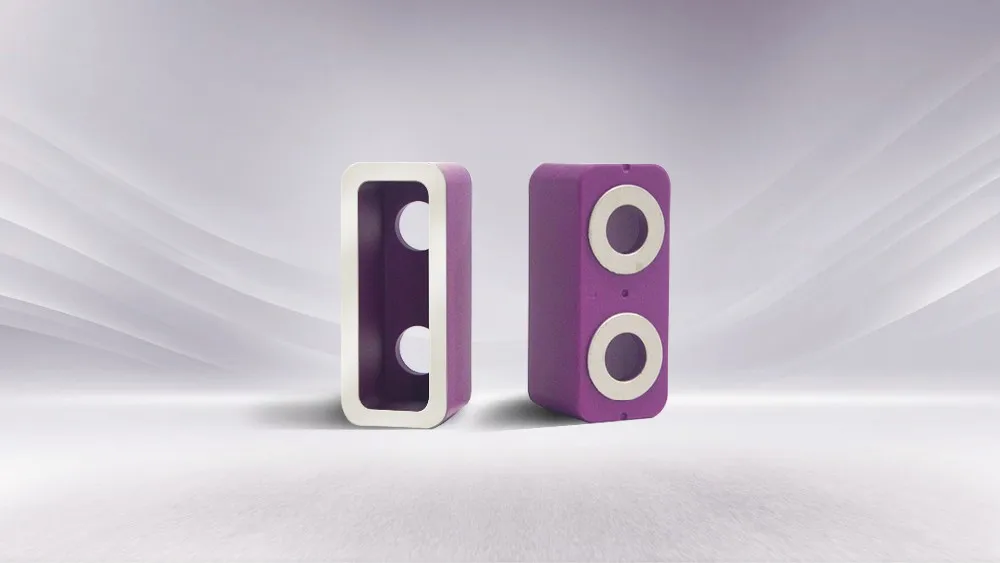

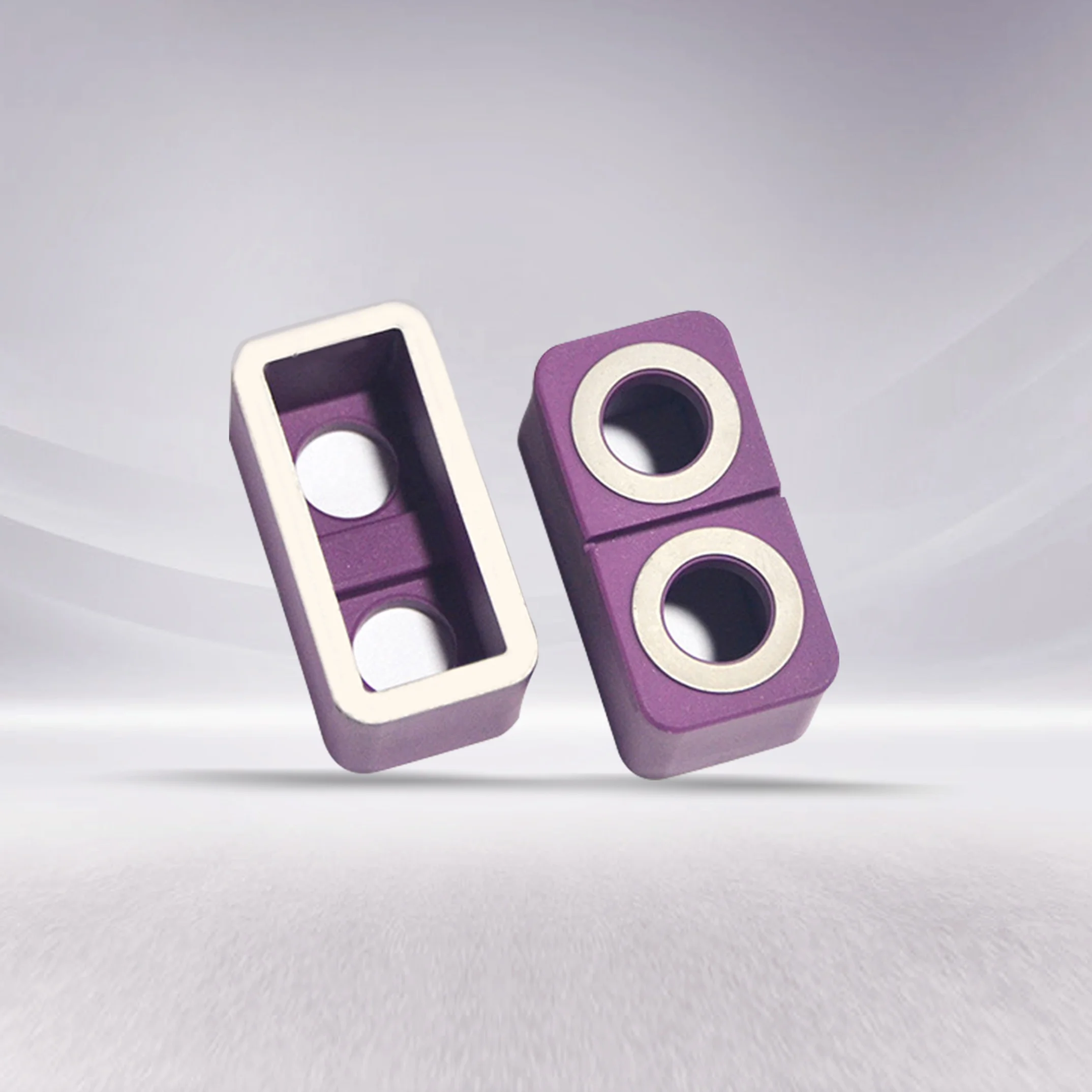

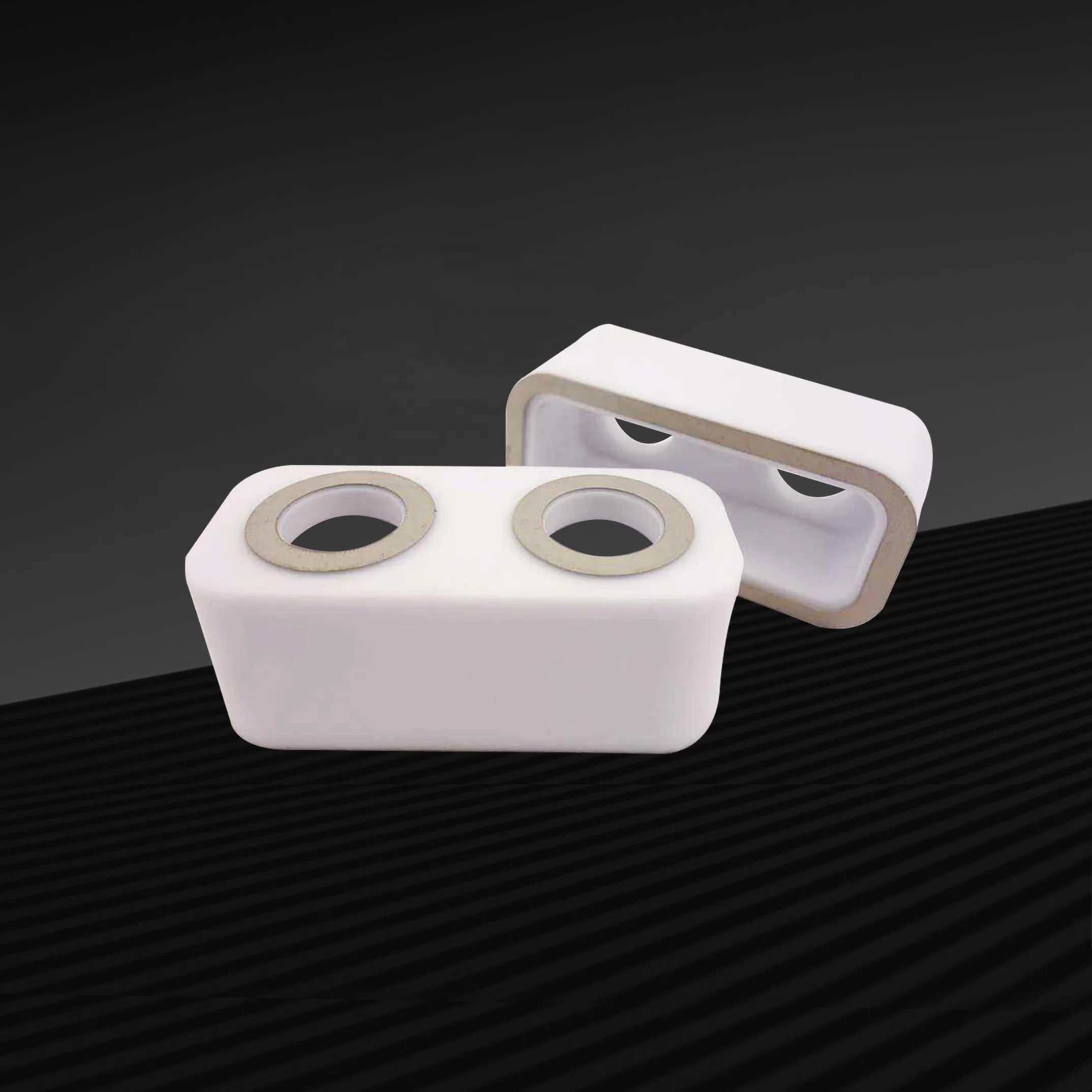

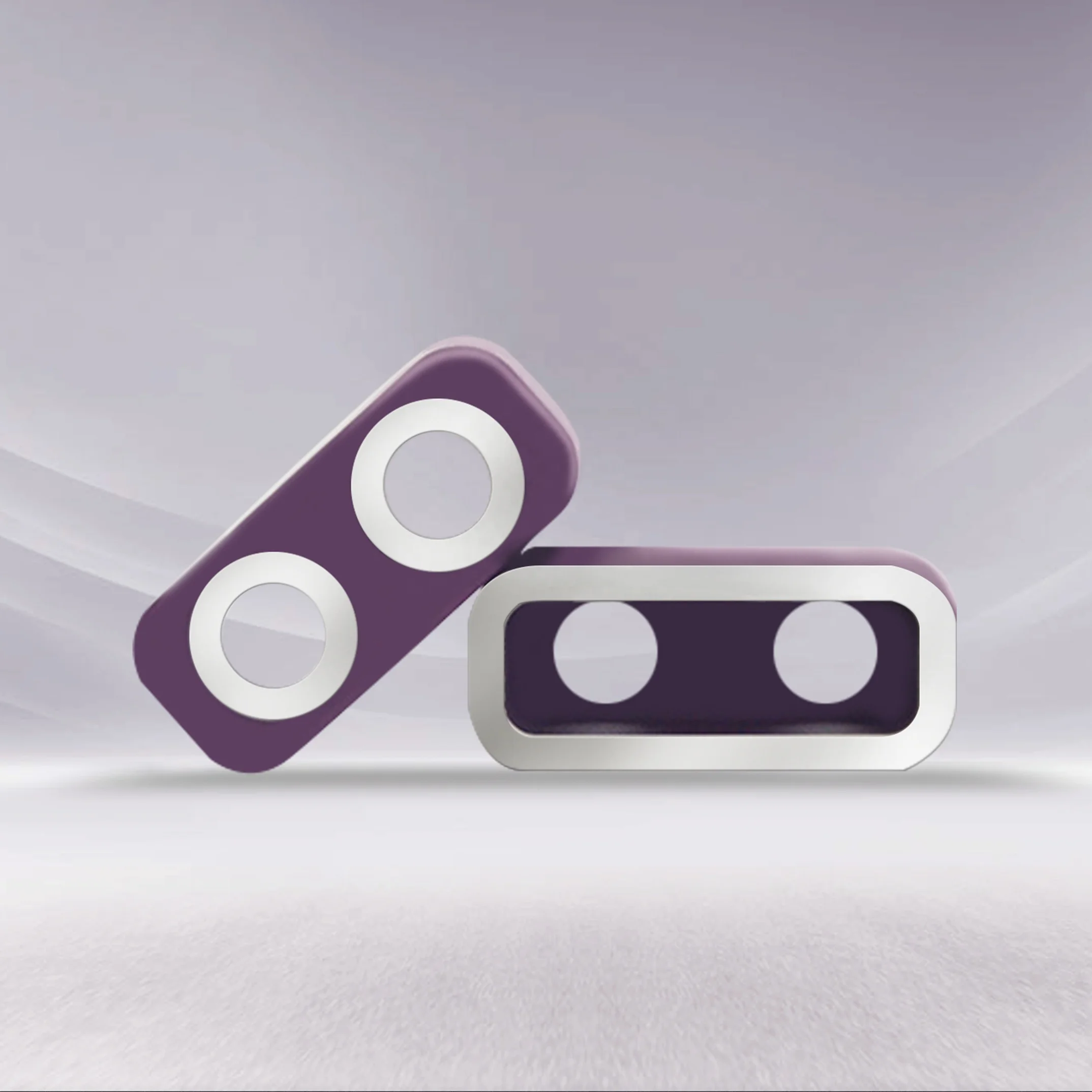

Customized Advanced Industrial Metalized Alumina Cases with High Precision
Material: 96.0% alumina or 99.5% alumina with metalization and nickel coating
- Either CIP or dry press formed bodies with secondary fine-machining
- High precision and good appearance after metalization
- Nickel coated and easily brazing with kovar and copper components directly
- Outstanding hermetic sealing with hydrogen gas filling after brazing
- Good insulation, anti-magnetic, static electricity-free character
- Excellent magnetic quenching capability for high votage and large current
- Excellent thermal shock resistance and good thermal stability
- Outstanding physical strength and toughness with above 200K life cycles
- Complying with CE, CQC, ROHS and REACH regulations
- Reliable quality, Non-toxic, healthy material, Eco friendly
- Professional ceramic R&D team is available for your requests of various metalized ceramic components
- Professional ceramic R&D team is available for your requests of various metalized ceramic components
Product Name | Customized Advanced Industrial Metalized Alumina Cases with High Precision |
Compositions | 96.0% alumina or 99.5% high purity alumina (Al2O3) |
Metalization | Sintered with Molybdenum & Manganese (Mo+Mn), then Nickel plating |
Mo+Mn Layer | 25 +/-10μm in thickness |
Nickel Layer | 2 -10μm in thickness |
Helium Leak Testing | 1×10-12 Pa·m3/s |
Tensile Strength | ≥800Kg/cm2 |
Material Density | 3.68 - 3.90 g/cm3 |
Tolerance | +/- 0.005mm |
Finishing | Ra 0.02 |
Max. Using Temperature | 1650 oC |
Using Fields | DC Relayer, Fuel Cell Units, Energy Storage Power Station, Various Electric Vehicles, Charging Piles, DC electric Railway, Electrical Appliance, Electric Products |

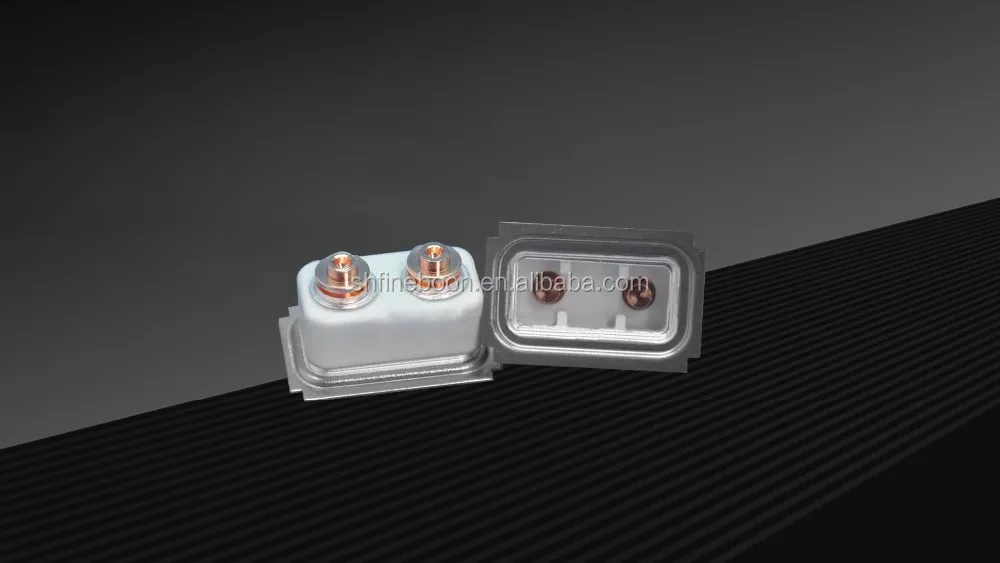

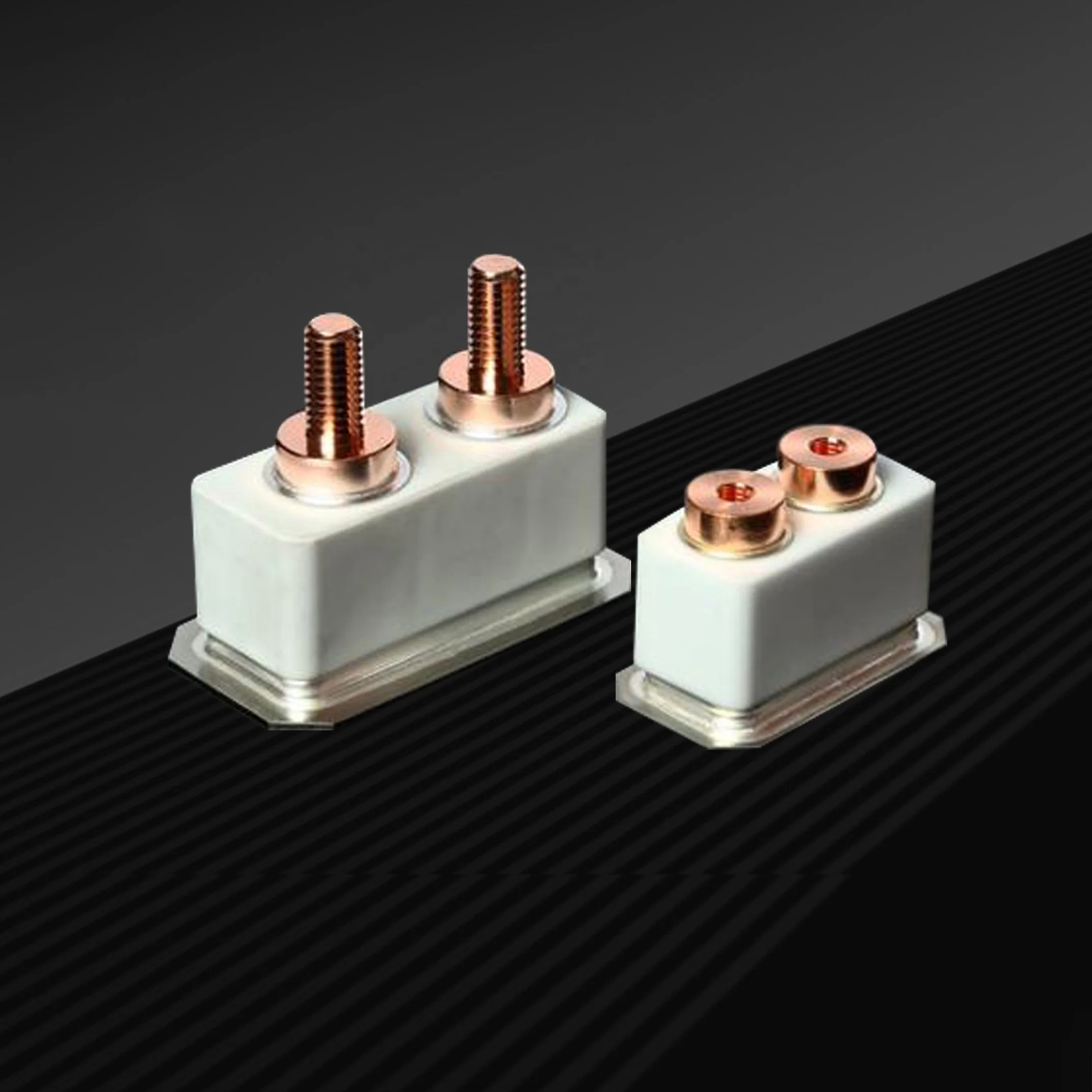

Alumina Relay Shells
Belows are the Various Standard Alumina Performance Characters Data Sheets
& Various Zirconia Performance Comparison sheets with other ceramic materials
Production Equipment
Press Machines
We can provied extrusion, dry press and CIP press forming for ceramics green bodies.
Sinter Furnaces
We have many electric sintering furance with different size available for green body sintering use.
Quality Control
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Our Company
Factory Birdview
Our factory for various metalized alumina cases production
Workshops View
Our workshops for various metalized alumina cases production
Packing & Delivery
Packing Details: Individual bubble bags for each metalized alumina case, seaworthy package
Delivery Details: 30 days after purchase order of metalized alumina cases was issued
1. Shockproof bubble bags for each metalized alumina cases separately in carton
2. All cartons are loaded in ply-wood standard pallets with plastic films wraped
3. All shipping methods are available for your choice
FAQ
Q: Are you trading company or manufacturer?
A: We are a professional ceramic factory with exporting office in Shanghai.
Q: How long is your delivery time for metalized alumina shells?
A: Generally it is 30 days for our metalized alumina cases after your purchase order was issued to us
Q: Do you provide metalized alumina shells? Is it free or charged?
A: Yes, we could offer the sample of our own metalized ceramic cases for free, but don't afford freight.
Q: What's your terms of payment for metalized alumina cases?
A: Payment<=1000USD, 100% in advance before shipping.
Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have any other question for our metalized ceramic products, pls feel free to contact us as below:
