  • 128 x 64 dot matrix 1.93 Inch 12864 lcd 128 x 64 dot matrix lcd module 3.3V/5.0V ks0108 128x64 graphic lcd
128 x 64 dot matrix 1.93 Inch 12864 lcd 128 x 64 dot matrix lcd module 3.3V/5.0V ks0108 128x64 graphic lcd
128 x 64 dot matrix 1.93 Inch 12864 lcd 128 x 64 dot matrix lcd module 3.3V/5.0V ks0108 128x64 graphic lcd
128 x 64 dot matrix 1.93 Inch 12864 lcd 128 x 64 dot matrix lcd module 3.3V/5.0V ks0108 128x64 graphic lcd
128 x 64 dot matrix 1.93 Inch 12864 lcd 128 x 64 dot matrix lcd module 3.3V/5.0V ks0108 128x64 graphic lcd
128 x 64 dot matrix 1.93 Inch 12864 lcd 128 x 64 dot matrix lcd module 3.3V/5.0V ks0108 128x64 graphic lcd
128 x 64 dot matrix 1.93 Inch 12864 lcd 128 x 64 dot matrix lcd module 3.3V/5.0V ks0108 128x64 graphic lcd
128 x 64 dot matrix 1.93 Inch 12864 lcd 128 x 64 dot matrix lcd module 3.3V/5.0V ks0108 128x64 graphic lcd

128 x 64 dot matrix 1.93 Inch 12864 lcd 128 x 64 dot matrix lcd module 3.3V/5.0V ks0108 128x64 graphic lcd

Share on (62296094403):


Price:$3.37 - $4.30

Quantity:


Product Overview

Description



Product Description




Resolution
128X64 Dots
Model No.
HXG1286415-V01

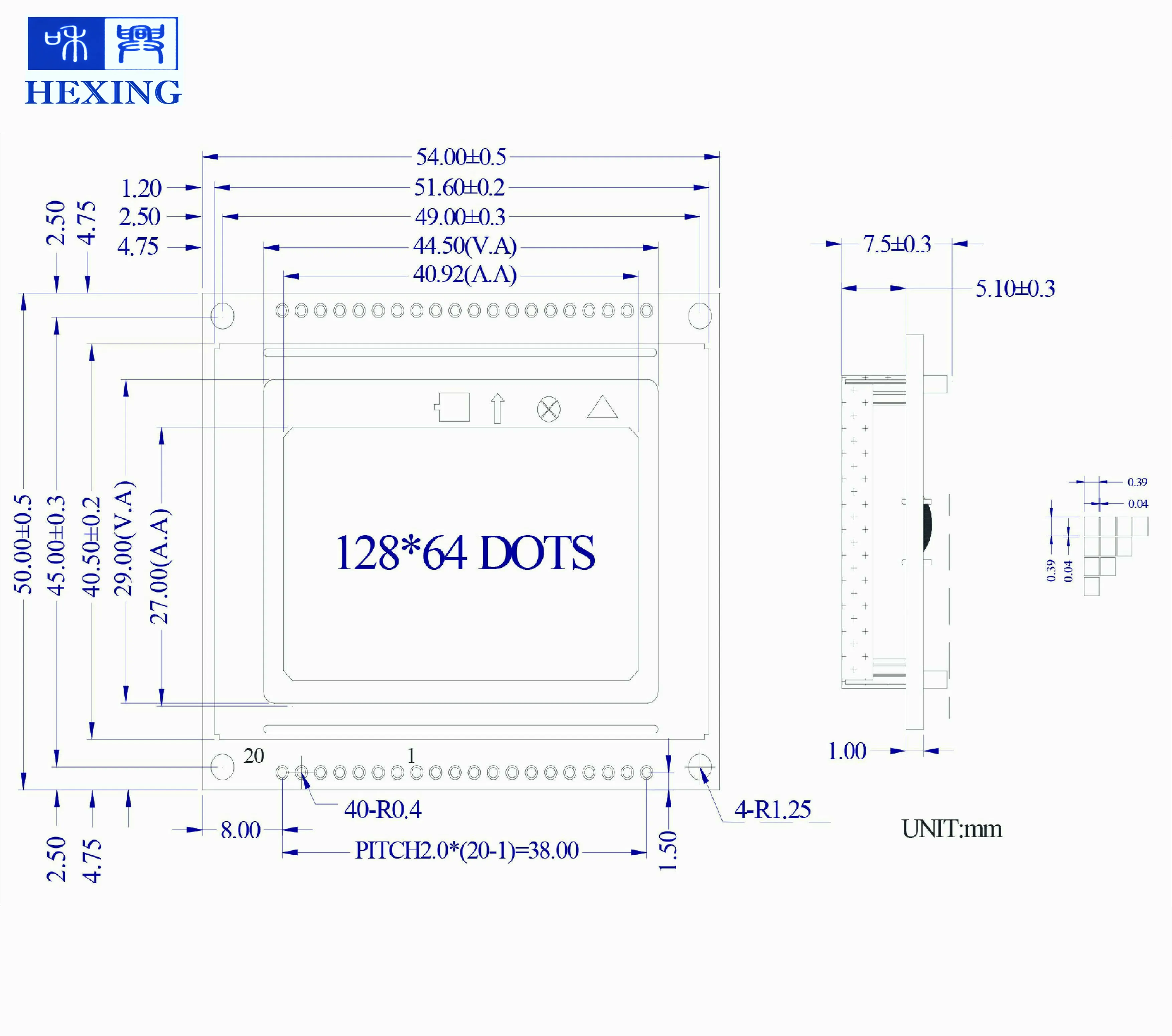

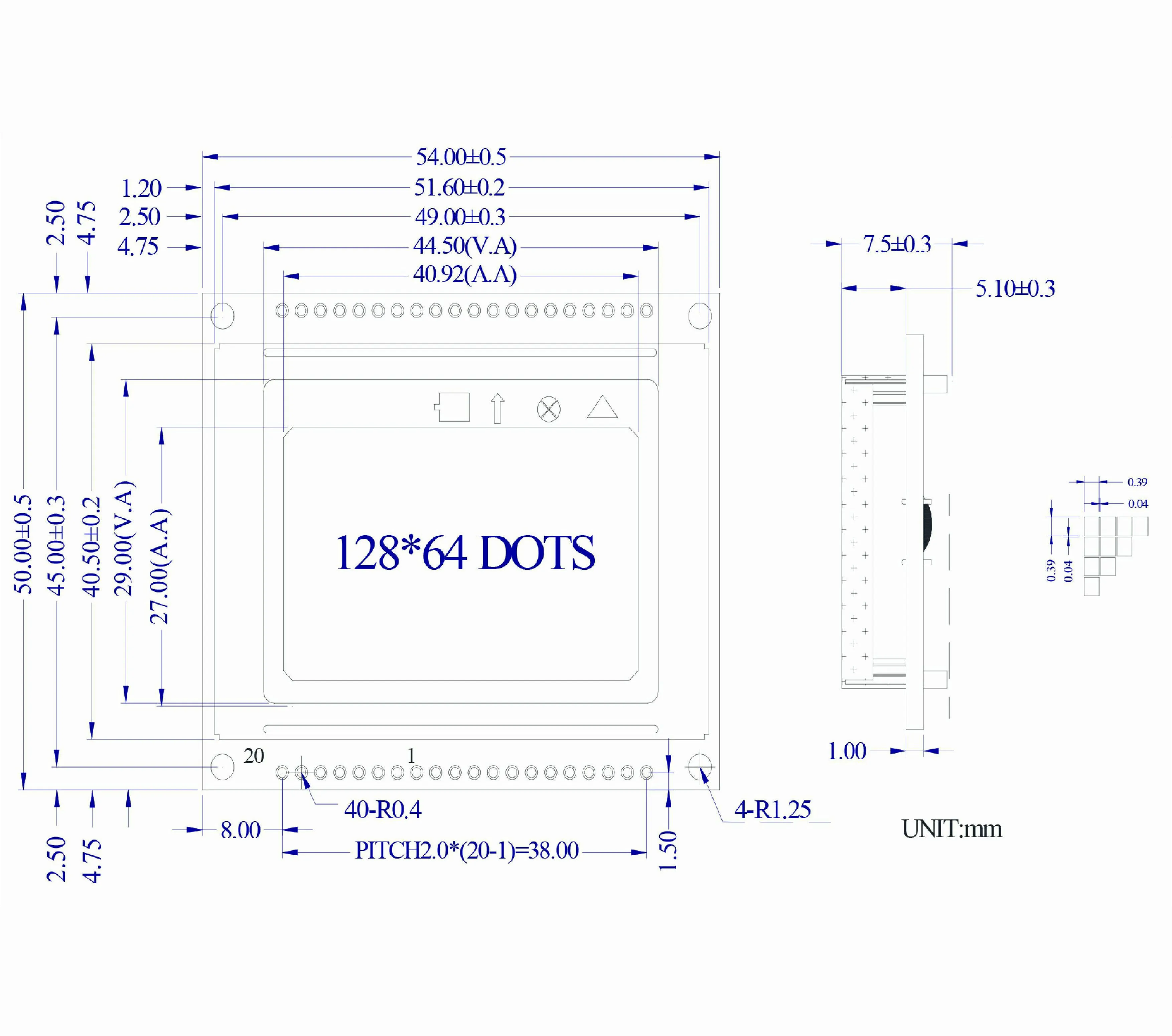

Outline Dimension
54.0X50.0X7.5mm
Viewing Area
44.5X29.0mm
Dot Size
0.39X0.39mm
Dot Pitch
0.43X0.43mm
Display Mode
STN Negative Blue，Yellow Green， FSTN Black and White
Driver IC
NT7107C or EQV.
Interface Type
8 bit Parallel
Backlight Type
LED White or Yellow Green
Weight
25g


Details Images
