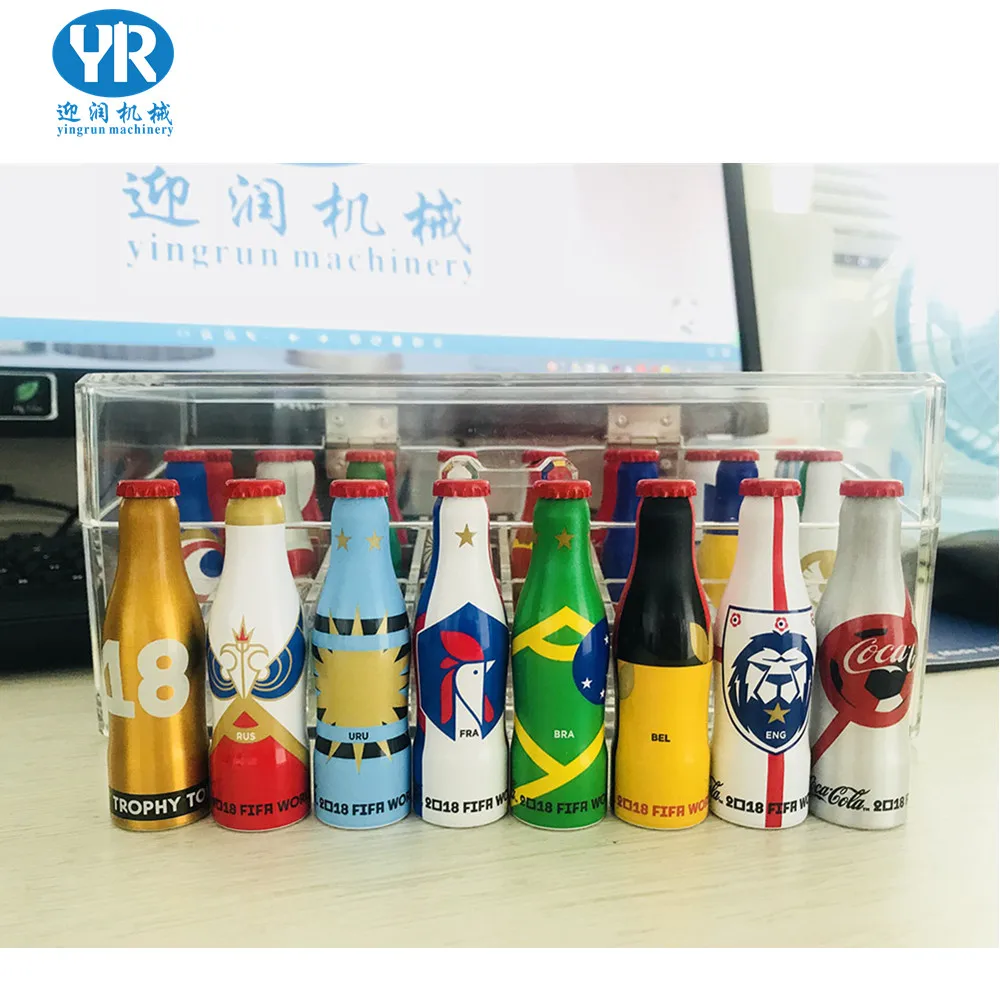

Horizontal extruder is also called horizontal extrusion press machine. This is a specialized equipment which extrudes aluminum and other non-ferrous slugs into germ tubes and cans or cylindrical objects(like beer bottles，capacitor cases) and other shapes.
The extrusion press machine developed by our company, is a high speed aluminum extrusion device of new generation. This equipment comes with slat chain lift conveyors which automatically arrange the aluminum slugs in order and send them to the laying-off rail. The machine manipulator sends the slugs precisely into the punch cavity. Under the action of the crank-shaft connecting rod, swing rod and sliding block, the aluminum slugs are extruded in desired shape and size.
The clearance between lip of punch and die controls pipe thickness. Through the annular slot between the die bottom and tip of punch, the slugs are pressed and turned into germtubes, the extruded part is automatically unloaded to the out feed conveyor which transfers the product to next operation stage.
Main features
1. The complete machine is controlled with SIEMENS PLC, which ensures smooth control and synchronize the operation with safety. Fail safe lubrication, automatic detection of job sticking to die and punch, are added features
2. The machine adopts whole cast steel structure (one-time casting) and has excellent rigidity and impact resistance.The body of the lathe is processed by large processing center. Mandrel and some other units are processed by CNC equipment, reaching high precision degree.
3. The equipment adopts electricity chain operationand full closed structure, with stable function and low noise. If the can does not perform well, the machine would stop working automatically.
5. The seat of the tip of punch adopts the form of double inclined plane with accurate location. Punch base and connecting rod employ adjustable structure, which can eliminate the gap caused by the wear and tear of long term operation and ensure long-term high precision of equipment.
6. The key parts use high quality bronze alloy to reduce friction coefficient, increase wear resistance and prolong working life.
7. The machine employs whole closed lathe body design, which canavoid the dropping of lubricant onto the floor.
8. Easy operationand maintenance. The machine meets the concept of energy conservation and environmental protection.
Related Products

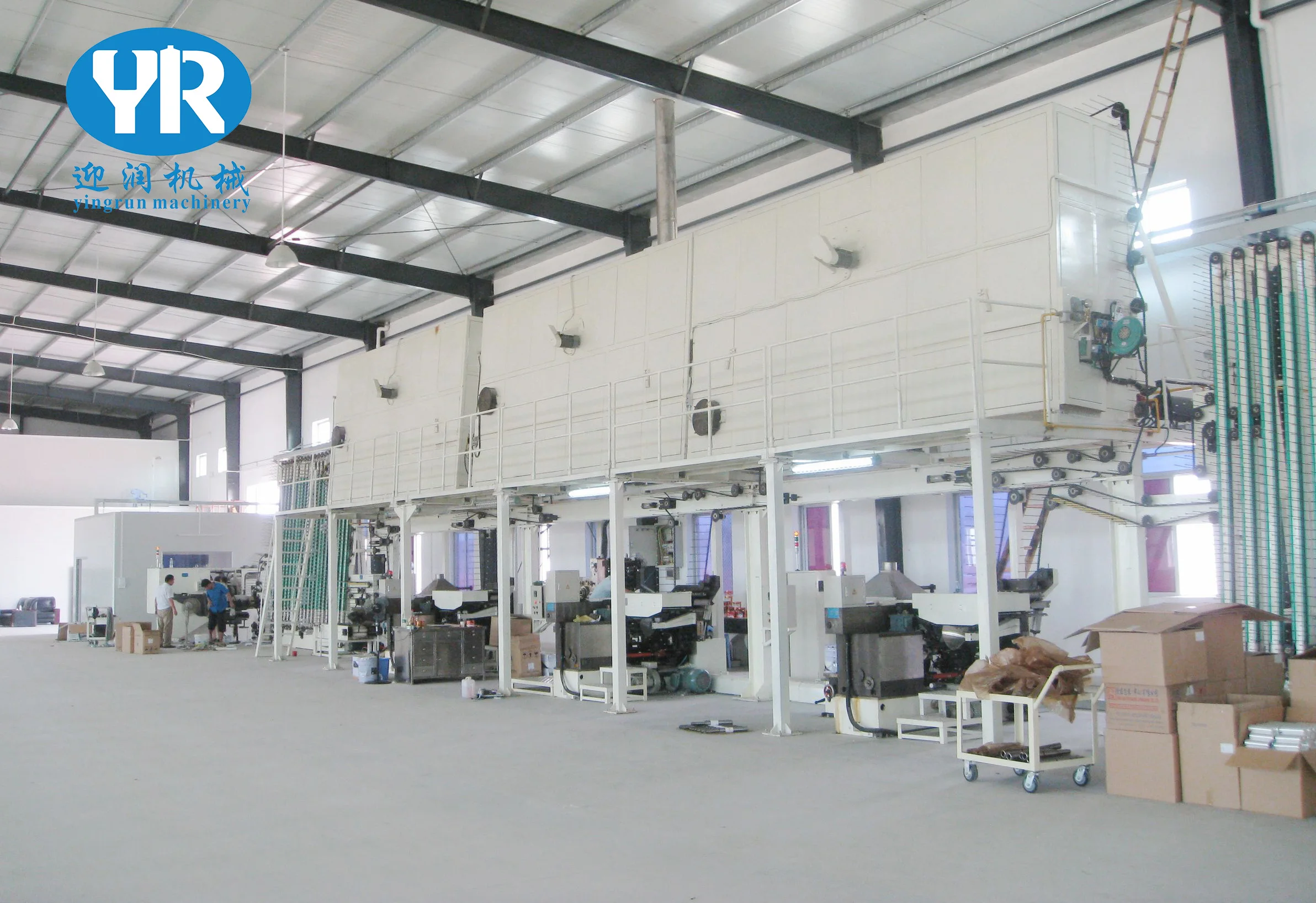

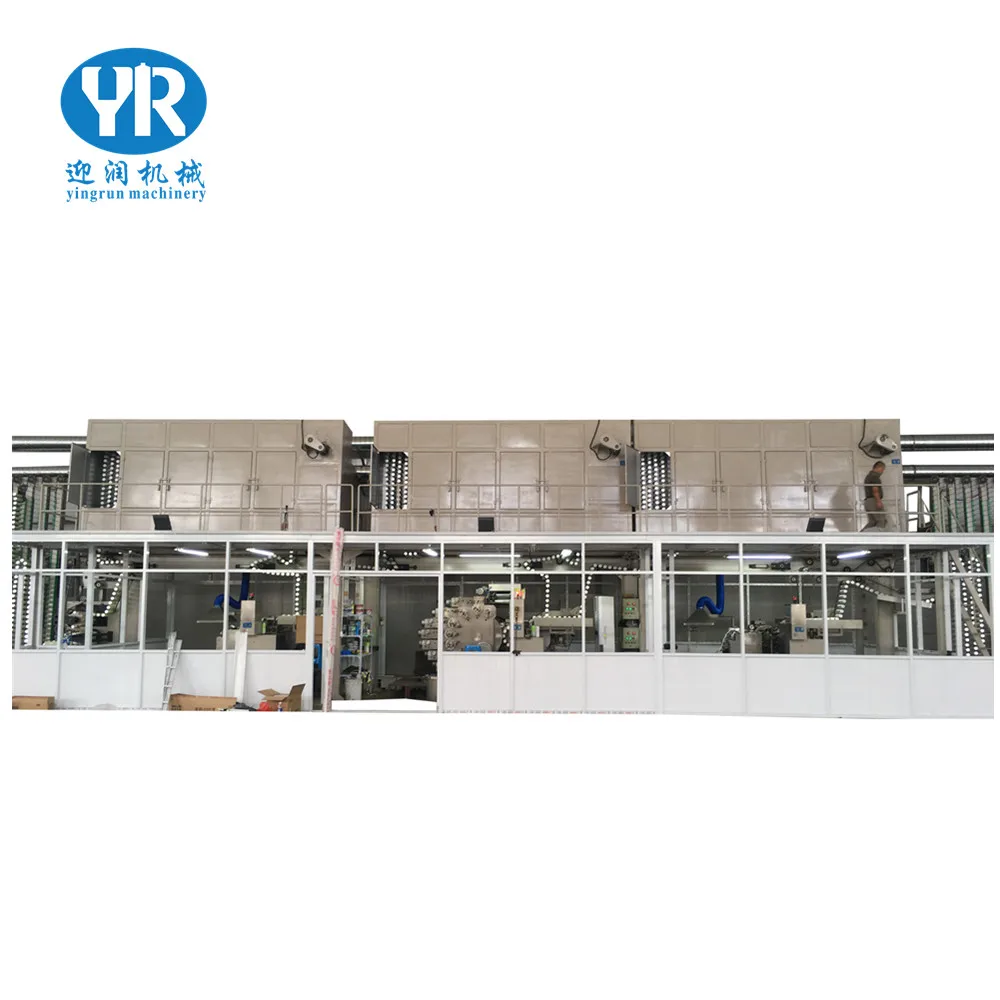

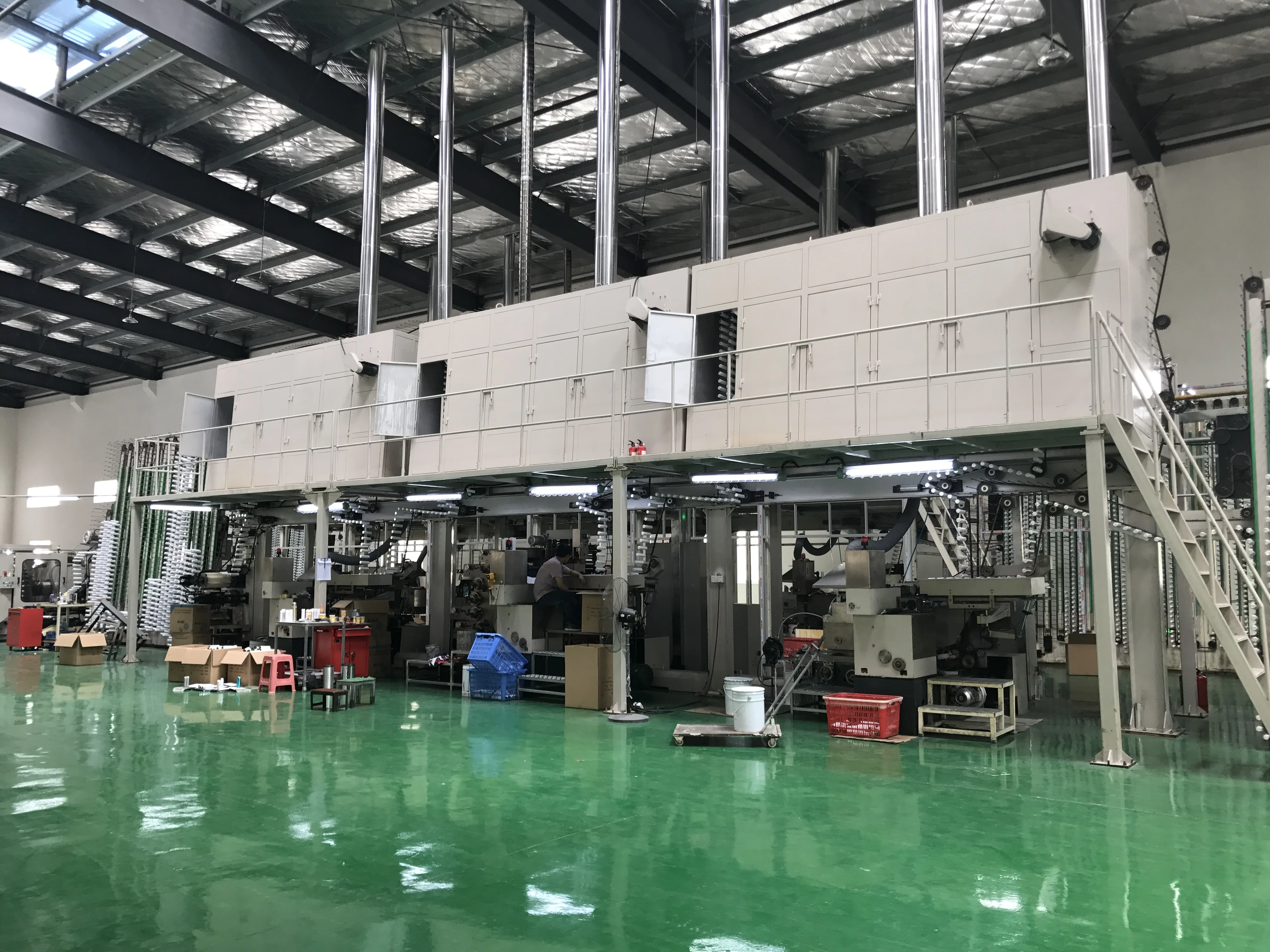

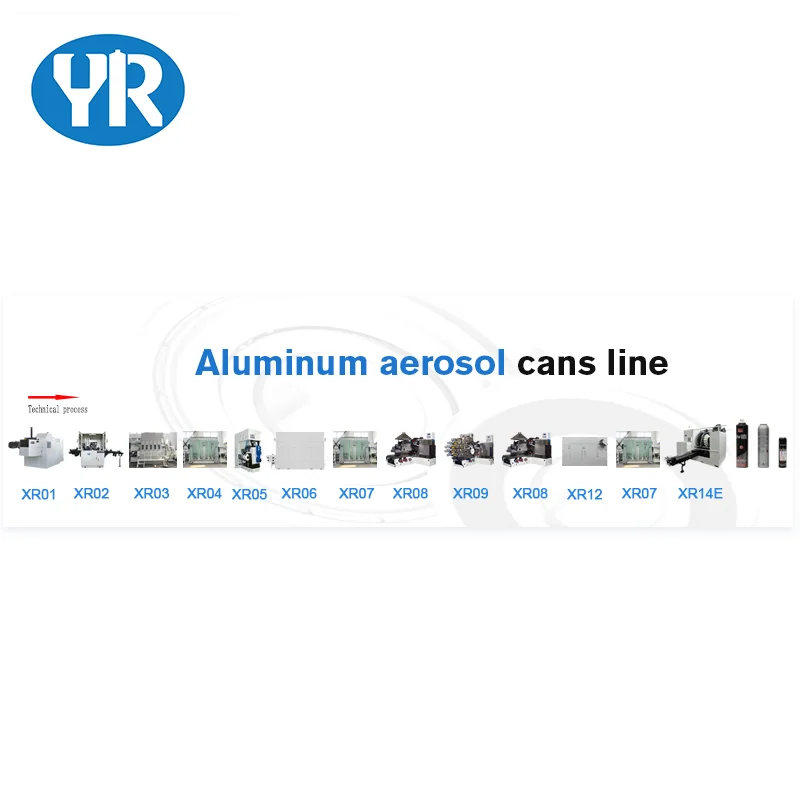

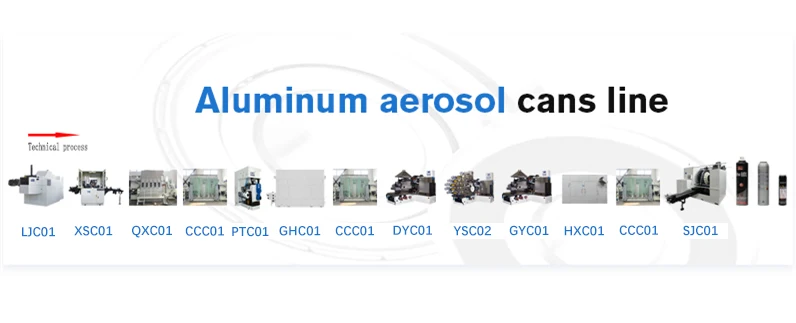

Aluminum aerosol cans line
Aluminum can line are a set of machines to produce mono block aerosol cans and bottles.
Mono block cans and bottles are used for perfume, deodorant, hair sprays, shaving creams, pesticide bottles, aluminum tubes, hair sprays, conditioners, medicines, fire extinguishers, oil and paints.
The aluminum can lines produced by us are fully automatic.Each equipment of this series can work alone or form partial production lines according to client’s needs.The main machines include Extrusion press, Trimmer cum brushing, can washer or degreasing Spray washing machine, Accumulator, Internal lacquering machine, Lacquer curing oven, Base-coating machine, 6-color or 8-color printing machine, Drying oven, and Necking machine, etc.
All the equipment of the series are properly alignedin structure, having advance design, highly automated for fast production. All machines are controlled with SIEMENS PLC to ensure stability. To save energy consumption, all lacquer curing machine and drying oven adopt gas heating. Main units and controlling components all adopt branded products to ensure reliable and stable performance. All the products can be passed automatically through the production line. The color touch screen can display the instant information of speed and production, making it convenient for management.
Other Machines
Trimming cum brushing Machine
Aluminum can trimming machine is also called edge trimmer, which is the specialized equipment for the aluminum can production line.
Germ cans from charging conduit are inserted into core mandrel with star wheels, the expanding mandrels hold the cans firmly for subsequent operations. The edge cutter automatically cuts as per the required length, the scrap is collected and sent into the waste tank. The next station is for brush application ,where the can body is brushed to achieve a coarse or fine polish finish with abrasive wheel running at high speed .The trimmed and brushed cans are moved to next stage through conveyor.
1. Can diameter range: φ35mm-φ53mm
2. Can length range: ≤250mm
3. Production speed: ≤120cans/min
4. Main motor power: 4KW, total power：85KW
5. Intake pressure: P=0.6MPa
6. Dimensions: 2940*2600*1820mm
7. Weight: about 2800KG

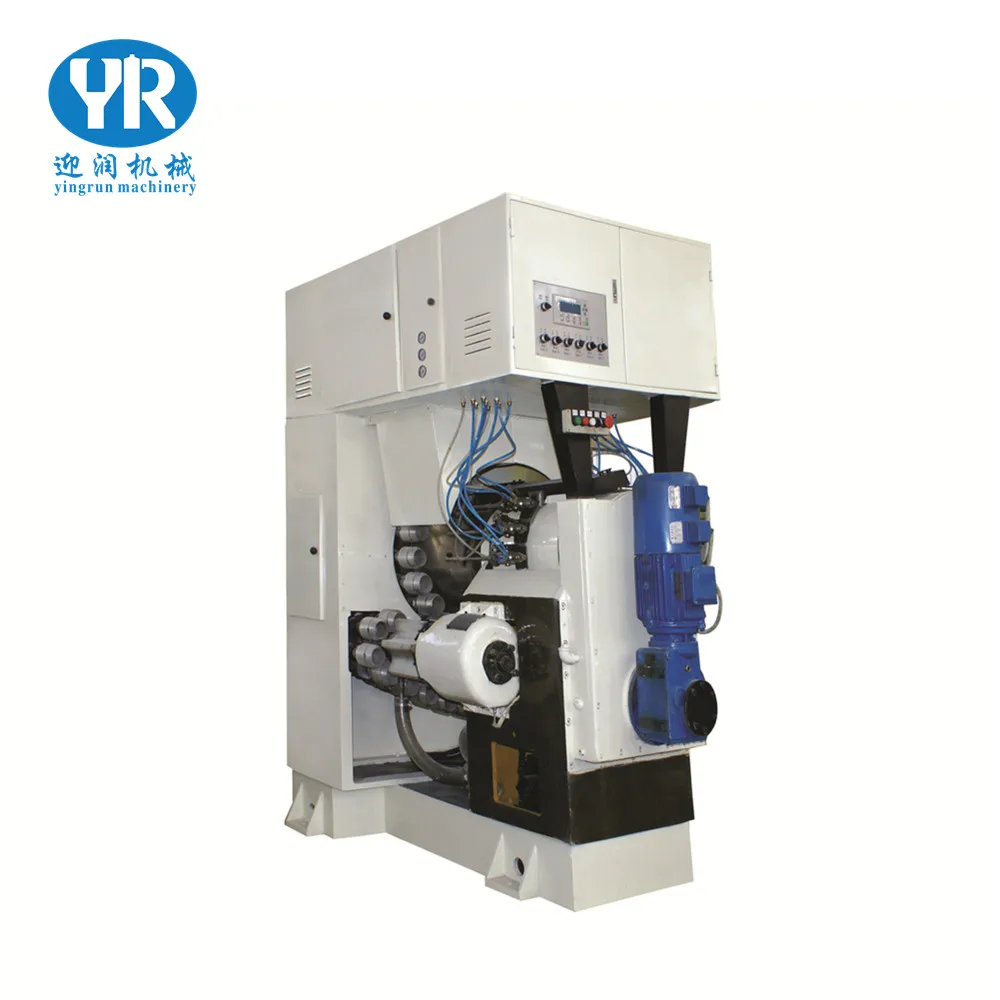

Internal Lacquering Machine
Aluminum can internal lacquering machine is the necessary equipment for automatic aluminum can production line. To meet the requirements of aluminum cans and effectively separate contents inside and aluminum can，it is necessary to spray a stable chemical protective layer on the inner wall of the aluminum can. Usually，the coating material is epoxy resin. Thus the machine is called internal lacquering machine.
1. Can diameter range: φ35-φ53mm
2. Can length range: ≤230mm
3. Production speed: ≤120cans/min
4. Main motor power: 4KW,
total power: 7.85KW
5. Dimensions: 1235*1880*2510mm
6. Weight: 2600KG
7. Intake pressure：≥55Mpa

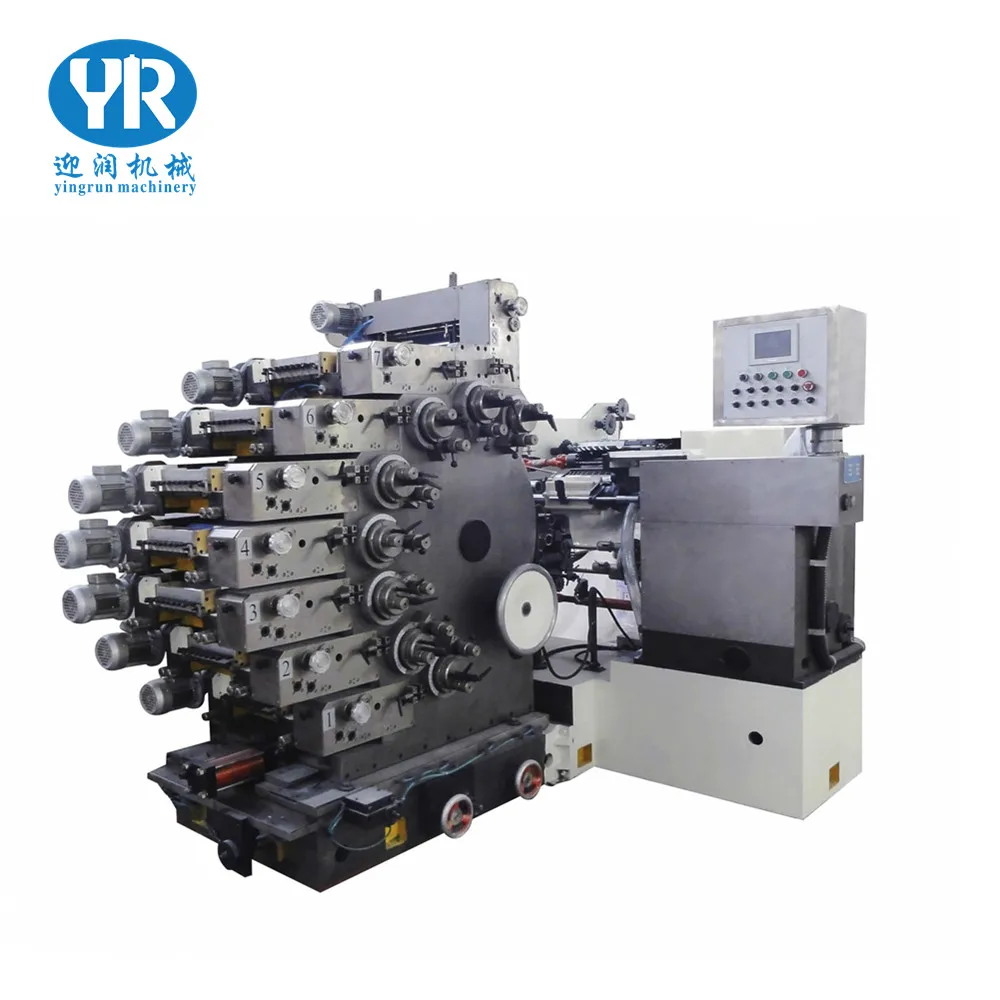

8-color Printing Machine
8-color printing machine suitable for printing the surface of metal cans like aluminum tubes and cans. It can realize polychrome printing of patterns in eight colors.
1. Can diameter range: φ35mm-φ66mm
2. Can length range: ≤230mm
3. Production speed: ≤100-120cans/min
4. Motor power: 17KW
5. Dimensions: 3445×2318×2168mm
6. Net weight: 9600KG
7. Intake Pressure: 0.6MPa

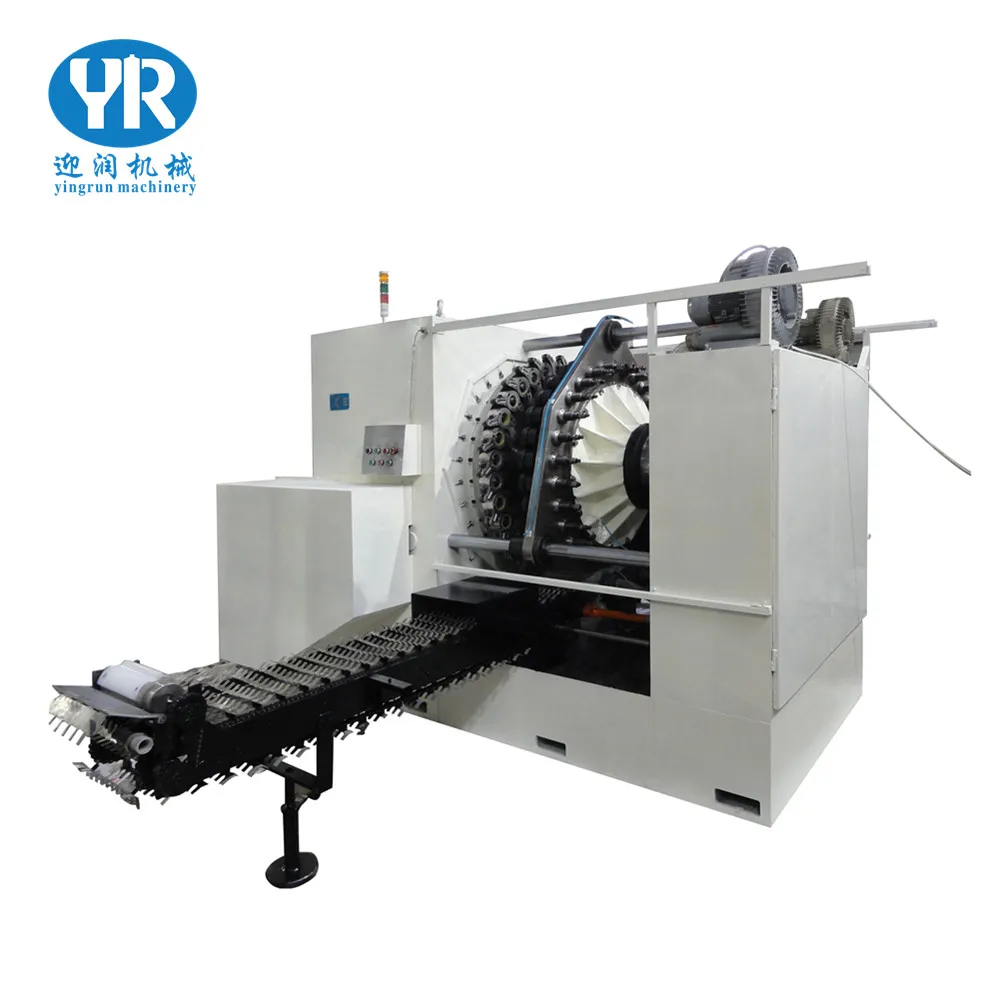

Necking Machine
Can necking machine it is suitable for products like aluminum and hard aluminum to form the shoulder profile and curl.
Cans are fed in to the can holding chuck of the machine by conveyer. The working cycle includes bottom pressing, progressive neck and shoulder formation face milling, curling, cleaning and transmitting. The machine has 30 stations. It can work alone or form automatic aluminum can production line by connecting with other machines.
1. Can range: φ35-φ53mm
2. Can length: ≤230mm
3. Production speed: ≤120cans/min
4. Main motor power: 7.5KW
5. Necking range：≤100mm
6. Intake pressure：≥0.4MPa
7. Dimensions: 4210*2880*2160mm
8. Net weight: 9200KG
9. Station quantity：30
