12 volt reducer engine 40NM 390 self lock dc worm gear motor
- Category: >>>
- Supplier: Shenzhen Shengfulai Motor Technology Co. Ltd.
Share on (62296867242):
Product Overview
Description
Product Description
DOOR LOCK GEAR MOTOR
Main voltage: 5VDC 8VDC 24VDC
Typical application: self-lock
Motor characteristic example:
Gearbox data
| Number of stages | 3 |
| Reduction ratio | 87K |
| Gearbox length "L" | 65*58 |
| Gearbox efficiency | 32% |
Motor characteristic example:
| MODEL | VOLTAGE | NO LOAD | ON LOAD | STALL | |||||
| Rated | SPEED | CURRENT | SPEED | CURRENT | OUTPUT | TORQUE | CURRENT | ||
| V | r/min | mA | r/min | mA | W | N.m | Kgf.cm | mA | |
| SFL-65JSX | 8.0 | 80 | 400 | 65 | 1500 | 2.8 | 1.8 | 18 | 8000 |
| SFL-65JSX | 8.0 | 91 | 500 | 75 | 2500 | 4.7 | 2.4 | 24 | 13000 |

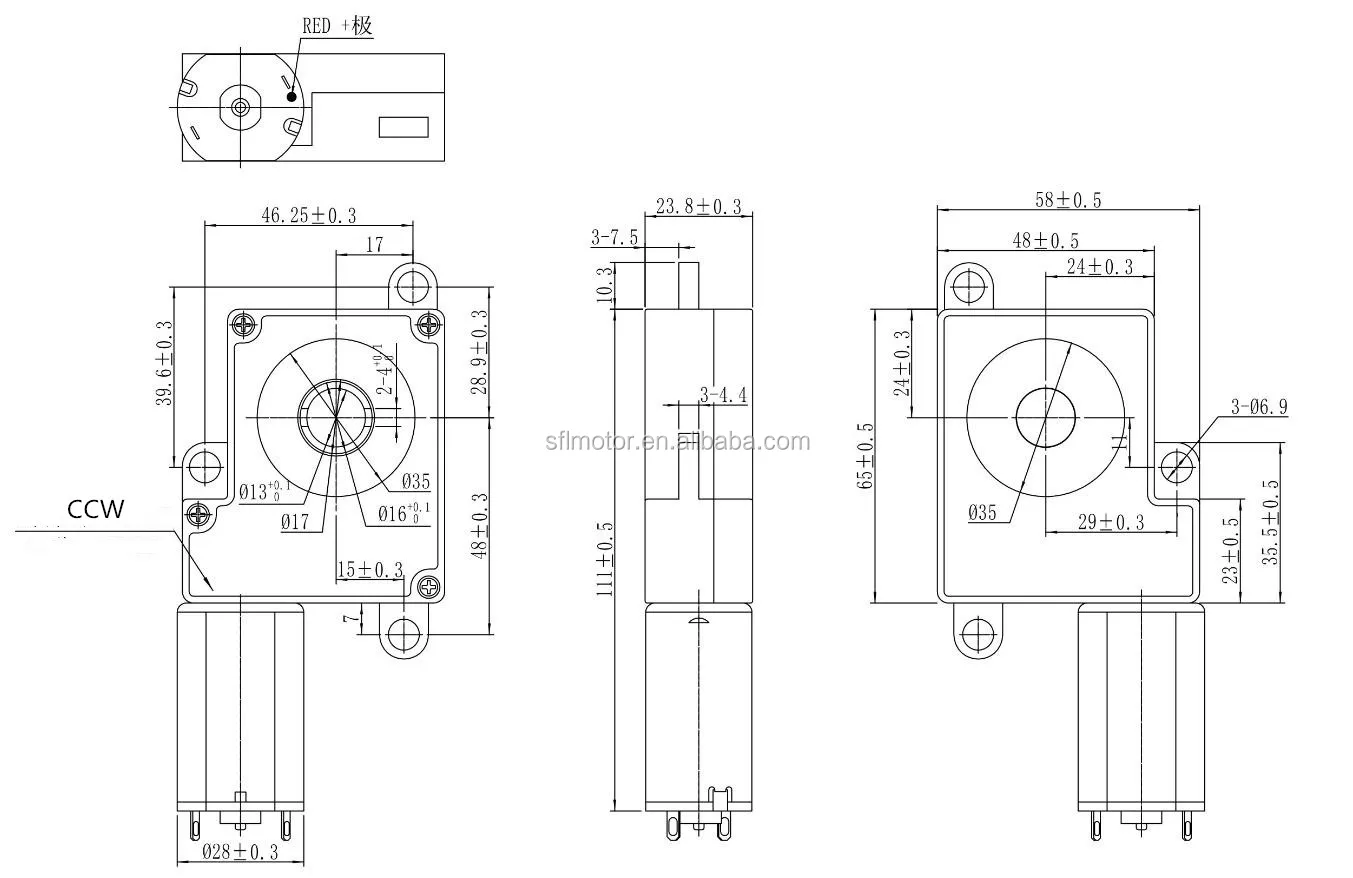

Appearance Size/mm
Production Process
Company Information
About us
- More than 50 sets automatic manufacturing equipment and detecting instruments.
- R&D engineer group with practised experience, and long-term customization
- Professional technical experience and reliable after-sale service
- Good cost control and high cost performance
- ISO9001 quality management system certification
- Up to 50,000 motors daily output
Our Services
Customization service as below are available
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
