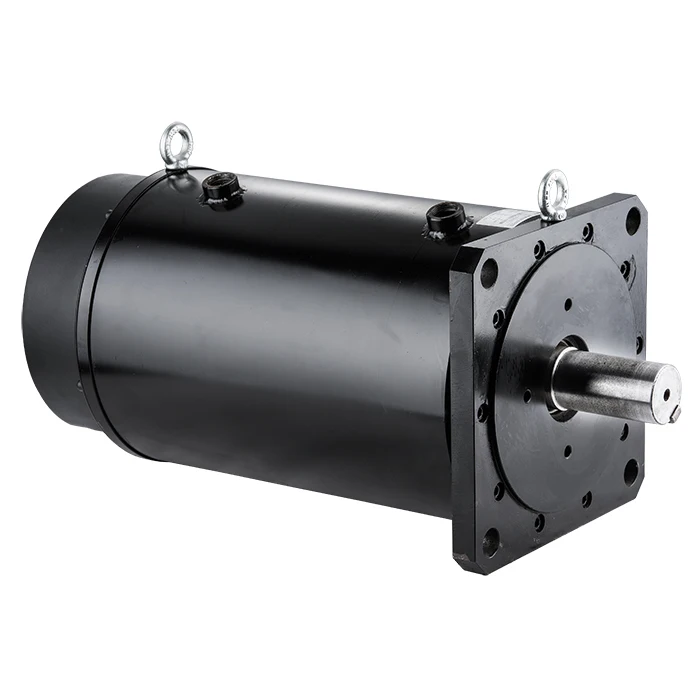

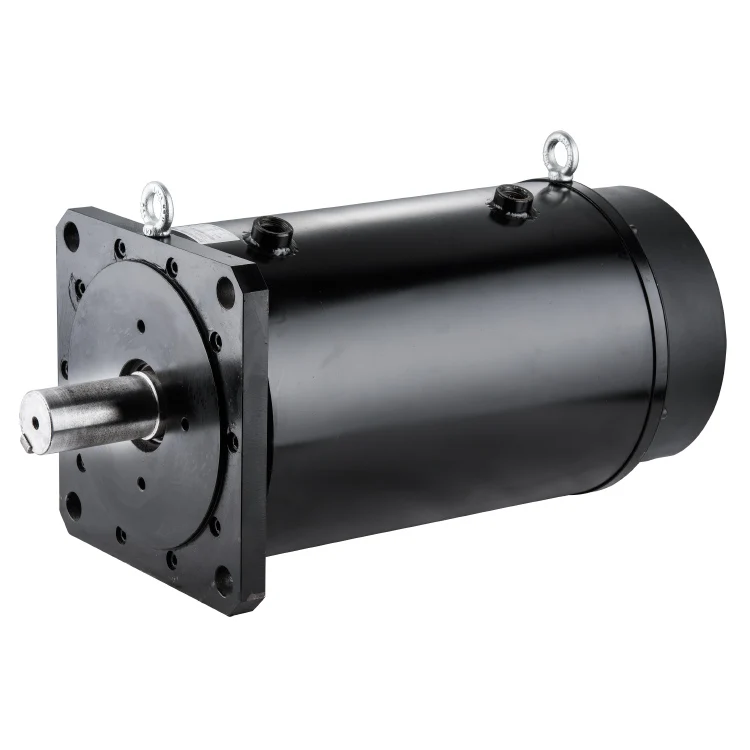

Synmot 130kW 828N.m 1500rpm High performance cnc router spindle motor for metal milling servo motor Ac spindle servo motor

Product Overview

Description

Product Description:

Synmot liquid cooling servo motors are permanent magnet synchronous motors with the stators cooled with liquid ,the main features including :ultra energy-saving .high response and accuracy .low noise and low temperature rise.the rotor is made of high-performance rare-earth permanent magnet material .works reliably and tomaintain less.With low rotary inertia .it is easy to improve the rapidity of system .small volume.high speed and high torque.using the high-resilution encoder (17-bit .33-bit) to improve the position control accuracy.it control the current according to D-P principal axis transformation .which increase the torque control accuracy from 5% to 2% .Synmot servo motor have been widely used in injection molding machienry .textile machinery.CNC machinery etc.

 Product Parameter:

Model	Rated torque	Rated voltage	Rated speed	Rated power	Rated current	Kt	Ke	Max speed	Max torque	Rotor intertia	Poles	weight	length
	N.m	Vac	rpm	kW	A	N.m/A	V/krpm	rpm	N.m	kg.cm2	Poles	Kg	mm
200H15D15C	96	380	1500	15	35	3	184	2000	288	95	8	37	369
200H17D17C	96	380	1700	17	39	2.7	164	2300	288	95	8	37	369
200H20D20C	96	380	2000	20	46	2.3	139	2500	288	95	8	37	369
200H18D15C	118	380	1500	18	43	3	183	2000	354	115	8	48	399
200H21D17C	118	380	1700	21	48	2.7	165	2300	354	115	8	48	399
200H25D20C	118	380	2000	25	56	2.3	141	2500	354	115	8	48	399
200H22D15C	141	380	1500	22	49	3.2	191	2000	423	141	8	57	439
200H25D17C	141	380	1700	25	56	2.8	168	2300	423	141	8	57	439
200H30D20C	141	380	2000	30	65	2.4	145	2500	423	141	8	57	439
200H27D15C	170	380	1500	27	59	3.2	192	2000	510	167	8	68	479
200H30D17C	170	380	1700	30	65	2.9	174	2300	510	167	8	68	479
200H36D20C	170	380	2000	36	78	2.4	146	2500	510	167	8	68	479
260H33D15C	208	380	1500	33	73	3.1	189	2000	624	385	8	110	384
260H37D17C	208	380	1700	37	83	2.7	165	2300	624	385	8	110	384
260H44D20C	208	380	2000	44	97	2.3	142	2500	624	385	8	110	384
260H41D15C	264	380	1500	41	89	3.2	196	2000	792	493	8	120	434
260H47D17C	264	380	1700	47	100	2.9	175	2300	792	493	8	120	434
260H55D20C	264	380	2000	55	122	2.4	144	2500	792	493	8	120	434
260H50D15C	316	380	1500	50	107	3.2	195	2000	948	578	8	125	464
260H56D17C	316	380	1700	56	123	2.8	171	2300	948	578	8	125	464
260H66D20C	316	380	2000	66	143	2.4	146	2500	948	578	8	125	464
260H60D15C	384	380	1500	60	132	3.2	193	2000	1152	698	8	139	514
260H68D17C	384	380	1700	68	143	3.0	179	2300	1152	698	8	139	514
260H88D20C	384	380	2000	88	171	2.5	149	2500	1152	698	8	139	514
260H75D15C	480	380	1500	75	168	3.1	189	2000	1440	995	8	174	587
260H85D17C	480	380	1700	85	187	2.8	170	2300	1440	995	8	174	587
260H10E20C	480	380	2000	100	211	2.5	151	2500	1440	995	8	174	587
360H75D15C	480	380	1500	75	174	3.1	187	2000	960	1982	8	228	509
360H90D15C	575	380	1500	90	201	3.2	194	2000	1150	2356	8	250	559
360H11E15C	700	380	1500	110	255	3.1	187	2000	1400	2729	8	272	609
360H14E15C	900	380	1500	141	328	3.1	186	2000	1800	3476	8	317	709
450H11E15C	700	380	1500	110	110	3.1	187	2000	1400	4300	8	370	528
450H15E15C	1000	380	1500	157	150	3.2	196	2000	2000	6140	8	440	628
450H22E15C	1400	380	1500	220	220	3.1	187	2000	2800	7980	8	510	728

Mounting Dimensions :
