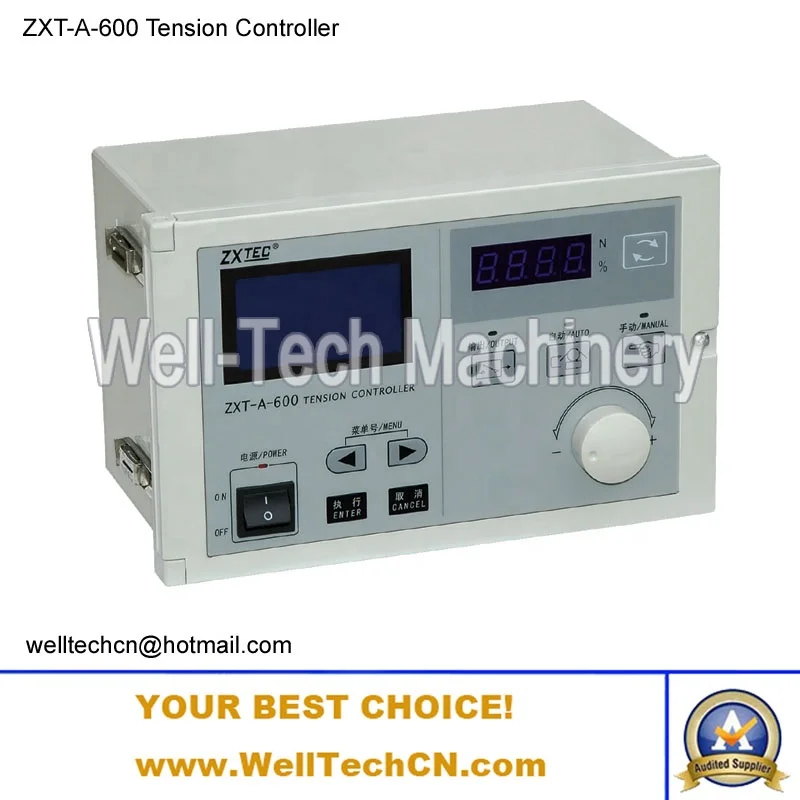

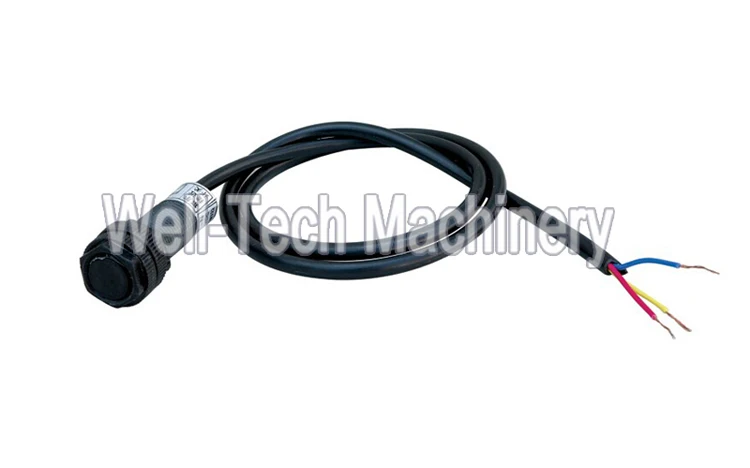

Printing Machinery ZXT A 600 Magnetic Powder Brake Controller Auto Tension Controller with Tension Detector and Hall Switch

(Attension please, the above price does include the tension controller*1pc, tension detectors*2pcs, hall switch*1pc.)

Product Description

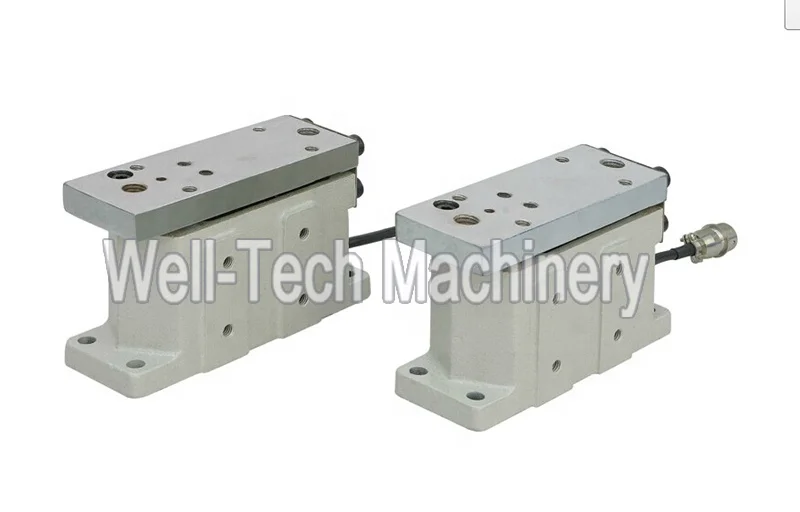

ZXT-A series of automatic tension controller is mainly made up of tension detector, high accuracy A/D, D/A converter and microcomputer of high performance…etc. It realizes permanent tension of roll materials according to compare the tension of roll material measured by tension detector with the goal tension of settlement first, then through microcomputer PID operation and adjusting D/A output to change excitation electric current of magnetic powder clutch/ brake or torque of servomotor automatically. The controller can be used in several occasions needed to carry on measuring and controlling accurately with the tension and have application extensively with flexible in usage.
\tThe LCD can be chosen to show in Chinese or English.
\tIt is convenience to exchange automatic with manual
\tTension detector is connected up simply and conveniently.
\tSet up parameter conveniently.
\tIt has function of taking the duplex location to change the axle to output.
\tIt has function of adjusting reserve tension.
\tIt is convenience to manage several controllers through Modbus agreement.
Main Technical Parameter:
\tMeasure accuracy: ±1Newton
\tSample pace: 100ms
\tMain output way: Permanent electric current output DC 0-2A (mix load impedance 8-12Ω)
Assistance output: Analog signal output DC 0-5V (MAX 10MA)
\tCommunication function: RS-485 can make several sets of tension controllers using in step
\tSize of front-panel 245*155*140(mm) (length * breadth * height)
\tSize of installing: 230*150*120(mm) (length *breadth* height)
\tPower supply: 180V to 240V AC 50/60Hz
\tDetailed data please download the user manual.
