Product Description:

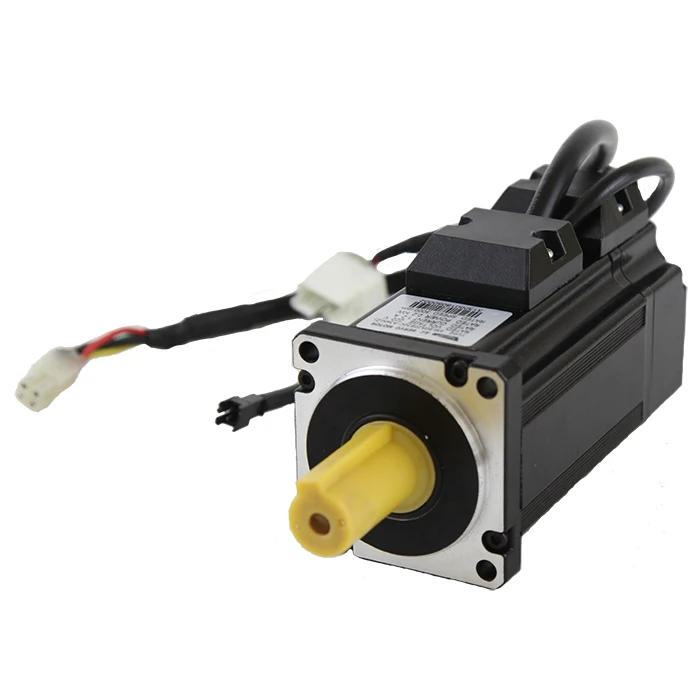

Synmot servo motors are permanent magnet synchronous motors,the main features including :ultra energy-saving .high response and accuracy .low noise and low temperature rise.the rotor is made of high-performance rare-earth permanent magnet material .works reliably and tomaintain less.With low rotary inertia .it is easy to improve the rapidity of system .small volume.high speed and high torque.using the high-resilution encoder (17-bit .33-bit) to improve the position control accuracy.it control the current according to D-P principal axis transformation .which increase the torque control accuracy from 5% to 2% .Synmot servo motor have been widely used in injection molding machienry .textile machinery.CNC machinery etc.
Product Detail
Product Parameter:
| Model | Rated torque | Rated voltage | Rated speed | Rated power | Rated current | Kt | Ke | Max speed | Max torque | Rotor intertia | Poles | weight | length |
| N.m | Vac | rpm | kW | A | N.m/A | V/krpm | rpm | N.m | kg.cm2 | Poles | kg | mm | |
| 60A40B30C | 1.3 | 220 | 3000 | 0.4 | 2.7 | 0.51 | 31 | 4000 | 3.9 | 0.21 | 8 | 1.3 | 130 |
| 60A40B60C | 0.7 | 220 | 6000 | 0.4 | 1.6 | 0.46 | 28 | 6500 | 2.1 | 0.13 | 8 | 1.1 | 110 |
| 80A40B15C | 2.4 | 220 | 1500 | 0.4 | 2.4 | 1.07 | 65 | 2000 | 7.2 | 1.2 | 8 | 4 | 158 |
| 80A40B30C | 1.3 | 220 | 3000 | 0.4 | 2.9 | 0.48 | 29 | 4000 | 3.9 | 0.9 | 8 | 2 | 138 |
| 80A75B30C | 2.4 | 220 | 3000 | 0.75 | 3.1 | 0.83 | 50 | 4000 | 7.2 | 1.2 | 8 | 3 | 158 |
| 80A15C30C | 4.8 | 220 | 3000 | 1.5 | 5.9 | 0.88 | 53 | 4000 | 14.4 | 2.4 | 8 | 6 | 198 |
| 86A75B30C | 2.4 | 220 | 3000 | 0.75 | 3.0 | 0.86 | 52 | 4000 | 7.2 | 1.6 | 8 | 3 | 128 |
| 86A75B15C | 4.8 | 220 | 1500 | 0.75 | 3.4 | 1.52 | 92 | 2000 | 14.4 | 3.2 | 8 | 6 | 163 |
| 110A10C25C | 3.8 | 220 | 2500 | 1 | 3.9 | 1.04 | 63 | 3000 | 11.7 | 7.6 | 8 | 5 | 183 |
| 110A15C25C | 5.8 | 220 | 2500 | 1.5 | 6 | 1.04 | 63 | 3000 | 17.4 | 11.5 | 8 | 7 | 219 |
| 130A60B10C | 5.7 | 220 | 1000 | 0.6 | 2.5 | 2.5 | 152.2 | 1350 | 17.2 | 12 | 8 | 7 | 160 |
| 130A10C10C | 9.6 | 220 | 1000 | 1 | 4.2 | 2.5 | 150.5 | 1350 | 28.7 | 23 | 8 | 9 | 200 |
| 130A15C10C | 14.3 | 220 | 1000 | 1.5 | 6.2 | 2.6 | 157.5 | 1350 | 43 | 30 | 8 | 10 | 230 |
| 130A20C10C | 19.1 | 220 | 1000 | 2 | 7.6 | 2.8 | 170.5 | 1350 | 57.3 | 45 | 8 | 13 | 290 |
| 130A75B15C | 4.8 | 220 | 1500 | 0.75 | 3.2 | 1.7 | 101.1 | 2000 | 14.3 | 11 | 8 | 7 | 160 |

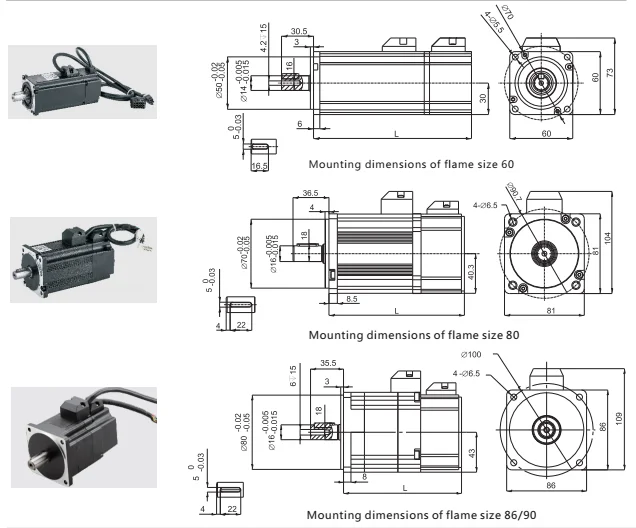

Mounting Dimensions :
Company Information
FAQ
1.Q:Can i get sample ?
A:We are hornered to offer you sample for quickly check .
2.Q:Do you have the product in stock ?
A:All standard models we got in stock .special products are manufactured according to your requirement .
3.Q:When do you delivery ?
A:It usually take 3-7 working days .but the exactly time vary from different order at the different time .
4.Q:How long can it works ?
A:Properly use can work for 3 years .
5.Q:Warranty period ?
A:18 months after the days then the products leave our factory .
6.Q:Payment period ?
A:In general.30% by T/T of the amount as deposit .70% by T/T of the amount need be paid within one week after the day when you receive the copy of the B/L by email or consultations .
