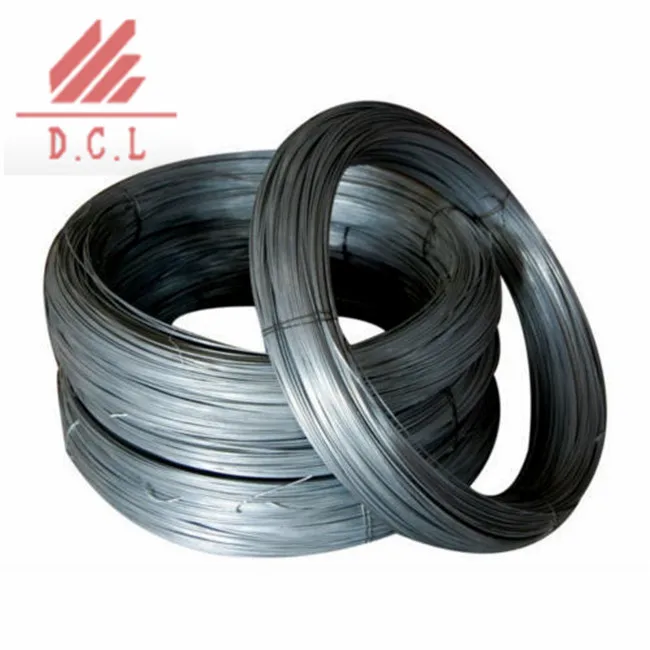

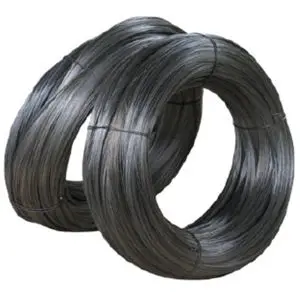

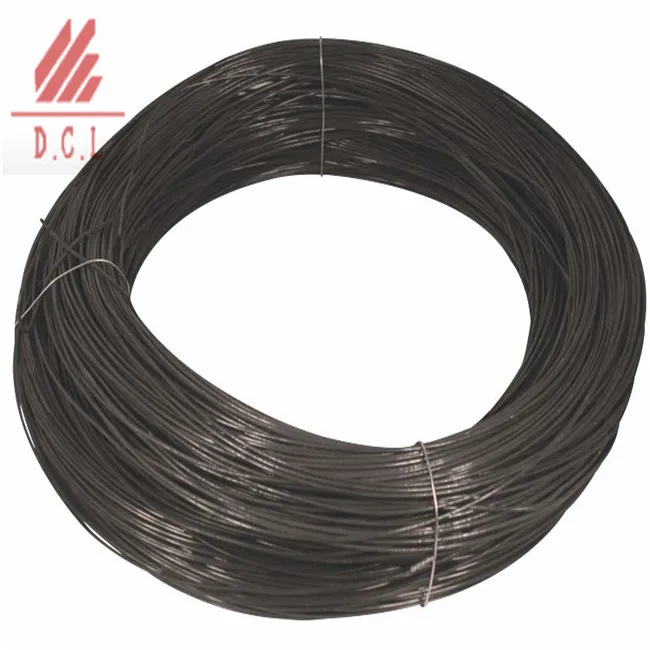

16gauge black annealed tie wire

Product Overview

Description



Annealed Wire is made of carbon steel wire, used for weaving, baling in general. Applied for home use and the construction.

Annealed wire is obtained by means of thermal annealing, endowing it with the properties it needs for its main use - setting. This wire is deployed both in civil construction and in agriculture. Hence, in civil construction annealed wire, also known as "burnt wire" is used for iron setting. In agriculture annealed wire is used for bailing hay.

Annealed wire for civil construction:
The annealing of bare wire (wire which has simply been drawn) can be carried out in batches (bell-type furnace) or in line (in-line furnace).

Annealing is intended to return to the wire its ductility which it had lost during drawing.

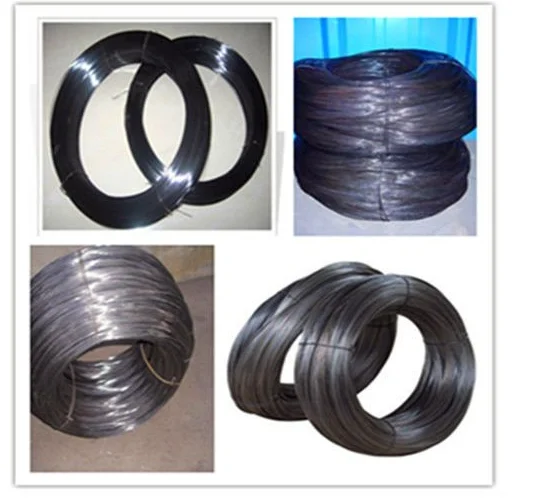

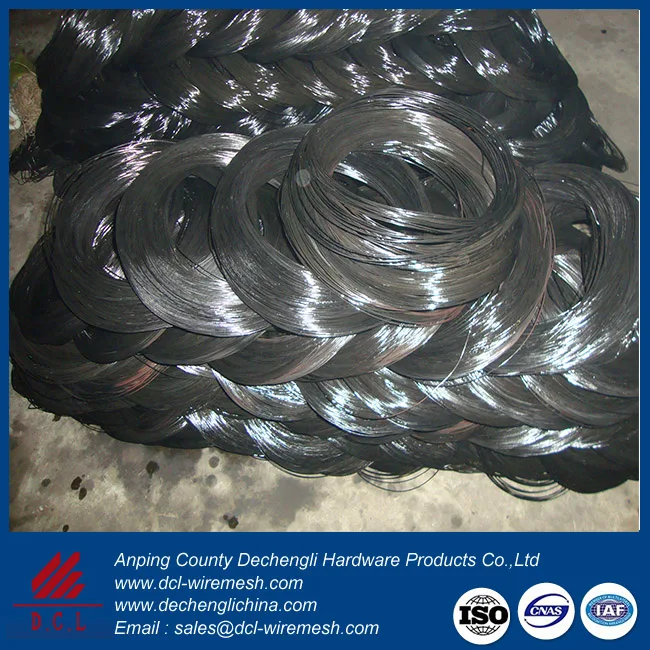

Annealed wire is stored in coils or spools of a varying weights and dimensions depending on the purposes for which it is intended and the needs of clients. The product does not usually have any type of protective lining, paper or plastic. We offer two kinds of annealed wire, bright annealed and black annealed wire. Black annealed wire gets its name from its plain black color.

Soft annealed wire offers excellent flexibility and softness through the process of oxygen free annealing.

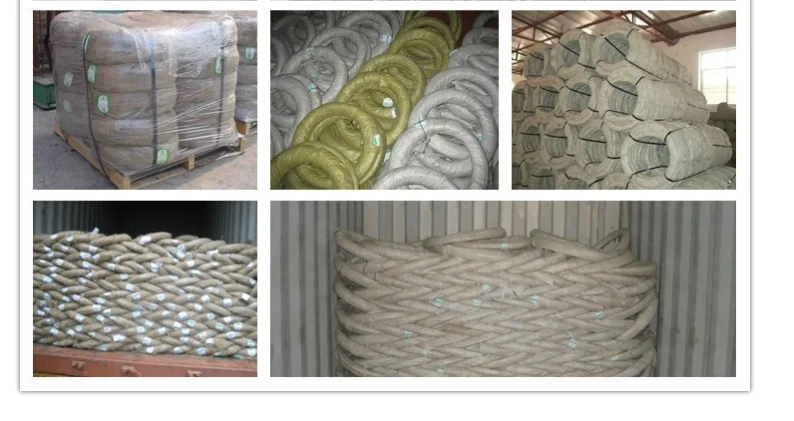

Packing: Spools, coils.
Wire Materials: Iron wire or carbon steel wire.
Wire Diameters: Similar to galvanized iron wire, from 5mm to 0.15mm (wire gauge 6# to 38#).
Uses: Black annealed wire is mainly processed into coil wire, spool wire or big package wire. Or further straightened and cut into cut wire and U type wire. Annealed wire is used as tie wire or baling wire in building, parks and daily binding.



Wire
Wire Gauge	SWG(mm)	BWG(mm)	Metric(mm)
8	4.05	4.19	4.00
9	3.66	3.76	4.00
10	3.25	3.40	3.50
11	2.95	3.05	3.00
12	2.64	2.77	2.80
13	2.34	2.41	2.50
14	2.03	2.11	2.50
15	1.83	1.83	1.80
16	1.63	1.65	1.65
17	1.42	1.47	1.40
18	1.22	1.25	1.20
19	1.02	1.07	1.00
20	0.91	0.84	0.90
21	0.81	0.81	0.80
22	0.71	0.71	0.70

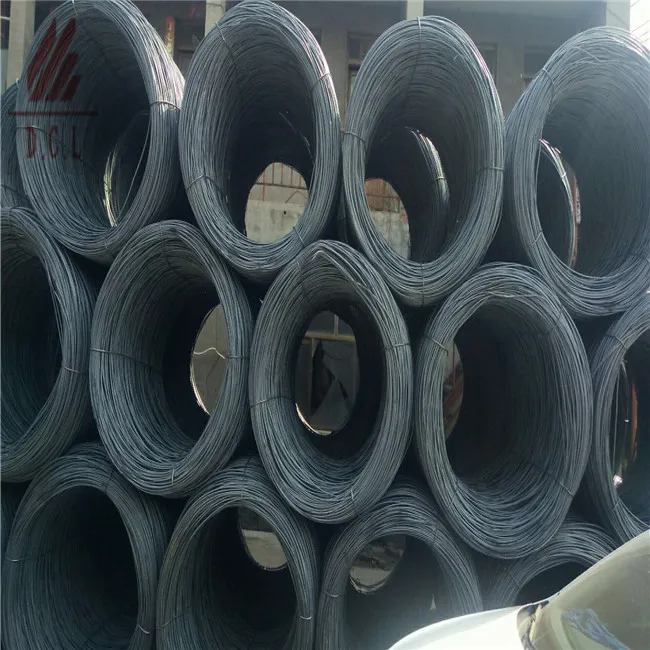

Black steel wire specifications:

1. Wire diameter: 3.3 mm / 3.5 mm / 3.75 mm / 5 mm.


2. Weight of each coil: 200 kg.


3. Inside diameter of each coil: 476 mm.


4. Packing: Weaving bags and Plastic.


5. Yield Point: 320 N/mm².


6. Tensile Strength: 480 N/mm².


7. Elongation: 33% (Note: 5.5 mm wire rod before wire drawling).


8. Elongation: 5-6% (Note: Diameter 3.3 mm wire rod drawling).


9. Chemical: Carbon: 0.09% Si: 0.17% Mn: 0.57% P: 0.024% S: 0.02%.

Black annealed wire and twist wire specifications:

1. Black annealed wire:



   • Diameter: 1.15 mm.


   • Tensile strength: 36.1 kg/mm², 36.4 kg/mm².


   • Elongation: 24%.


   • Packing: 4.8 kg × 5 /coil / internal diameter 23 cm, outer diameter 34 cm.

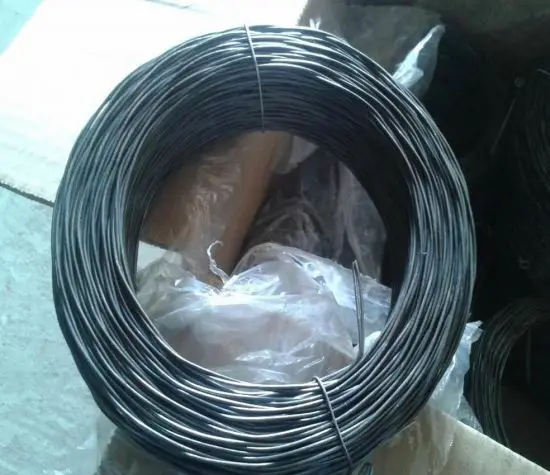

2. Twisted wires:



   • Diameter: 1.16 mm.


   • Tensile strength: 40.9 kg/mm², 39.4 kg/mm².


   • Elongation: 25%.


   • Packing: 4.6 kg × 5 than 11 coil make one bundle internal diameter of coil: 37 cm, outer diameter 47 cm.





Black annealed binding wire specification:

• Thickness: 1.00 mm.


• Width: 3/4".


• Technical: cooled rolled.


• Surface treatment: polished.


• Application: construction.


• Color: bright.

Black annealed binding wire.
Material: Q195.
Weight: 25 kg/coils.
Wire grade: BWG16, BWG18, BWG20.

Black Annealed Wire 2.9 mm, 25 kg/coil.

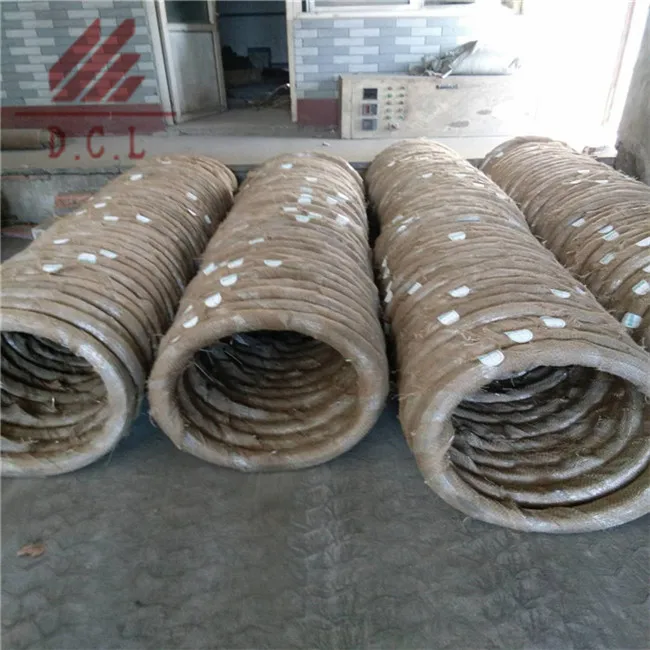

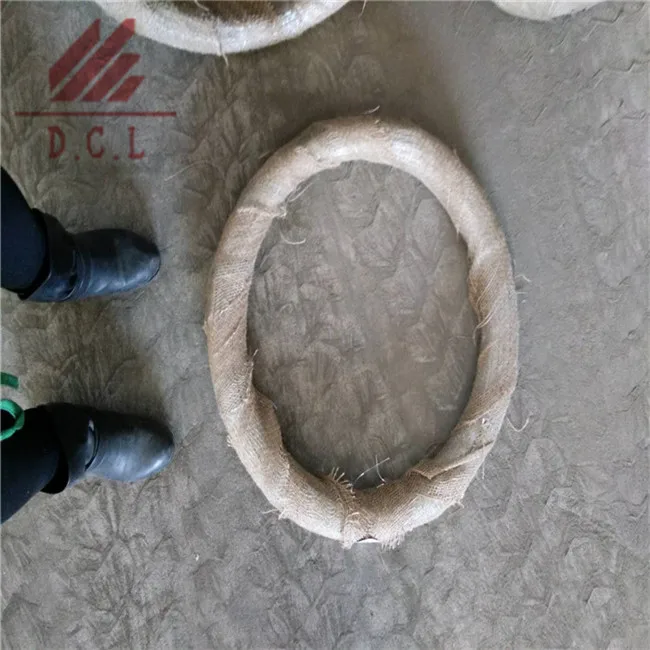

Packaging: PVC inside, hessian cloth outside.
10 coils/bundle secured with 4 nos steel straps.
Specs: Tensile strength 350 n/mm² (Very soft, annealing for 9 hours).
Covered with oil for anti rusting.

Soft black annealed wire specifications as following:

• Surface Finish: Bright.


• Surface Finish: (Shiny).


• Diameter: 1.6 mm (+/- 0.05 mm).


• Coil Weight: 20 kg per coil (+/- 2 kg).


• Coil Inner Diameter: 15 cm (+2 cm / -2 cm).


• Coil Outside Diameter: 26 cm (+2 cm / -2 cm).


• Packing: Shrink wrapped inside, inner PVC strips with outer weaving cloth and oiled.

Soft Black Annealed Binding Wire

Wire Diameter	Strength	Packing	Weight	Application
0.16 mm - 0.6 mm	30-40 kg	Coils or spools	2-100 kgs	Binding wire for Christmas trees
0.6 mm - 5.0 mm	30-40 kg	Big package	100-800 kgs
0.16 mm - 0.6 mm	60-70 kg	Coils or spools	2-100 kgs
0.6 mm - 5.0 mm	60-70 kg	Big package	100-800 kgs
