CIP in situ cleaning, with rotary spray cleaning ball
07
Insulation
Polyurethane-thickness: 100mm
08
Accessories
Sample valve, Pressure gauge, Breath valve, Temperature gauge, Top manhole, Washing ball, Butterfly valves, CIP Arm, Hop port, Discharge arm and so on.

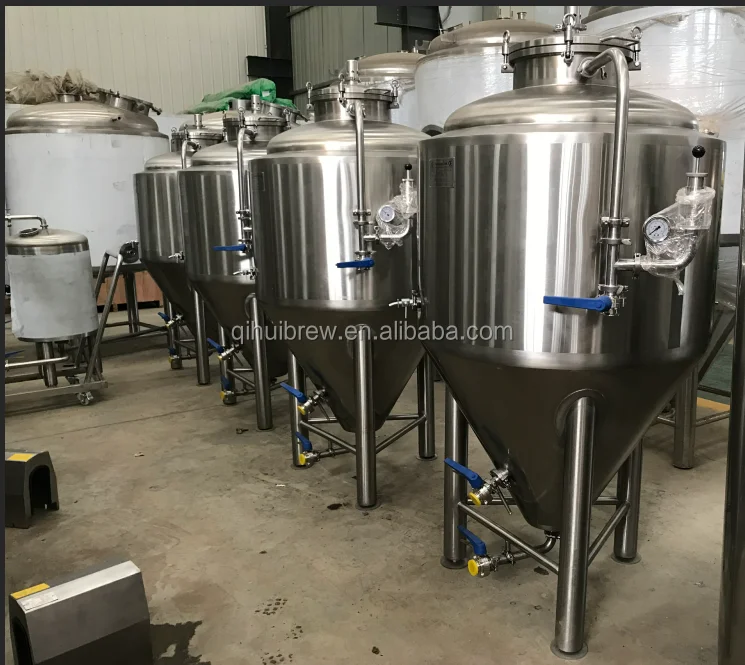

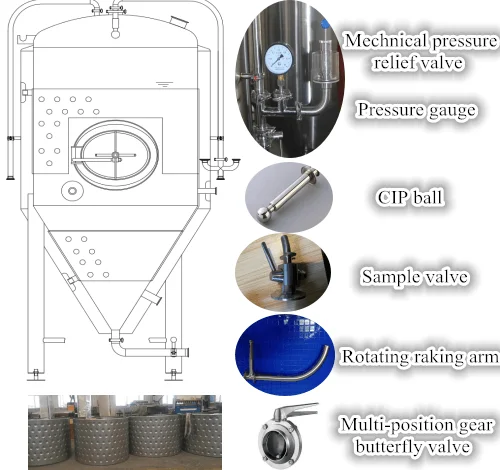

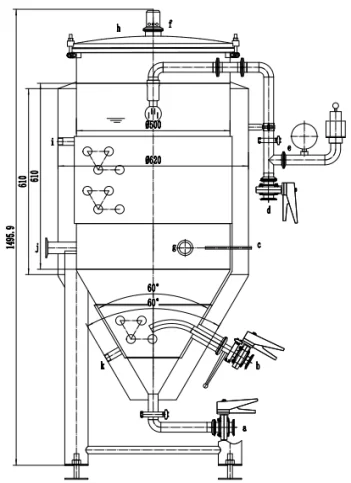

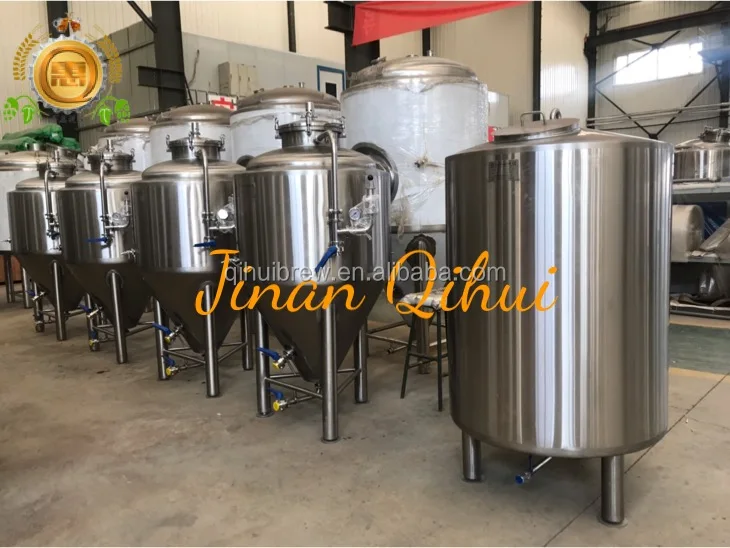

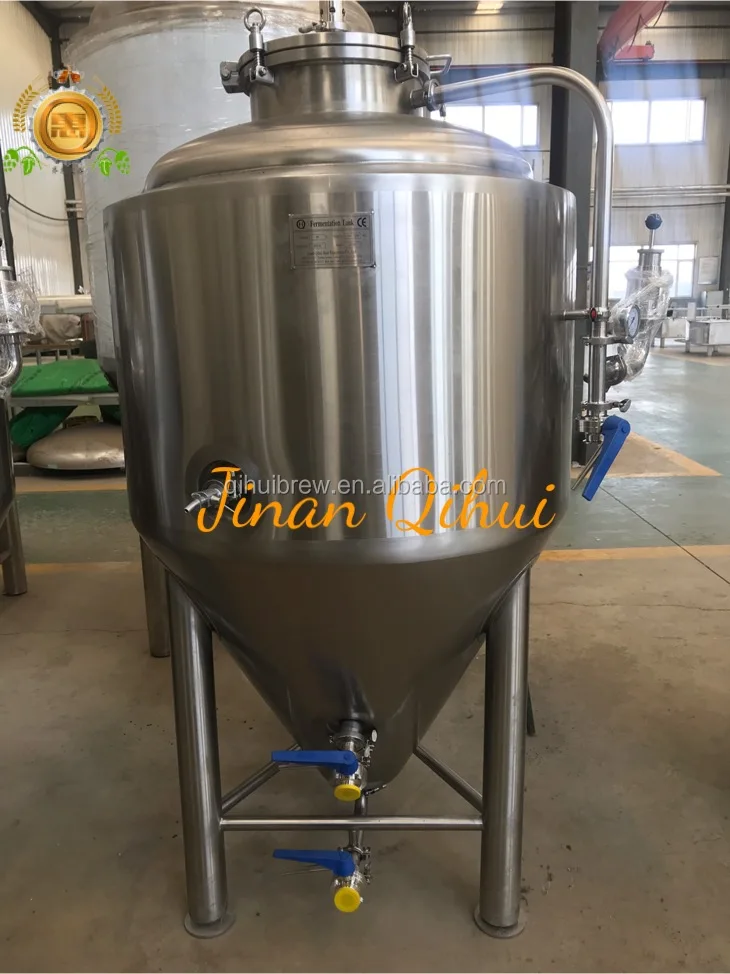

Fermentation System- Beer Fermenter
-Usage: fermentation, maturation and
storage
1-Domed head and conical bottom
2-Material: SUS 304,
inner thickness 3mm,
outer thickness1.5mm, Insulation:
PU=80mm
3-Top manway
4-Cone bottom, 60 degree
5-Pressure gauge
6-Safety/vacuum valve
7-Working pressure: 0.15Mpa
8-Testing pressure: 0.3Mpa
9-Cooling jackets on both
cylinder and cone
10-Inside 360 rotating CIP ball
11-Rotating Racking arm
12-Thermowell, 10mm
13-Temperature sensor, Model: PT100
14-Wort piping and
butterfly valves, ø32mm
15-Drainage piping and
butterfly valve, ø38mm
16-3 or 4 legs with adjustable bolts
-carbonation stone (optional)
- dry hops port (optional)
Title goes here.
1. The fermentation tank adopts 304 stainless steel plate as a whole, and our stainless steel plate manufacturer is the best in China 2. The corrosion resistance of the equipment is improved by pickling and passivation inside the fermentation tank. 3. The cooling efficiency of Maitreya plate jacket is greatly improved. 4. Two stage cooling mode: the tank body and the lower cone are cooled separately, which reduces the temperature difference between the tank body and the lower cone, thus ensuring the quality of beer. 5. The insulation layer material is high-grade polyurethane with a thickness of 80mm. 6. Welding position 2.5mm Stainless steel wire drawing plate protective layer. 7. The polishing accuracy of fermentation tank has reached 0.4um It reduces the growth of bacteria and guarantees the quality and shelf life of beer.

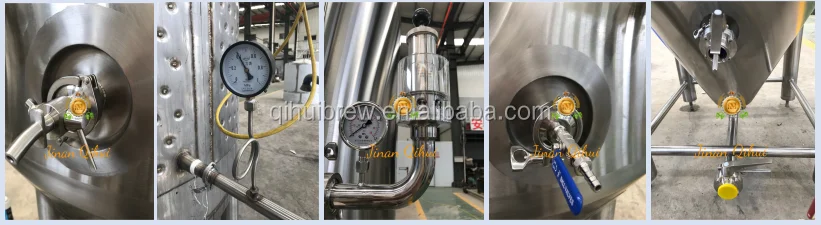

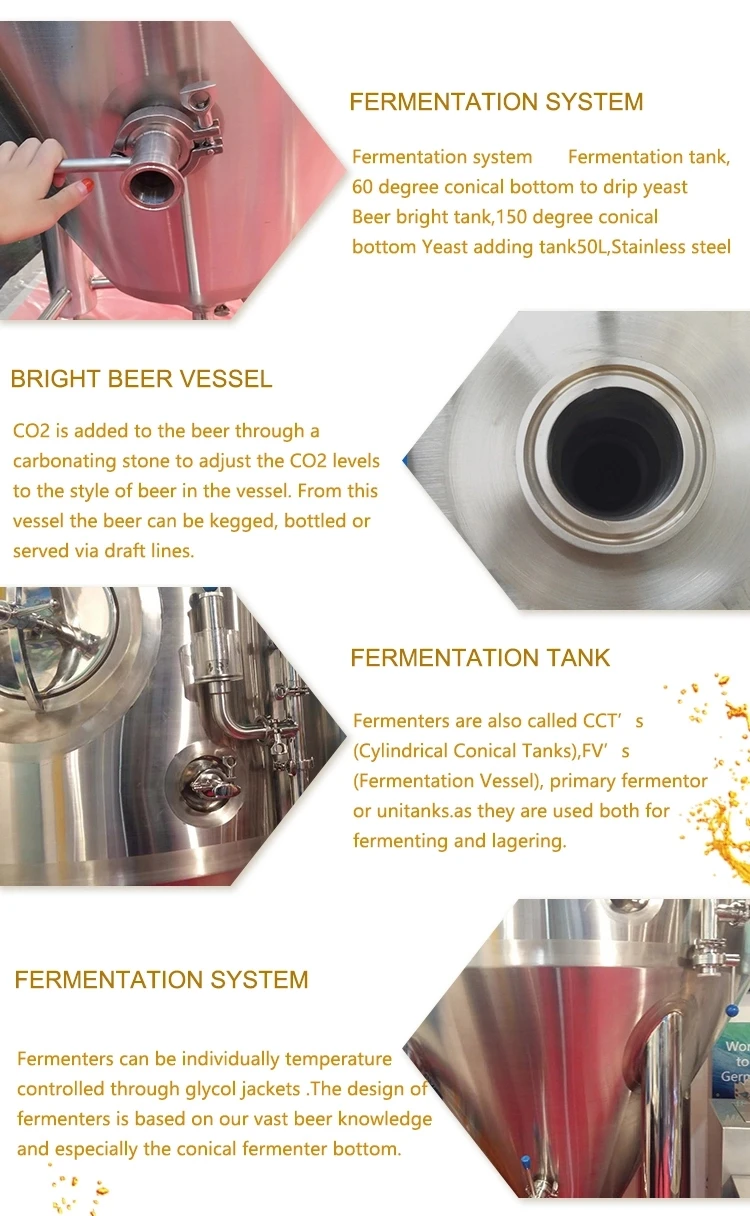

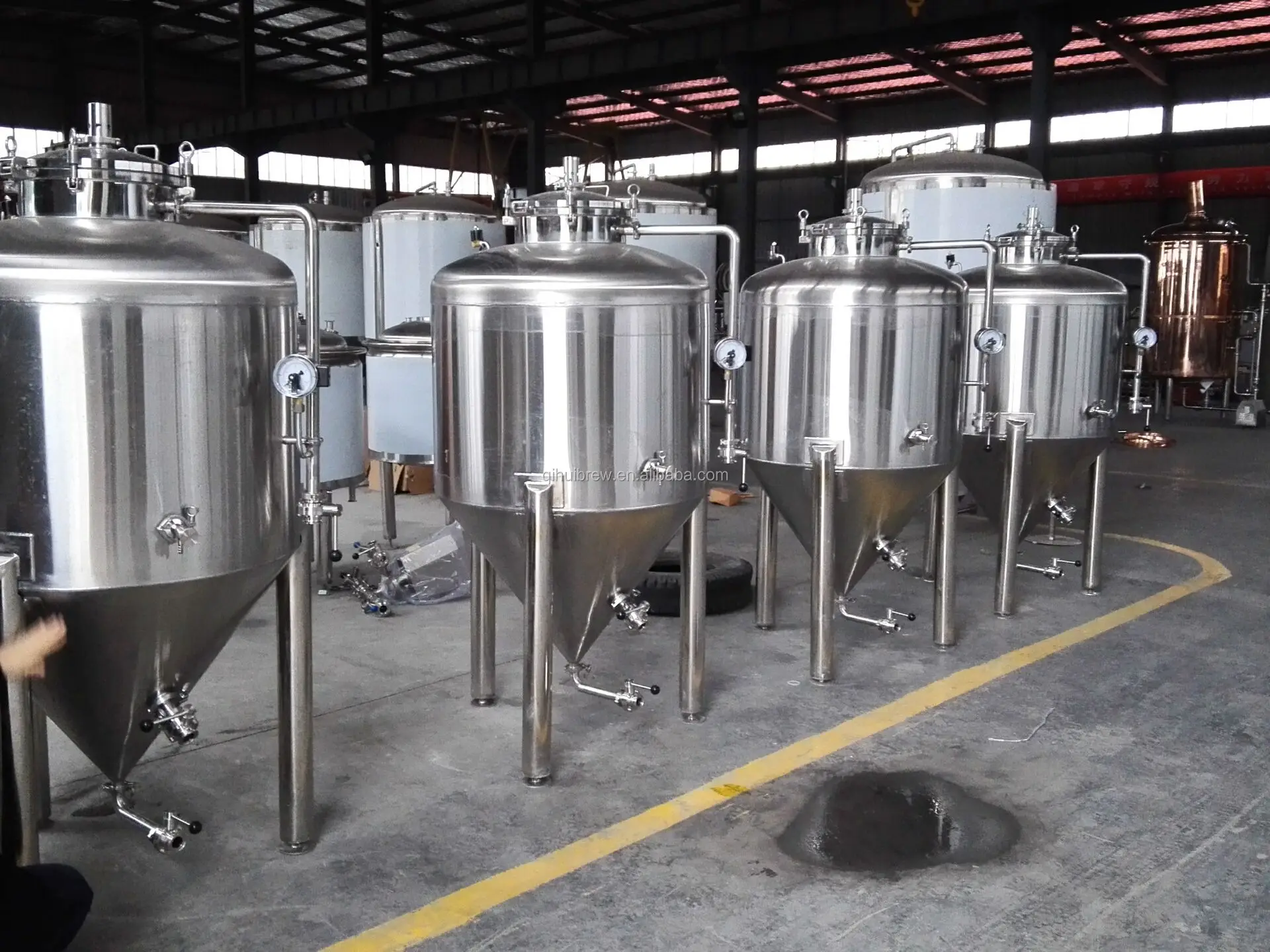

Detailed Images

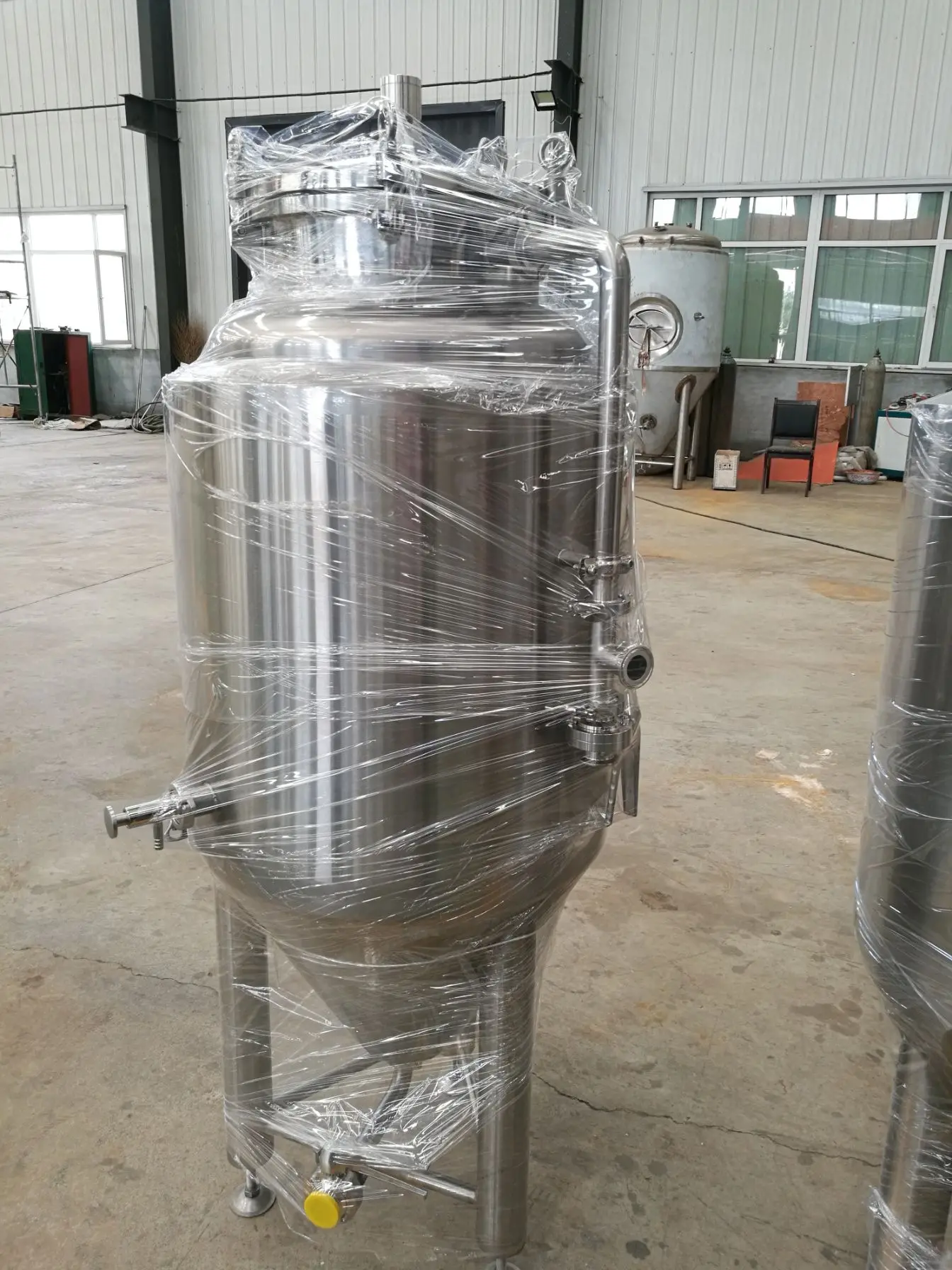

Packing&Shipping
1.With export standard film packaging, then for wooden case packaging for
alone beer tanks and less brewery equipment -LCL shipping. 2.If more tanks or complete set of brewery, with film packaging- FCL shipping. 3.By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity. 4.Buyers requirement on packaging and shipping, please tell us in advance.

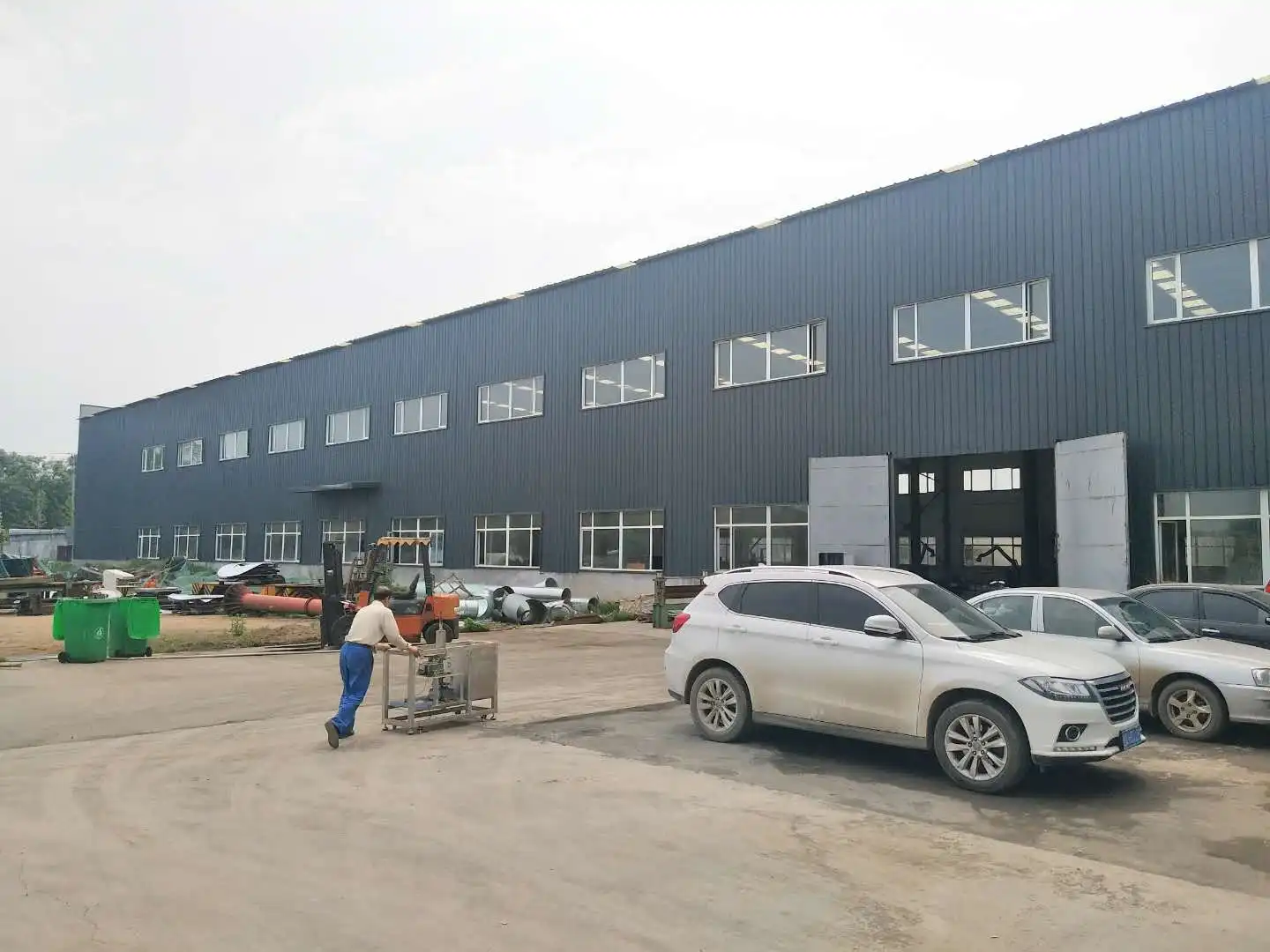

Company Introduction
Jinan Qihui Beer Equipment Co., Ltd. is a professional company developed on the basis of existing large, medium, and small-sized beer equipment in Germany, Canada, the United States, Australia, the United Kingdom, and China. The company designs and manufactures beer equipment suitable for the needs of domestic and foreign customers. We adhere to the business philosophy of “Best Quality, Lowest Price, Best Service”. With the spirit of “integrity, pragmatism, enterprising, and innovation”, we gather professionals and constantly develop high quality beer equipment, brewed beer equipment and small beer.
