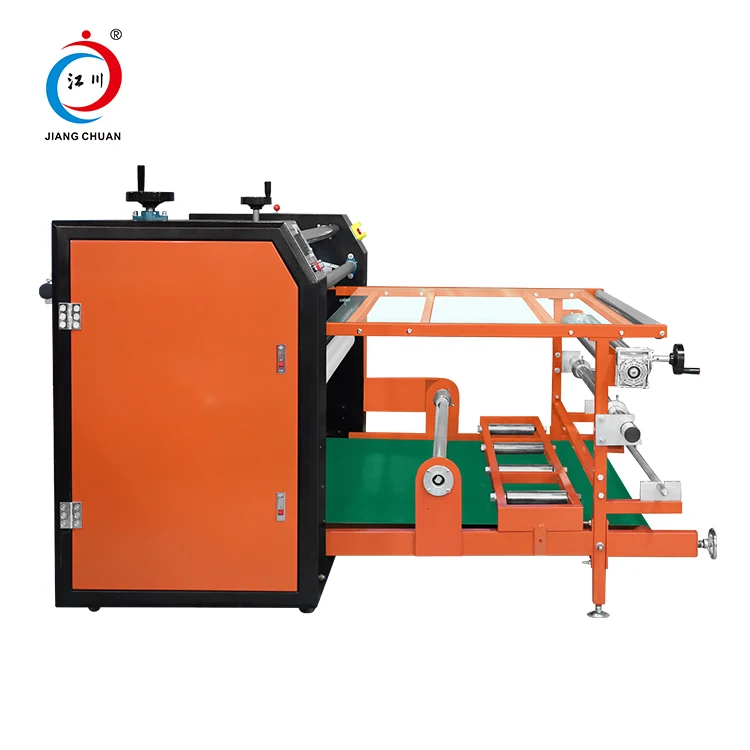

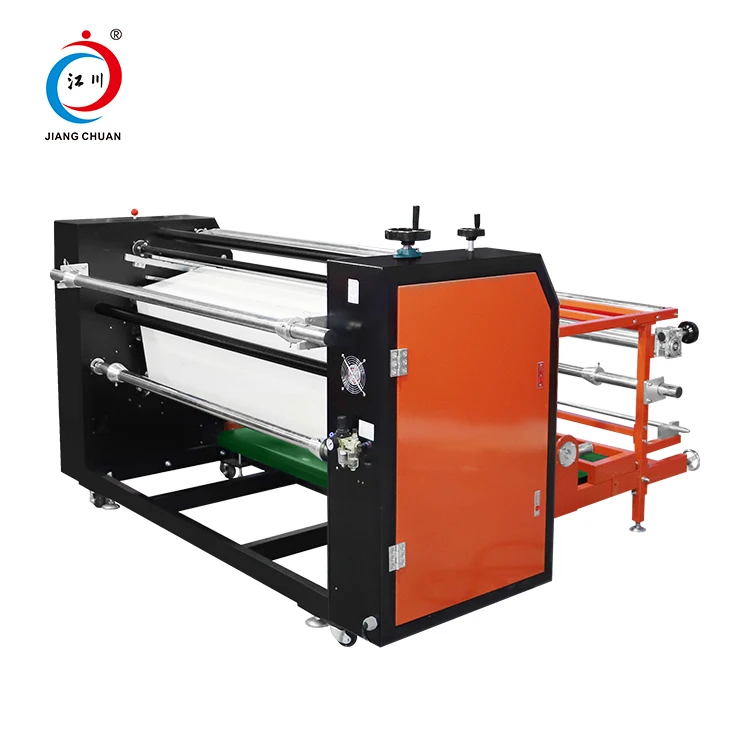

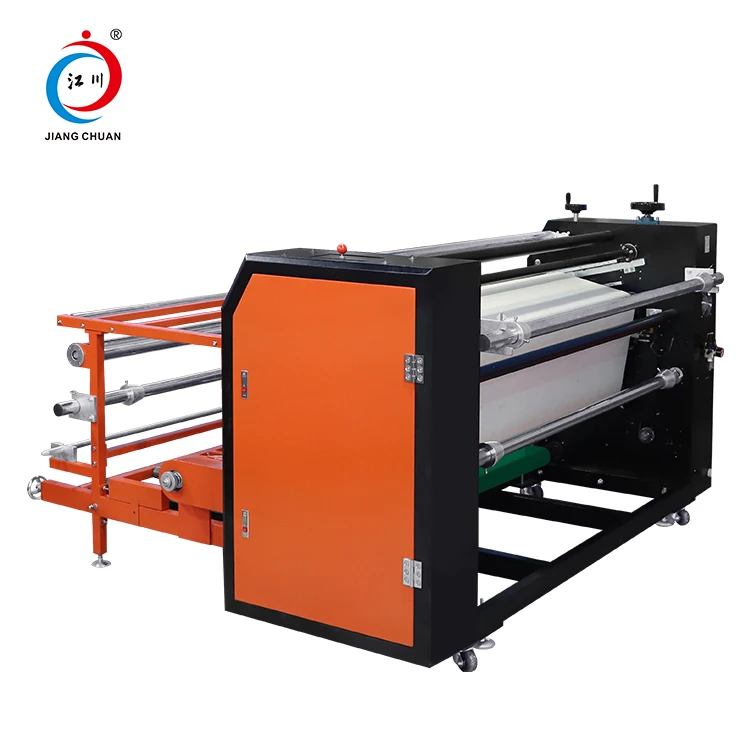

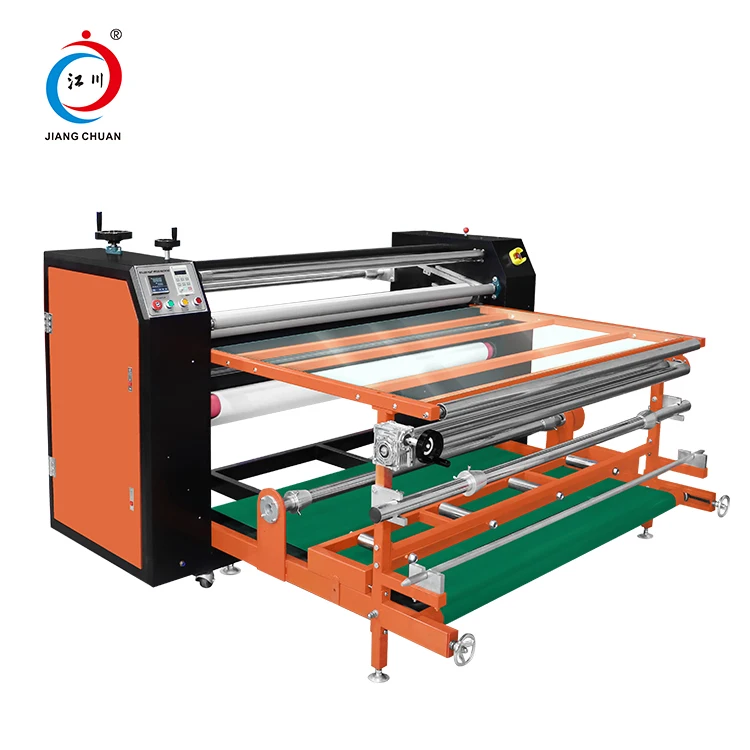

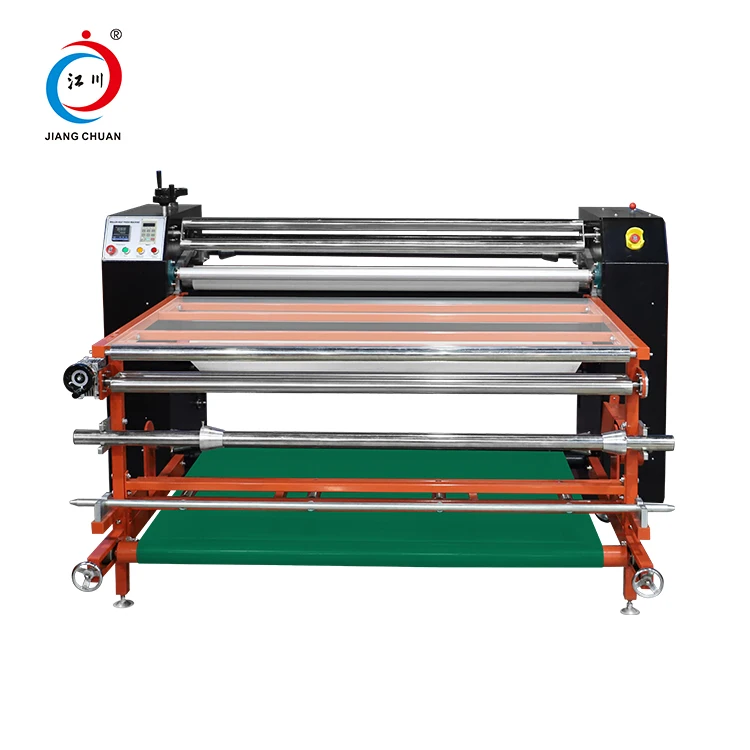

Best seller 1.2m*210 width drum roll to roll heat press machine

Share on (62297333115):


Price:$5,500.00

Quantity:


Product Overview

Description




Description:


This Roller –type sublimation thermal transfer printing equipment, the use of heat-conducting oil layer surrounding electric heating diversion of the principles of design and manufacture of heating, the cylinder surface temperature balanced and stable blanket with out of the mechanical structure, with three-phase frequency control devices, machine operation, easy maintenance, transfer to achieve the best and widely used in digital printing industry at home and abroad.





Best seller heat press roll to roll heat press machine
























































































Brand NameJiangchuan
Printing/Roll Width1200MM / 47Inch
Roller diameter210MM /8.27Inch
Voltage220/380/420 Three-phase
Other VoltageCustom voltage by your special order
Rated output7KW
Speed0-6M/Min
Weight800KG
Packing Size212*148*164CM
Feeding MethodTop feeding
Other SizeAvailable
Air Compressor RequiredRequired
Blanket MaterialNomex:High Temperature Resistance
Drum SurfaceChrome:High hardness and abrasion performance
DrumOil 100%
Temperature Range0-399℃
Scope Of DeliveryRoller heat transfer machine,Power cable without plug,some electronic spare parts for free
NoteCustom size by your special order
Customized machine to work with different power supplier
WarrantyOne Year
MOQOne Set

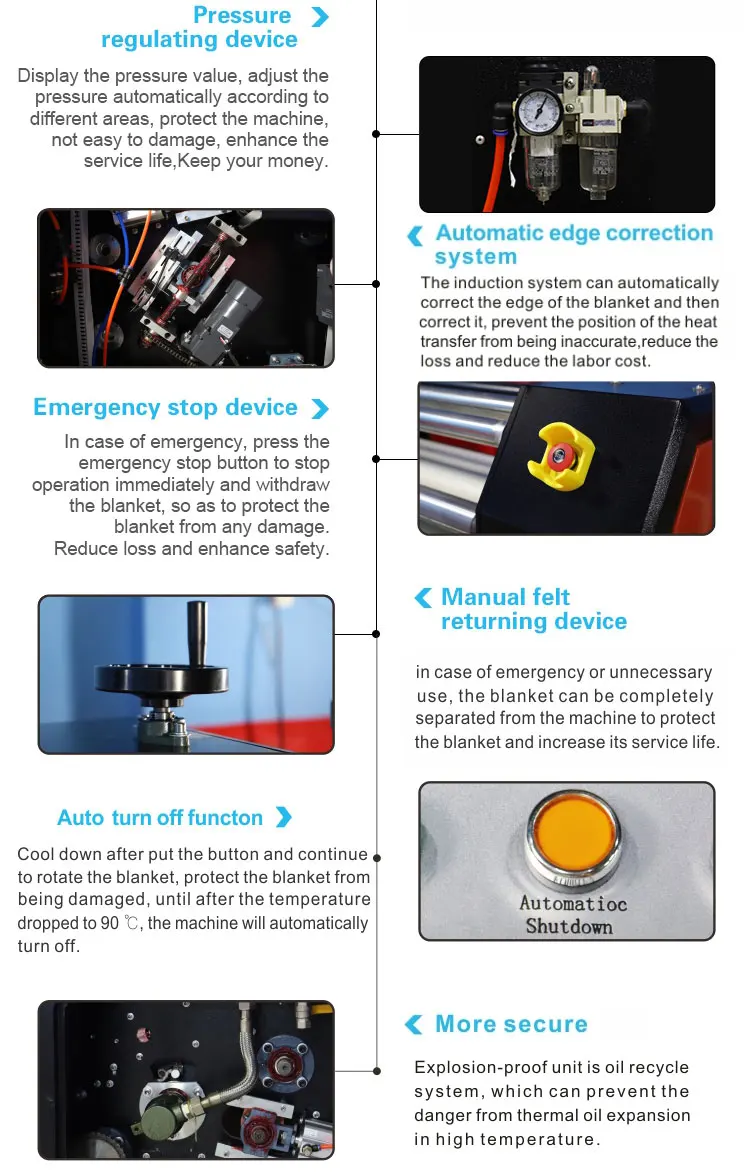

Feature:


1.The most advanced technology and imported units are adopted by machine controlling system with automatic positioning, accuracy together with security, electronic constant temperature controlling with high accuracy, long service lift and other features.
2.Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and stable temperature. 2015 heat press machine.
3.Printing speed is equipped with continuous speed adjustment system, feeding equipment is convenient for operation with swiftness and high reliability.
4.Equipped with continuous speed adjustment system, you can adjust printing speed as you need.
5.The roller was heating up with oil and temperature heating system.
6.We can provide total service for heat sublimation print technology.
7.Get CE certificate, 1 year warranty.

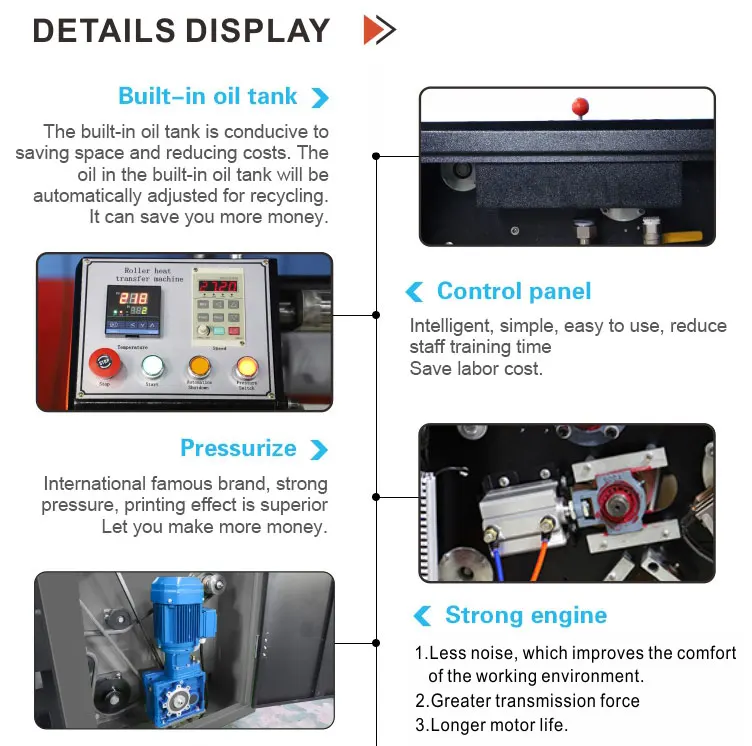

26B--210x1200_0626B--210x1200_07











Contact Jiangchuan








Welcome to visit our factory leave your information, we will contact you.





We are a customized, wholesale, original manufacturer.Jiangchuan is your best choice.

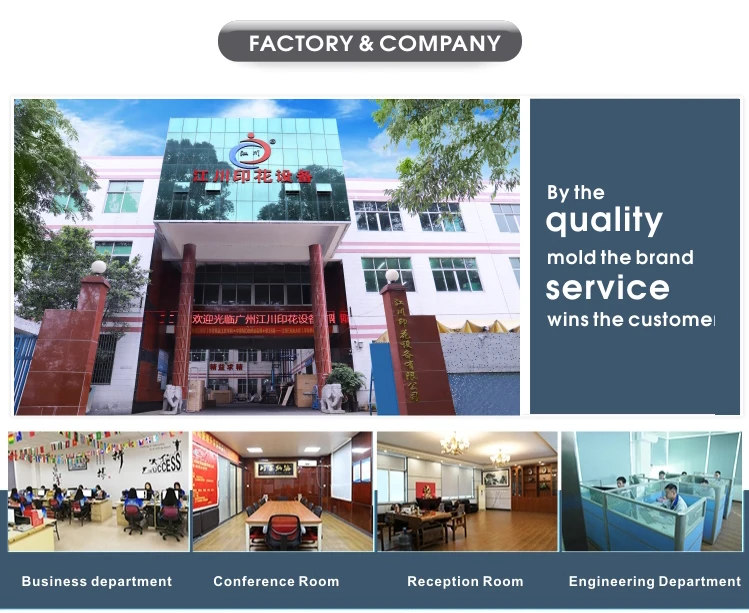

Company Profile





Founded:Year 2001,18+years manufacturing experience
Certificating:CE
Empolyees:More than 200 empolyees/25000 square meter factory
Facilities:6 Workshop for Heat Press Machine
3 Dust-free Labs for Sublimation Products
One-Stop Service for All Sublimation Products
Strong Technical Supports on OME&ODM Service
Strict QC Control guarantee Product Quality
Distribution:Agent&Distributor spanning over 60 countries
Trade Show:SGIAFESPA,CITPE,ASGA,SDPE&DPTC,CISMA


600mmUV-_24Roller heat press machine11





FAQ


1. Q: What is the purpose of a heat press?
A heat press is the machine that presses a transfer onto an transferable substrate. Using high temperatures and heavy pressures for a certain amount of time, the transfer is permanently embedded into the product.
Heat presses are recommended for professional and satisfying results simply because standard laminating devices and home hand irons can not get even near the temperatures required for a reliable transfer. Standard transfers require anywhere from 180 to 220 degrees demand serious force in pressing. These temperatures and pressures are simply not possible with other heated devices.





2. Q: How to choose the right heat press?
As with any equipment, there are many factors to take into consideration when choosing a heat press machine.
The most important thing to look for in a heat press is its ability to provide consistently even temperatures across the platen. This will prevent cold spots from developing and ensure consistent application of heat transfer materials. Proper application temperature is also critical in producing quality garments, making accurate temperature controls an essential feature.





3. Q: What items can be heat pressed?
The following are some of the far more common items often heat pressed. The list by no means ends here.
T-Shirts, Caps, Ceramic Plates, Ceramic Tiles, Mugs, Mouse Pads, Paper Memo Cubes, Tote Bags, Jigsaw Puzzles, Lettering, Numbers, Rhinestones/Crystals, Wood / Metals Other Misc. Fabrics & Materials.





4.Q: What is a transfer made up of ?
A transfer is made up of a carrier paper and inks. When heated to a certain temperature and pressed with a significant amount of pressure for a certain amount of time, the transfer inks are passed over to the transferable material. Some inks are adhered and embedded to the surface of the material, while others (namely, sublimation) permeate the coating of the material.





5.Q: What are the different uses for a heat press?
The variety of uses for a heat press include the application of various types of heat applied materials (listed below), curing of Direct to Garment (DTG) printing, smoothing of embroidery after sewing, and dye sublimation.





6.Q: What will be need if doing heat transfer?
You will need a heat transfer machine(kinds of heat press for choices, if transfer t-shirt, you will need a flat heat press, if transfer cap, you would need a cap press or our combo press etc.) printer, CISS, ink, transfer paper.





7.Q: What kind of ink do I need?
This depends on the material you want doing heat transfer.Ceramic products like tile or mug,you have to use sublimation ink,but if like polyester T-shirt,mouse pad,you can use dye or pigment ink.





8. Q: What kind of paper do I need?
For sublimation there are different papers developed for different substrates.Mouse pad,bags,fabrics are best transferred using our special transfer paper.When transferring items such as ceramics,glass,you can use normal inkjet paper.





9.Q: What can I decorate using a heat press?
The variety of uses for a heat press include the application of various types of heat applied materials (listed below), curing of Direct to Garment (DTG) printing, smoothing of embroidery after sewing, and dye sublimation.
The list of items (or substrates) that can be imprinted using a heat press or mug heat press is constantly growing. Typically, apparel such as T-shirts, golf shirts, and sweatshirts and pants come to mind when one thinks of heat pressing. But with the ever-evolving heat press industry items like caps, nylon jackets and bags, canvas bags, spandex and neoprene garments, and even coffee mugs can be customized using heat applied material. Below is an extensive list of heat press ideas.
