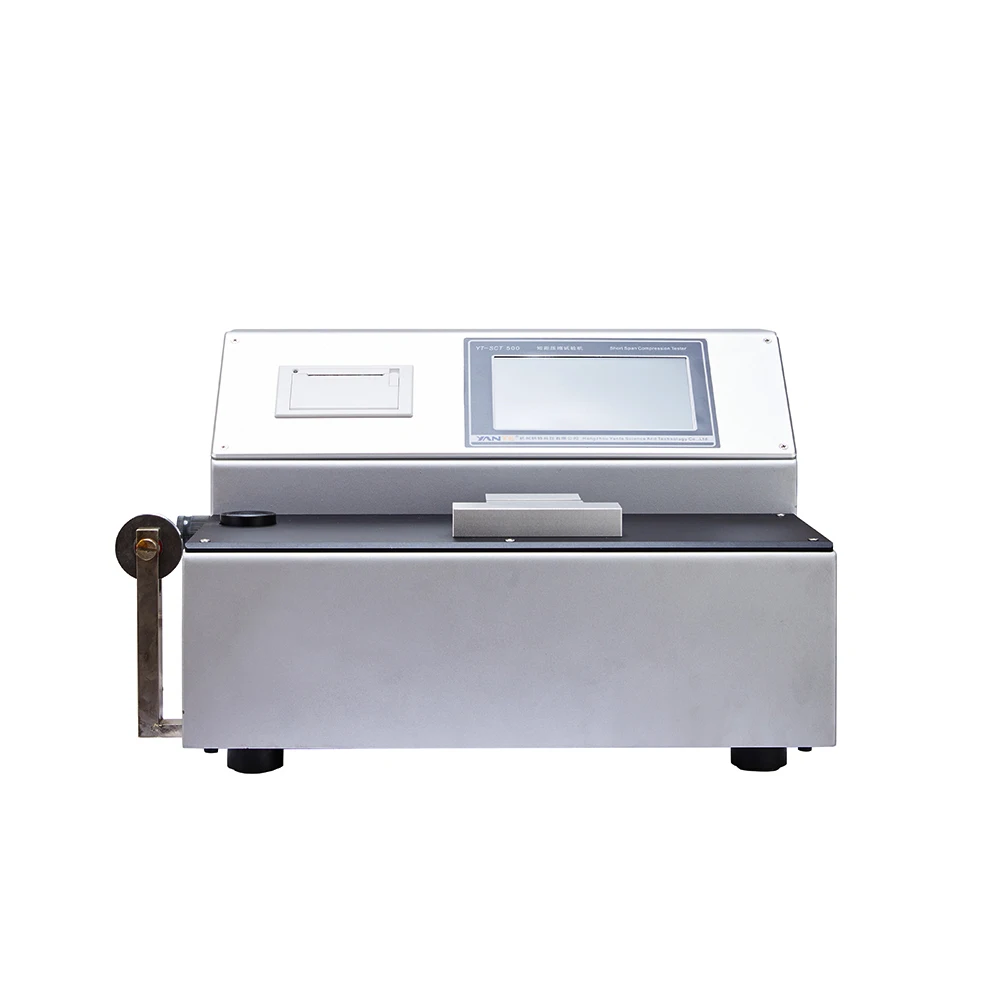

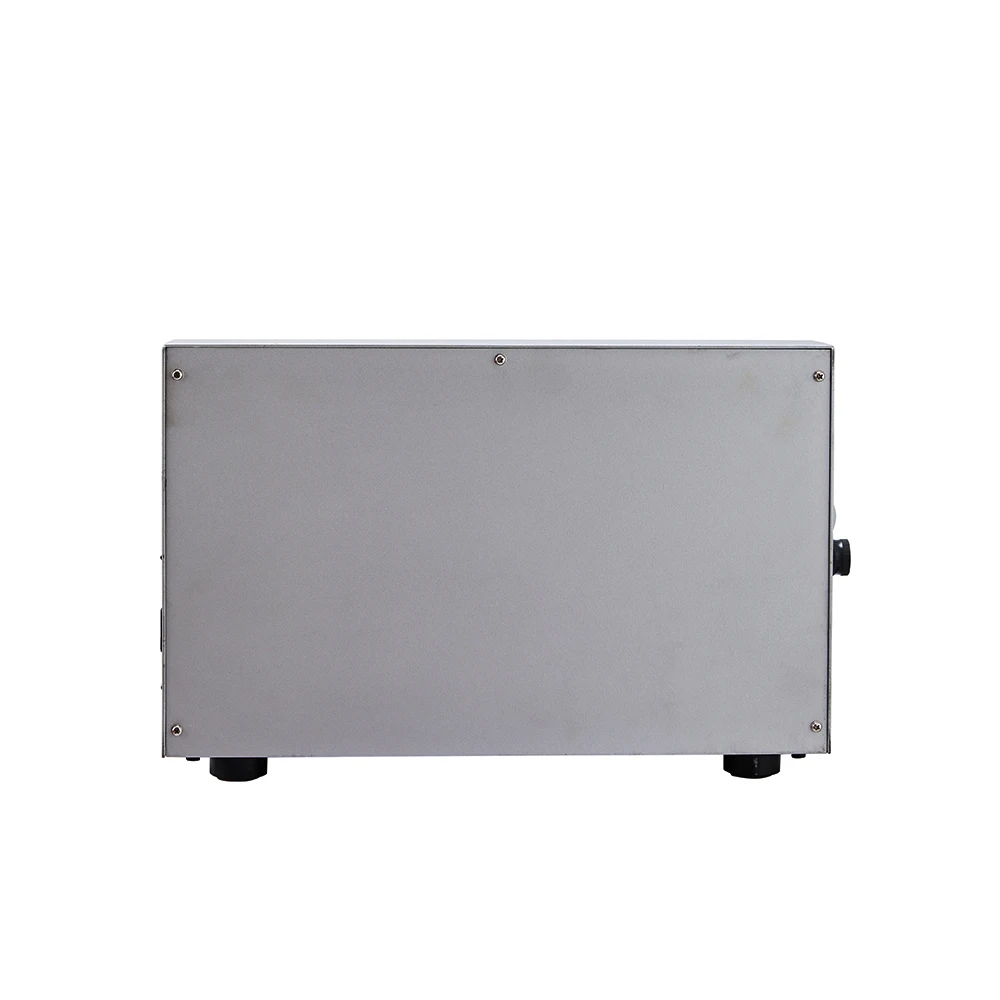

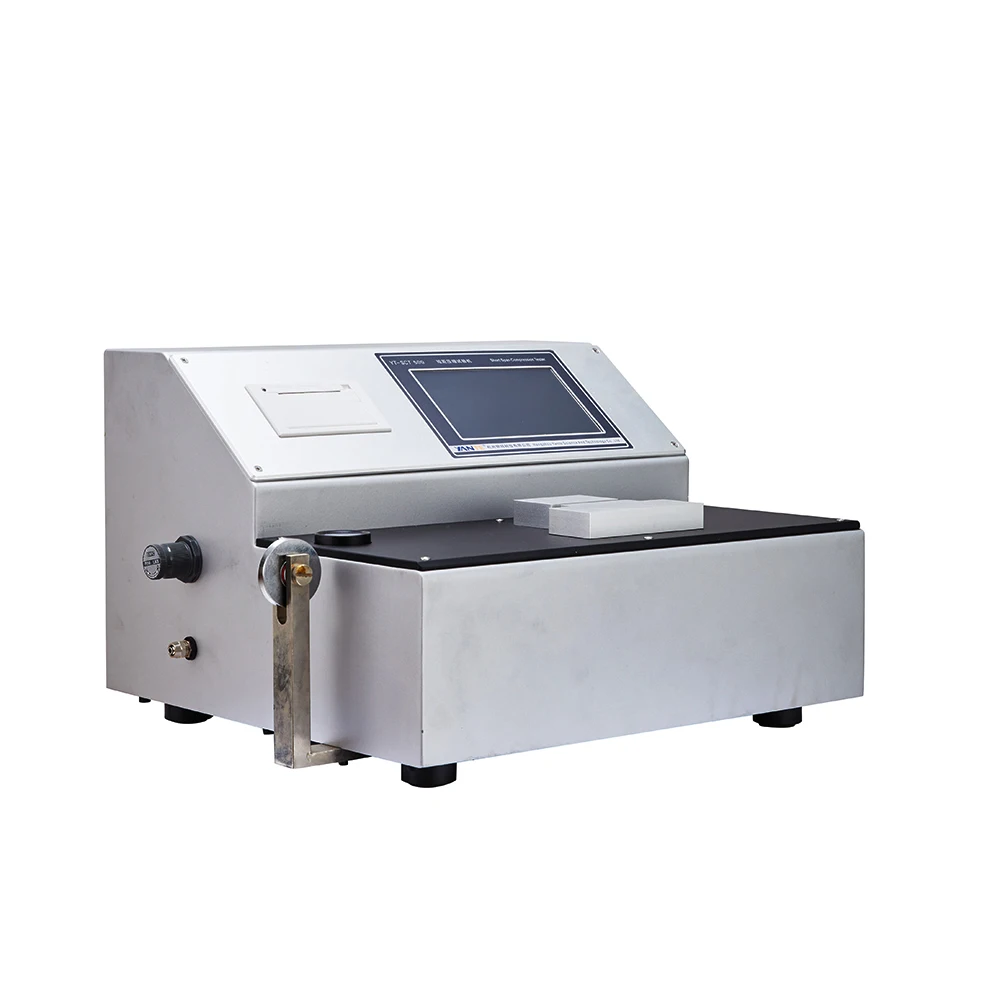

YT SCT500 YANTE manufacturer paper sct short span compression tester sct test machine
- Category: >>>
- Supplier: Hangzhou Yante Science And Technology Co. Ltd.
Share on (62297402595):
Product Overview
Description
Product Overview
The Short Span Compression Tester is used for paper and cardboard which make cartons and boxes, and it is also suitable for paper sheets prepared by the laboratory in the pulp test.
Details Images
Application Range
Paper and cardboard which make cartons and boxes
Execute Standard
ISO 9895、GB/T 2679·10
Product Feature

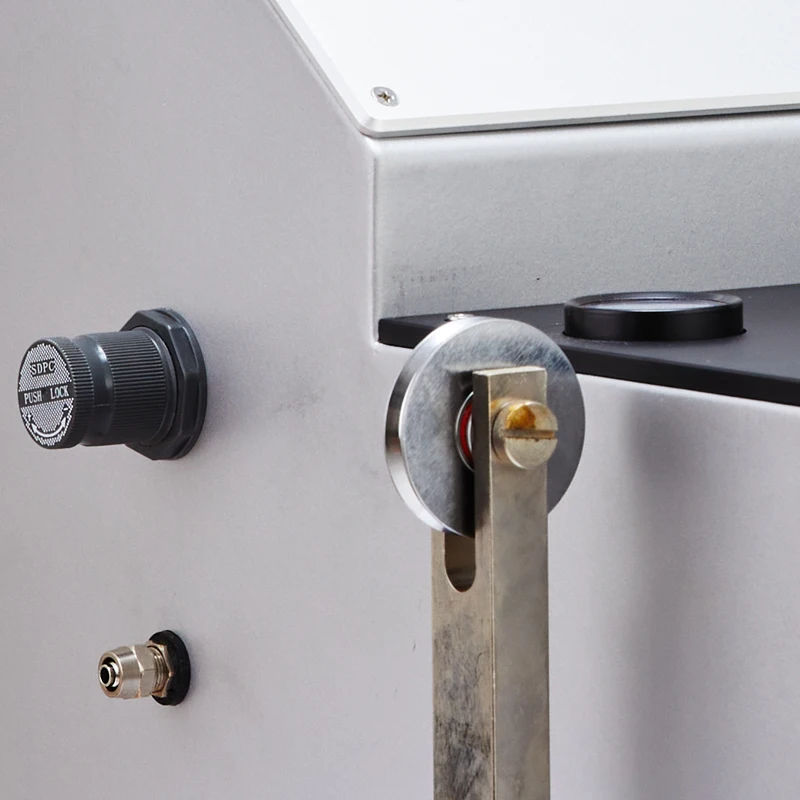

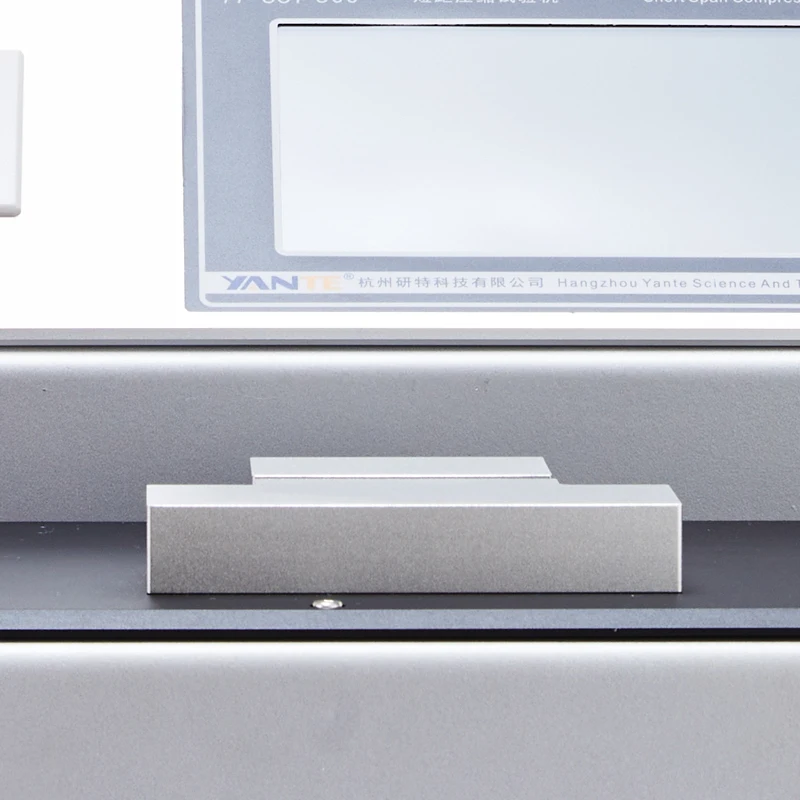

Double cylinders, pneumatic clamping of the sample, reliably guarantee the parameters specified by the standard.
24-bit precision analog-to-digital converter, ARM processor, fast and accurate sampling
It can store 5000 sets of batch data, which is convenient for users to check historical measurement data.
Driven by a stepping motor, the speed is accurate and stable, and it can return quickly to improve the test efficiency.
The vertical and horizontal tests can be carried out in the same batch, and the vertical and horizontal average values can be printed.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
The real-time force value-displacement curve is displayed during the test, which is convenient for users to observe the test process.
24-bit precision analog-to-digital converter, ARM processor, fast and accurate sampling
It can store 5000 sets of batch data, which is convenient for users to check historical measurement data.
Driven by a stepping motor, the speed is accurate and stable, and it can return quickly to improve the test efficiency.
The vertical and horizontal tests can be carried out in the same batch, and the vertical and horizontal average values can be printed.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
The real-time force value-displacement curve is displayed during the test, which is convenient for users to observe the test process.
Sales And Service Network
Product Paramenters
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz 50W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 7 inch color touch screen |
4 | Measuring range | （10～500） N |
5 | Specimen holding force | （2300 ± 500 ）N（Gauge pressure 0.3-0.45Mpa） |
6 | Resolution | 0.1N |
7 | Indication error | ±1％(Range 5%～100%) |
8 | Indication variability | ≤1% |
9 | Free spacing of specimen clamps | 0.70 ± 0.05 mm |
10 | Test speed | （3±1 ）mm/min (Relative moving speed of two fixtures) |
11 | Specimen holding surface size | 30×15 mm |
12 | Communication Interface | RS232(Default) (USB, WIFI optional) |
13 | Print | Built-in thermal printer |
14 | Gas source | ≥0.5MPa |
15 | Dimension | 530×425×305 mm |
16 | Net Weight | 34kg around |
