ZTHT-200 Automatic Prodction Line for soft capsule
More Large Production Line
The output of ZTHT-200 automatic production machine is 80000 pieces / hour.

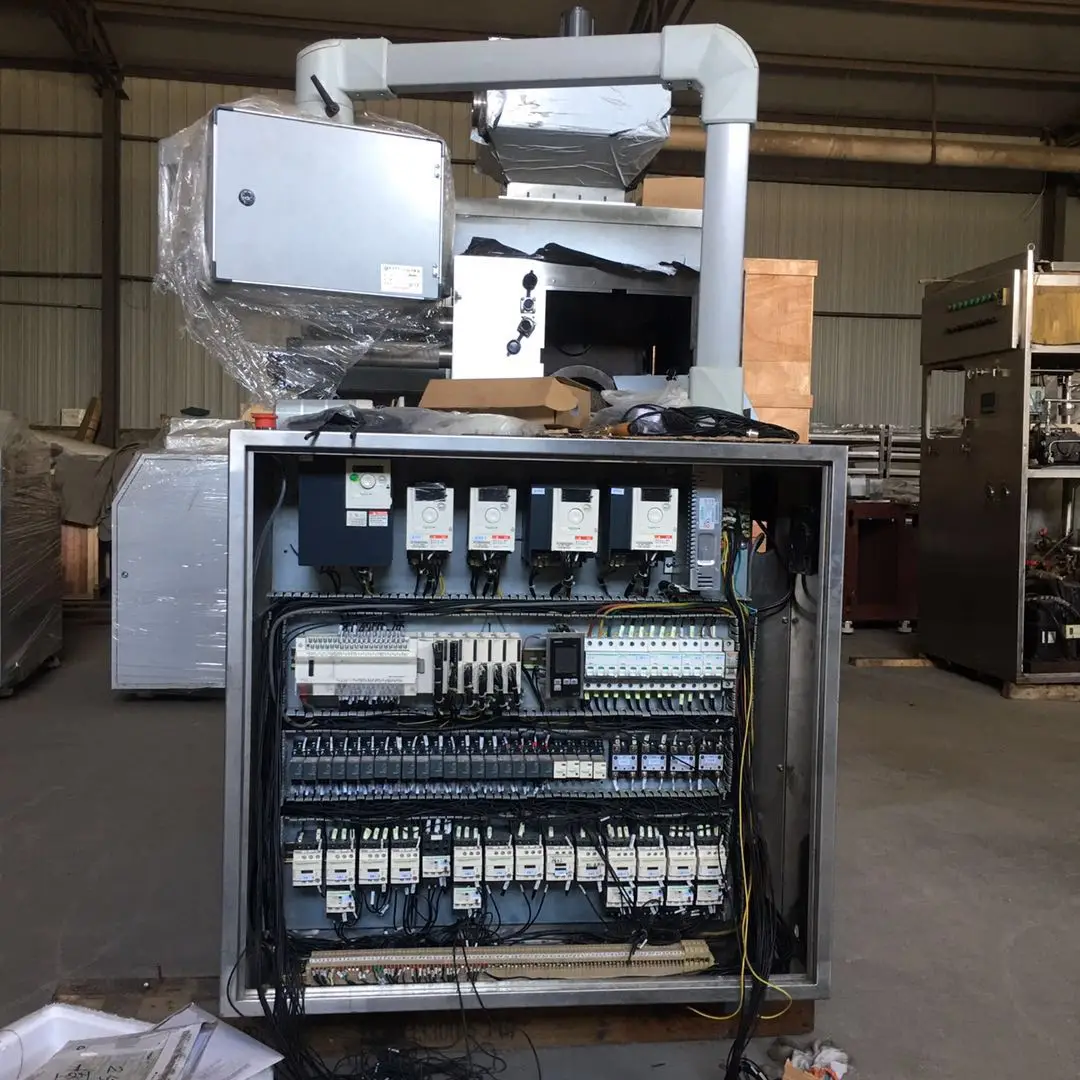

Easy to operate , the control system is Simens+ PLC full touch . Fast with production ,all of the electronic component is imported from German, the PLC transducer and power transformer are stabe. at the same time, the redundancy technology is used in the system and also it has the self-diagnostic funstion.
SPECIFICATIONS OF ZTHT-125B
Type of Machine
ZTHT-200
Roller die size
150mm X 200mm
Speed
0--4 RPM
Soft Capsule machine
Piston number
20 Ea
Loading tolerance
≤ 0.5%
Feeding of each piston
0-2 ml
Electric
220V / 380V / 440V
Power
15 Kw
Control System
PLC + Touch screen
Filling the Health Food
Dietry Supplements
Vitamin E D3 and other Pharmaceutical
Soft Medicine Filling
Our Service
Before Transportation
Before the transportation , we offer the training course for your technical ,if he come to our factory, and next, after the transportation, we have 12 month warranty for the machine, and if you need we can sent our technical and engineer to your factory and help you with the equipment commissioning
After Transportation
we will take video and clearer picture for you. If chance, we can take video online and show you.Online video service ,24 hour technology support by mail or online.if you need we can sent our engineer to your palace.
DETAILS OF EACH PART

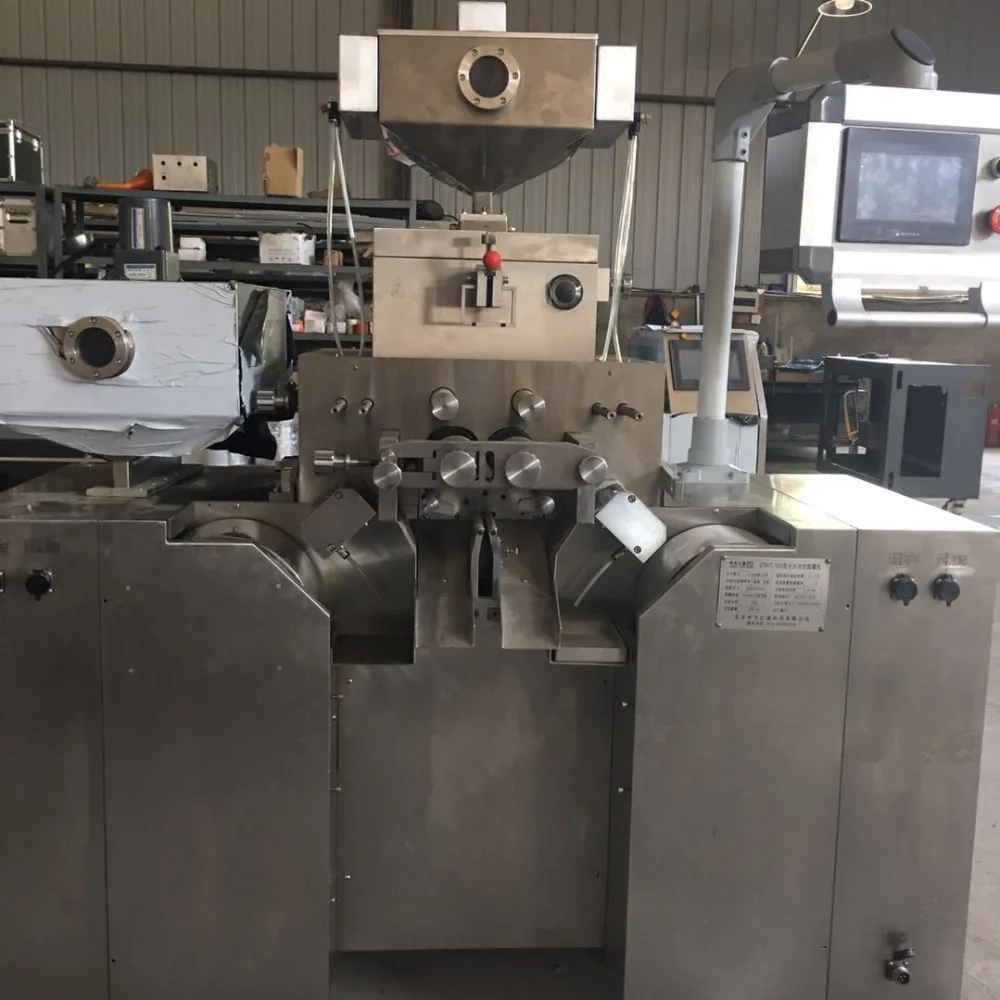

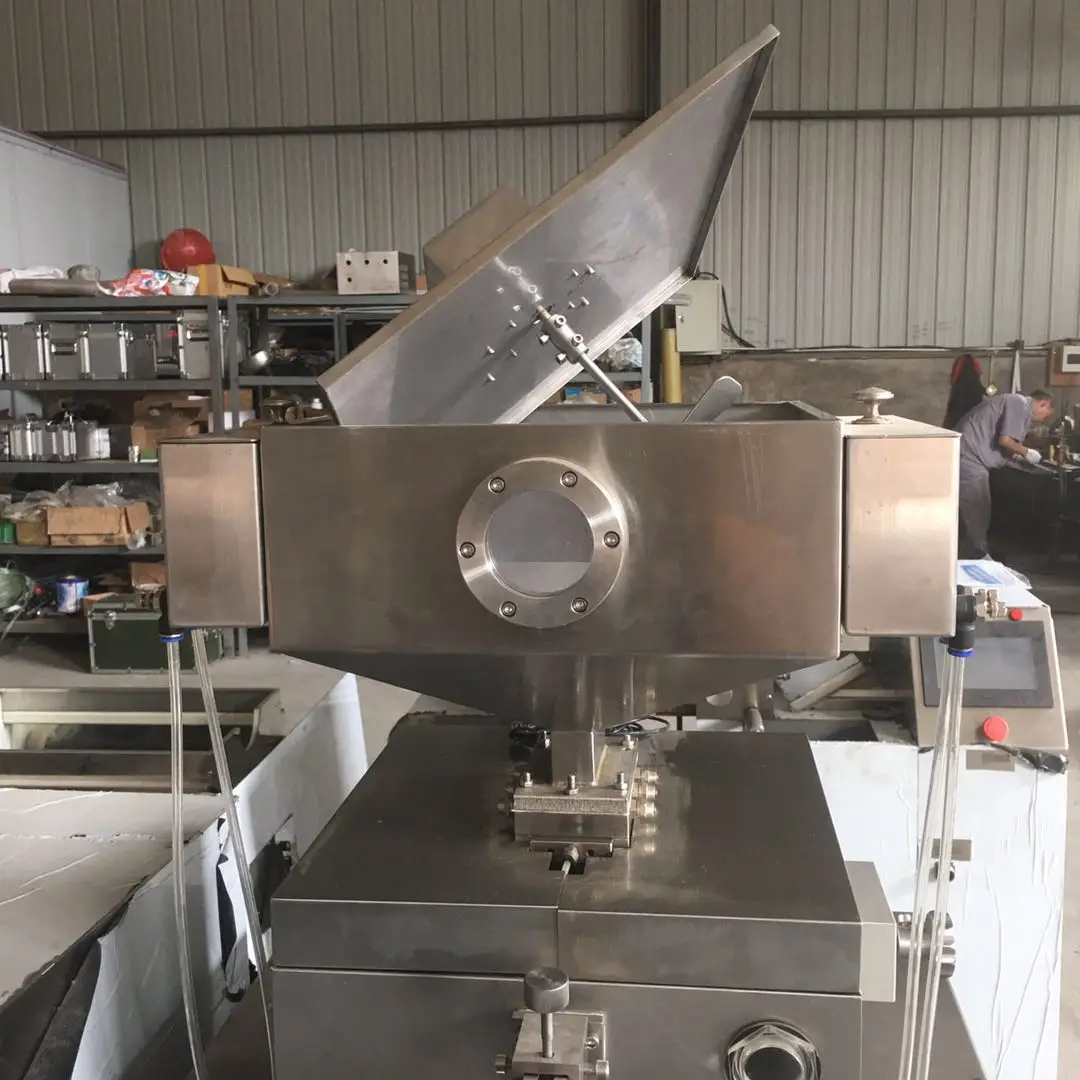

Main Machine
Control by touch PCL ,it can produce 80000 unit per hour with 500mg of each capsule,All of the set need about 20㎡ to production, easy to operate, because of the speed of machine is not fast,so the machine is not to repair for long time, all of the parts of machine can control in the PCL. It can produce different of capsules just to change the model. And it can make medicine,paintball or cosmetic.
Air Compressor ( KQY65)
This machine is contacted with gelatin melting machine and main machine,the air press make the speed of gelatin and contents at uniform.
Material SUS 304 Dimension 420mm X 220mm X 360mm Weight 2 Kg Voltage 220 V / 50 Hz Power ≤ 320 W Air folw ≤ 3.3 m / H

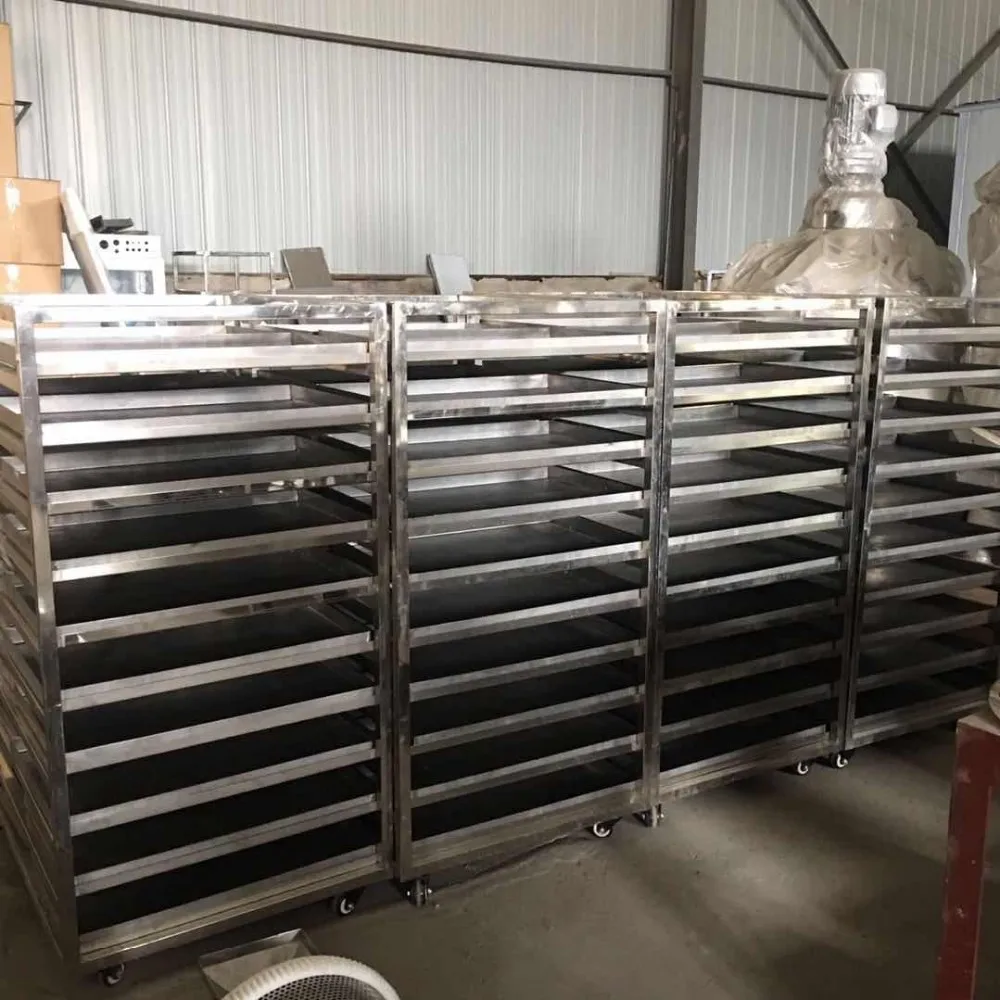

Capsule Dry Tray & Trailer
Material PVC
Dimension 750mm X 480mm X 55mm Capacity 2500 capslue
TrailerMaterial SUS 304 Dimension 775mm X 510mm X 115mm Four casters Equipped on the bottom Weight 80 Kg
Tumble Dryer(HTR-II)
Basket Size Φ600mm X 900mm / central ControlX4 Electric Spec 220 V / 380 V Required Power 3.2 Kw Main Motor 0.2Kw X 2 Motor Pan Motor 0.2Kw X 2 Fans Dimension 1520mm X 870mm X 930mm Weight 220 Kg Material SUS 304 for Contract area

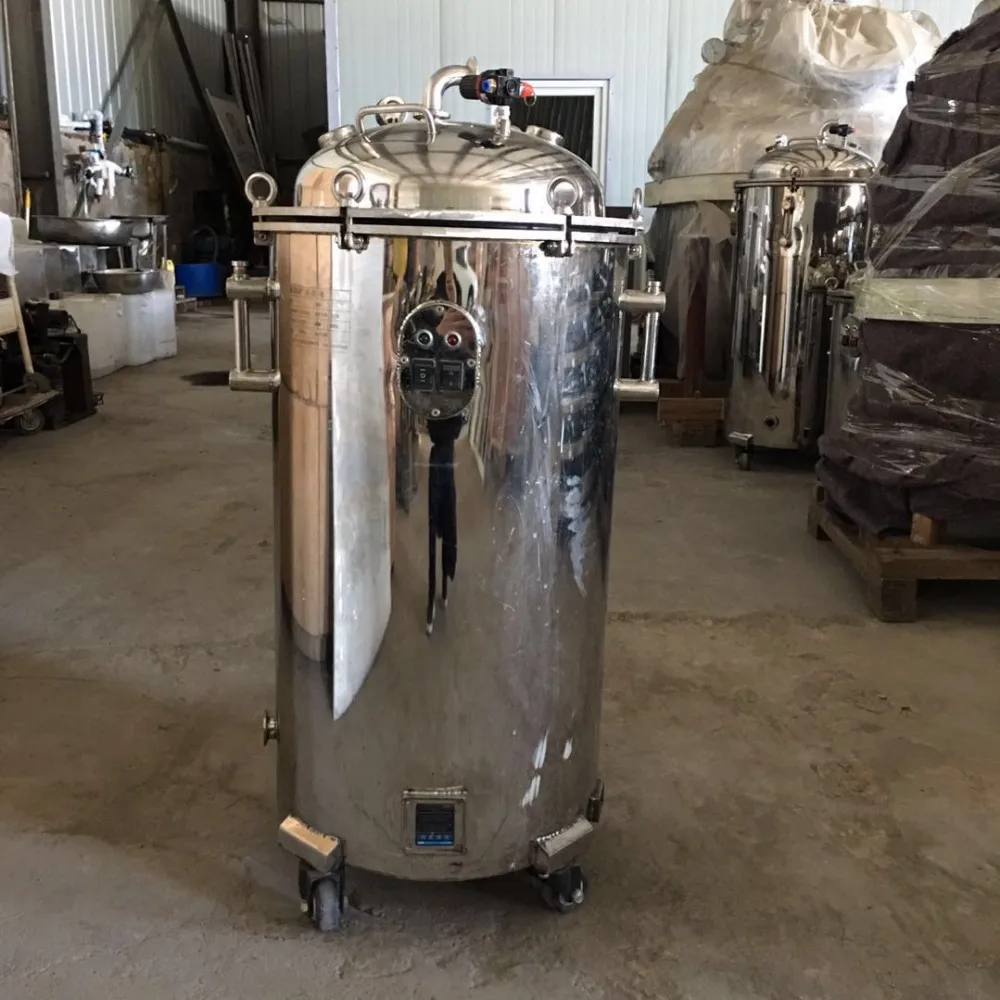

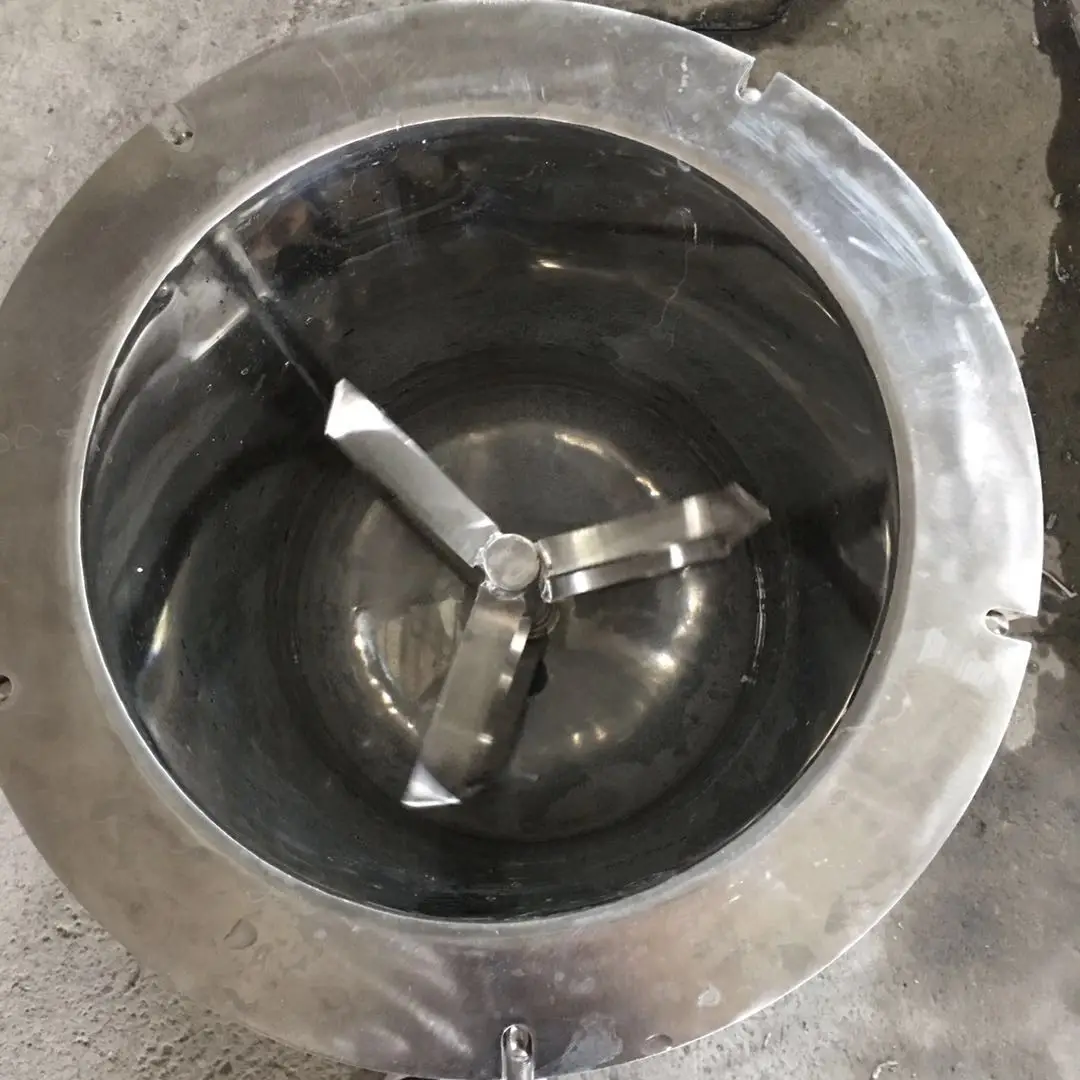

Gelatin Melting Tank
Material SUS 304 Dimension Φ650mm X 1700mm Weight 140 Kg Power 3 Kw Voltage 220 V / 380 V Vaccum degree 0.02-0.09 Mpa Max rate 40 rpm( fixed) Max temp 50-100℃ Max capa 100 litter each tank

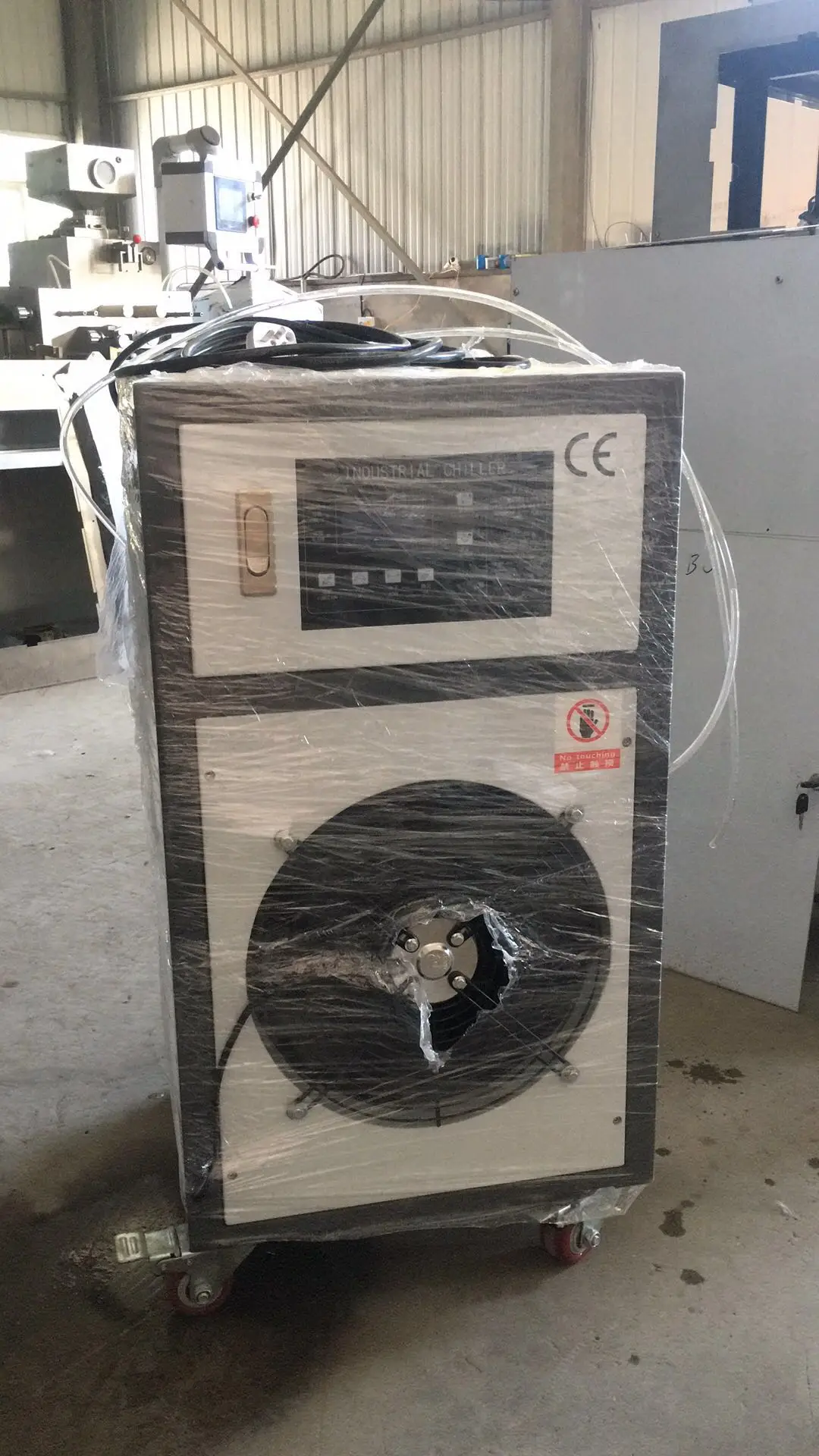

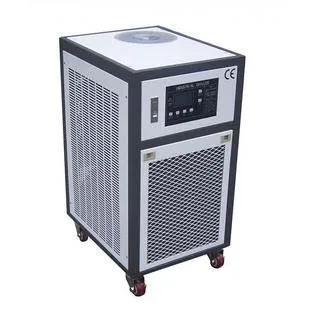

Water Chiller
The water chiller machine can keep the temperature of gelatin when it pressed and filled in main machine, it be contacted with compression moulding of main machine. Specification of Water chiller machine Voltage: 220V or 380V 50/60Hz Power: 1220W Refrigerant: R22/0.75Kg Temperature: 10-30 ℃
Packing & Delivery
Packaging
Size
As the size of Machine
Weight
300-800 Kg

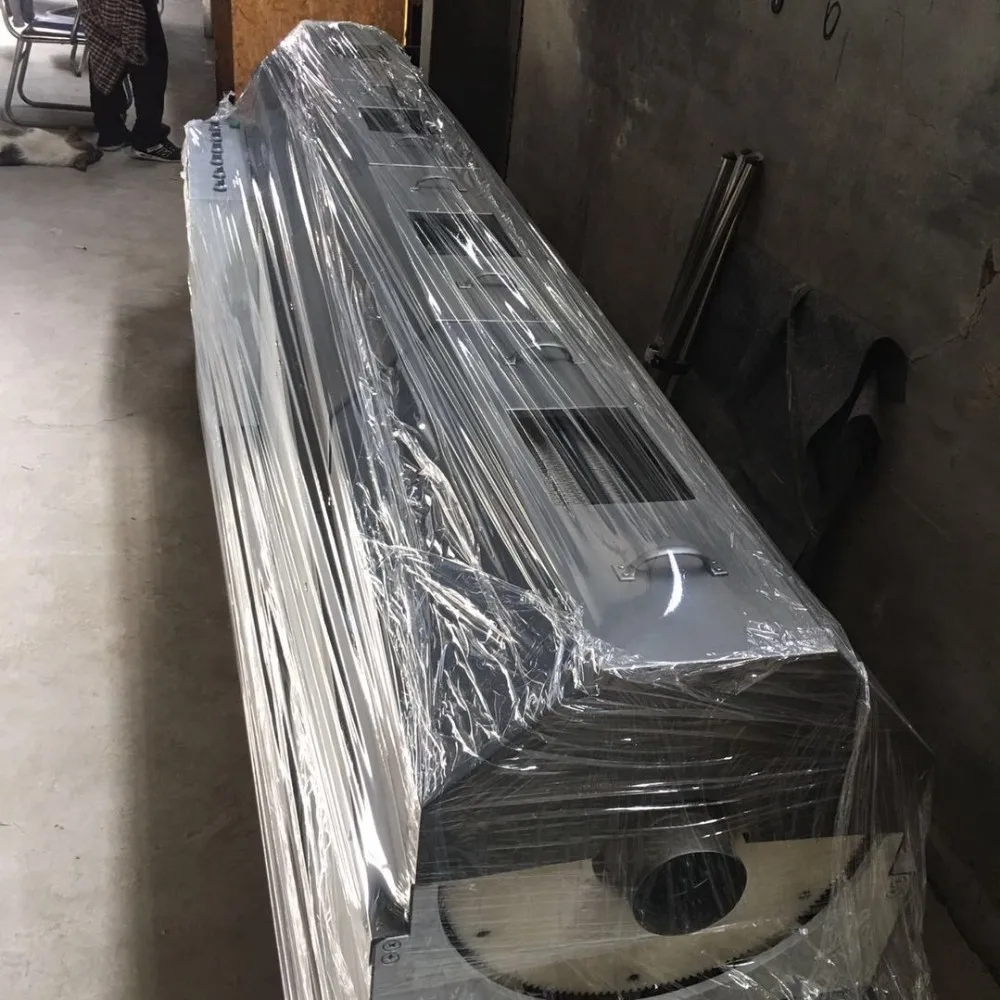

Packaging Details
The normal package is wooden box with pallet and we use the plastic and waterproof to protect the goods form moisture . If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request
