4 digital inputs (2 Positive trigger, 2 Positive/Negative trigger)
HDD/SSD
1 HDD/SSD (up to 2TB, support hot plug/unplug)
SD card
1 SDXC High speed card (up to 256GB)
USB interface
1 USB 2.0 (support U disk/mouse)
Ignition input
1 ACC signal
UART
1 LVTTL Level

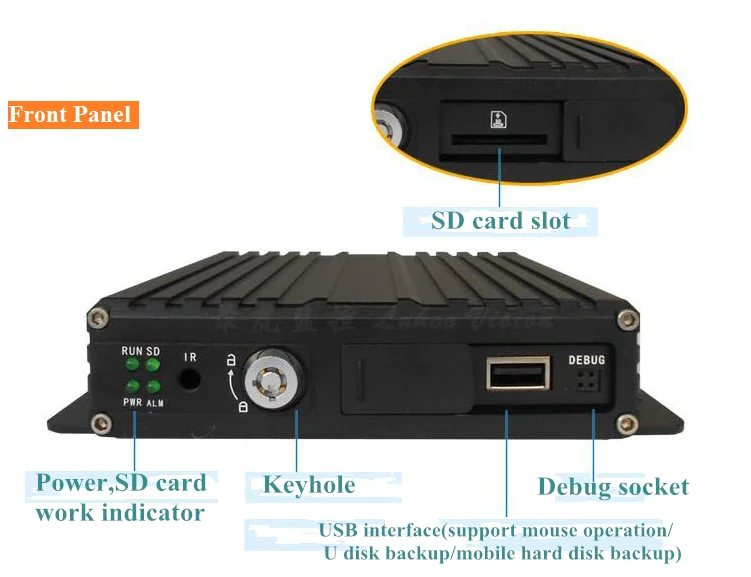

LED Indication
PWR/RUN
Disk lock
1
Debug port
1
Function extention
GPS/BD
Support detecting antenna Plug in/Unplug/Short circuit
3G/4G
Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD L
WIFI
802.11b/g/n, 2.4GHz
Others
Power input
10~36V DC
Power output
5V 300mA
Power consumption
Standby 3mA Maximum consumption 18W @12V 1.5A @24V 0.75A
Working temperature
-20 --- 70℃
Storage
720P 1G/h/channel; 960P 750M/h/channel
Dimension
162mm*153mm*52mm

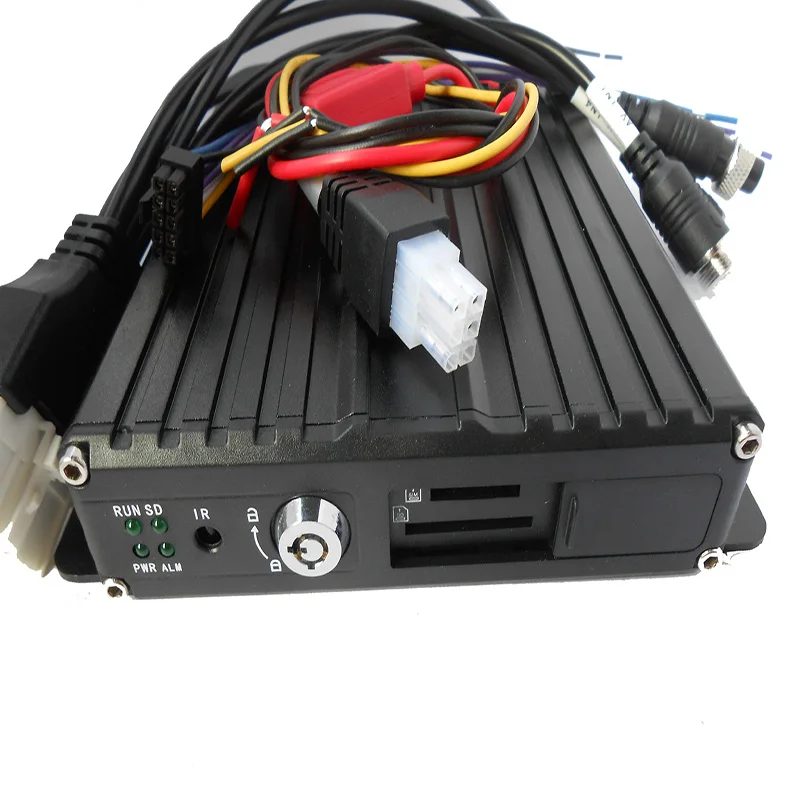

Truck MDVR 4 Channel AHD SD HDD Vehicle 4CH Mobile DVR Features:
Ÿ Built-in high performance Hisilicon chipsets, coded with H.264 standard, high compression rate and image qulity
Ÿ 4CH AV Inputs with AHD 720P/960H/D1/CIF optional, 1CH synchronized AV output, 1CH VGA output
Ÿ 4CH local recording with 720P resolution in real time
Power:
Ÿ Professional In-Vehicle power design, 10-36V DC Wide Voltage Range
Ÿ Multi protection circuits like under-voltage, short, reversed plug-in
Ÿ Smart power management system, shutdown under low voltage, low consumption
Data Storage:
Ÿ Special file management system to encrypt and protect the data
Ÿ Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service life of the hard drive
Ÿ Built-in ultracapacitor, avoid data loss and sd card damage caused by sudden outage
Ÿ Support 2.5 inch HDD/SSD, maximum 2TB
Ÿ SupportSDcard storage, maximum 256GB
Transmission Interface:
Ÿ Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA
Ÿ Support GPS/BD optional, high sensitivity, fast positioning
ŸSupport wireless download by WiFi, 802.11b/g/n, 2.4GHz
Related Products

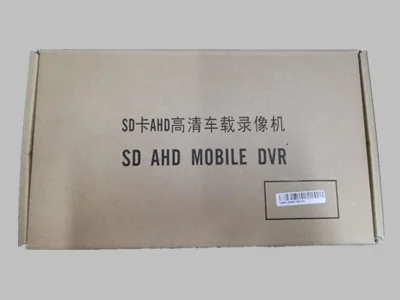

Packing&Shipping
All of our goods will be wrapped into a Professional Color Box or Neutral Packaging, Do As you wish. we will wrap the well to make sure you would receive the perfect products. 1.EXPRESS: around 5-7 working days to arrive. 2.INTERNATIONAL AIR MAIL: around 2-4 weeks to arrive.
Company Introduction
Shenzhen Sunta Technology Co. LTD: Professional manufacturer of 2CH 4CH 8CH Mobile Car DVR,Car black box etc. vehicle security and surveillance products.
*Company introduction
Shenzhen Sunta Technology Co., Ltd. (hereinafter referred to as SUNTA) is a high-tech security company specializing in R&D, production, sales and service of Mobile DVR/MDVR,CAR DVR, car monitor, car driving recorder, car/vehicle cameras and Color multiplexer and screen segmentation systems. Has registered its own "LUHOOVISION" brand.
All key components of the product are imported from Japan, Europe , the United States and Famous Brands in China, which ensures the stable and reliable quality of the whole machine. All products are produced in strict accordance with the ISO9001 quality certification system, and passed CE, FCC certification and national security alarm system quality supervision and inspection Certification. Our customers come from more than 40 countries and regions, including the USA, UK, Germany, France, Australia, Japan, Latin American and etc.
*Our products
720/1080P MDVR
Equipped with high-definition audio and video input and output, real-time synchronous recording and SSD hard disk storage; Waterproof function can protect video data security; It has G-sensor, over speed, motion detection and other trigger alarm forms. The alarm video can be uploaded to the server through 3G/4G/WiFi network. Users can perform remote real-time preview and download the video on a PC, phone and an iPad. GPS real-time positioning and history track query, vehicle location and running speed data are also available. Besides, the platform server supports distributed deployment, unlimited expansion of DVR access, and it also has remote management to schedule of all vehicles in the fleet.
Vehicle Camera
We produce and design various models of Vehicle cameras and H.264 / H.265 Digital Video Recorder (DVR) with capabilities of capturing 1 Megapixel (720p), and 2 Megapixel (1080P) resolutions. With various camera form factors (Indoor Dome camera, Outdoor Dome Mobile Camera,Rear View Camera ,Mini conch dome vehicle camera, PTZ camera and Square Camera).
360° bird-view panoramic driving system
Equipped with 720P wide-angle camera (4CH), the captured video performs image fusion automatically, and it debugs automatically to splice into a car top view, achieving 360° no-dead-angle monitoring. It can also be used in conjunction with the radar system to detect obstacles around the vehicle (optional). When the vehicle passes through complex roads or parking, it will promptly remind the driver to pay attention to the obstacle through the audible alarm. It can reduce the occurrence of accidents such as smashing, collision, and subsidence.
7/9/10.1 Inch TFT LCD Waterproof Car Monitor System
Standalone car camera system with 7/9/10.1 inch high resolution 1024*600 digital TFT LCD car quad monitor connecting to Auto car camera for vehicle reversing system with screen splitter function. 100% original ONE-HAND screen support multiple languages.
HD rear view system
With high color reproduction and anti-interference ability, the resolution of the system can reach to 1024 x 600.The HD input marks the leap forward from "visible" to "Crystal" and also breaks through monitor image quality of rear view system.
Car QUAD System
Various types of blind area assistant systems provide customers with visual angle of blind area image to ensure safe driving. This system is based on the driver's operating habits, manual and automatic analysis and control of the road conditions shown in the video.
*Our Customers
Our products can be widely used in ships, trucks, buses, school buses, ambulances, garbage trucks, fire trucks, agricultural vehicles, cement mixers, excavators, forklifts, road sweepers, cranes and other vehicles and large machinery equipment. With the development by the time, SUNTA has established solid cooperation with many excellent enterprises from various fields. The filed range covers consumer electronics, industry, agriculture, manufacturing, public transportation and so on ...

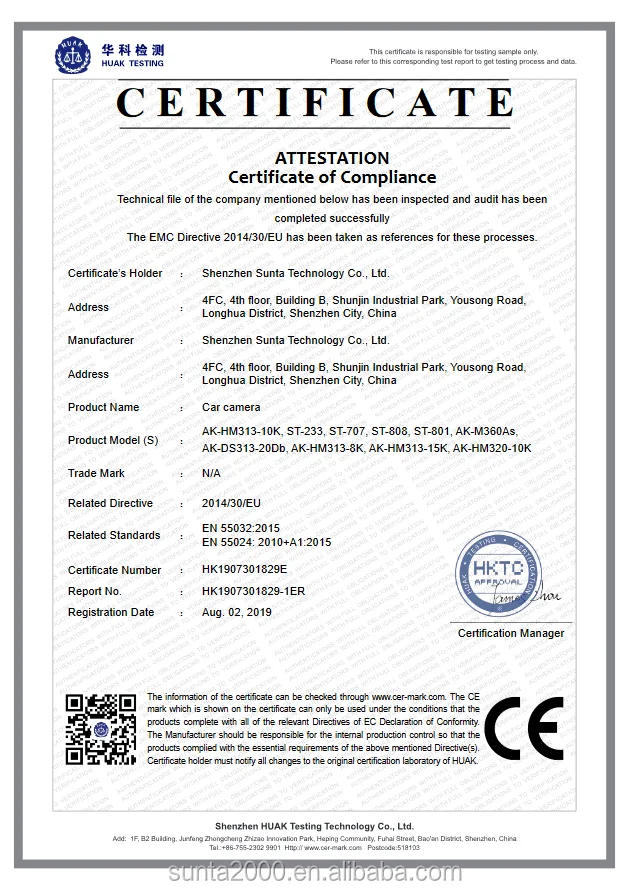

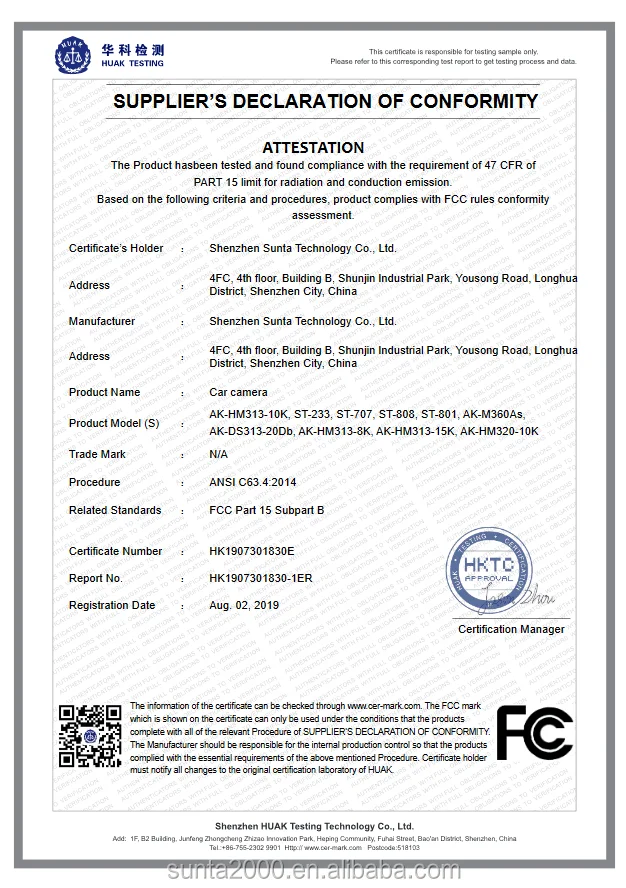

Certification
Our Service
Warranty: All of our products have 15 months warranty of normal use. During this period, if the product has any quality problem ( not caused by humanbeing), we will repair it for free. Moreover, we offer a lifetime maintenance service .
Customize Service: We have professional R&D team, if you have special requirements for the product, such as function, appearance etc. some professional requirements,pls feel free to contact us, we will offer you the most professional OEM&ODM service.
24/7 Online Service: Any questions can contact us at any time,we will reply to you asap .
Fast Delivery Service: Normally,we have the products in stock. Therefore,we can arrange delivery within 1 working day after receiving your payment. But for bulk order or some special festival, the shipment may takes a little longer.
FAQ
1. What is your MOQ: Usually, Our MOQ is 1pc or one set, welcome to order sample to test our quality and service. 2. How to get a sample? 1) choose the item you need and contact our sales for price, shipping and specifications details; 2) if you are agree with our offer, please send us your contact information to make Proforma Invoice; 3) after payment done, please send us bank copy or the payment control number, so that we can check the money and arrange sample for you as soon as possible; 4) The parcel will be shipped out within 24 hours after we collecting the money,tracking number will be sent to you after we ship out your sample. 3. Do you accept OEM/ODM ? OEM/ODM is highly welcomed. and if you want OEM/ODM or customized service,pls feel free to contact our sales as below contact information.
Contact Us
If you have any questions, pls feel free to contact us by email Skype or Trademanager etc.
Shenzhen SUNTA Technology Co. LTD [100% OEM Professional Manufacturer, Quality Assured, Competitive price, best service, fast shipment] Contact: Miya Wu Email: sunta01 AT sunta2000.com [ AT is @ ] Mob : +86 17688371227 Skype: sunta01 AT sunta2000.com [ AT is @ ] Company Address: 4/F,Comprehensive Building of Science and Technology Park, East Ring Road, Yousong Community, Longhua District, Shenzhen Web: //www.sunta2000.com/
