JH25 315 ton automatic mechanical forging press

Product Overview

Description

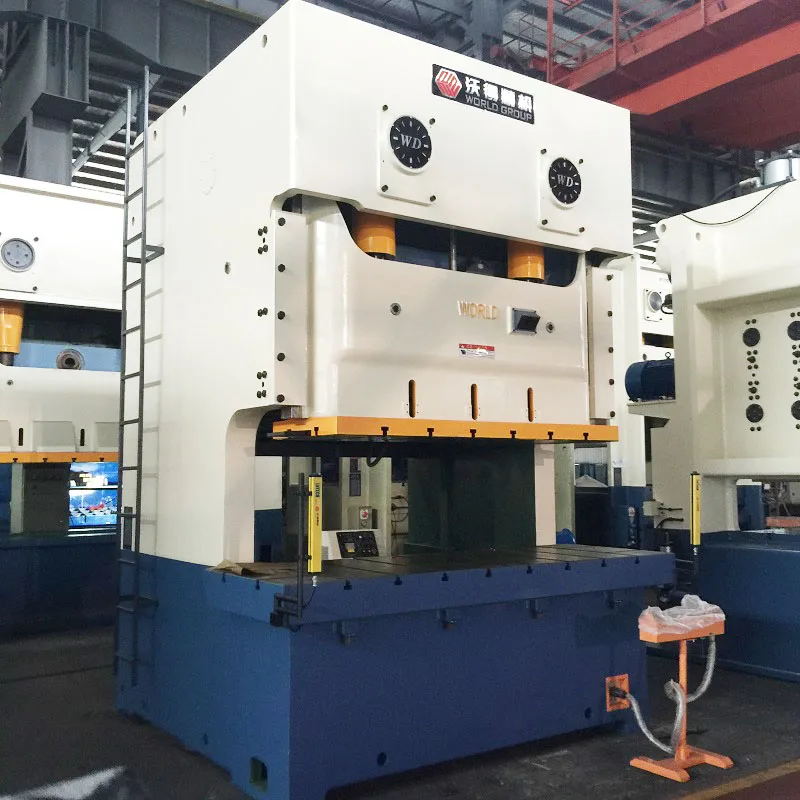

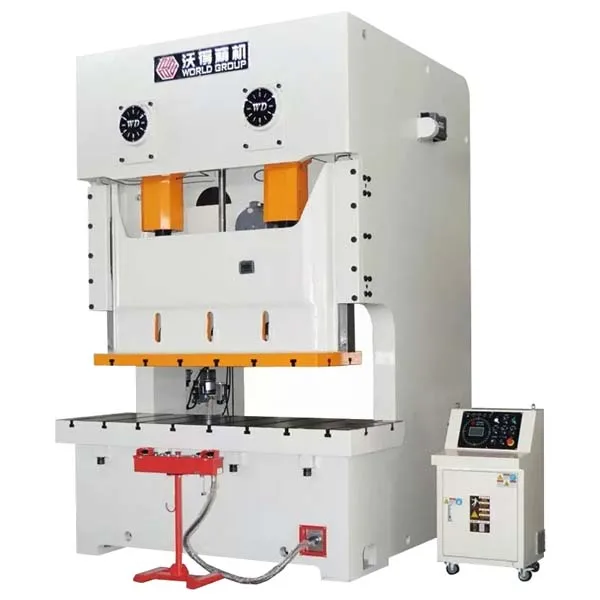

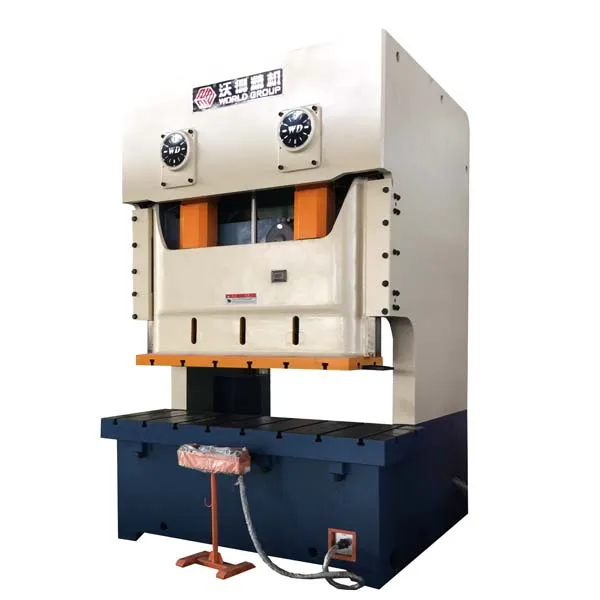

JH25-315 ton automatic mechanical  forging press

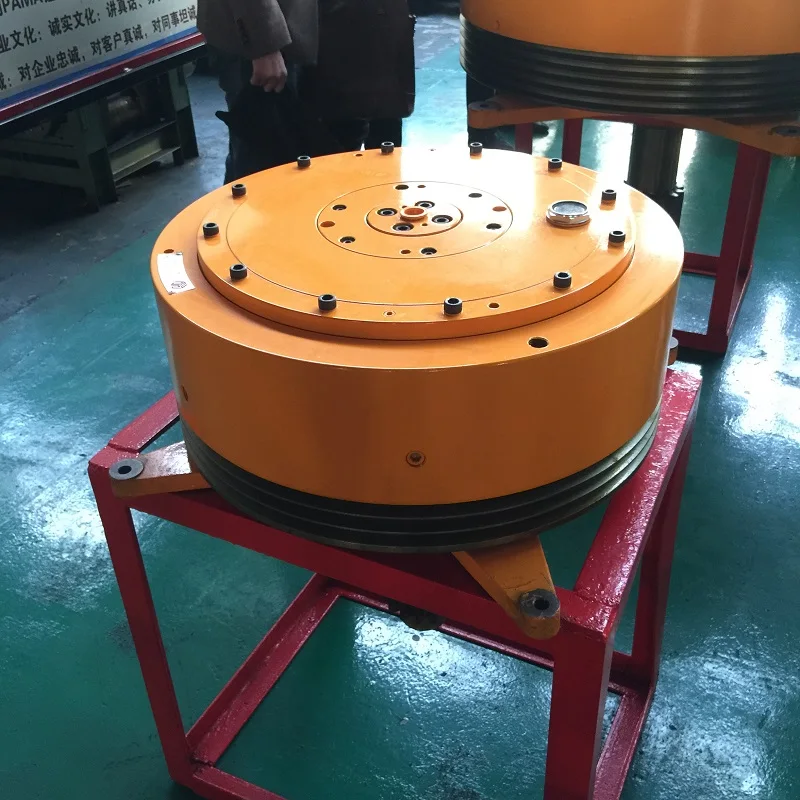

        JH25 C frame double crank power press (press machine, punching press, punching machine,mechanical power press, stamping press), capacity from 110ton to 315ton, PLC control, wet clutch, hydraulic overload protected, both mechanical and electric cam control, auto lubricated. Bigger table better for big sheet stamping or progressive die stamping process. Light curtain, inverter, air cushion are optional.

• SPECIFICATION:

































































































































  ITEM		CODE	UNIT	JH25-315
  NominalCapacity		Pe	KN	3150
  Slide Stroke Length		5	mm	280
  Slide Strokes	Fixed		spm	30
  	Variabled(optional)		spm	20-35
  Max.Die Shut Height		H2	mm	550
  Die Shut Height Adjustment		t	mm	120
  Throat Depth		C1	mm	480
  Distance between uprights		N	mm	2170
  Table Size	F-B	D	mm	940
  	L-R	C	mm	2800
  	Thickness	H3	mm	190
  Slide Bottom Size	F-B	b	mm	700
  	L-R	a	mm	2100
  Table Surface Height		H1	mm	1090
  Overall Dimensions	F-B	A	mm	2730
  	L-R	B	mm	2840
  	Height	H	mm	4180
  Motor Power			KW	37
  Weight(approximate)			KG	36000




  World group was established in 1988 as a private company in Danyang City, Jiangsu Province. World has 21 subsidiary companies totally. The main business is to produce and sell power press machines, agriculture machines,construction machines,auto parts and garden tools.

   With 2016 sales and revenues of $3.692 billion, World group is one of the TOP500 private companies in China and TOP100 companies in Jiangsu Province. Now, World is one of the leading power press manufacturers, the biggest combine harvester manufacturer, the biggest

lawn mower manufacturer, and one of the main construction machines manufactures in China.







 Pre-Sales Service:

• Inquiry and consulting support.


• Sample testing support.


• Visiting our factory.

 After-Sales Service:

• Our technical staff will provide technical instruction.


• Engineers available to service machinery overseas.


• 24/7 online receving your question or machinery overseas.


• providing solution within 12 hours

 Packaging  Details :

Weight	36000kg
Size	2700*2850*4180mm
Casing	The normal package is with steel pallet.Wood case or steel box are optional. If some big size press is too big tor container, we can ship it by bulk vessel or flat rack.

 FAQ:

Q: What is the warranty?

A: We can provide one year warranty for the press, 2 years warranty for the crankshaft, 3years warranty for the wet clutch

 Q:Where we can get the spare parts?

A: All electric parts in our presses are international famous brand. Customers can buy electric parts in their local market.

We produce most of the steel parts in our own factory and we can supply all parts within 20years.

Urgent parts can be shipped by DHL.

 Q:Installation and training available?

A: Yes, we can provide installation and training if customer needs. Customer can send their technicians to our factory for site training too.

 Q:Is there any customer reference available?

A: Yes, please contact our sales team.
