MOTOR STUDY TEST TEACHING TRAINING PLATFORM ac/dc servo machine control didactic trainer apparatus bench education study kit

Product Overview

Description

1. product introduction

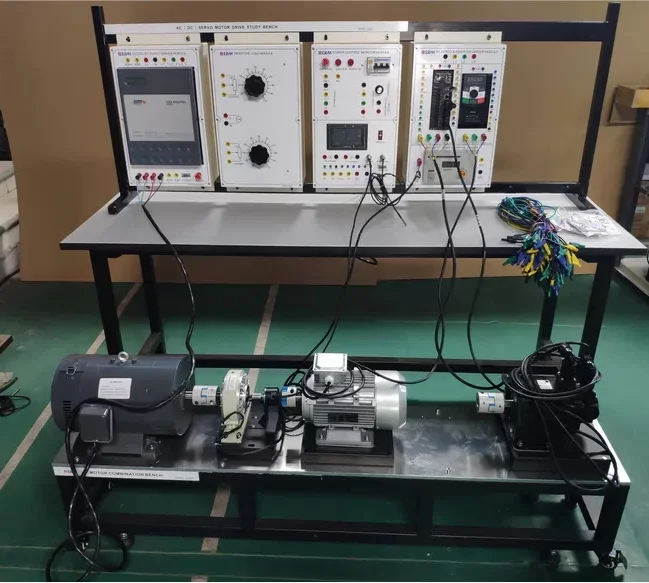

The TEST bench is to study the working characteristics of DC shunt motors, AC servo motors, and three-phase asynchronous motors.  The DC motor uses a four-quadrant driver. Can be used as a separate generator. AC servo motors are used to study AC motor drives with speed control position control. The three-phase asynchronous motor is driven by a three-phase vector inverter.not only you can test independent motor,but also can study combination motor characteristics.you can measure electric data,then make a electrical or machinical curve. And the bench is a modular structure,have a good scalability.

2. Technical parameters

2.1. Overall dimension: 1800x600x1420mm

2.2. Power Supply: single phase AC380V±10%, 50Hz

2.3. Experiment power source: 3 PHASES AC380V

2.4. MOTOR POWER: ≥1.5KW

3. TESTING and TRAINING PROJECTS.

    STUDY DC MOTOR DRIVE, GENERATOR,4 QUADRANT RUNNING, ACTIVE LOAD.

    STUDY SERVO MOTOR DRIVE,CLOSED LOOP CONTROL

    STUDY AC MOTOR INVERTER CONTROL
