AT4516 Multi channels industrial data logger digital thermometer K thermocouple temperature meter
- Category: >>>
- Supplier: Changzhou Applent Instruments Ltd.
Share on (62297563454):
Product Overview
Description
Product Description
AT45xx series multi-channel temperature meter adopt high-performance ARM micro processor, can collect multi-channel temperature data simultaneously and response quickly.
AT45 series have the function of checking broken thermocouple, high/low beep function and communication transmission.
128 channels' temperature data can be extended, compatible with various temperature sensors. Support RS-232 communication, realize data acquisition, analysis and print through the standard computer software.
Has USB disk storage and store real-time sampling data. The users can adjust data for each channel independently.
Product parameter
SPECIFICATIONS | ||||||
| AT4508 | AT4516 | AT4532 | ||||
| Graduation | Thermocouple:J/K/T/E/S/N/B/R | |||||
| Accuracy | 0.2%+1ºC | |||||
| Measurement Range | -200°C~1300°C(Varying depend on graduation) | |||||
| Resolution | 0.1ºC | |||||
| Channels | 8 channels; | 16 channels; | 32 channels; | |||
| 128 channels are available | 128 channels are available | 128 channels are available | ||||
| Speed | Fast:100ms/channel Medium:500ms/channel Slow:1s/channel | |||||
| Correction | Error correct for each channel | |||||
| Comparator | High/low beep Individual setting high/low value for each channel | |||||
| Interface | RS232C interface U-disc interface USB communication interface | |||||
| Software | ATS45 data acquisition software | |||||
| Cold Junction | Accuracy:0.5ºC | |||||
| Compensation | ||||||

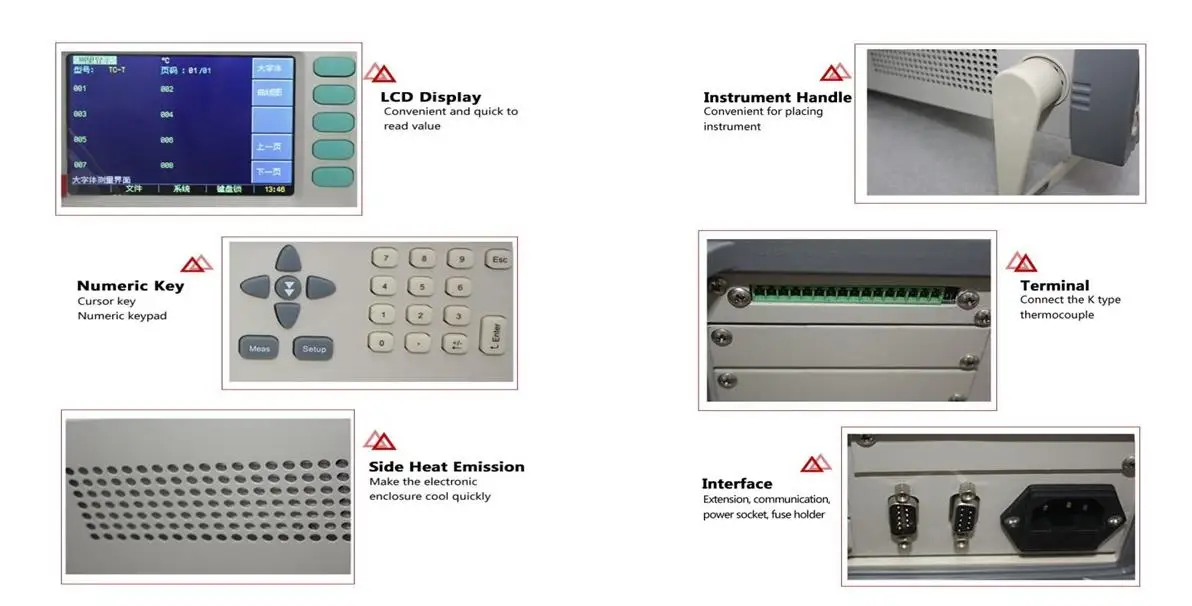

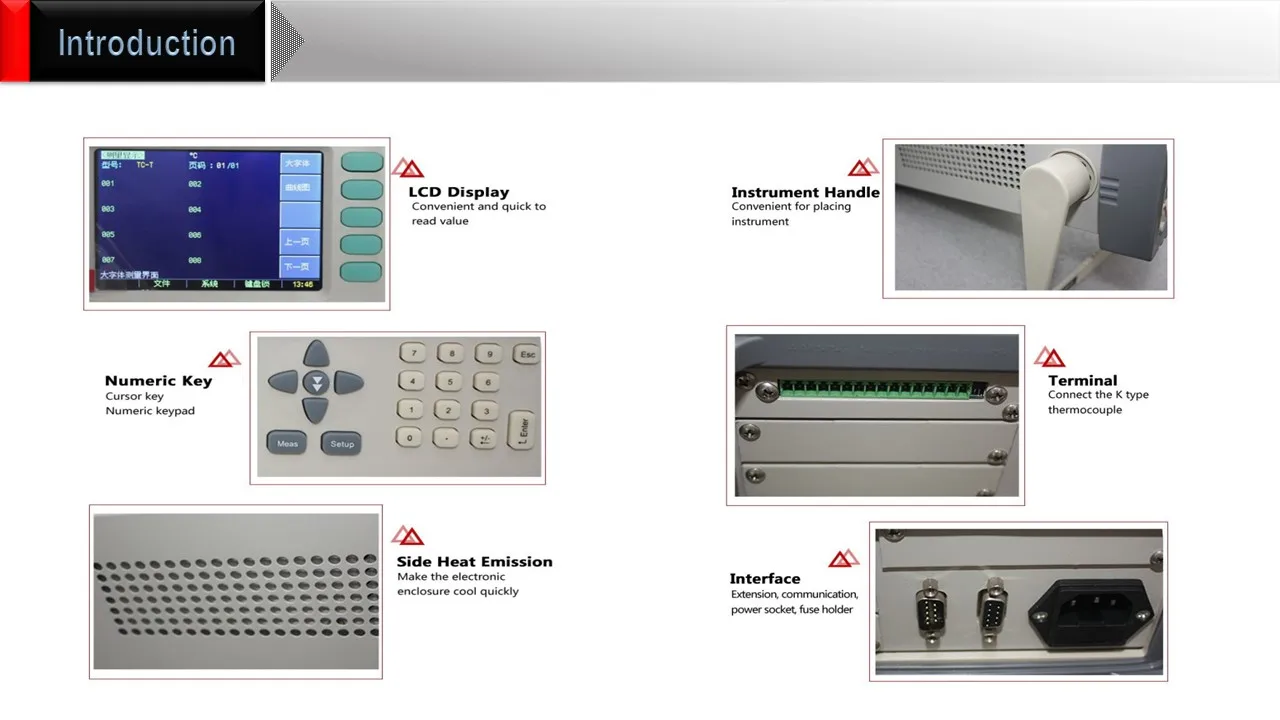

| Others | TFT-LCD True-color LCD display,broken thermocouple check function | |||||
| GENERAL FEATURES | ||||||
| Power Supply | Voltage:85VAC~260VAC Frequency:50Hz/60Hz Power:10VA | |||||

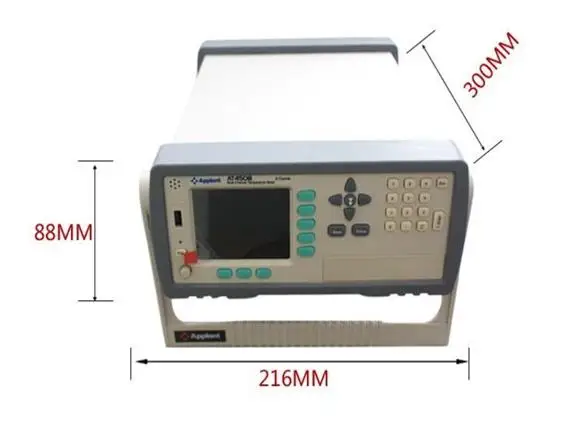

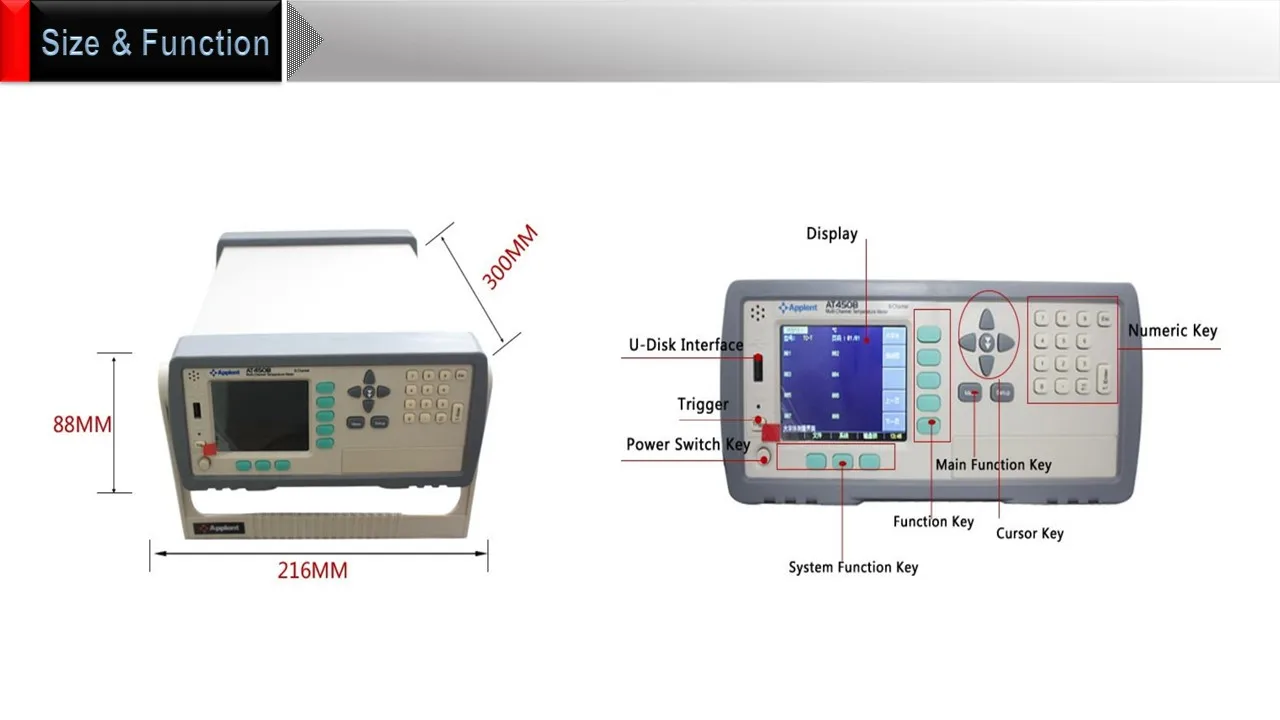

| Size | 216mm(Width)x88mm(Height)x300mm(Depth) 3kg | |||||
| ORDERING INFORMATION | ||||||

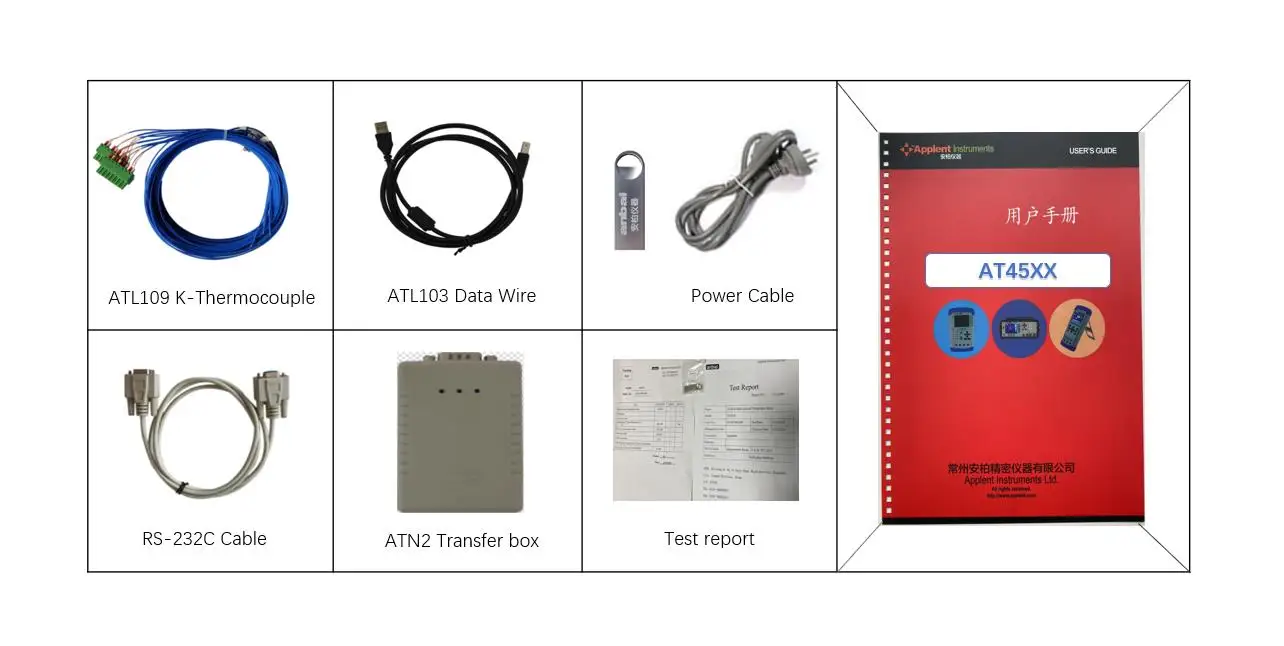

| Accessories | AT4508: K Type thermocouple 8 teams(2m/team) | |||||
| AT4516: K Type thermocouple 16 teams(2m/team) | ||||||
| AT4532: K Type thermocouple 32 teams(2m/team) | ||||||

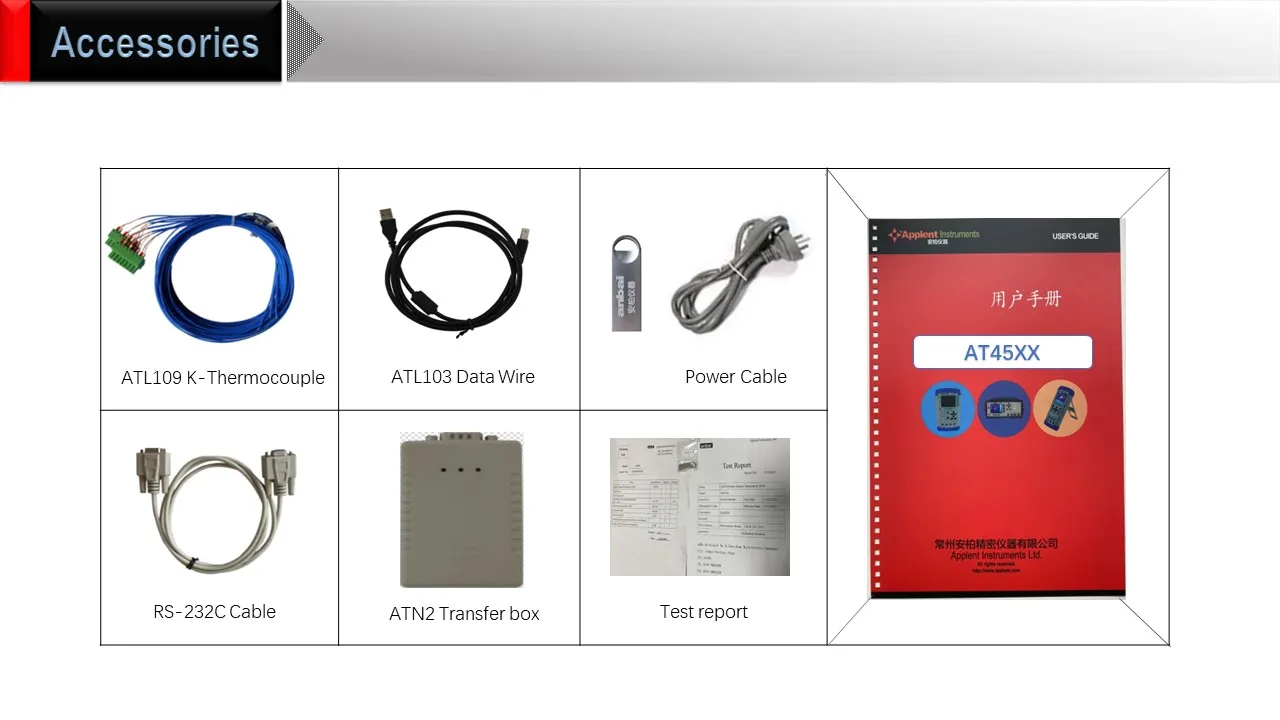

Accessories
