EPDM Gym CrossFit Rubber Tile Floors Making Machine In Dubai/Rubber Tiles Making Plant In Russia

Product Overview

Description



EPDM Gym CrossFit Rubber Tile Floors Making Machine In Dubai/Rubber Tiles Making Plant In Russia

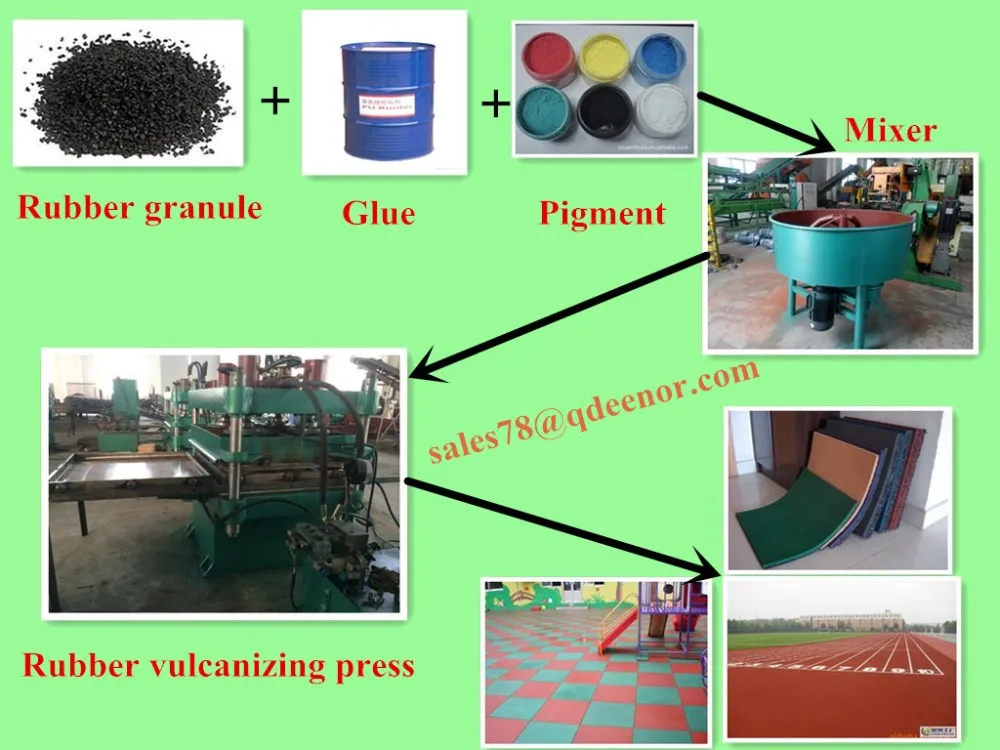

The complete making line including 2sets mixers, rubber tile vulcanizing

machine and molds. It is mainly used to produce various size of rubber tiles

from 1-5mm rubber granules.



Product Description

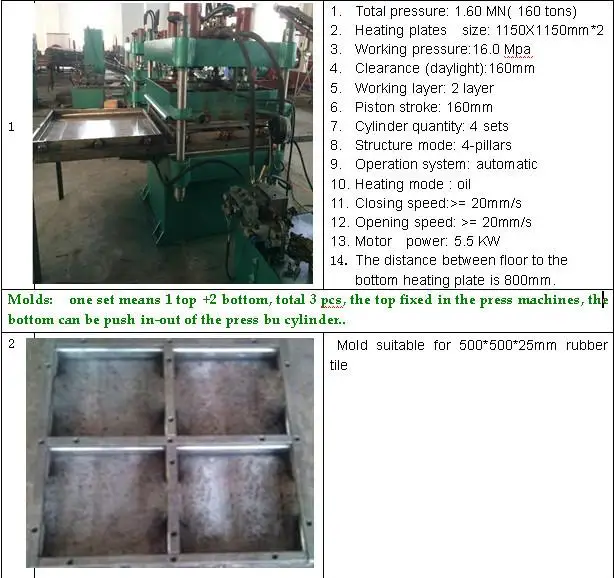

Main Technical Prameter:

Model	XLB-D550x550 Rubber tile press machine
Pressure	50Ton
Heating Plate	550x550mm
Product size	500x500mm, thickness 20mm,25mm,30mm (or as customer’s need)
Working Layer	4 layers
Layer distance	150mm
Diameter of plunger	Φ200mm
Plunger stroke	400mm
Motor power	2.2kw



Remarks:

Heating platen size, space of heating platen, layers, ways of heating could be produced as customer's requirement.

We also can according to the customers' requirement,  and design the non-standard type of rubber tile press.



Service:

1. one year guarantee and life long maintaince.

2. Any problem, we will feed back within 24 hours.











AUTOMATIC RUBBER TILE MAKING MACHINES:
