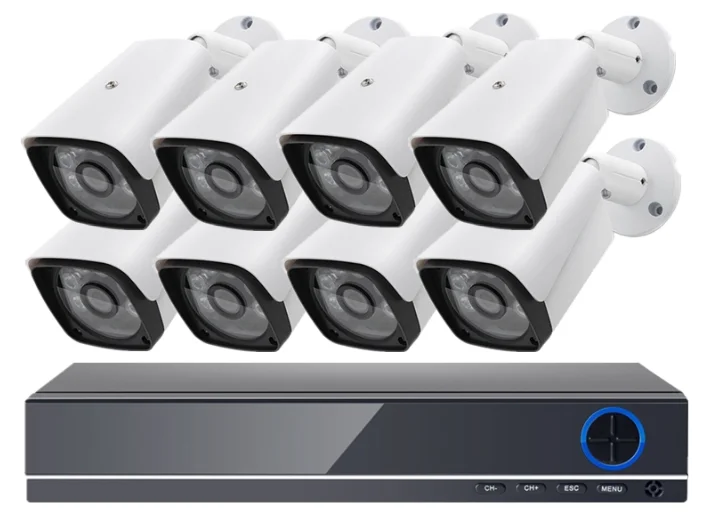

H.265 Home Security POE NVR Kit 8ch channel cctv camera system for smart home
- Category: >>>
- Supplier: Shenzhen Aiseeing Technology Co. Ltd.
Share on (62297604540):
Product Overview
Description
8ch 200W POE kit AI-6673HE(LW-8)
Features
l Plug and play ,easy operation
l POE supply, only need one network cable
l 8CH 1080P Full HD display
l Mobile app fast connection
l Motion detection support
Cameras Specifications
| Specification | |
| Product Name | 2.0Mega Pixel IP Camera |
| Video | |
| System | Hisilicon high-performance DSP |
| Sensor | 2.0M Pixel 1/2.8" CMOS Sensor |
| Output resolution | 1920(H)×1080(V) |
| D/N Mode | Auto switching,black and white video and IR cut action linkage |
| Min. Illumination | Color 1.0Lux/F1.2,Black 0.1 Lux//F1.2 |
| Video processing | H.264 video compression, dual streaming |
| AVI format, 0.1M~6Mpbs adjustable; | |
| Video Output | Main streaming: 1920×1080,1600×1200,1280×1024,1280×960, 1024×768, 1280×720; Sub streaming:960*540,640×360,480×270, 352×288,320×240, 352×192, 320×192, 288×192, 256×192 |
| Frame rate | 2.0 MP 30 frame(full real time),support 1~30frame/seconds adjustable |
| Network interface | RJ45 ethernet,10/100M;RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP protocol supported |
| Access Protocol | Standard ONVIF Protocol, Support third party access; PC; |
| Support IE6.0 and aboveSmartphone | |
| Support Android\\iPhone | |
| Function | |
| Function | Support WEB configuration, OSD,real-time video transmission |
| Support motion detection | |
| Support front end storage ,playback and download | |
| Support uniform client and platform system application | |
| Support complete SDK for second development. | |
| Normal | |
| Power supply | DC12V/POE |
| Operation temperature | -10°C~+60°C,10%~90%RH |
NVR Specifications
| System | |
| Main Processor | Hi3536D |
| Operating system | Embedded LINUX OS |
| Video Spec. | |
| Video compression format | H.265/H.264 |
| Display Image Resolution | 4ch 5MP |
| Playback Image Resolution | 1ch 5MP |
| Motion Detection | Support |
| Recording& Playback | |
| Recording Mode | Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording, |
| Recording storage | HDD,Network |
| Frame rate | 30 fps NTSC;25fps PAL |
| Recording Playback | Support 1ch 4mp or 5mp simultaneous playback |
| Backup Mode | Support HDD,USB Flash Disk store & backup |
| Video | |
| Network Video Input | 8ch |
| Video output | 1ch VGA and 1ch HDMI |
| Audio | |
| Audio Format | G.711A |
| Two Way Audio | N/A |
| Alarm | |
| Alarm Input | N/A |
| Alarm Output | N/A |
| Interface | |
| Network | 1 * 10/100M Network Interface |
| RS485 | N/A |
| POE | 8CH POE Ports |
| USB | 2 USB 2.0 ports |
| HDD | One SATA, max 8TB |
| Network Management | |
| Network protocol | DHCP,FTP,DNS,DDNS,NTP,UPNP,EMAIL,4G,WIFI |
| General | |
| Power | DC +48V |
| power consumption | <15W(Without HDD) |
| Operation temperature | 0℃-+55℃ |
| Operation humidity | 10%-90% |
