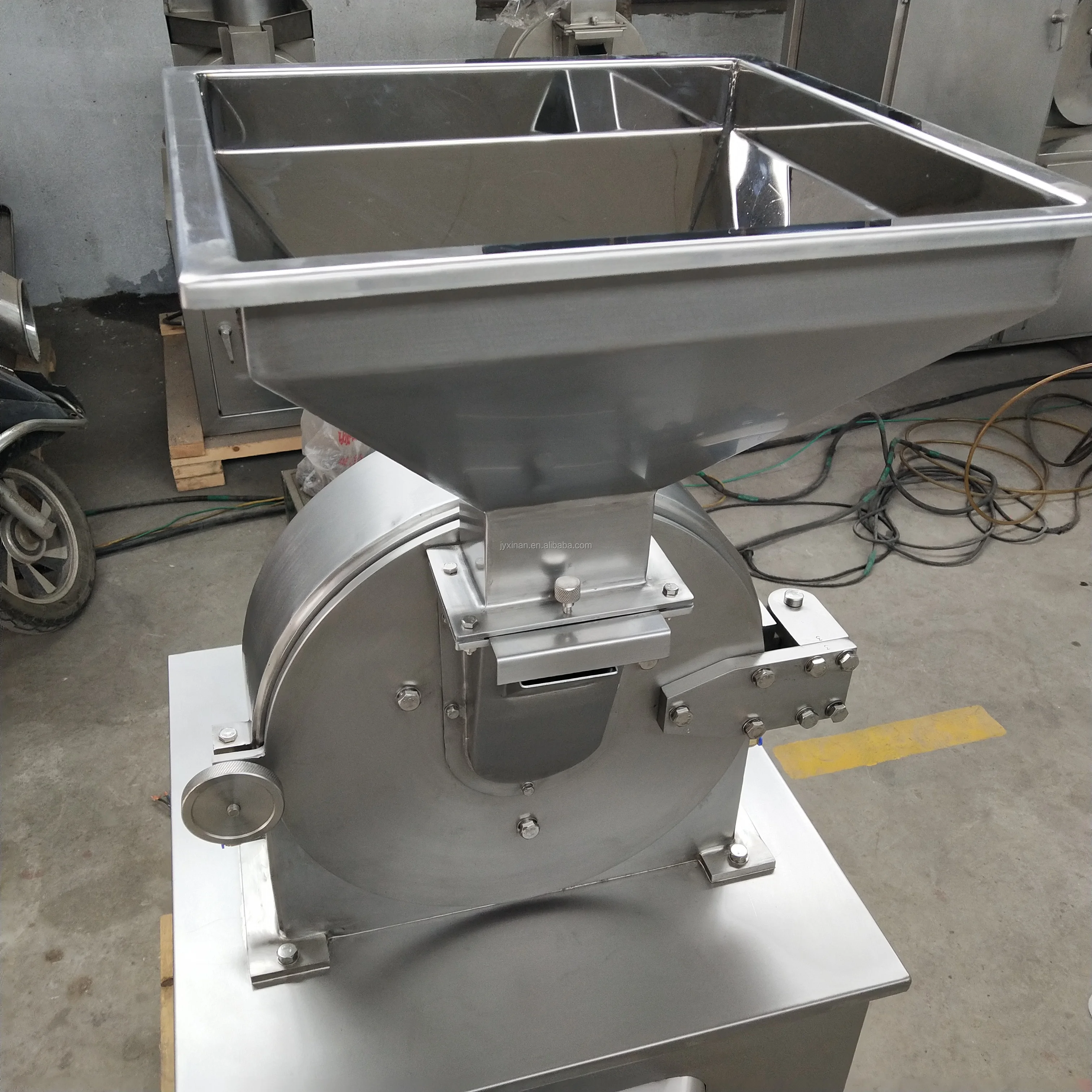

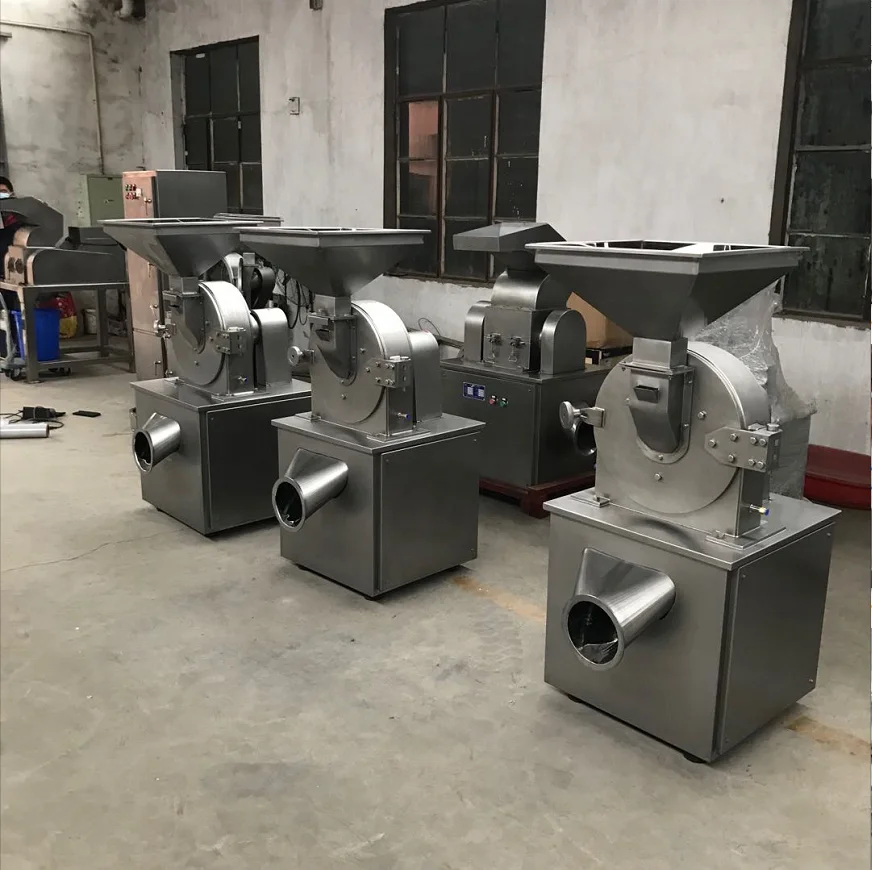

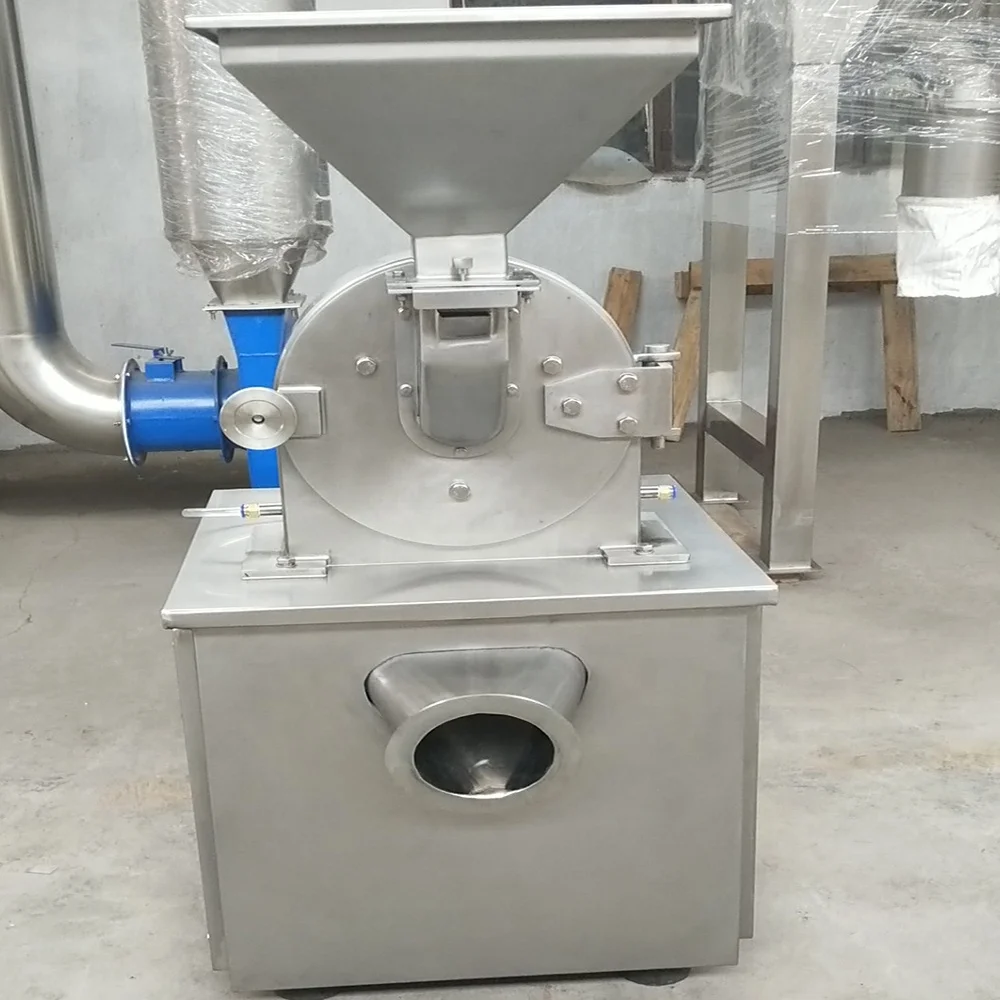

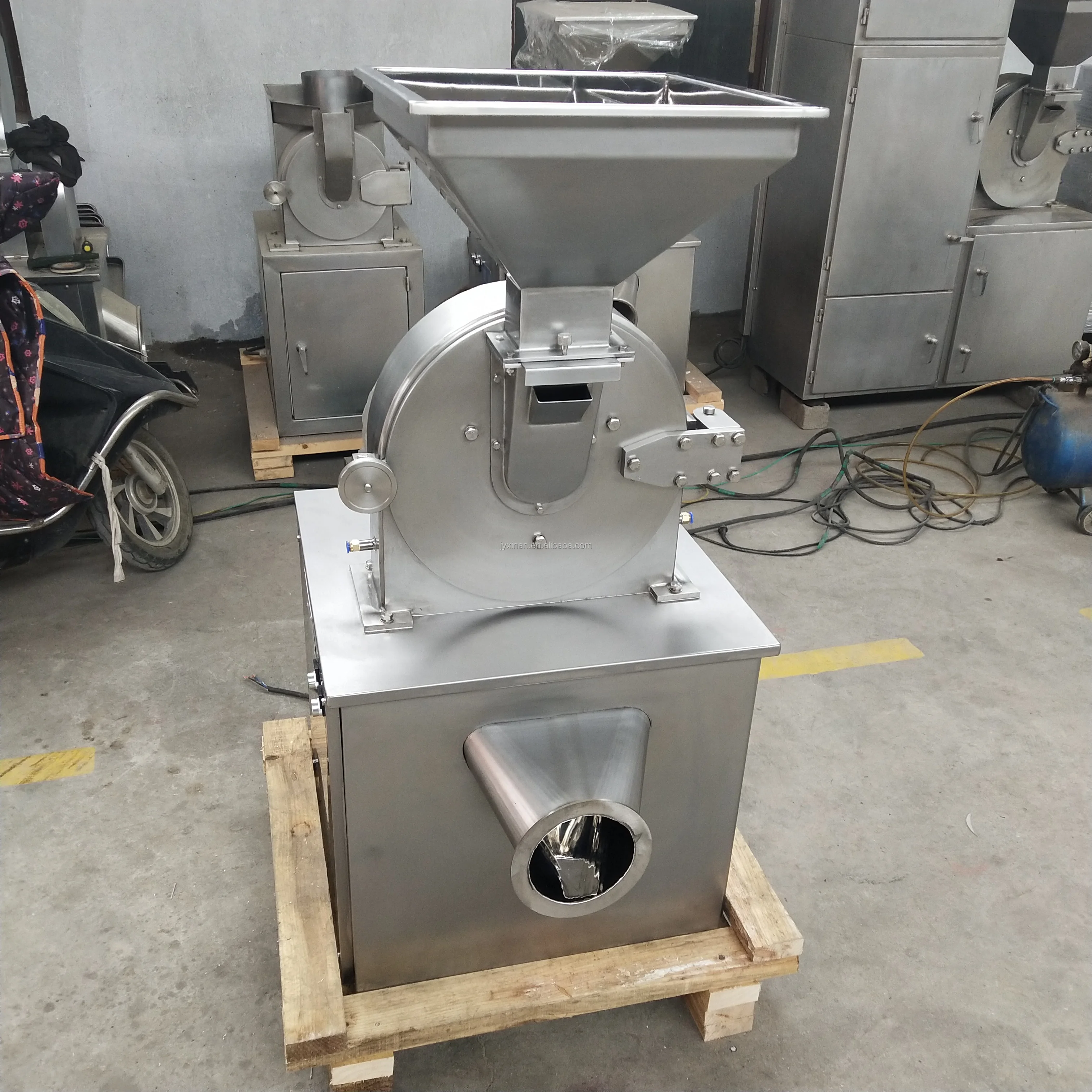

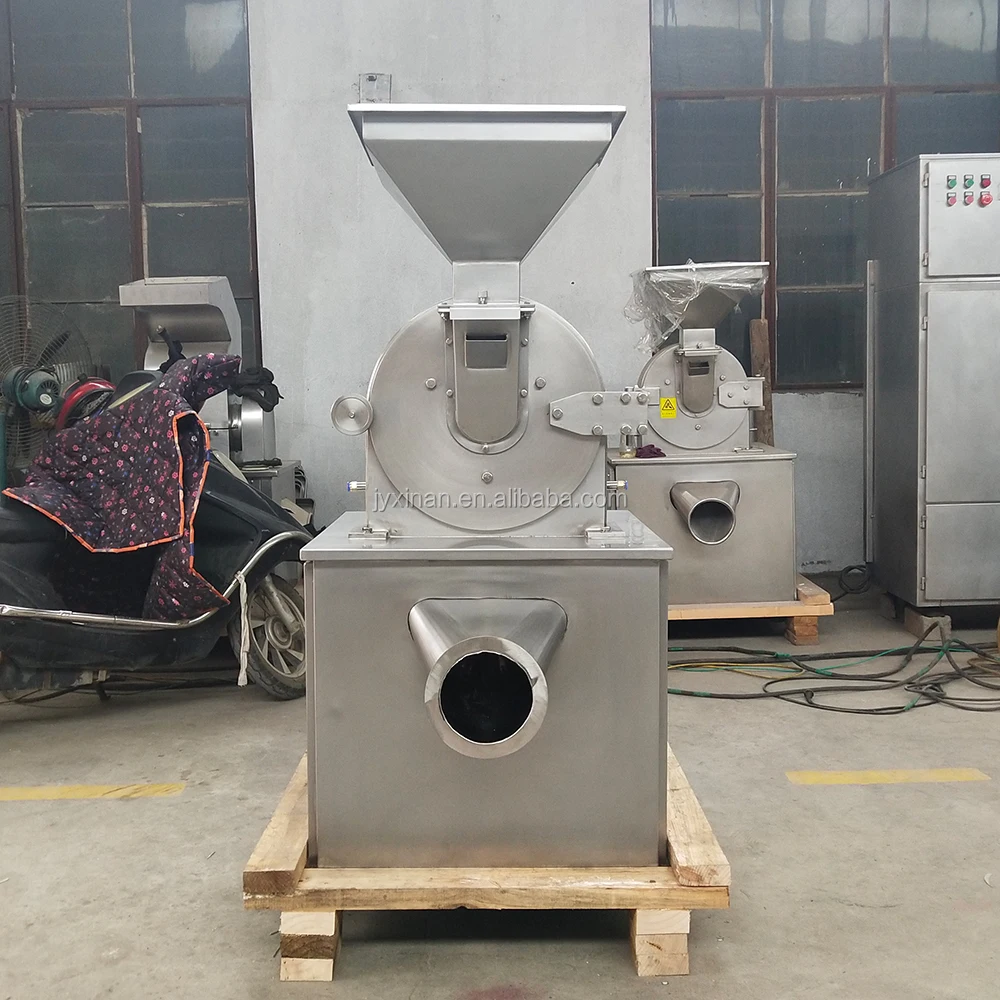

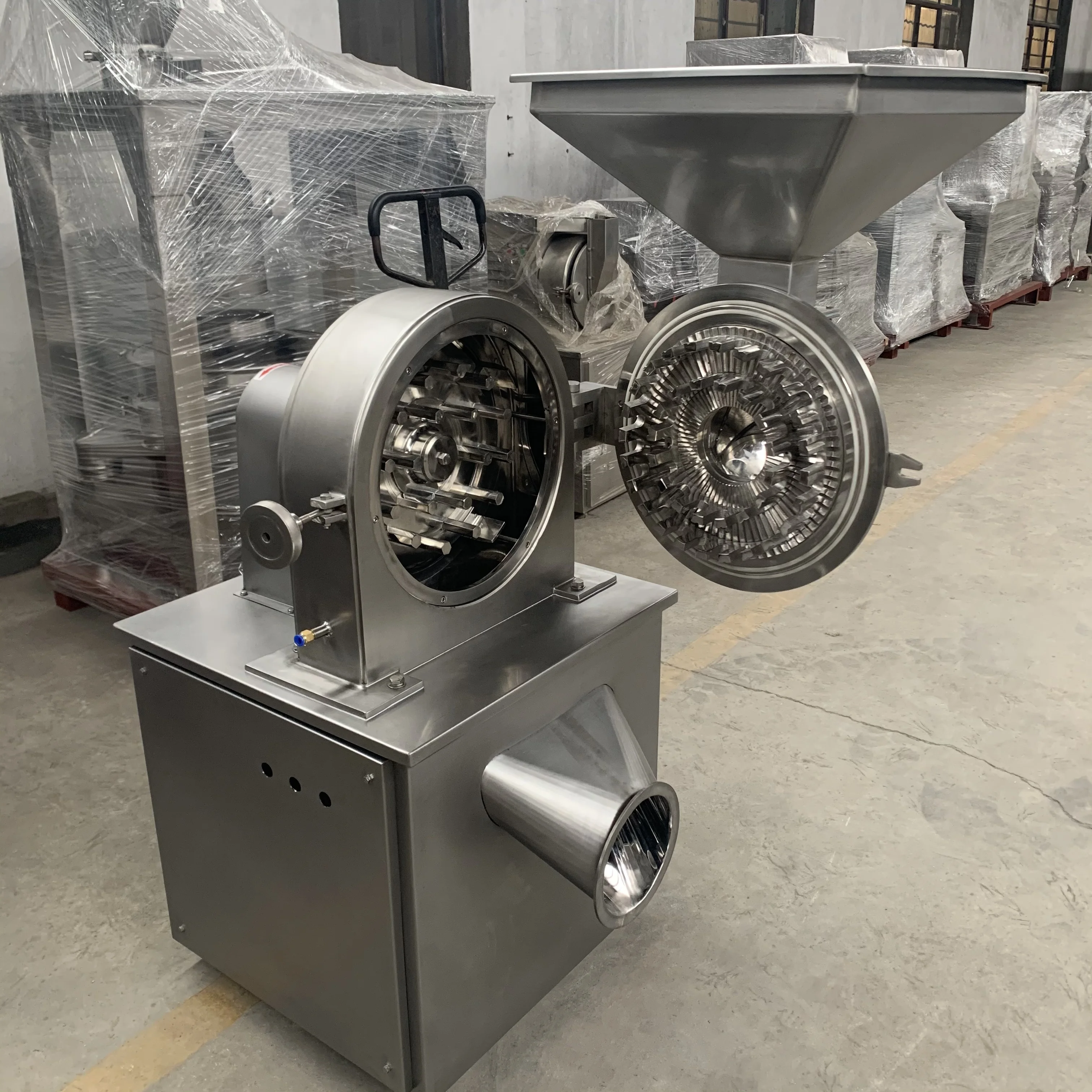

Automatic Macadamia Nut Coconut Powder Egg Shell Grinding Machine
Product Description
It is widely applied in the medical, chemical,pesticide,food and provision industries.

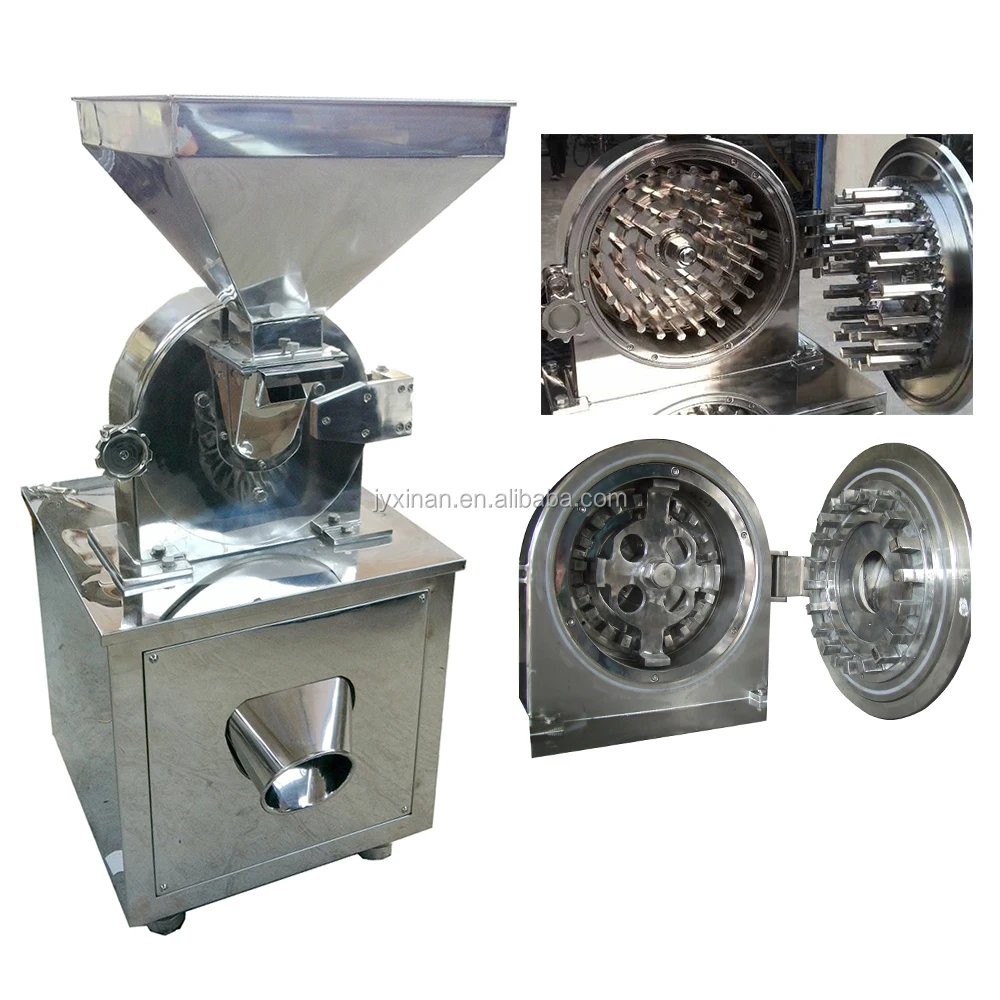

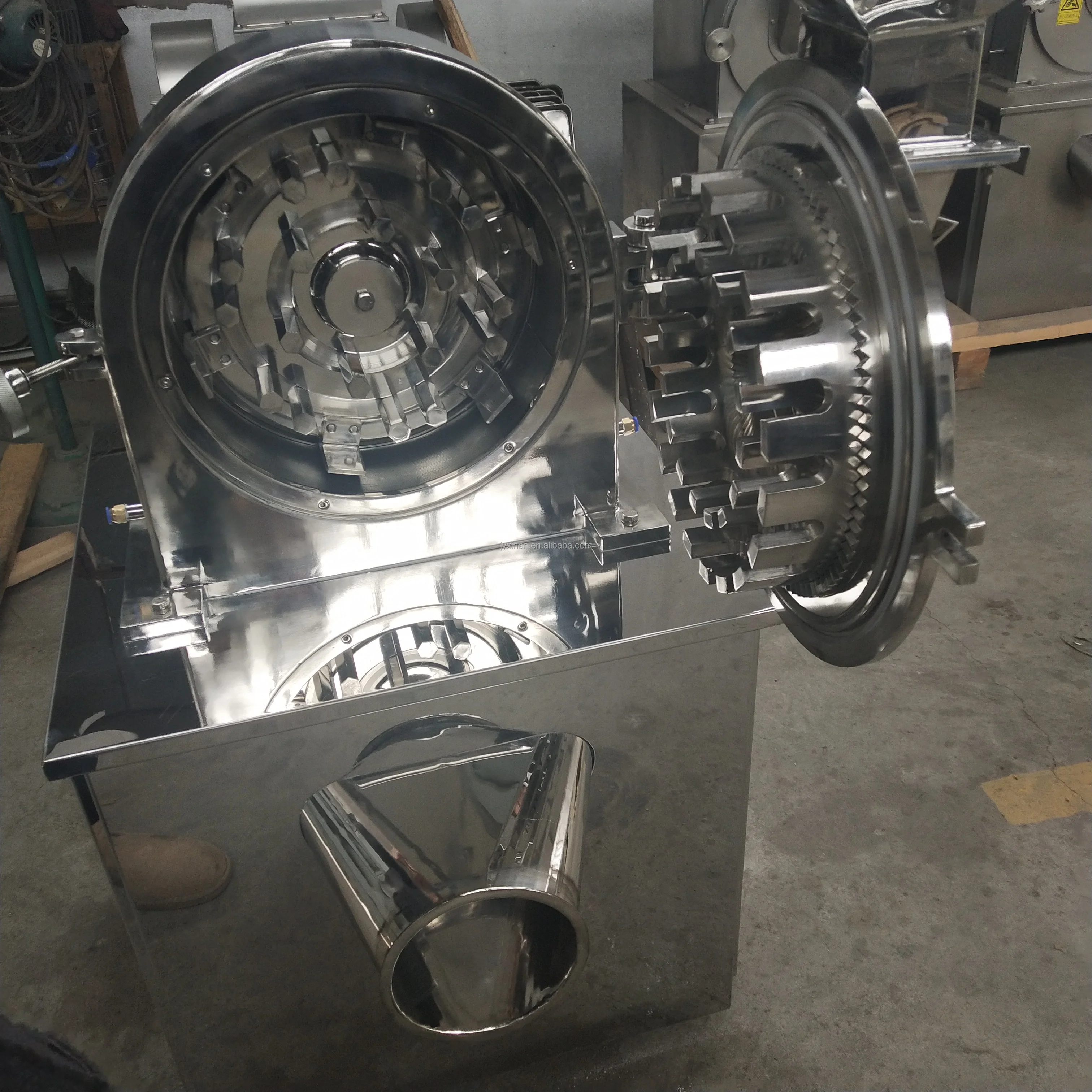

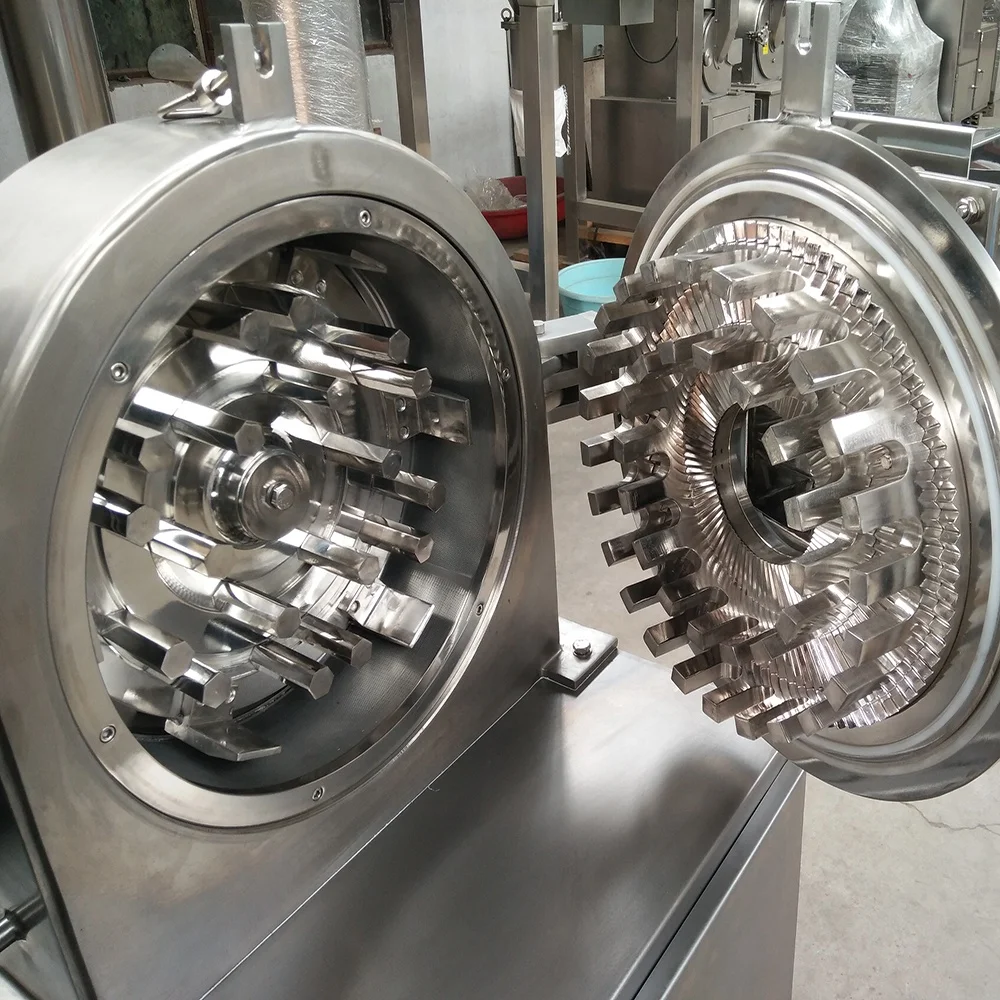

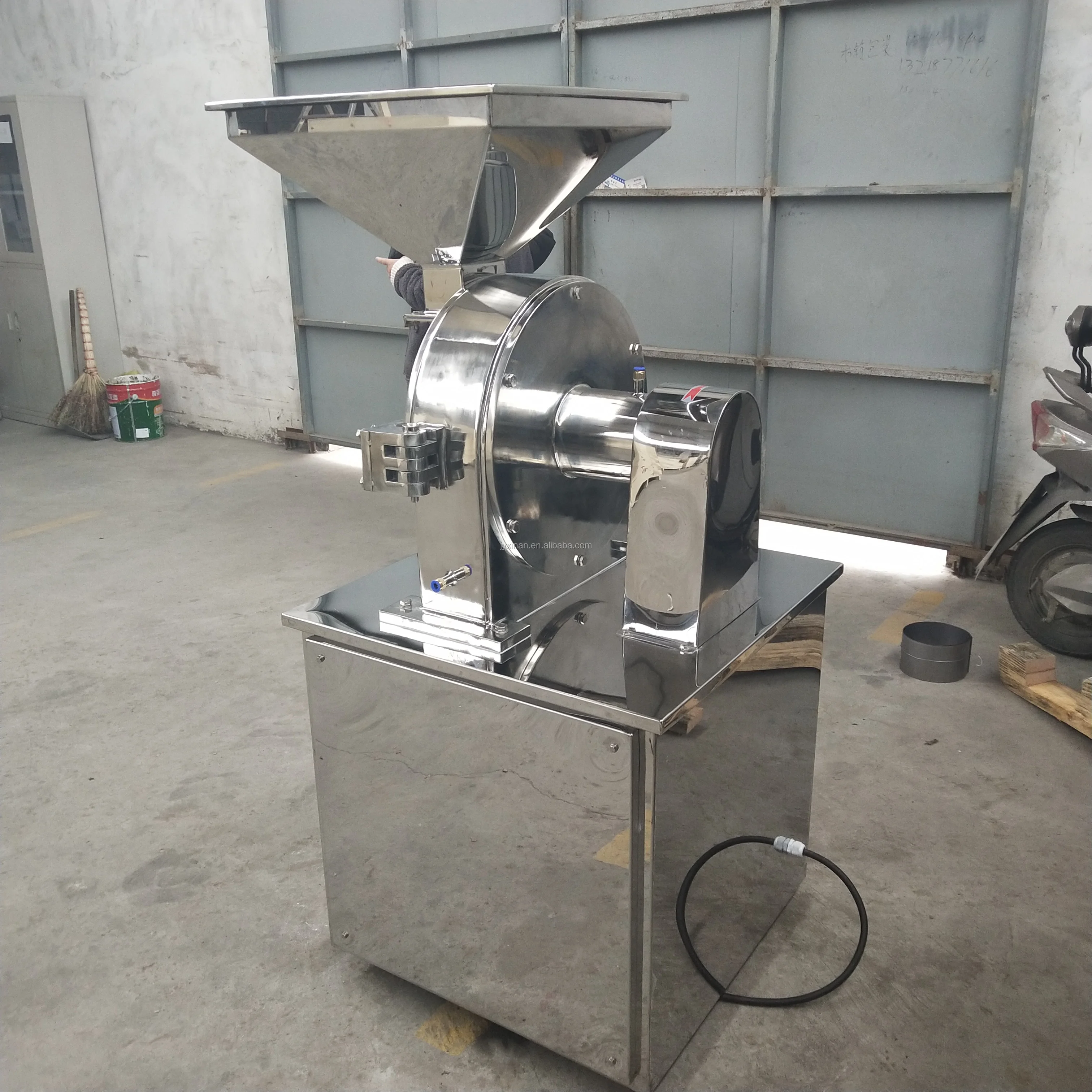

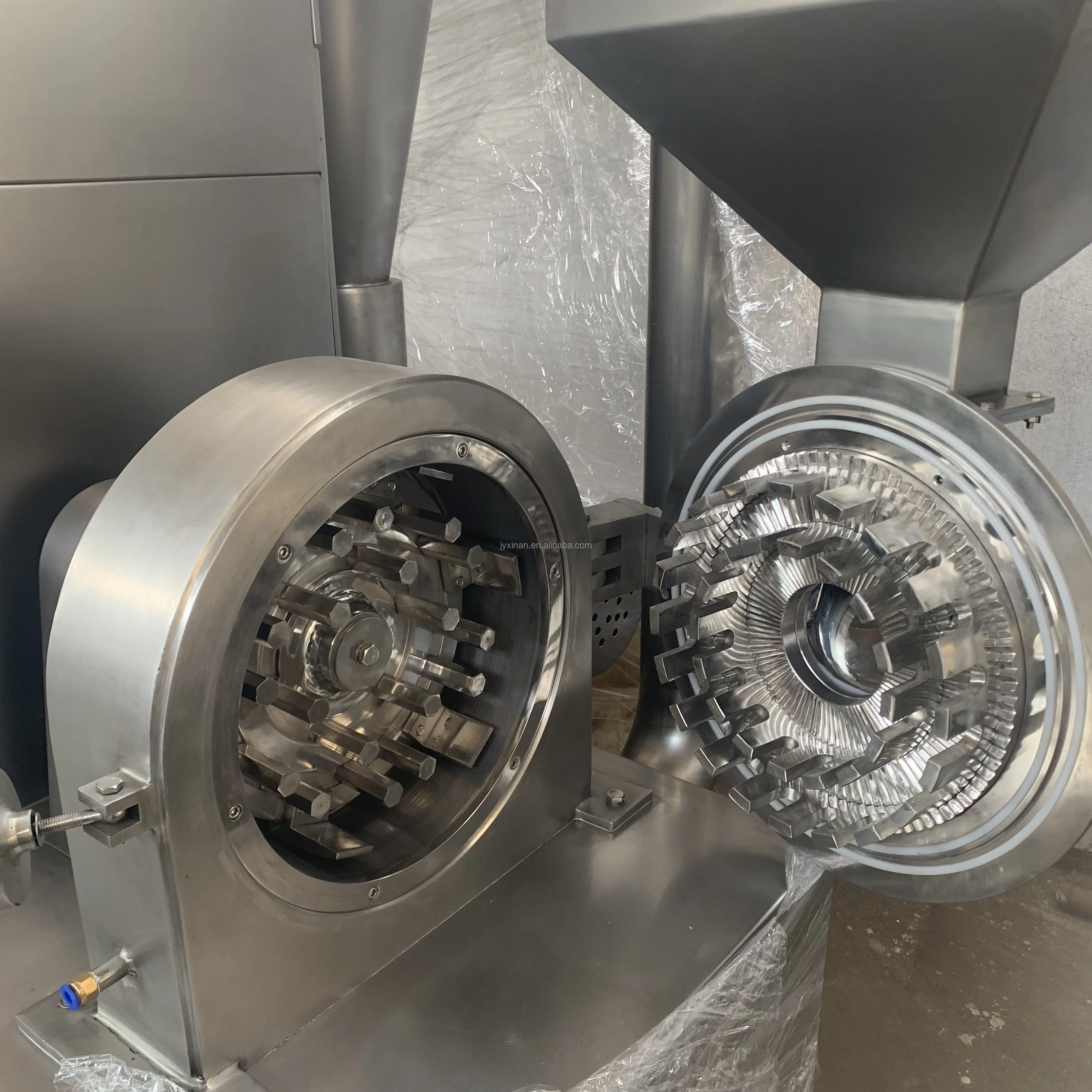

It makes use of the high-speed relative movement of the movable fluted disc and the fixed fluted disc to crush the materials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the materials. Since it features a simple structure, firm and stable operation and good crushing effect, the crushed materials can be discharged directly from the grinding chamber of the host machine and the desired granule size can be obtained by installing screens with different apertures. Besides, the whole machine is made of stainless steel. The inner surface of the enclosure becomes smooth through processing, thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.As a result,the production of medicine,food and chemical products can better conform to the GMP requirements.
| Model | Production capacity | Spindle speed(r/min) | Feeding Size(mm) | Crushing fineness | Motor Power(kw) | overall dimension(mm) | weight |
| 15B | 10-50 | 6000 | 6 | 60-120 | 2.2 | 550*400*850 | 85 |
| 20B | 60-150 | 4500 | 6 | 40-120 | 4 | 550*600*1250 | 180 |
| 30B | 100-300 | 3800 | 6 | 40-120 | 5.5 | 600*700*1450 | 250 |
| 40B | 160-800 | 3400 | 10 | 40-120 | 7.5 | 800*900*1550 | 360 |
| 60B | 300-1000 | 2800 | 12 | 40-120 | 15 | 900*900*1880 | 550 |
| 80B | 400-2000 | 2000 | 12 | 40-120 | 22 | 1100*950*1960 | 850 |
| 100B | 500-3000 | 1500 | 12 | 40-120 | 30 | 1350*1000*2100 | 1200 |
Packaging & Shipping
Company Information
FAQ
If you want to send inquriy to me about our powder grinding machine , could you please tell me?
1) What material you want to grind, is it dry? what is the size of feed material ?
2) What capacity you expect by powder grinding machine? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V... (We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
Our Services
One year guarantee for whole machine
24 hour technical support by email
Calling Service
User manual and detailed video/CD
