Integrated Solar Street Light Led Lamp Aluminum Alloy Case Dusk To Down Lighting 5 7 Cloudy Rainy Days
- Category: >>>
- Supplier: Shenzhen Beatles Energy Technology Co. Ltd.
Share on (62297873565):
Product Overview
Description
Product Description
Solar Panel: 18V 140W Mono Silicon Solar Panel
Battery: LifePO4 Battery(12V 72AH)
LED Lamp: 12V 120W Bridgelux Led Chip
Project case
Here are some project cases pictures from our customers feedback.

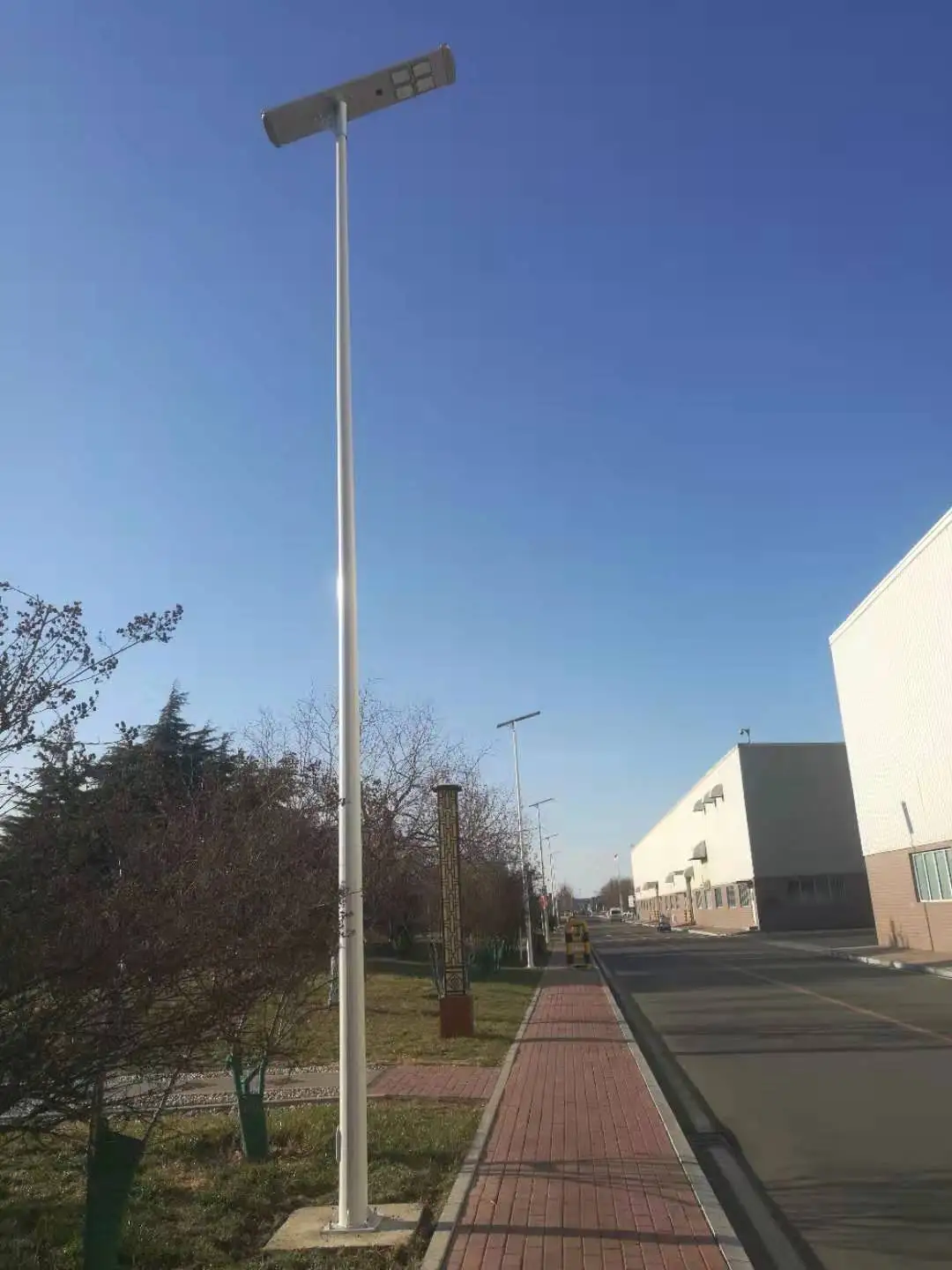

Install height 10m lighting effect
Install height 9m
Detailed Images
Key Features:
1. 15° forward offset design, full using the lighting.
2. Constant current discharge stable lighting + Night sensor + Microwave motion sensor + Time Controller + Remoter.
3. 140°wide lighting angle, bring same lighting results with shotor pole
4. Support 5-7 nights after full charging
5. Stable microwave sensor, longger detect distance
6. Waterproof can reach IP65
2. Constant current discharge stable lighting + Night sensor + Microwave motion sensor + Time Controller + Remoter.
3. 140°wide lighting angle, bring same lighting results with shotor pole
4. Support 5-7 nights after full charging
5. Stable microwave sensor, longger detect distance
6. Waterproof can reach IP65
Specifications:
Model | JKC-PD-120W-M | Lumen | 20400lm |
Solar panel | 18V 140 W imported high efficiency monocrystalline silicon | Dicharging time | 6-12 hrs/day, 3-7 cloudy/rainy days as back up |
Battery type | 12V 72AH powerful Li-ion battery | Working temperature | -25°C~+65°C |
LED source | 3030 Bridgelux High Efficincy LED Chips | IP grade | IP65 |
Colour temperature | 2700-6500 K | Mount height | 7m-12 m |
Product dimension | 1950*385*55mm(LED lamp)585*125*320m(Brackets) | Package dimension | LED Lamp Packing Size:2015*110*460MM Brackets packing size:600*150*340MM |
N.W. | 27.4 KG | G.W. | 29.9 KG |

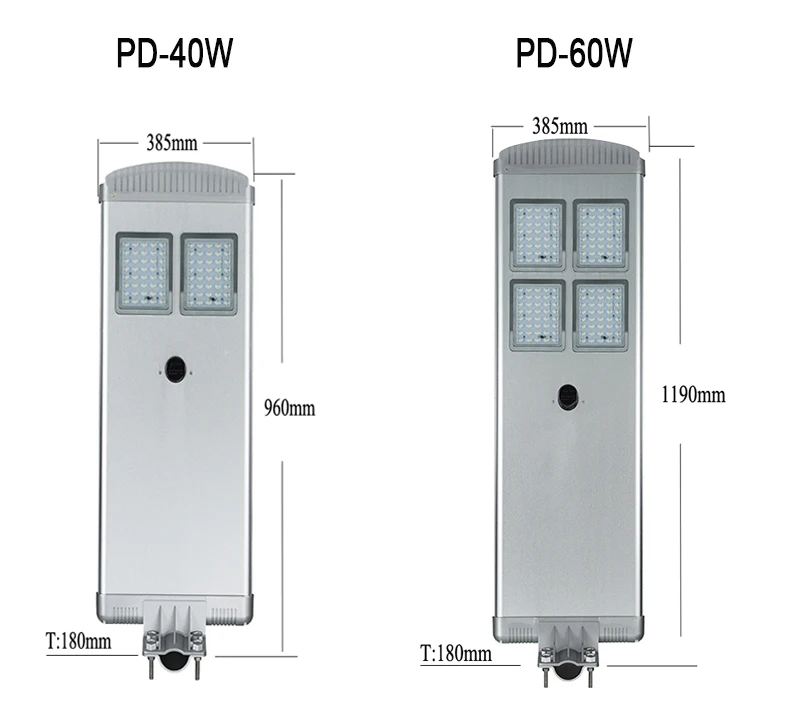

Product detail drawing
Aluminum alloy case (Anodic oxidation process, strong corrosion resistance) + easy to install + auto on/off/sensor + support 5-7 cloudy/rainy days after full charging.
we used 3mm thickness housing + 6mm thickness bracket + 4pcs 27mm diameter and 15mm height rivits, makes the solar lamp more stronger and stable, 16level Typhoon resistance.
19%-21% photoelectric conversion efficiency + 25 years lifespan
Newest module light source design, using Bridgelux led chip, each led chip upto 210lm/w, total lamp luminous is 170lm/w.
