C6016 flange processing conventional floor facing lathe machinery

Product Overview

Description

C6016 flange processing conventional floor facing lathe machinery

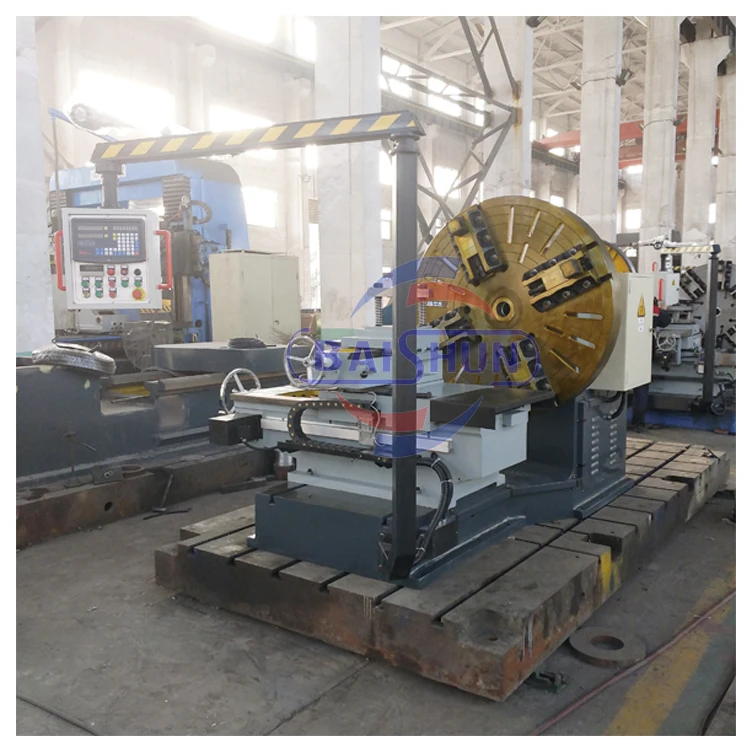

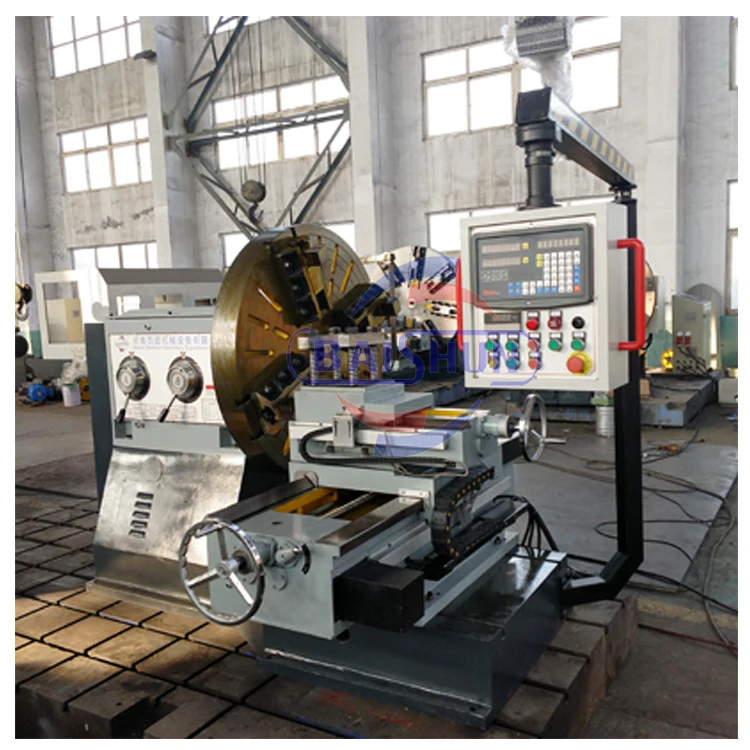

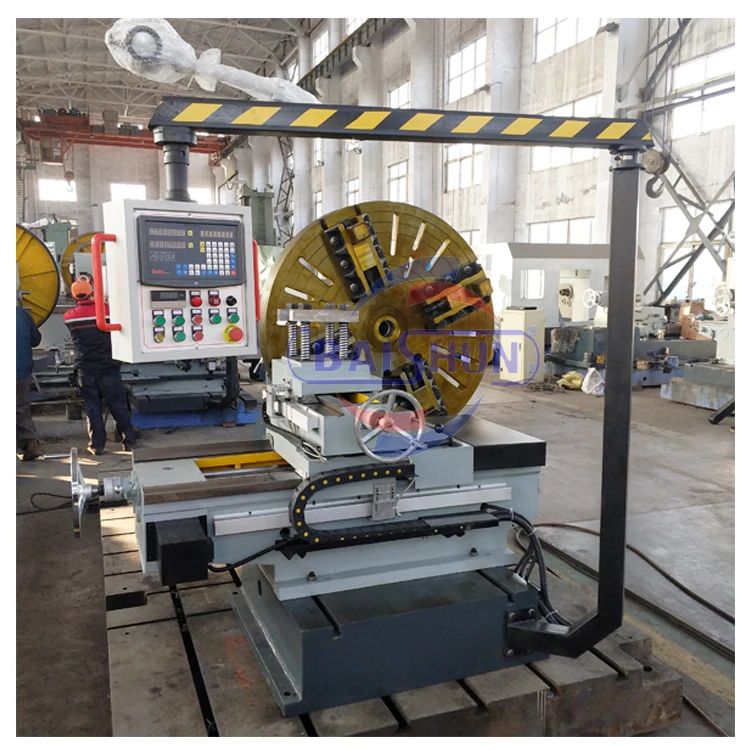

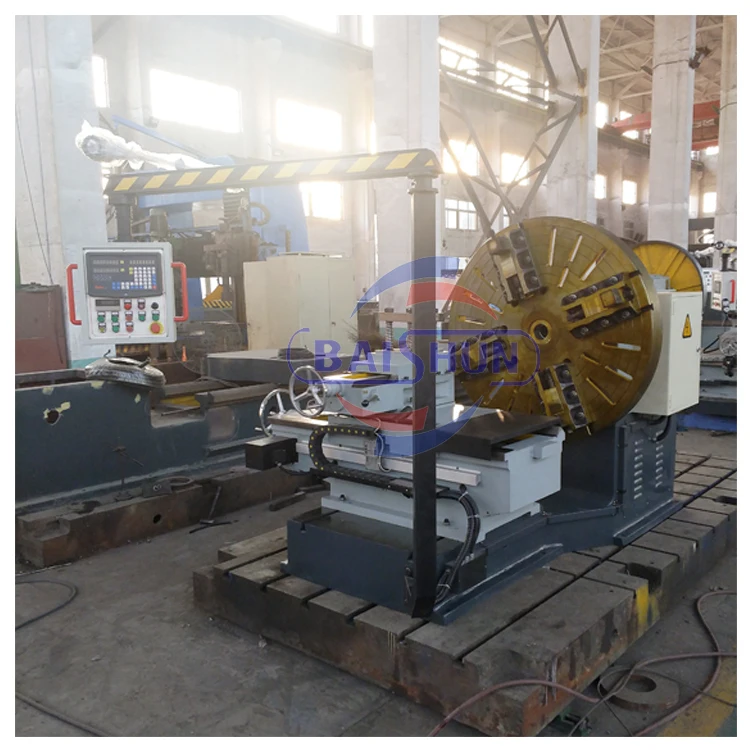

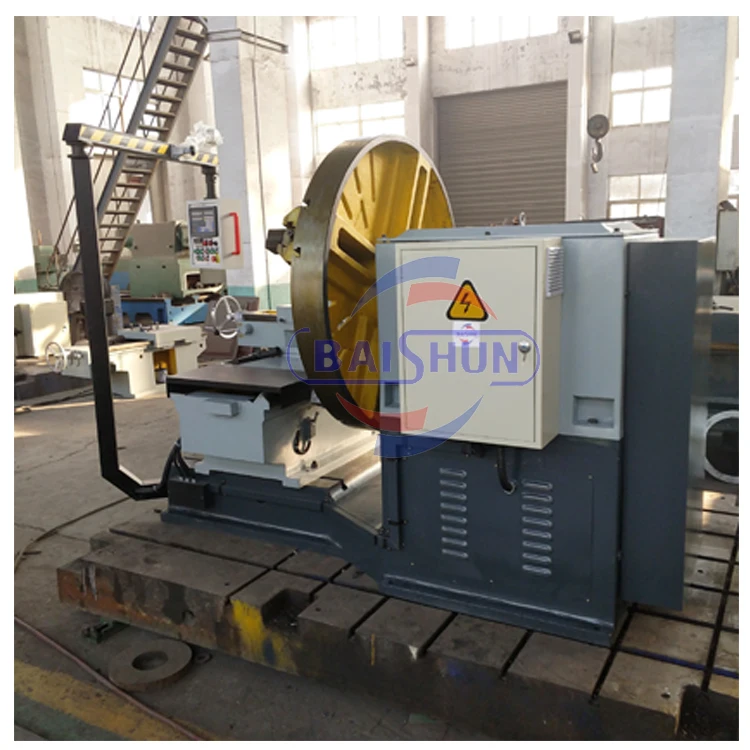

C6016 flange processing facing lathe machine real pictures for your reference:

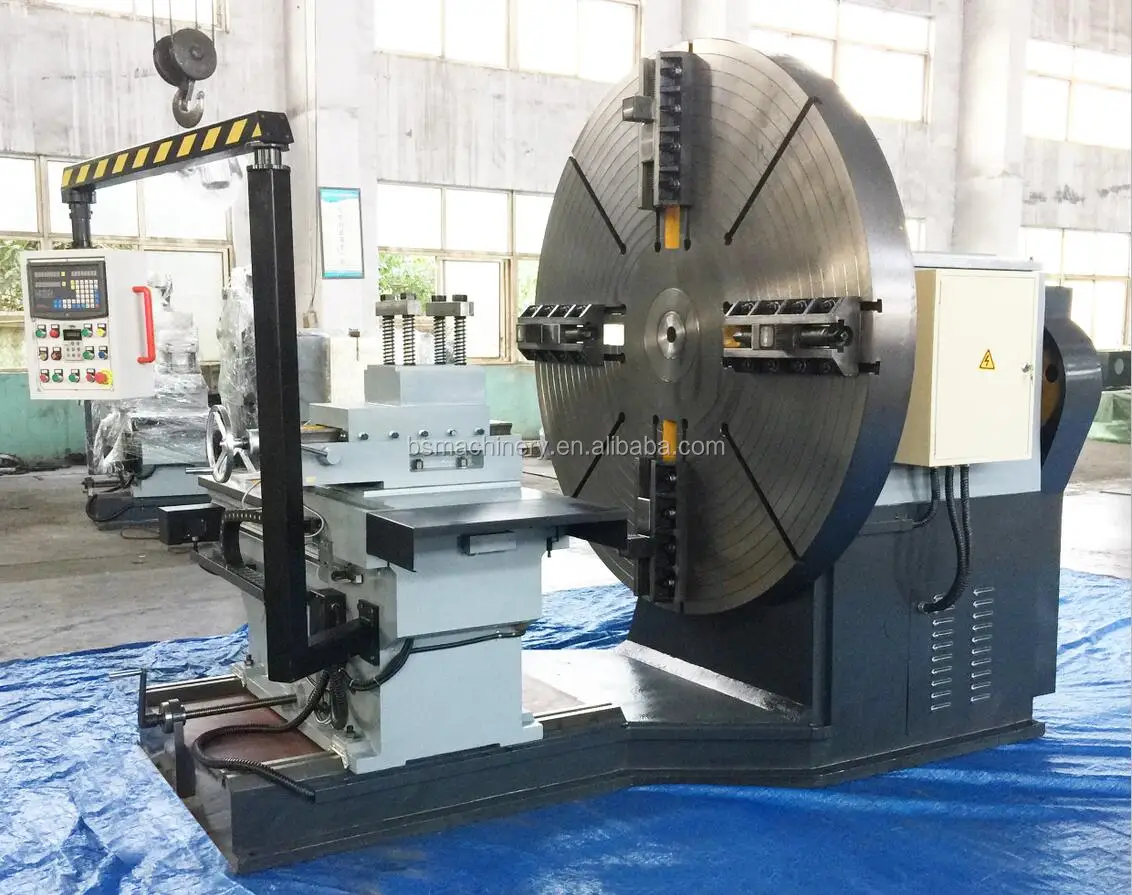

C6025 flange processing facing lathe machine real pictures for your reference:



Flange processing facing lathe machine introduction:

This Engine Lathe or landing lathe is mainly used to process large, medium plate and cylinder workpiece such as flange, valve, gland, plate, motor cover, tire mold, etc.
This lathe can be widely applied in the production field of energy, transportation, oil, chemical industry, mining, railway, car making and so on.

1. Engine Lathe is  floor face lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.

2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.

3. All the gears are precision grounded, with long life and low noise;

4. All guideways are quenched and hardend, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed.

Technical Parameters:

Item	Unit	C6010	C6016	C6020	C6025	C6030
Chuck diameter	mm	800	1400	1600	2000	2500
Max. turning diameter	mm	1000	1600	2000	2500	3000
Max. length of work pieces	mm	200	400	600	600	600
Max weight of workpiece	T	1	2	3	3	5
Power of main motor	kW	15	11	15	15	22
Spindle speed	r/min	8-120	16-128	12-94	12-94	4-40
Spindle diameter	mm	190	200	200	200	300
Feed way of tool rest	Infinitely variable frequency
Horizontal stroke	mm	320	320	320	320	320
Longitudinal travel	mm	500	800	900	1400	1400
Weight	T	4	5	8	10	17
