Share on (62298012783):


Price:$6.78 - $8.20

Quantity:


Product Overview

Description



Product Description




Resolution
128X64 Dots
Model No.
HXG1286414-V1

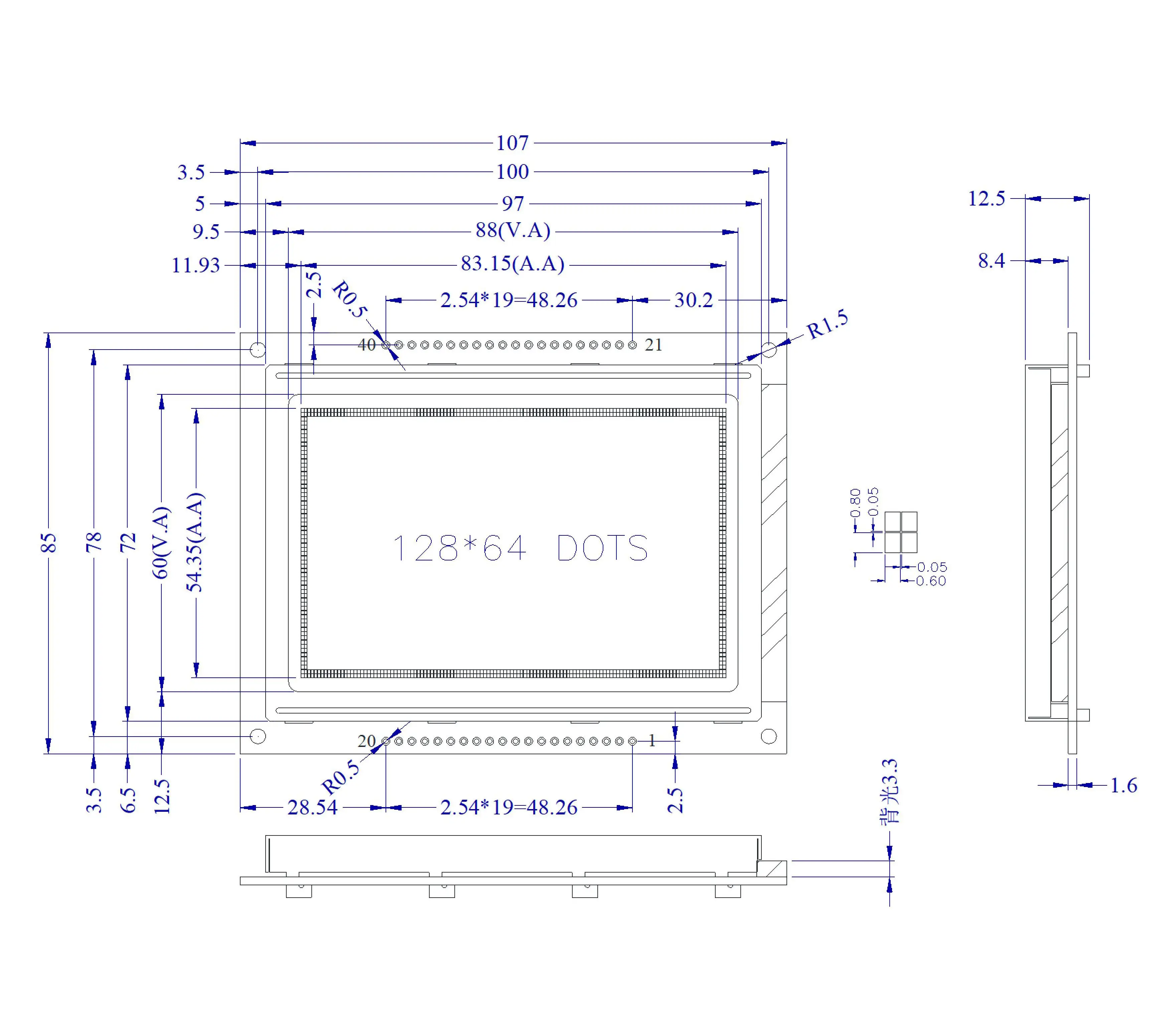

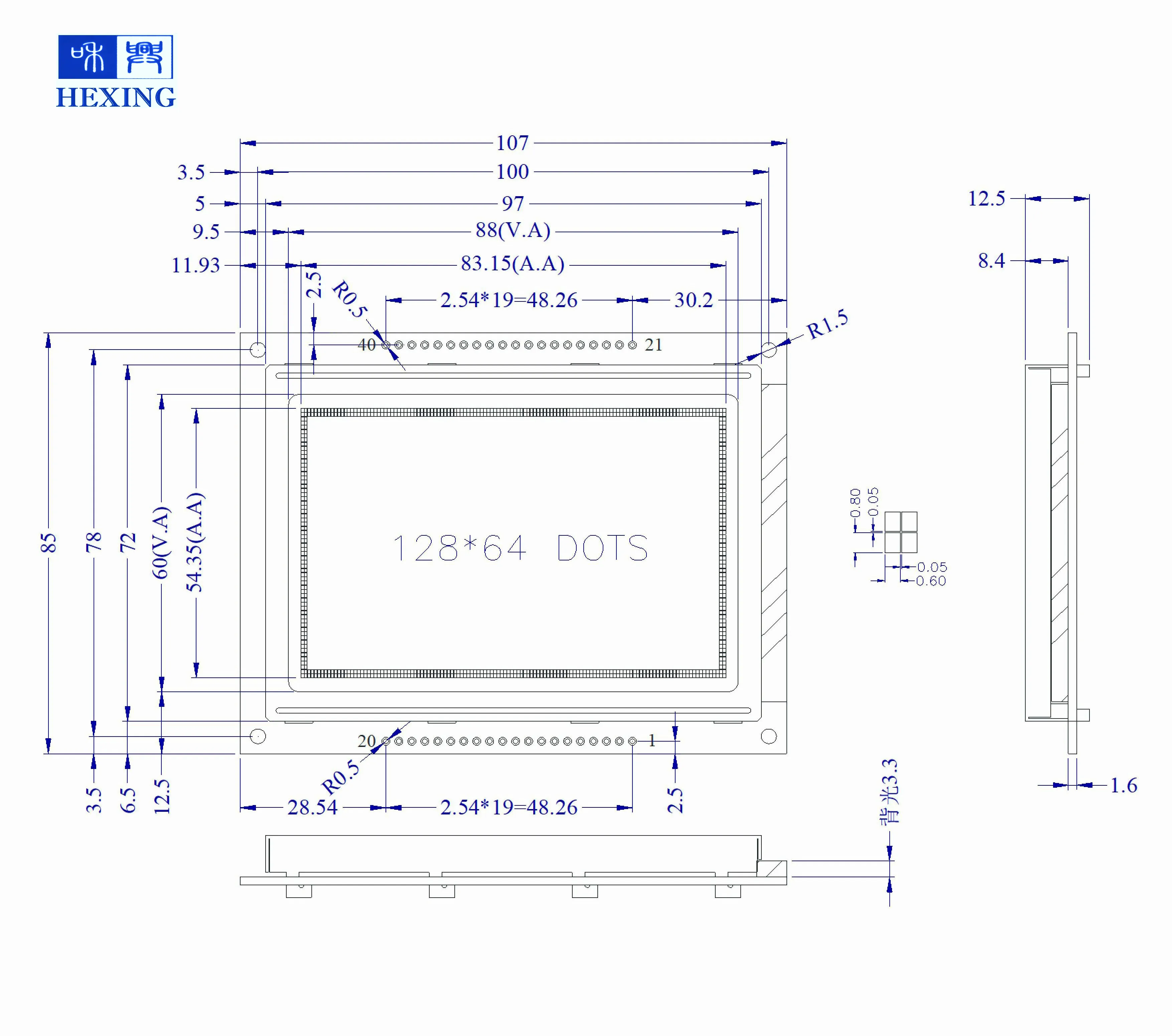

Outline Dimension
107.0X85.0X12.5mm
Viewing Area
88.0X60.0mm
Dot Pitch
0.65X0.85mm
Dot Size
0.60X0.80mm
Dispaly Mode
STN Blue/Yellow Green/FSTN Black and White
Backlight Type
LED Yellow Green/White
Controller
NT7107C or EQV.

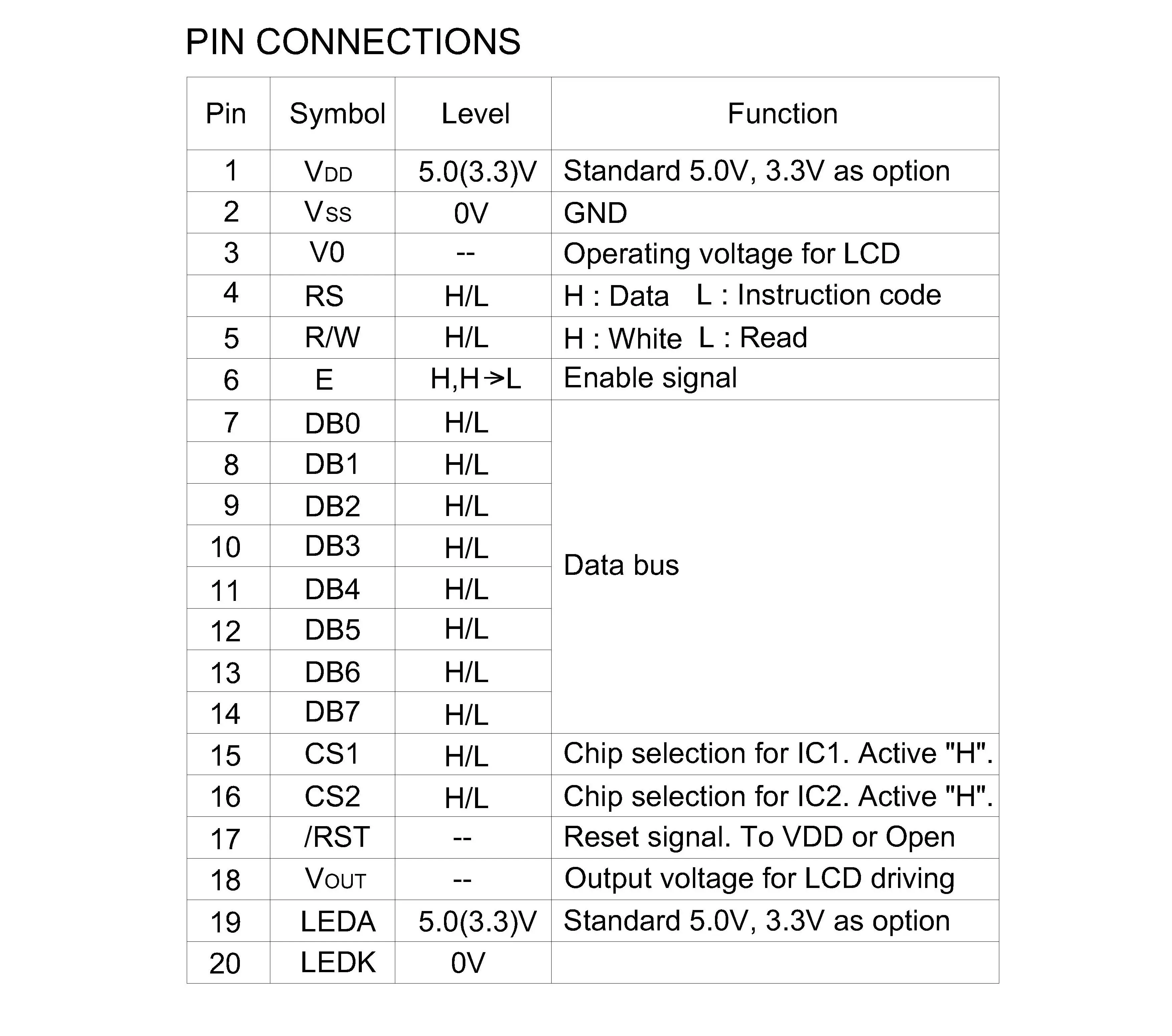

Interface Type
8 bit Parallel
Weight
80g


Details Images
