5G wireless 4K HDMI splitter extender 100m 200m 1080p 4K splitter wireless hdmi transmitter and receiver wireless hdmi extender

Share on (62298238238):


Price:$75.00 - $80.00

Quantity:


Product Overview

Description


HDMI Wireless Video Audio Sender HDMI Extender


HDMI Wireless Extender


Model No:HDEX0021M1


This product will let the user experience of transmitting the HD content by wireless. The HDMI sources over wireless kit extends high-definition video and audio to any HDTV displays up to 100 meters away.


The extender follows the TCP / IP standard Wireless Transport Protocol, so it has high transmission rate and strong anti-interference capability. It also supports HDMI mirror output and infrared remote control extension. The HDMI Wireless Extender is widely applicable to office presentation, lecture, education, conference, family entertainments etc.


HDMI Wireless Video Audio Sender HDMI Extender


Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.



Product Description

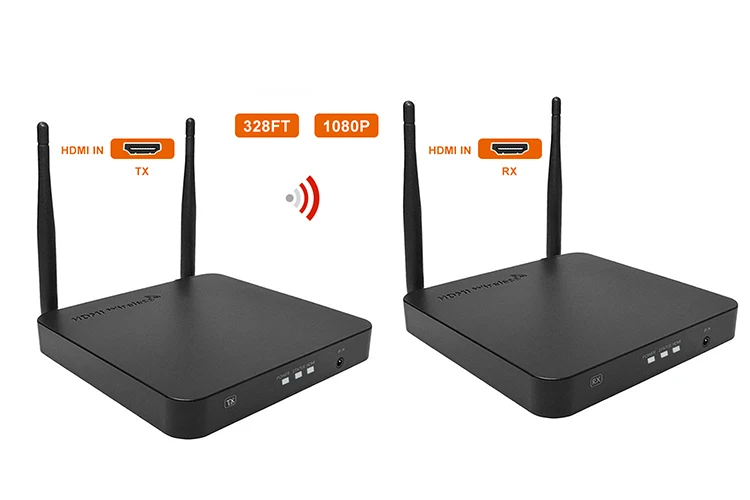

HDMI Wireless Video Audio Sender HDMI ExtenderHDMI Wireless Extender 1.jpgHDMI Wireless Extender 2.jpg


FEATURES:


Contains a transmitter (TX) and a receiver (RX). The HDMI signal over wireless transmission from the      transmitter to the receiver


The TX support one HDMI loop output, for local screen monitor


Support HDMI resolution: 480i/576i~1080P@50/60Hz and SVGA~WUXGA


Digital 2.4G & 5GHz dual frequency wireless A/V transmission, high transmission rate and strong anti-      interference capability


Using an external dual - gain antennas. Full HD 1080p transmits up to 100 meters wirelessly in open        space.( May be affected by the use environment)


Extends infrared remote to control source device from display side


Support OSD, for informed of device status


Simple Plug and Play. Full hardware design, no software installation required


Support Web Configuration Interface, Simple and easy to use



HDMI Wireless Video Audio Sender HDMI Extender

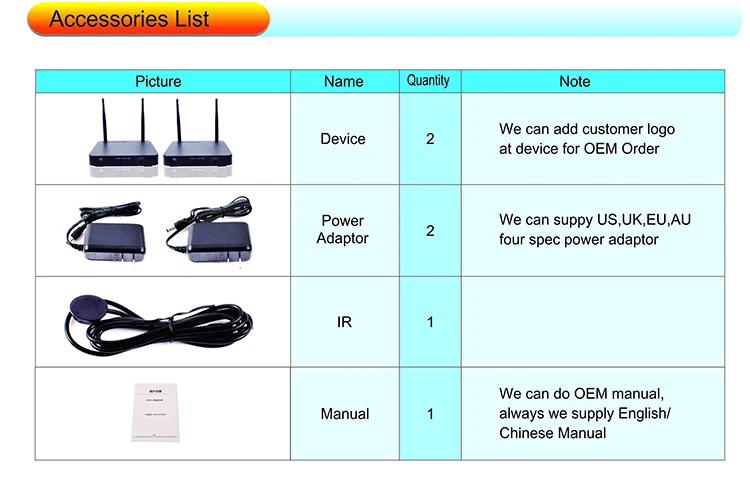

PACKAGE CONTENTS:



HDMI Wireless Video Audio Sender HDMI Extender


1. HDMI Wireless Transmitter 1pcs


2. HDMI Wireless Receiver 1pcs


3. IR Transmitter cable 1pcs


4. IR Receiver cable 1pcs


5. User manual 1pcs


6. DC power adapter 2pcs


HDMI Wireless Extender 5.jpg


SPECIFICATIONS:

















































































 HDMI Audio Format  LPCM2.0
 HDMI Max bandwidth 225MHz
 HDMI Max baud rate 6.75Gbps
 Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)
 Input/Output DDC signal 5Volts p-p (TTL)
 HDMI output cable distance ≤12m AWG26 HDMI standard cable
 Antenna type External dual 3dBi gain antenna
Wireless
 Wireless Band 2.4GHz, 5GHz ISM Band
 Max Data rates 2T2R up to 300Mbps
 Transmit Output Power(IPEX) 16±2dBm
 Transmission distance up to 100m (in open space)
 IR Carrier frequency 38KHz
 TX/RX Max working current 1A
 Power adapter format Input AC 100V~240V 50HZ/60Hz, DC5V/2A
 Operating Temperature range -5 to +45℃
 Storage Humidity range 5 to 95%RH (No Condensation)
 Operating Humidity range 10 to 90%RH (No Condensation)
 Case Dimension (L x W x H) 127.5x127.5x25 (mm)
 Weight  TX175g/RX170g

HDMI Wireless Video Audio Sender HDMI Extender

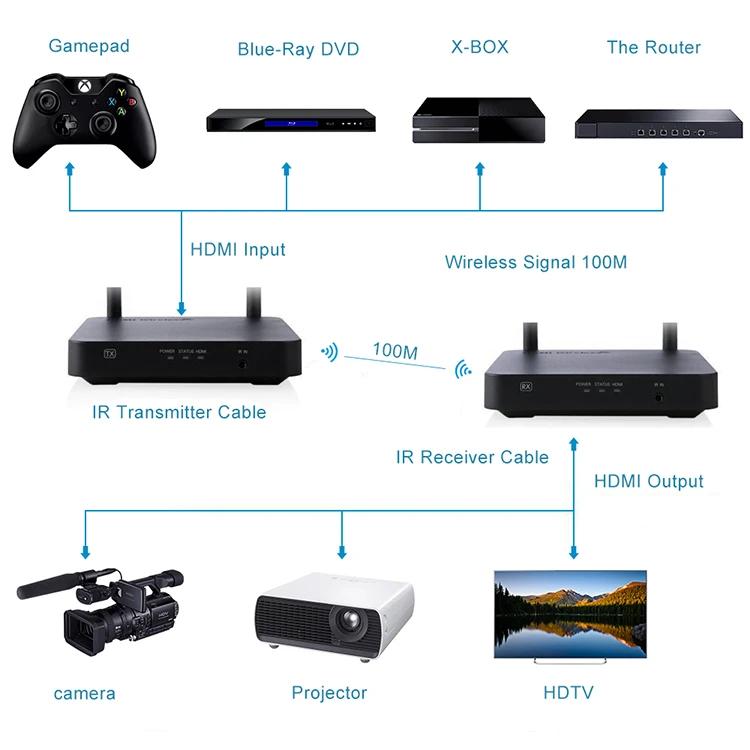

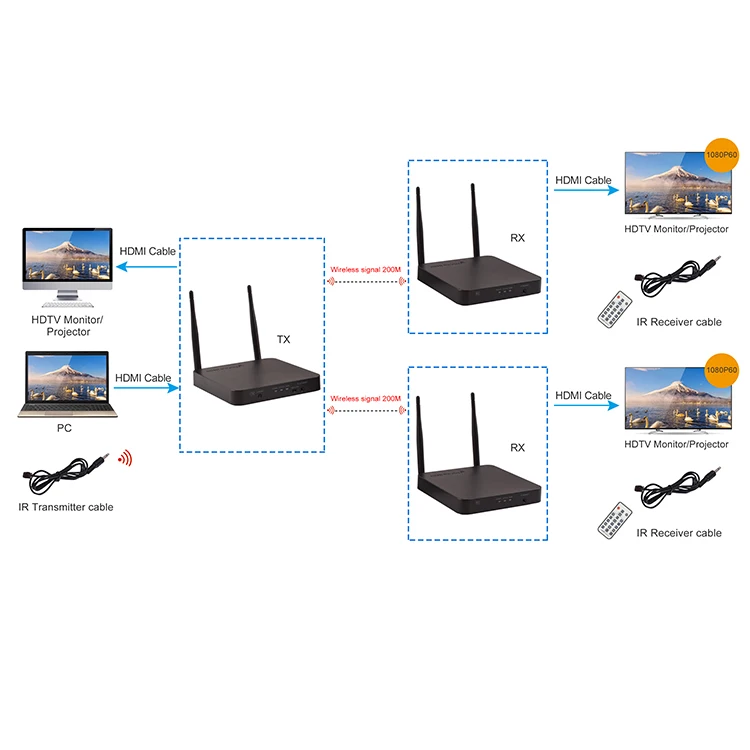

OPERATIONG AND CONNECTION:


1. Connect one HDMI cable from the DVD/BD player into the HDMI input port of the HDMI wireless TX.


2. Connect one HDMI cable from TV/Monitor into the HDMI output port of the HDMI wireless RX.


3. Connect the IR Transmitter cable to the HDMI wireless TX and the IR Transmitter cable must face to the control target device.


4. Connect IR Receiver cable to the HDMI wireless RX.


5. Connect 5V power supplies to the TX&RX, and inserted into the power socket.


HDMI Wireless Extender 4.jpgHDMI Wireless Extender 6.jpgHDMI Wireless Extender 7.jpg





Packaging & Shipping


  New Model HDEX0021M1 1080P HDMI Wireless Extender 200m for Amazon Ebay Hot Selling













Packaging Details:Standard neutral gift box
Delivery Detail:in 2-3days later after your payment

HDMI Wireless Video Audio Sender HDMI Extender





Standard Package: Blister Box+ Instruction book + white box .Mostly,we could provide our Ai. diecut for customer to add their own design.Or We could also do customized package as customer's requirements.
