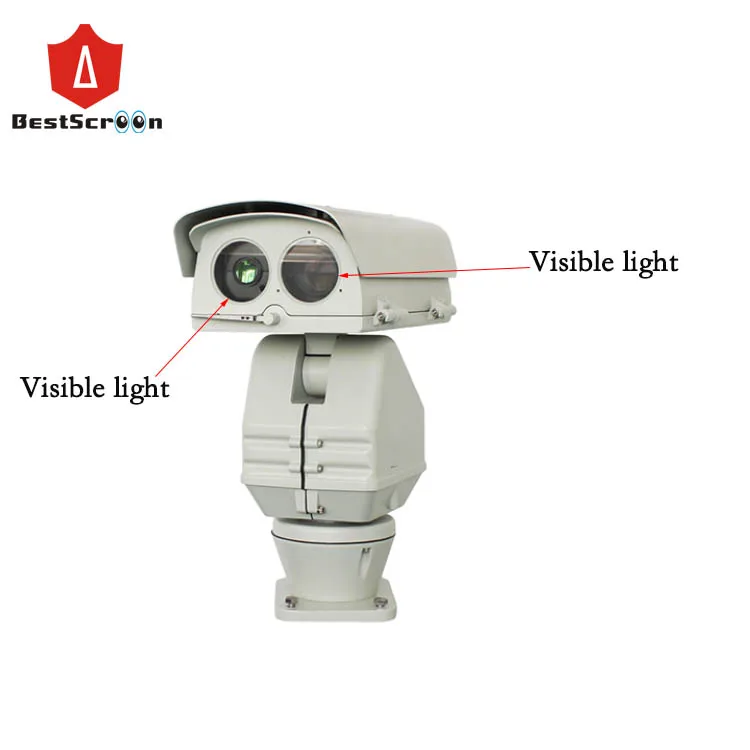

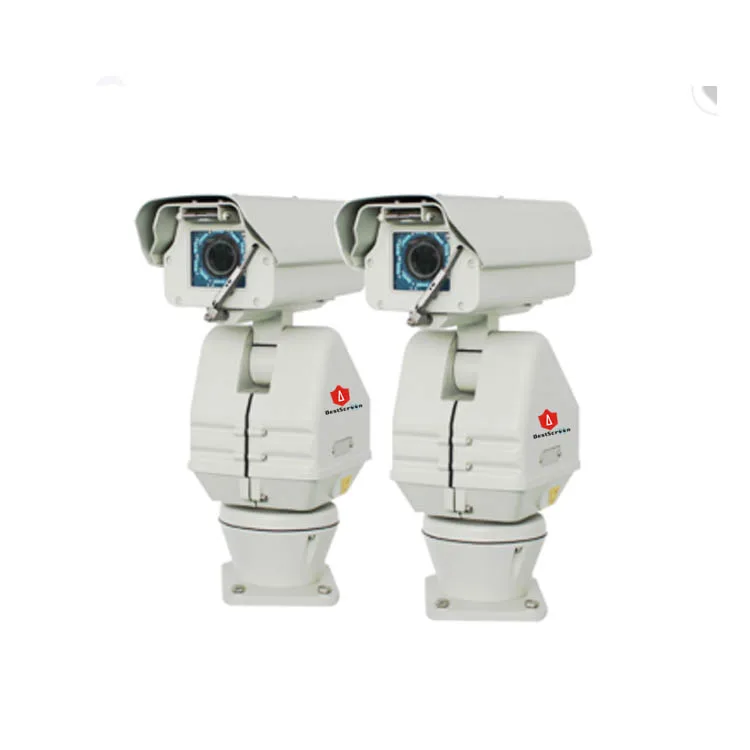

Anti shock water proof Highway city road Intelligent Coastal Defense Intagrated HD 2.0 MP IP Monitoring PTZ CCTV Camera
- Category: >>>
- Supplier: Shenzhen Bestscreen Technology Co. Ltd.
Share on (62298746637):
Product Overview
Description
Product Description
-Integrated with weather-proof high speed PTZ.
-It combines with cameras ,intelligent PTZ and decoder ,cover housing, wipers,automatic heater, windows defroster and defogger, sun-shield housing.
-It integrates with high-end motor, good stability and low noise.
-Heavy wind resistance ,smoothly running ,ensure accurate positioning.
-Weather-proof design, with sun-shield housing, wiper
-High die-cast aluminum casing, anti-shock, anti-corrosion ,IP 66

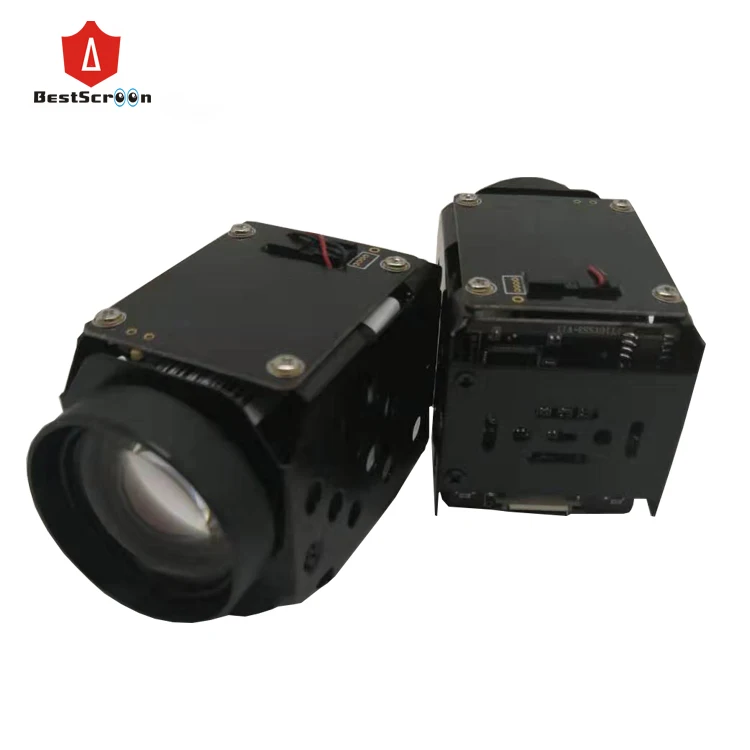

-different camera just like Anlog ,AHD,CVI,TVI,AHD ,IP and SDI camera for your optional ,we can give your better proposal according to your actual demand
- 18x ,20x,23x ,30x,36x focal length are for your choice based on your actaul demand .
Techical Data :
| Model | BSD10T-TES | |
| IP Chipset Parameters | ||
| Model | 20IP | 30IP |
| Imaging sensor | 1/2.8" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS |
| Effective pixels | 2.1 mega pixels | 2.3 mega pixels |
| Lens | 20X optical zoom f=4.7 -94.0mm | f=4.5-135mm 30X optical zoom |
| Min.illumination | 0.095 lUx (F1.6,ICR open) | |
| Frame rate | 25FPS & 30FPS | |
| Double stream | H.265/H.264 | |
| SDK Docking | standard ONVIF protocols,Support SDK two development | |
| SDI/AHD Chipset | ||
| Model | SDI | AHD/Analog |
| Imaging sensor | 1/2.8 COMS ,1/3 CMOS | 1/2.9" CMOS |
| Effective pixels | 30X 3 mega pixels/20X 2 Mega pixels | 18X 2.0 mega pixels/36x2.0mega pixels |
| Lens | 20X optical zoom f=5.5-110mm | 18X optical zoom f=6.0 -96.0mm /30x2.0mega 4.5-135mm |
| Frame rate | 60FPS & 30FPS | 30FPS |
| PTZ Function | ||
| Pan preset speed | 100°/S | |
| Tilt preset speed | 30°/S | |
| Pan control speed | 0°—40°/S | |
| Tilt control speed | 0°—20°/S | |
| Pan range | 360°endless rotation | |
| Tilt range | —70° — +35° | |
| Preset positions,Tracking | 256 positions 6 tracking | |
| Control Way | RS485, built-in 16 protocols, baud rate from 2400Bps to 19200Bps | |
| Relative Humidity | Less than 90% | |
| IP Grade | IP66 | |
| Working Temperature | -35°C—+55°C | |
| Power Consumption | DC24V/AC24V/AC110V/AC220V optional | |
| Impact resistance requirements | ≥4G | |
| Wiper | Support | |
| Weight | 10KG | |
| Network parameters: | ||
| Video Compression | H.265/H.264 | |
| Compression output rate | 32kbps-12Mbps | |
| Audio Compression | G.722.1,G.711-a law,G.711-u law,MP2L2,G.726,AAC,PCM | |
| Storage Function | Support micro SD | |
| Intelligent Arlarm | Motion detection, occlusion alarm, memory full, memory error, audio anomaly detection, cross-border detection, area intrusion detection | |
| Support Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP,OPTIONAL) | |
| General function | Dual stream, heartbeat, password protection | |

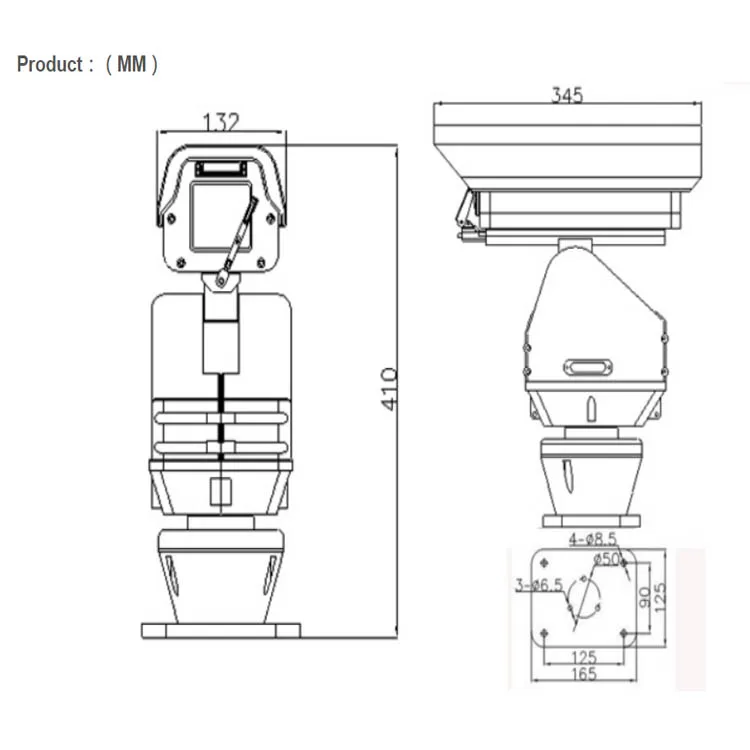

Diameter :
Packaging & Shipping
Functions info2

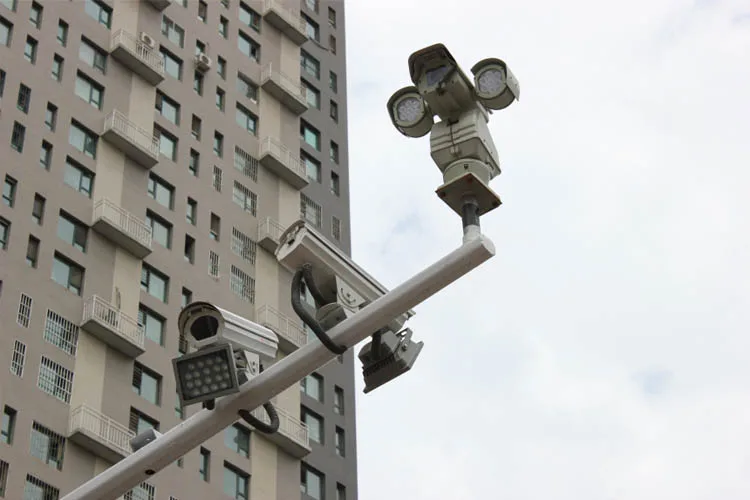

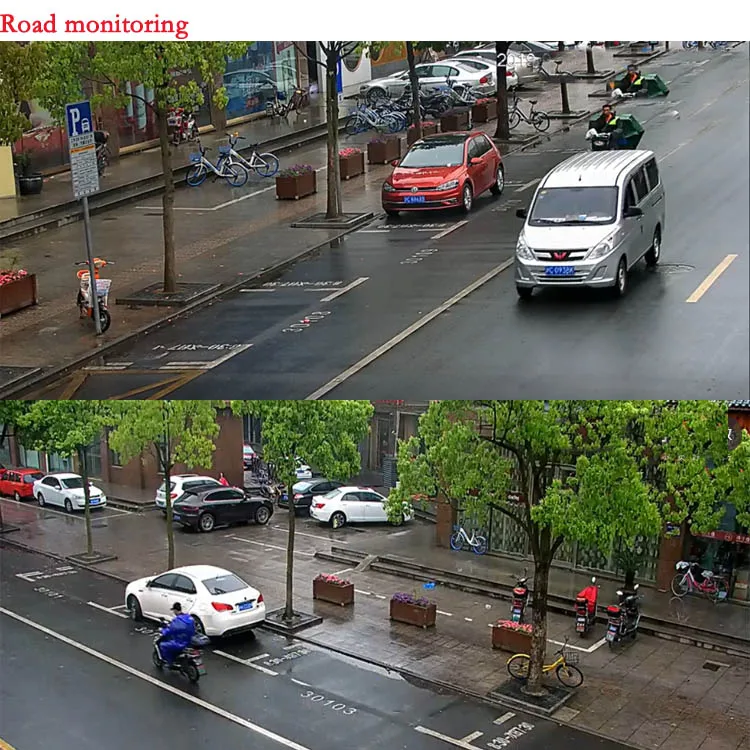

Application
Certificates
Our Services
1.Quickly response with 24 hours for any questions and issues
2.provide official test report
3. Specific exporting package and provide the tracking number against any parcels
4. provide customized service for customers request
5. OEM/ODE order is appreciated
FAQ
Q1. What is your terms of payment?
A: We accept T/T(Telegraphic Transfer),Western Union or Paypal ,also will sign official contract before payment.
Q2,What is your minimum order quantity?
A: MOQ 1 PCS
Q3. What is your sample policy?
A: we can provide sample if customer can absorb the cost and logistic cost ,also appreciated you come to our office to validate the sample.
Q4. Have you the export certificates and test report ?
A: Yes, we will provide the test report and export certificate ( CE/FCC etc ..)
Q5: What is quality guarantee policy ?
A:Normally guarantee term is 1 years ,we offer 2 years PTZ main body and 1 year for camera
Q6: Do you accept OEM/ODM?
A:Yes! We accept to label your brand if you would like .
