Gbos Appliques Cotton Roll Auto Feeding Cut Price Cloth Leather Automatic Laser Cutting machine Fabric Cutter
- Category: >>>
- Supplier: Gbos Laser Inc.
Share on (62298780713):
Product Overview
Description
Product Description

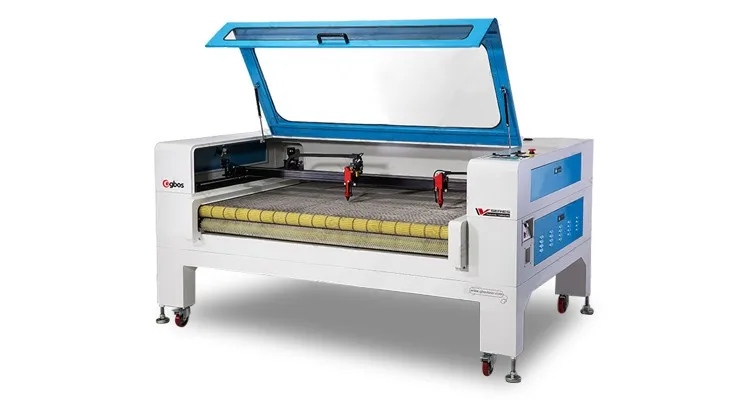

GBOS Automatic Feeding Engraving Making Cutter Two Head Laser Cutting Machine
GH1810T-AT auto-feeding two head laser cutting machine adopts two sets of high power laser generating system, track-type work platform and automatic feeding system to ensure continuous process. It is also equipped with intelligent layout software, can not only do the batch processing as the same time, but also a separate full breath of cutting, and drilling according to the design. The machine use double-headed structure of electrical control movement, can easily cut fabric according to the size and free to set the distance between the two laser heads, great savings the material.
High speed, and material-saving, convenient to change design, high efficiency, good quality, especially for pieces cutting of clothing, leather and other materials.
GBOS Automatic Feeding Engraving Making Cutter Two Head Laser Cutting Machine | ||||||
MODEL | GH1810T-AT | |||||
Processing Area(mm) | 1800×1000mm | |||||
Gross Power | ≈2900W | |||||
Measurement(mm)(L×W×H) | 2380×2100×1170mm | |||||
System/Compatible Format | WindowsXP/7/8/10,AI,PLT,DXF,DST,BMP,JPEG, JPG,PNA | |||||
Weight(kg) | 859KG | |||||
Power Supply | 220V/10A,50Hz or 60Hz | |||||
Marking Precision | ±0.2mm | |||||
Cutting speed | 300~600mm/s | |||||
Environmental Requirements | Temperature 10-30℃ Humidity (no condensation) 30-80% | |||||

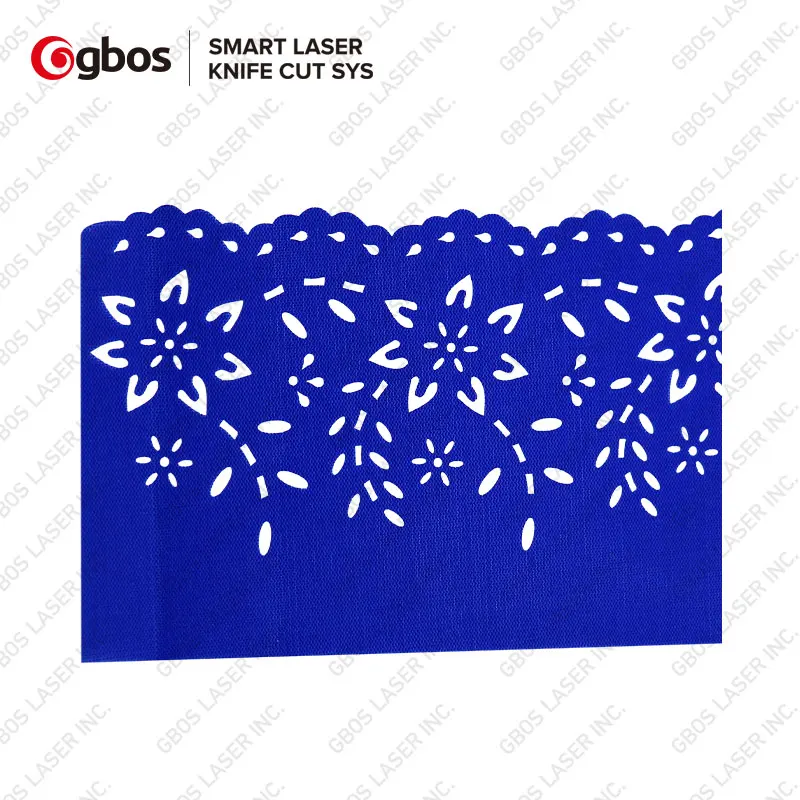

GBOS Laser Cutting Machine applicable materials

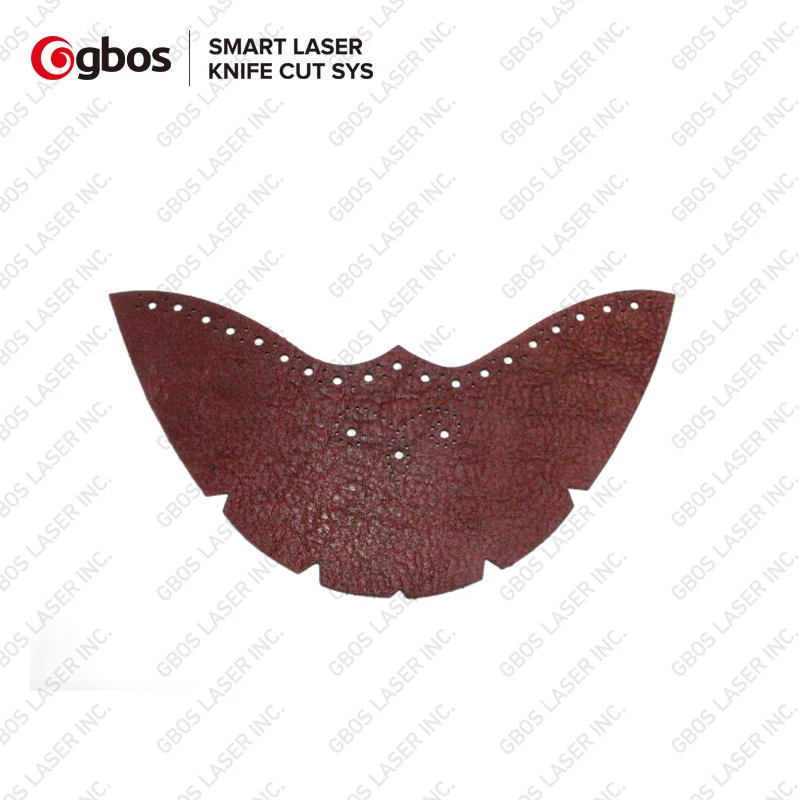

Clothing, shoe vamp, leather, label, and other roll material
Product Advantage
Integrated design with feeding system
Truly integrated feeding system, not pulling shelf.
Multi-material auto-feeding: knitted fabric, cloth, leather, foam,(capable of multi-layers feeding).
Multi conveyor bed for option
Herringbone for soft fabric.
Grid for leather.E style for footwear industry.
850T for more safety.
Projector positioning review
(option)
Fast review the cutting result.
Camera positioning (option)
Camera positioning for shoe upper.
Automatic size grading
Input the pattern from software graphics library.
The left side of software will arrange the sizes one by one.
Choose the file to process, drag it to the working area of the software.
Machine remote connection & control by man.
Smart Nesting-Waste Saving and Fast
Odd number arranging
Waste saving arranging
Unlimited lenth nesting
Auto calculating
Camera positioning function
CCD device for area 120*90mm
Automatically identifying defect
Positioning cutting for multiple design
Any angle positioning and cutting
About GBOS
GBOS LASER INC. A national high-tech enterprise dedicated to provide laser intelligent solution globally.
Since it was established in 2005, GBOS Laser Brand has been devoted to the research and development, innovation, production and sales of medium and high-end laser systems. So far, it has launched more than 150 kinds of intelligent laser systems, and product lines cover laser marking, cutting, drilling, engraving and other fields. The company has passed the industry's ISO9001.2008 quality management standard and its core technology has won several national patents and software copyrights. A number of products have passed the EU CE certification and the U.S. certification.
The company's core technology, talent, and innovation have created the most comprehensive product line of laser systems in the industry. As the industry leader in intelligent laser systems, our laser systems are being used in various countries and regions worldwide, and customers range from small family-owned businesses to large highly automated enterprises. We believe that our leading laser system can help you to develop and maintain a competitive advantage.
"All GBOS people will be proud of the well-known GBOS". We make every effort to create the world's leading brand in the laser industry.
Our Service
Pre-sales
✔Free sample testing
✔Professional introduction
✔Multilingual online services
✔Warranty available and prompt delivery
After-sales
✔Free technical training and software upgrading
✔Remote control and local installation
✔Machine maintenance
Exhibition
GUANGZHOU CHINA SHOES MATERIAL MACHINARY FAIR
Located in Guangzhou
SIMAC &TANNING-TECH INTERNATIONAL EXHIBITION OF MACHINES AND TECHNOLOGIES FOR FOOTWEAR AND LEATHERGOODS AND TANNING INDU
Located in Italy
CHINA INT'L SEWING MACHINERY & ACCESSORIES SHOW
Located in Shanghai
VIETNAM SAIGON TEXTILE&GARMENT INDUSTRY FABRIC&GARMENT ACCESSORIES EXPOLocated in Vienam
FAQ
Q1: What's the working size of aotu-feeding laser cutting machine and machine dimension ?
a. Working area: 1800*1000MM (1800mm - unlimited length feeding).
b. Machine dimension: 2380×2100×1170MM.
Q2: If I want to cut sports shoe vamp, can aotu-feeding laser cutting machine work ?
a. If your material is mesh shoe upper or other material without image, GH1810T-AT is good.
b. If your material is knitting/flying woven shoe upper, which need option projector/camera for positioning, called GH1810T-AT-P/GH1810T-AT-CCD.
Q3: If I don't know how to operate the machine well and what should I do ?
a. You can ask us for dispatching technician for paid in-house service(installation & training).
b. Also send video and English manual of the machine for free.
c. If you still have any doubts, please contact us via Telephone / Skype / Email / Facebook / Website, will answer you within 8 hours.
Q4: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period. While we also supply free life long after-sales service online.
Any problem, please do not hesitate to contact us, we will service to you at 7*24 hours.
