Tungsten Carbide welding insert tungsten carbide tipped tool tungsten carbide brazing tip
- Category: >>>
- Supplier: Zigong Xingyu Cemented Carbide Dies&Tools Co. Ltd.
Share on (62298845397):
Product Overview
Description
Product Description

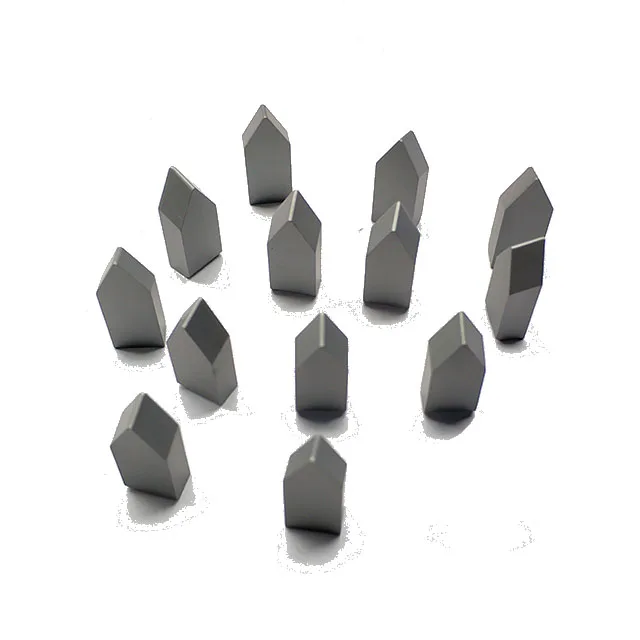

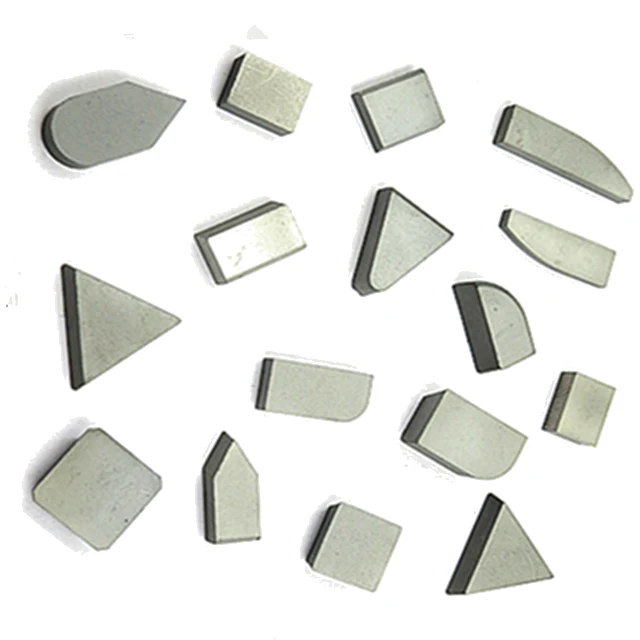

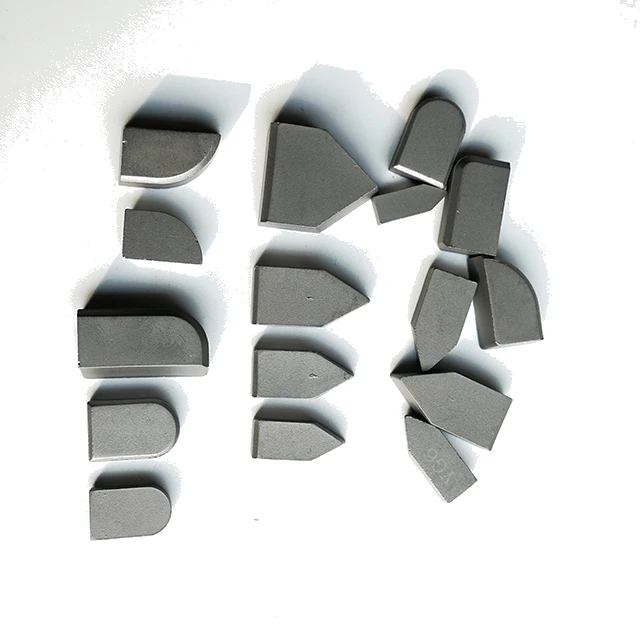

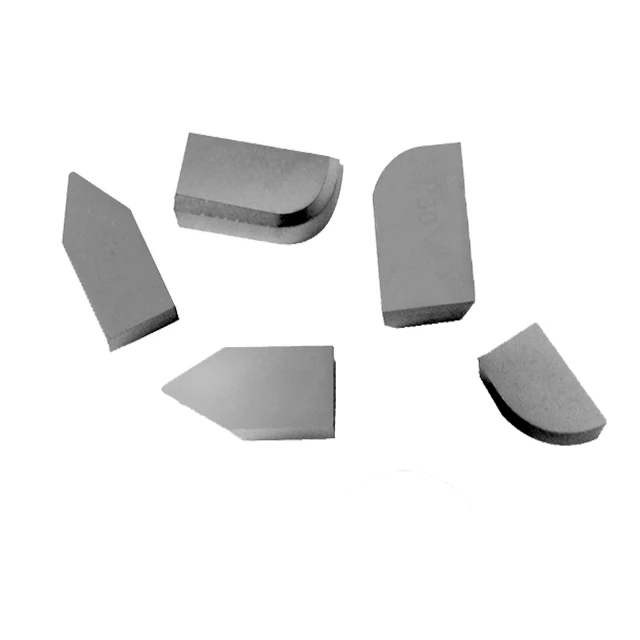

Tungsten Carbide Welding Insert Tungsten Carbide Tipped Tool Tungsten Carbide Brazing Tip
1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , precise grinding.
Material grade list
ISO | Grade | Typical Property Values | ||||
Density (g/cm³) | Bending Strength (N/mm³) | Hardness HRA | Performance & Applications | Equivalent to ISO | ||
P | YT30 | 9.5 | 1200 | 93.2 | High wear reisistance but lower strength and impact toughness.Fnishing of carbon steel and alloy steel,for instance fine turning,fine boring and fine reaming of their small chip sections. | P05 |
YT15 | 11.3 | 1550 | 92.5 | Wear-resistance higher than YT5, but impact toughness lower thatn YT5.Semifinishing of the medium chip sections of steel,cast steel and alloy steel or finishing of small chip sections. | P10 | |
YT14 | 11.4 | 1650 | 91.8 | High strength and good impact & shock resistance.Rough turning and rough milling of carbon steel and alloy steel during continuous cutting or medium to fine turning during intermittent cutting. | P20 | |
YT5 | 12.9 | 2000 | 90.4 | Best strength and high impact & shock resistnace among WC-Co-Ti alloys but lower war resistance .Rough turning rough planing and semi-finish planing of carbon steel and alloy steel (including forged steel parts,stamped parts and cast iron surfaces)during inter mittent cutting. | P30 | |
YT715 | 11.3 | 1500 | 92.5 | High red hardness and wear resistance .Semi-finishing and finishing of alloy steel with high strength. | P10-P20 | |
YT758 | 13.3 | 2100 | 92.4 | Good hardnss under high temperature and good wear resistance.Continuous or intermittent cutting of alloy steel with super strength. | P10-P20 /M20 | |
YT798 | 12.3 | 1900 | 92.2 | Good toughness and high resistance to thermal shock and plastic deformation.Molling os structure alloy steel,tool alloy steel,manganese steel and stainless stel. | P20-P25 /M20 | |
YT535 | 12.7 | 2100 | 90 | Wear resistance ,red hardness better than YT540 and higher strength.Continuous rough turning and milling of cast of cast or forged steel. | P25-P35 | |
ZP10 | 11.2 | 2100 | 92 | Higher wear resistance, strength and red hardness,Semi-finishing and finishing of steel,cast steel,forgeable cast iron and continuous nodular cast iron.Also suitable for profiiling,threading and milling. | P10-P20 | |
ZP20 | 11.5 | 1650 | 91.8 | Higher wear resistance and strength .Roughing and semifinishing of steel,cast steel,forgeable cast iron and continuous nodular cast iron. | P15-P20 | |
ZP25 | 12.6 | 1850 | 91 | Good toughness,Rough turning,milling,planing and depth hole drilling of carbon steel,cast steel,manganess steel and alloy steel. | P20-P30 | |
ZP35 | 12.7 | 2220 | 91 | A versatile grade,high red hardness,strength and resistance to impact and thermal shocking.Roughing and strong cutting of steel and cast steel. | P30-P40 | |
Product display
Production Process
Company Information
Zigong Xingyu Cemented Carbide Dies&Tools Co.,Ltd is a professional supplier of tungsten carbide mould and customized tungsten carbide wear parts.Which integrates R&D, production, marketing and services.Established in 1999 and located in Zigong,Sichuan,China.We have 20 years experience in tungsten carbide products such as carbide molds & dies, bushings, valve seats, nozzles, inserts & cutting tools, carbide rods and bars, carbide plates & strips and other customized wear parts etc.
Our products have been exported to many countries.Being reliable and professional is our value of service. Providing customers with high satisfactory services and high quality products is always our mission.Sincerely welcome the friends all over the world to contact us for a WIN-WIN cooperation!
Worldwide Exhibitions and Customers
Packaging & Shipping
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are a factory based in Zigong.
Q2: How long is your lead time?
A2: It depends on the quantity and customer’s design.Normally,about 15-20 days
Q3: Can you provide samples ? Is it free or extra ?
A3: Yes, we could offer the sample for free charge but buyer need to pay the cost of freight.
Q4: Can you support customized design?
A4: Yes,we accept OEM & ODM.
