5 Channels HIFI RF Transmitter for Silent Disco Headphones with Microphone
- Category: >>>
- Supplier: Shenzhen Changyin Electronic Co. Ltd.
Share on (62298993797):
Product Overview
Description
Product Description
Product Name | Hifi Silent disco headphone transmitter T80 |
Battery | 1000mAh |
Powered | DC9V Adapter |
Input Jacks | RCA/3.5mm audio/microphone |
Working distance | >300m |
Features

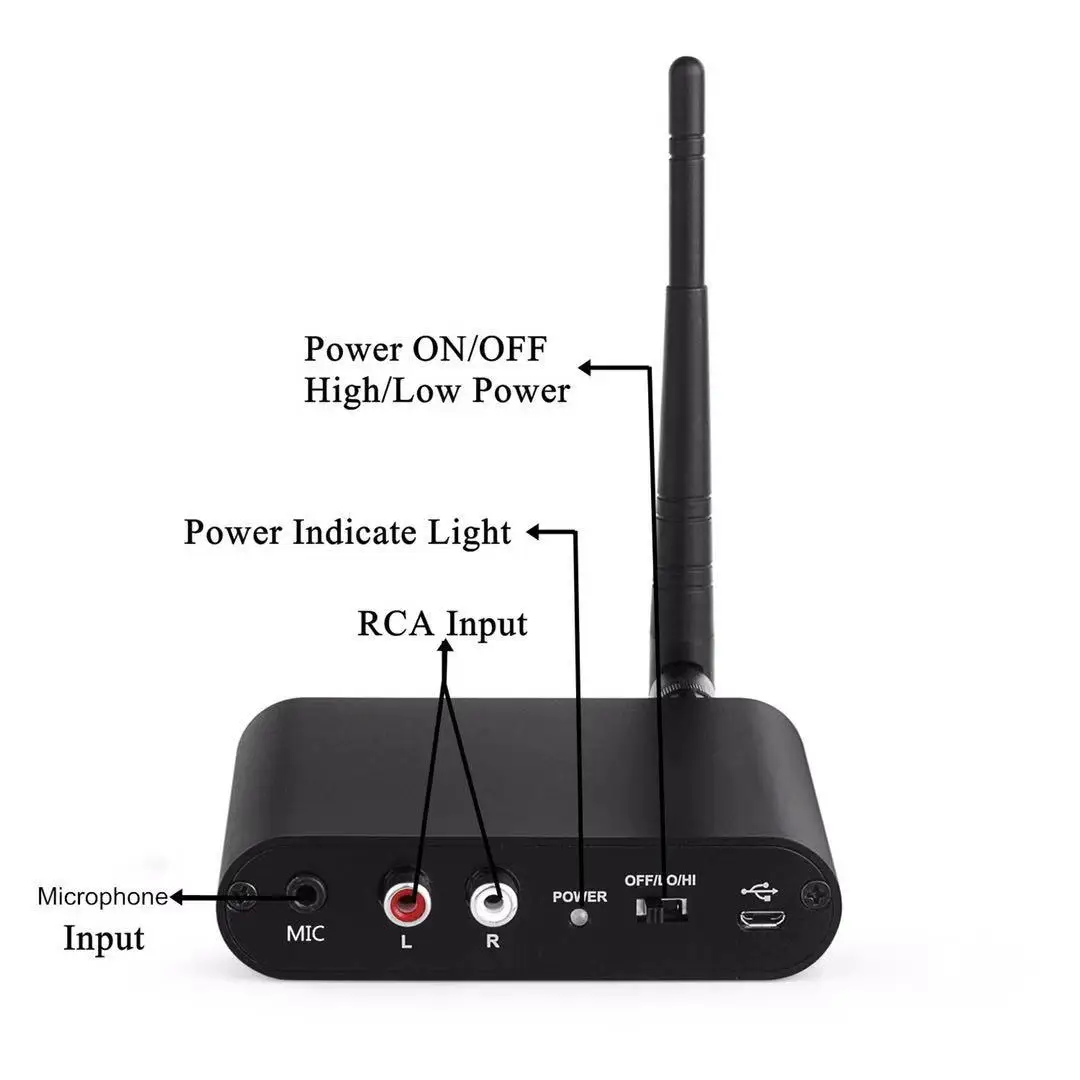

1. MIC: 1/8 inch microphone input.
Plug in a wired microphone to be mixed
with the audio being transmitted.
Plug in a wired microphone to be mixed
with the audio being transmitted.
2. RCA R+L Input: Connect your mixer or
audio device to the Left and Right RCA
input.
audio device to the Left and Right RCA
input.
3. POWER: The light will illuminate green
when it is charging, and red when it is on.
when it is charging, and red when it is on.
4. OFF-LO-HI: This switch toggles the
transmitter on and selects the power
level at which it transmits.
Switch to LO for low power mode.
Transmission distance will be roughly
100 feet. When using the internal
battery, the system will always transmit
in low power mode.
Switch to HI for high power mode.
Transmission distance will be
roughly 300 feet. Note: High power
transmission mode is only available
when the transmitter is plugged in with
the DC 9V adapter.
transmitter on and selects the power
level at which it transmits.
Switch to LO for low power mode.
Transmission distance will be roughly
100 feet. When using the internal
battery, the system will always transmit
in low power mode.
Switch to HI for high power mode.
Transmission distance will be
roughly 300 feet. Note: High power
transmission mode is only available
when the transmitter is plugged in with
the DC 9V adapter.
5. USB Factory Service: DO NOT use
this connection to charge/power the
device. This connection is used to
update the device and is intended for
service personnel only.
this connection to charge/power the
device. This connection is used to
update the device and is intended for
service personnel only.

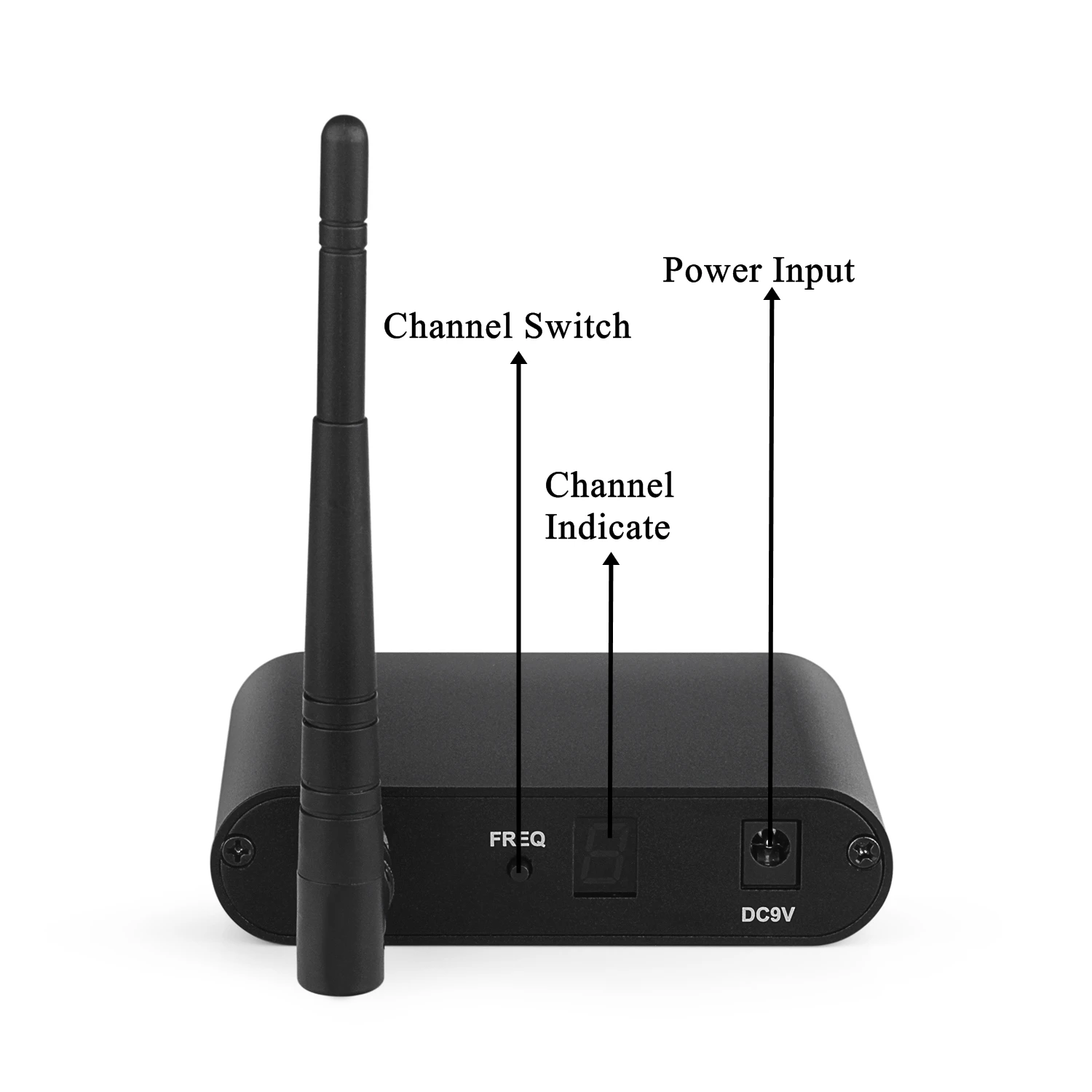

1. ANTENNA: The antenna attaches here
using the BNC connector.
using the BNC connector.
2. CHANNEL: This button changes the
channel the transmitter is using.
Press to toggle between channel 1, 2,
3, etc. The LED display will show the
currently selected channel. Notes: When
more than two transmitters are working
simultaneously, make sure each
transmitter on a different channel.
channel the transmitter is using.
Press to toggle between channel 1, 2,
3, etc. The LED display will show the
currently selected channel. Notes: When
more than two transmitters are working
simultaneously, make sure each
transmitter on a different channel.
3. DC-9V: Connect the power adapter
here to power the unit and charge the
internal battery. While the transmitter
is plugged in, it can be operated in high
power mode
here to power the unit and charge the
internal battery. While the transmitter
is plugged in, it can be operated in high
power mode
Product Usage
Music Source to Transmitter
The transmitter is easily wired into
any system, just follow these steps:
any system, just follow these steps:
1. Attach the antenna to the transmitter
(Arrow #1)
(Arrow #1)
2. Connect a cable from the Audio
Output on the music source to the
RCA Audio Input located on the Silent
Symphony transmitter.
Output on the music source to the
RCA Audio Input located on the Silent
Symphony transmitter.
3. Connect a microphone to the 1/8"
input on the transmitter to be mixed
with the audio signal.
input on the transmitter to be mixed
with the audio signal.
4. Select the Transmission Power Level.
5. Select from one of the available
frequencies to broadcast on with the
Channel Select switch.
frequencies to broadcast on with the
Channel Select switch.
6. Power your headset receiver(s) ON and
select the appropriate channel to listen
with the Tune button.
select the appropriate channel to listen
with the Tune button.
7. Adjust the headset receiver volume to
a comfortable listening level.
With this setup, any audio that is fed
into the transmitter will be broadcast
wirelessly to all headset receivers tuned
to the same channel and that are within
its operational range.
a comfortable listening level.
With this setup, any audio that is fed
into the transmitter will be broadcast
wirelessly to all headset receivers tuned
to the same channel and that are within
its operational range.
Related Products

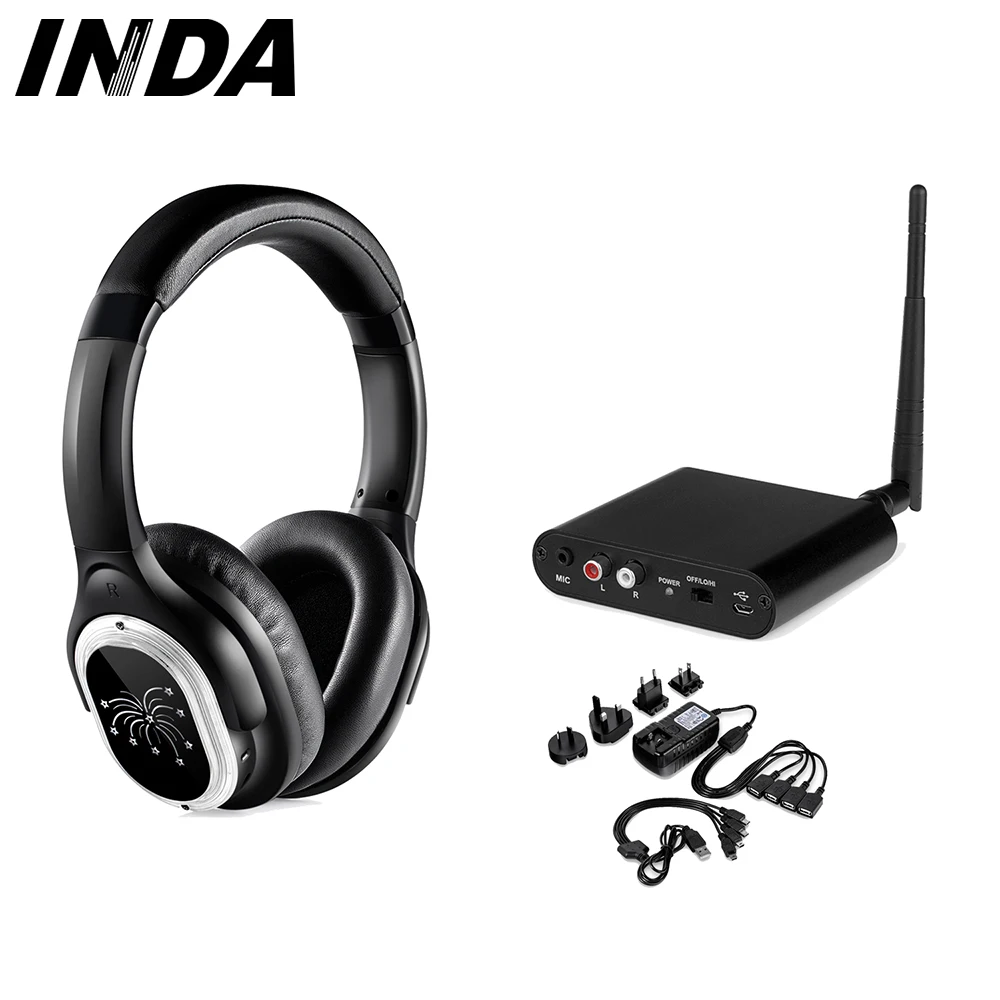

What is in the box
FAQ
Why am I not hearing any sound from the headset receiver(s)?
· Make sure the headset receivers are tuned to the same channel as the transmitter.
· Double check volume levels at: Music source
· Make sure the headset receivers are tuned to the same channel as the transmitter.
· Double check volume levels at: Music source
Any sound equipment connected to the transmitter Headset receiver(s)
· Double check the connections from the Music Source to the Audio Input.
· Ensure the internal batteries are fully charged for both the transmitter and headset.
· Ensure the internal batteries are fully charged for both the transmitter and headset.
How many receivers can work at once?
· There is no limit to the number of receivers that can be in one area.
· There is no limit to the number of receivers that can be in one area.
Is there a pairing process to add additional headset receiver(s)?
· No, there is no pairing process other than selecting the appropriate channel with the TUNE button located on the headset receiver(s).
How far does the transmitter reach when on high and low settings?
· On the high setting, the operational range is approximately 300ft.
· On the low setting, the operational range is approximately 100ft.
· On the low setting, the operational range is approximately 100ft.
What is the expected battery life for the headphones and for the transmitter when being used remotely?
· The headphones can run for about 8 hours continuously, and transmitter can run for
about 5 hours continuously before needing to be charged.
· Please allow at least 6 hours of charging time.
· The headphones can run for about 8 hours continuously, and transmitter can run for
about 5 hours continuously before needing to be charged.
· Please allow at least 6 hours of charging time.
