12 Gauge Galvanized Steel Insulation Self Adhesive Pins

Share on (62299227017):


Price:

Quantity:


Product Overview

Description

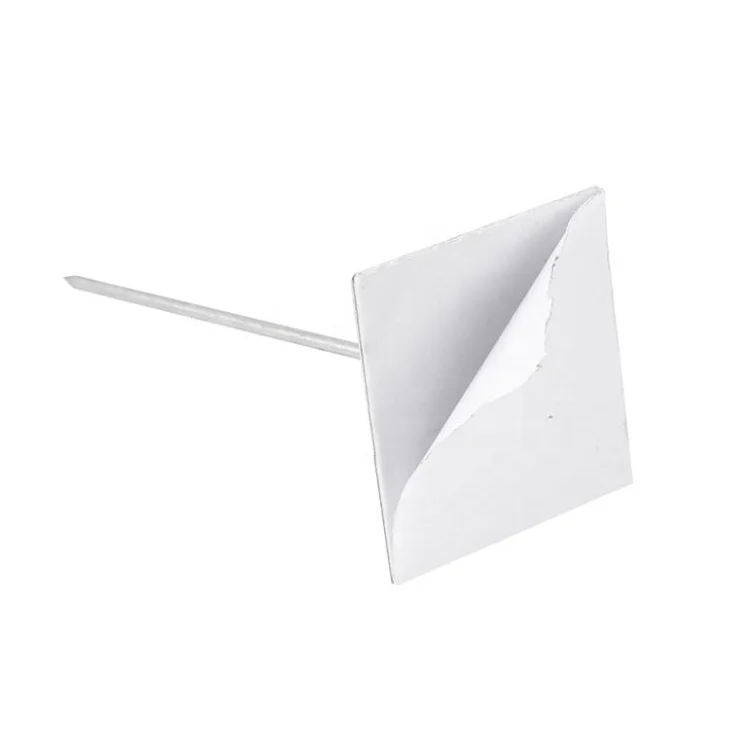

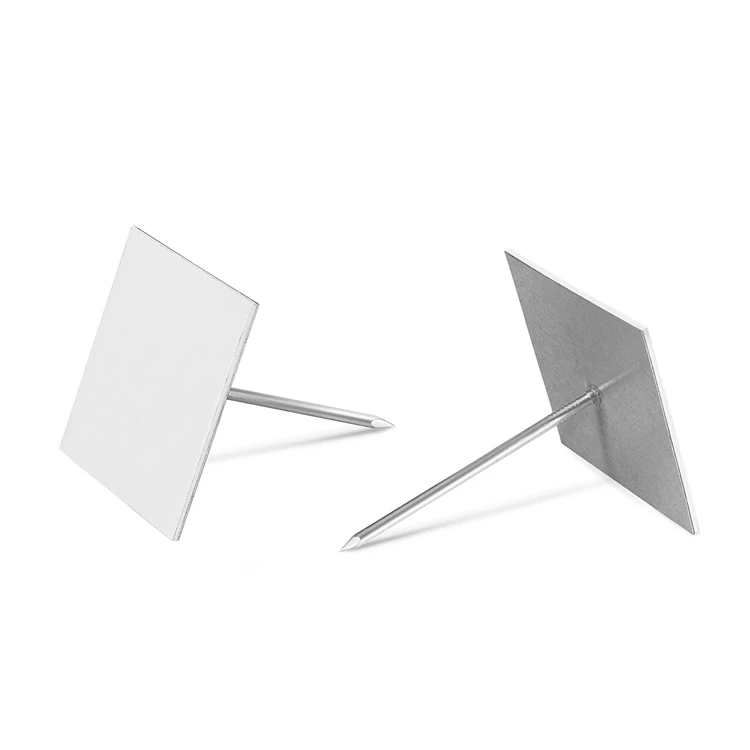

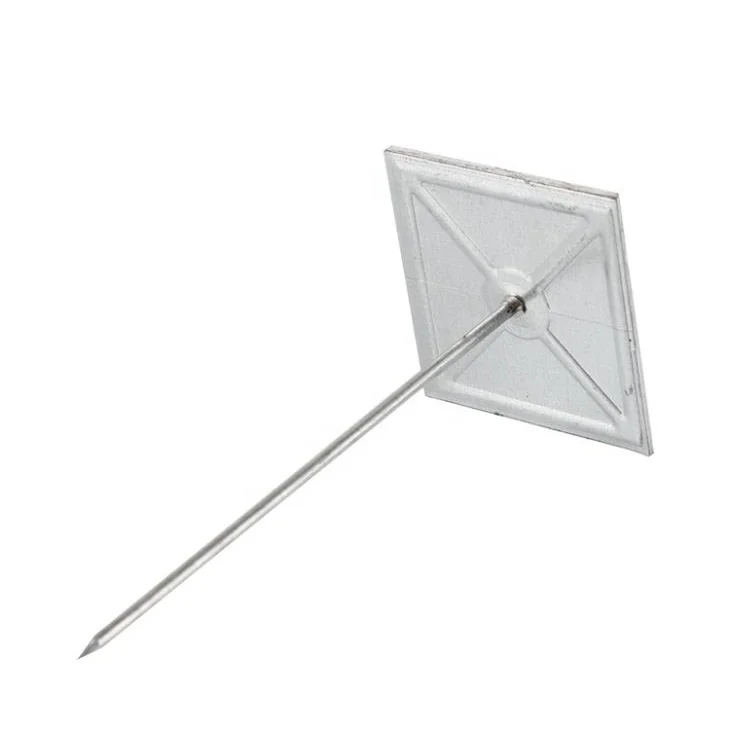

12 Gauge Galvanized Steel Insulation Self Adhesive Pins



Product Description


Insulation Self Adhesive Pins have special pressure sensitive adhesive tape, pre-applied to the base plate and tape is protected with quick release paper, the application is very simple, peel away the release paper, position the self adhesive insulation hangers and press firmly into place, the entire operation is clean, neat, fast and simple. Not require any special tool. This will save valuable man hours. Finally use a self locking washer or dome cap to fix insulation.








Application


Duct insulation, marine insulation, building insulation.








Specification

































Product Name



Insulation Self Adhesive Pins



Base Material



Stainless Steel Or Galvanized Steel



Plating



Stainlesssteel, Aluminum, Galvanized Steel



Base Size



50×50mm( 2”×2”)



Pin Diameter



2.7mm(12Gauge)



Pin Length



32mm, 38mm, 45mm, 50mm, 63mm, 89mm, 114mm, 203mm









Packing































































Product



Quantity



Box Size



Weight



32mm Insulation Self Adhesive Pins



500Pcs



26×26×32CM



5KG



38mm Insulation Self Adhesive Pins



500Pcs



26×26×32CM



5.2KG



45mm Insulation Self Adhesive Pins



500Pcs



35×35×20CM



5.3KG



50mm Insulation Self Adhesive Pins



500Pcs



35×35×24CM



5.45KG



63mm Insulation Self Adhesive Pins



500Pcs



35×35×26CM



5.72KG



89mm Insulation Self Adhesive Pins



500Pcs



35×35×30CM



6.3KG



114mm Insulation Self Adhesive Pins



500Pcs



35×35×35CM



6.9KG



203mm Insulation Self Adhesive Pins



250Pcs



35×35×35CM



4.58KG

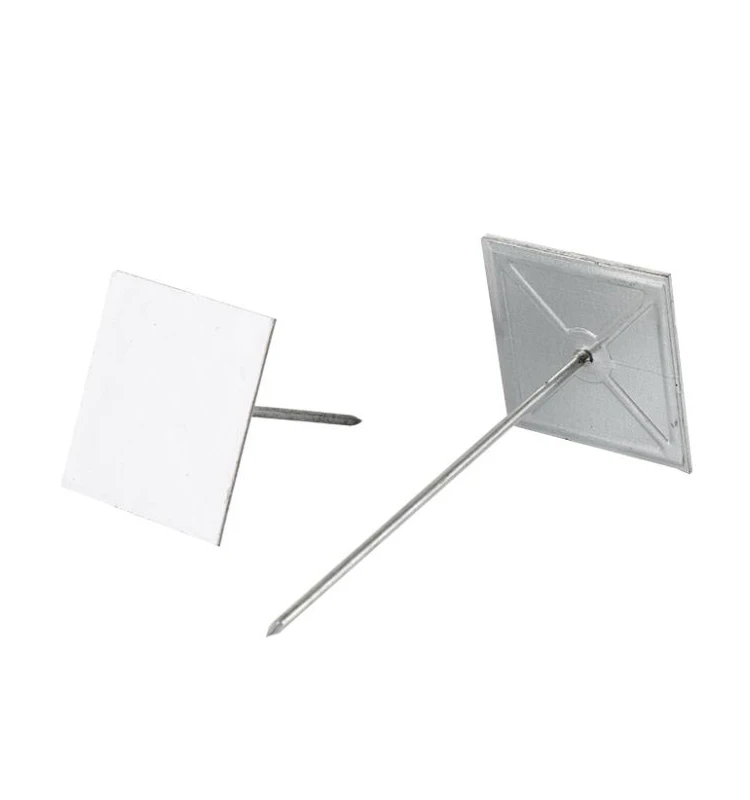

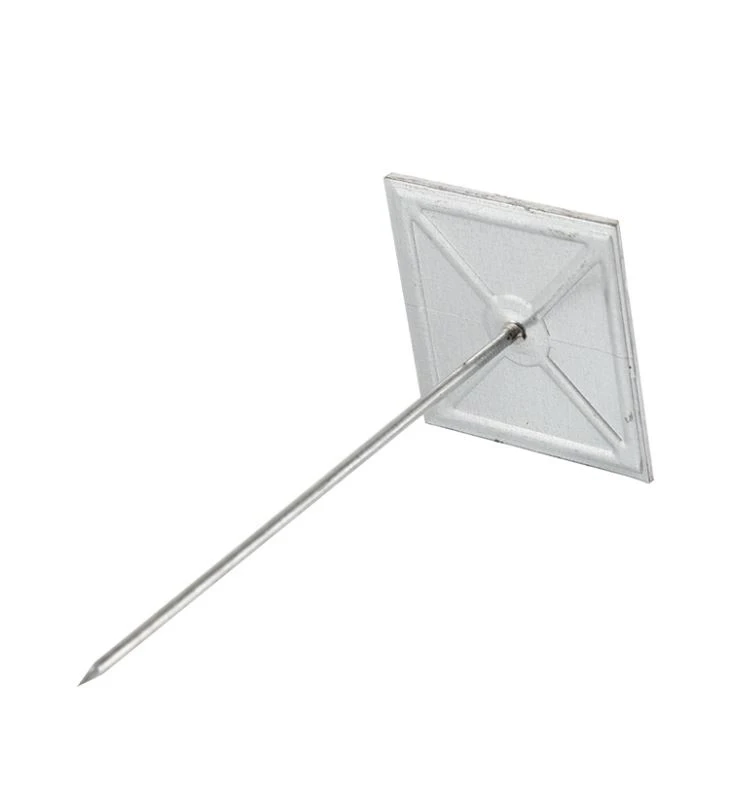

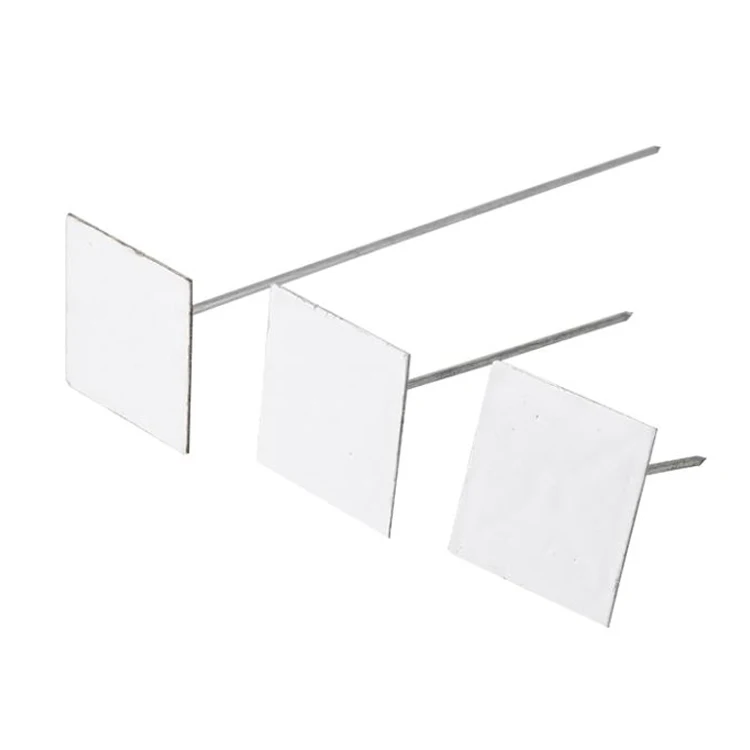

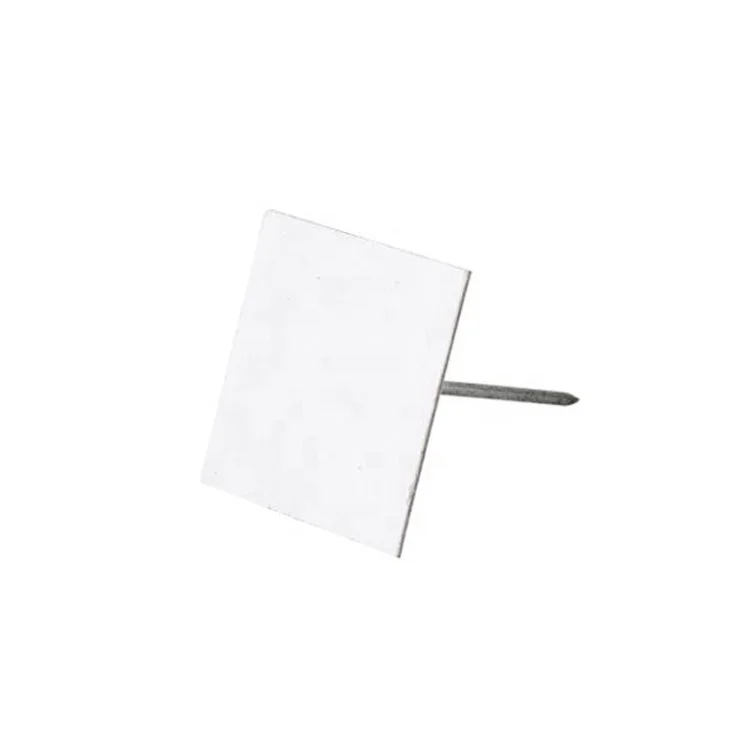

Detailed Images







About US


Hitex is supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.


.jpg





Contact Us


If you have any inquiry, welcome to ask for quote and we will relpy you as soon as possible.







FAQ


Q1.You are a trading company or manufacturer?


We are manufacturer with more than 10 years production experience, and we have our own factory in yuyao


.


Q2.Can you send me a sample? Is it free?


Yes, the samples is free, but the courier charge should be on your side





Q3.Mode of transportation?


By sea or by air





Q4.How about the Delivery time?


Usually around 2-3 weeks after order confirmed





Q5.Can you product the customized goods?


Surely, we can be customized according to your demanding.





Q6.Do you have other production?


Certainly, We, Hitex are supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.





Q7.What kinds of payment you accept?


We accept T/T, D/A, L/C,D/P,O/A
