Essential hemp oil extraction machine,cannabis oil extraction machine
- Category: >>>
- Supplier: Zhengzhou Zhuomiao Import & Export Trading Co. Ltd.
Share on (62299507876):
Product Overview
Description
6YL-60 oil press:
Technical parameters of type 60 oil press: rotational speed: 52r/min
Motor: main 2.2 kW vacuum pump 0.55 kW heating power 0.9 kw
Processing capacity: 40-60 kg/h
Whole machine weight: 220 kg
Outward Size: 1200*780*1100mm
1.Adopt micro-motor control, infrared heating, vacuum filter and three-level squeeze
2.The most ideal equipment for individual
Other oil press machine technical datas:
Model | 6YL-80 | 6YL-100 | 6YL-120 | 6YL-130 | 6YL-160 | |
Screw speed | 30-45r/min | 30-40 r/min | 30-40 r/min | 28-40 r/min | 28-40 r/min | |
gear ratio | 14/42x19/57=1:6.63 | 15/40x15/55=1:9.78 | 15/34x15/55=1:9.59 | 15/38x19/48=1:7.38 | 15/38x15/52=1:8.78 | |
Dimension | 1650x1150x1750 | 1950x1300x1900 | 2050x1350x2000 | 2200x1600x2150 | 2500x1600x2500 | |
Productivity | 80-150kg/h | 150-250kg/h | 200-300kg/h | 250-400kg/h | 400-600kg/h | |
Equipped with power | power | Y160L-6-5.5KW | Y160M-6-7.5KW | Y160L-6-11KW | Y180L-6-15KW | Y200L-6-18.5KW |
| Y90S-4-0.55KW | Y90S-4-1.1KW | Y100L1-4-1.5KW | Y100L1-4-2.2KW | Y100L1-4-2.2KW | |
| 2KW | 3KW | 3.3KW | 3.8KW | 4KW | |
Product name: oil press machine
6YL oil press machines are modern products developed and improved our company newly. These machine adopt micro-motor control, infrared heating, vacuum filter and three-level squeeze. They may be used for both cold squeeze and hot squeeze and are the most ideal equipment for individual process.
Oil press machine structural drawing:

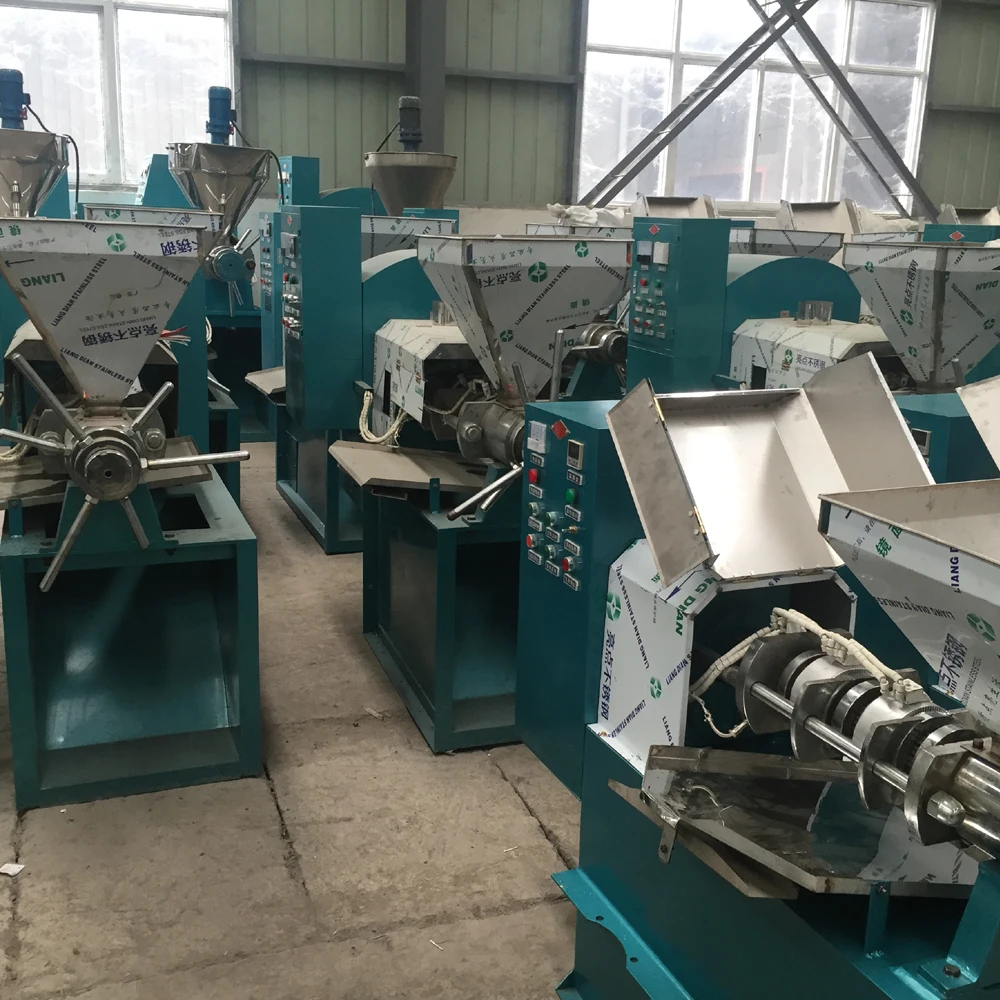

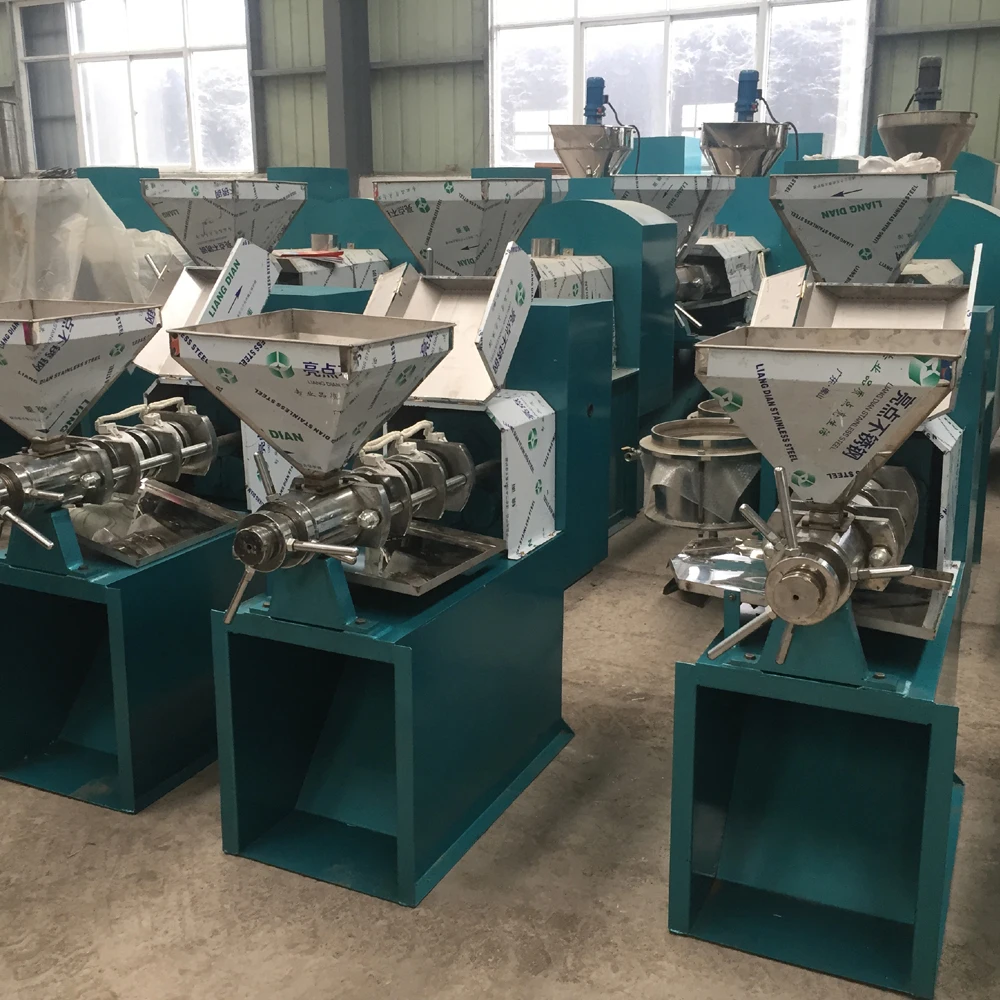

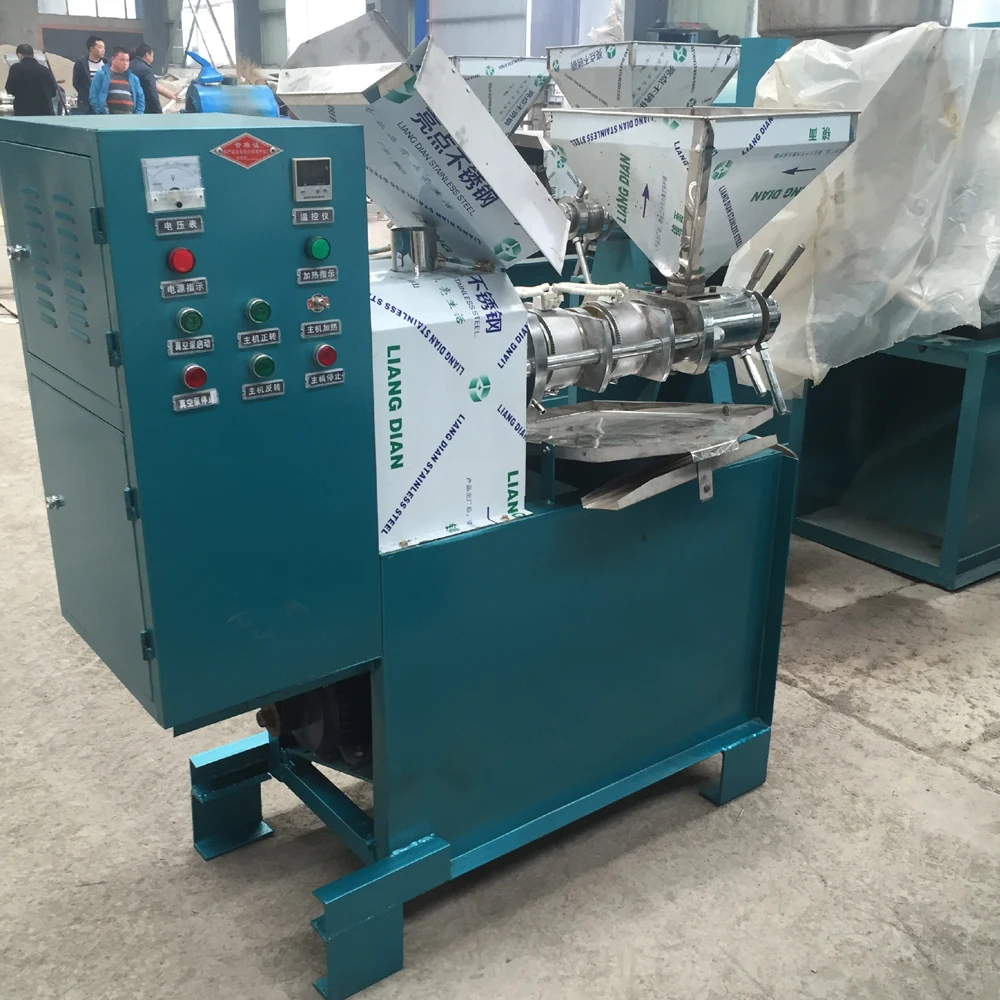

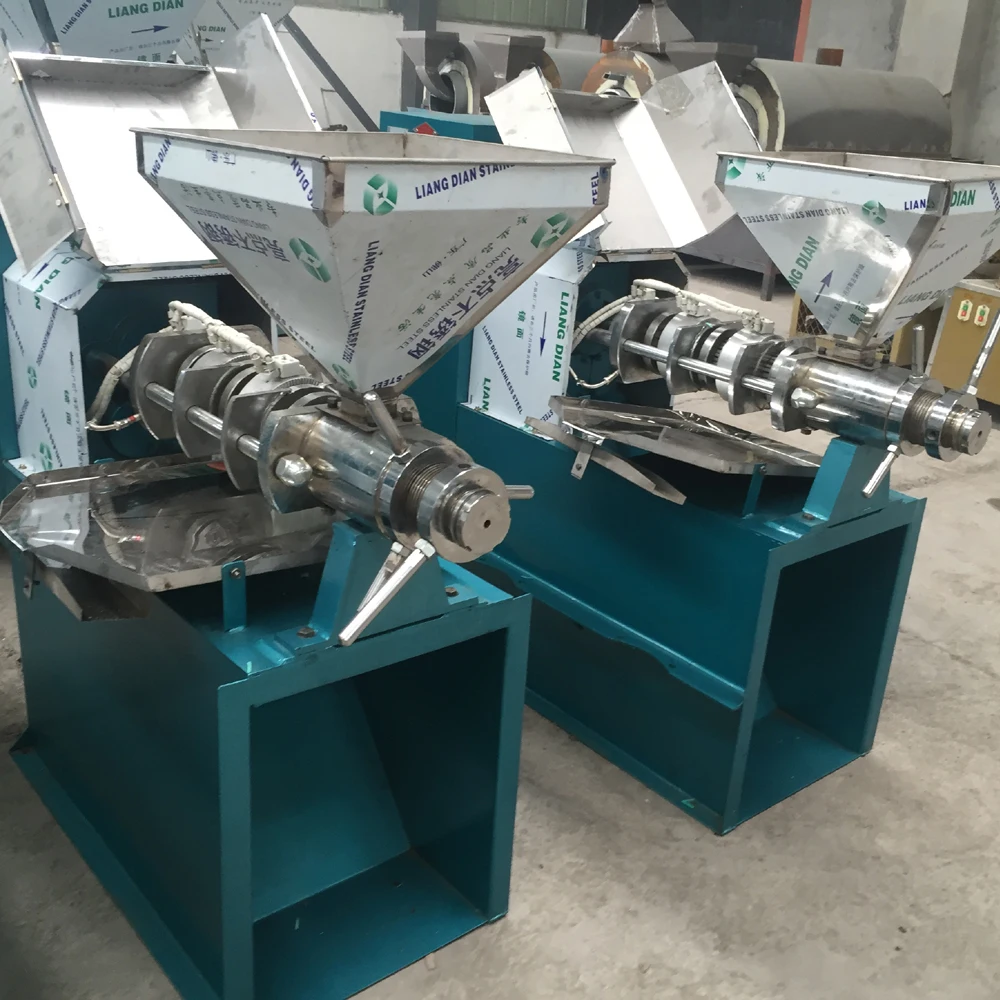

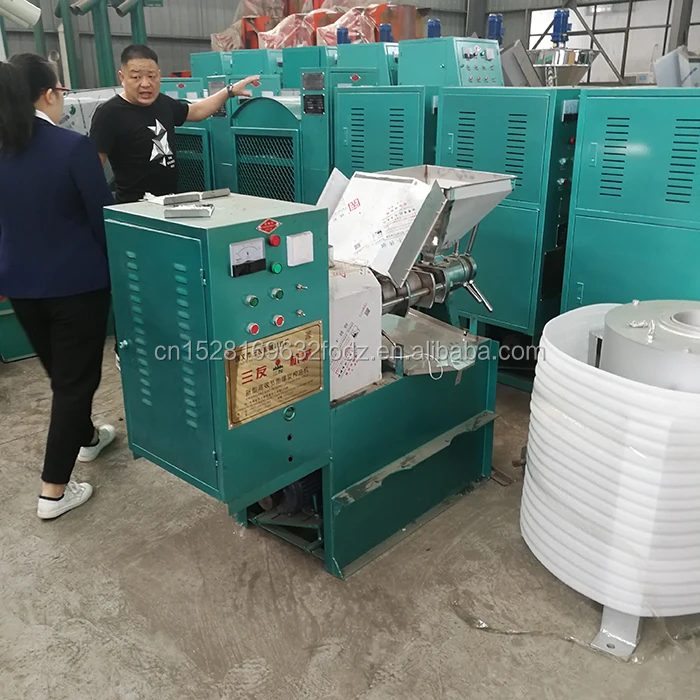

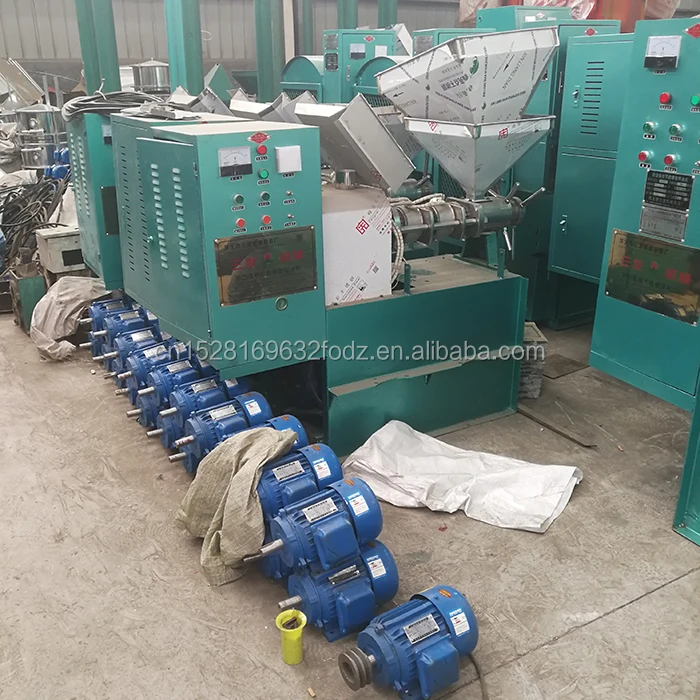

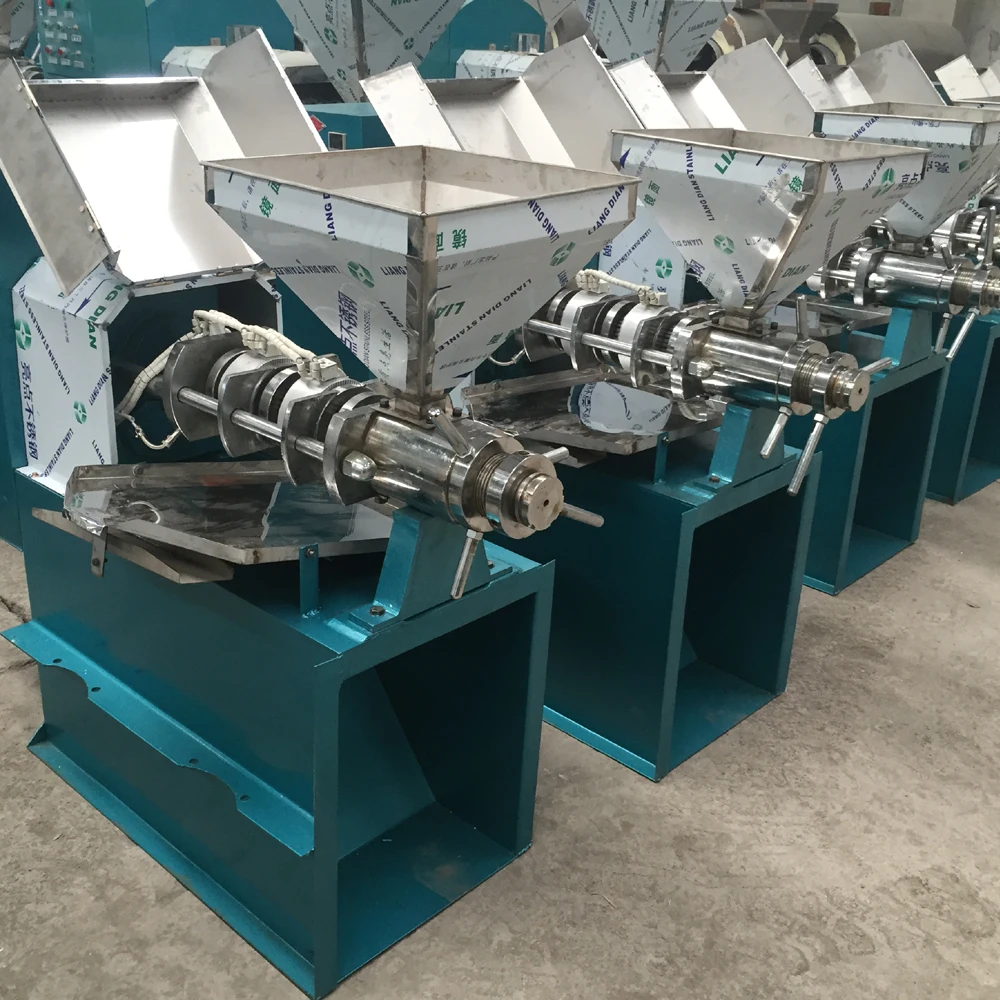

Our machines in stock:
Our small model 70 oil press:
This is seeds frying machine,which is used to get the moisture out before press:
