Tx4-87-1600-4200 is a multi-section telescopic mast with pneumatic cylinder as the core developed by our company. The product with its multi-section synchronous expansion and contraction, high payload, high adaptability, low failure rate, low slopping rate and other characteristics, can replace hydraulic, screw and other expansion devices, in the lifting, lifting, vertical field has a very broad application fields.
1m to 10m and 10kg to 200kg payload telescopic mast for military shelter
About Xuedian Telescopic Mast
Telescopic masts ideal for fast deployment of telecommunication / surveillance / lighting devices to a certain height in the air (range from 2m to 30m), which offer an elevation solution with different payload capacity (range from 2kg -300kg).

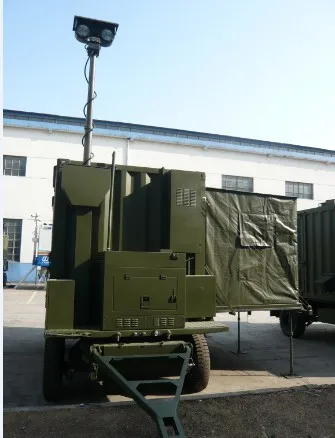

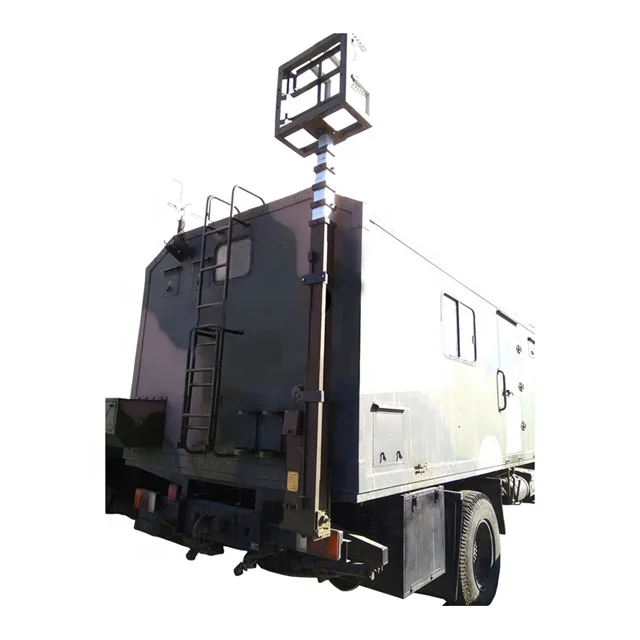

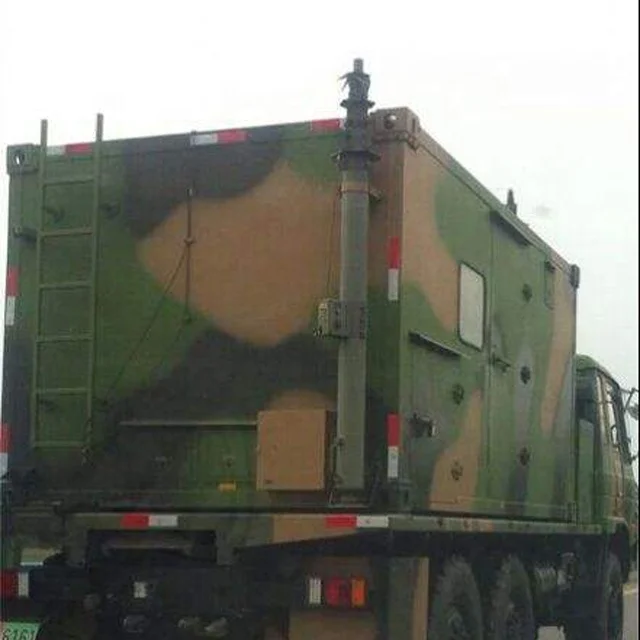

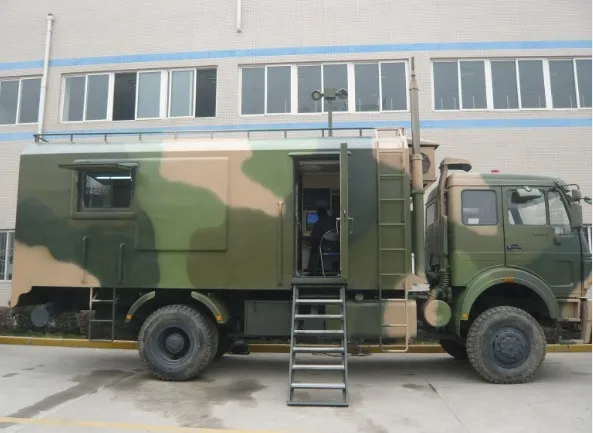

The lightweight and reliable telescoping masts can be mounted by tripod, trailer or on a vehicle. Telescopic masts with locking collars can keep the equipments at a fixed height for a long time even without air pressure.
The working power the telescopic mast can be manual winch, compressed air or electric motor.
Telescopic masts designed for multitude of purposes and that is capable of been deployed in a range of Activities including:
1. Events Wi-Fi
2. Temporary communications.
3. Emergency services (Lighting/surveillance)
4. Radio installation Surveying
5. Semi-permanent Installations for outdoor Events

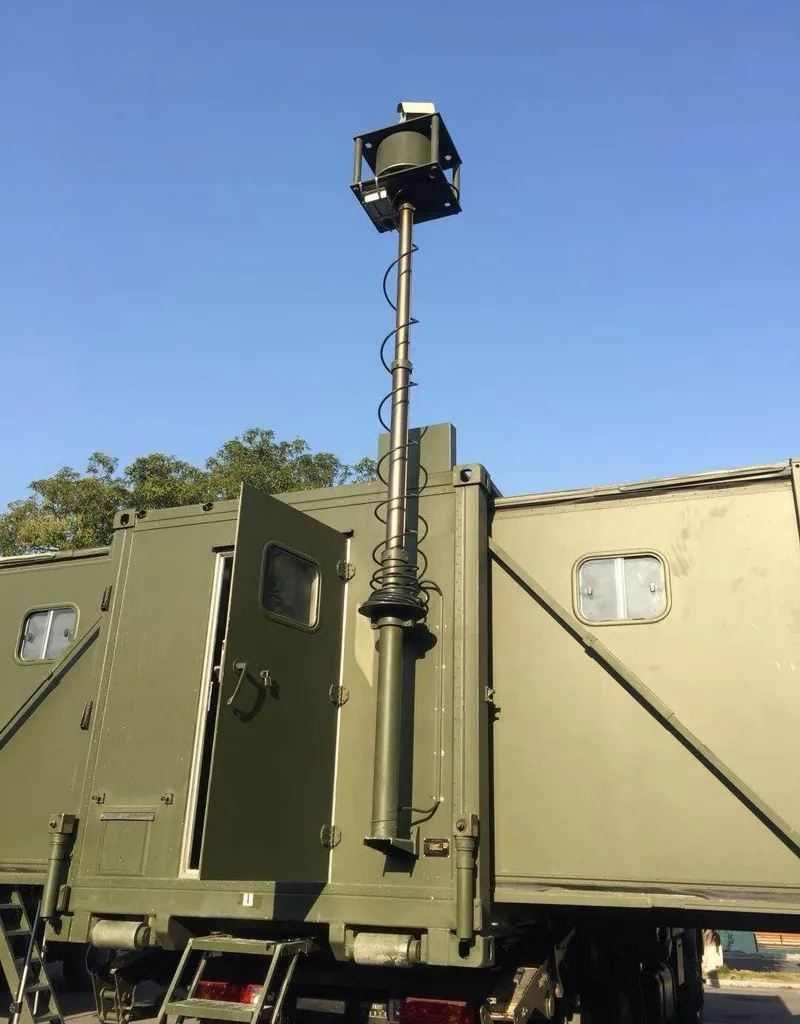

6. Camera monitoring.
Technical description:
From the working principle and technical characteristics, the mast is equivalent to a multi - stroke cylinder. When in use, air is injected and discharged into the cylinder to realize the rising and falling movement of each stroke cylinder.

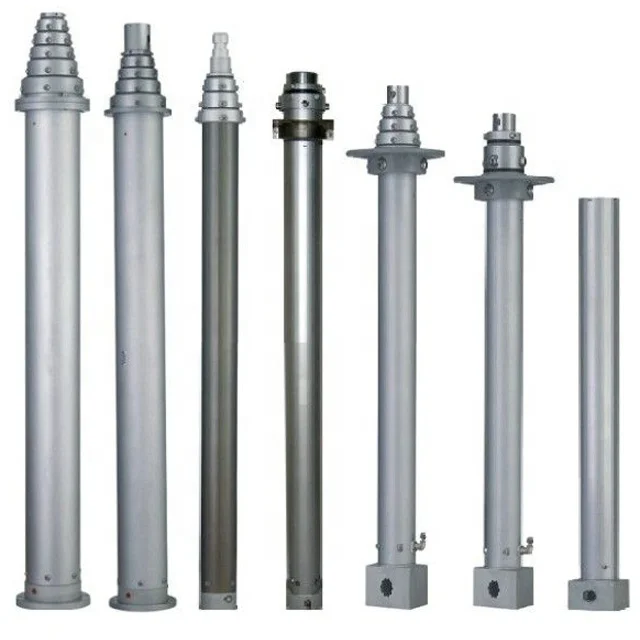

Each cylinder is made of high quality aluminum alloy material. The whole manufacturing process goes through extrusion molding, cold drawing, honing, machining, anodizing and other processes, and goes through strict inspection procedures to ensure the quality of the mast.
This model can be built in power cord or video cable to meet lighting and monitoring needs.
Specification:
Model Number
Section
Closed Height
(mm)
Extended Height
(mm)
Max.OD
(mm)
Min.OD
(mm)
Payload
(kg)
Self-weight
(kg)
TX4-87-1300-4000
4
1300
4000
87
28
10
15
TX5-98-1750-6000
5
1750
6000
98
28
10
20
TX5-98-2300-8000
5
2300
8000
98
28
10
30
TX5-98-2700-10000
5
2700
10000
98
28
10
35
TX7-130-2700-12000
7
2700
12000
140
28
10
55
TX7-150-3200-15000
7
3200
15000
160
51
20
98
TX9-215-3600-20000
9
3600
20000
229
66
30
280
TX10-275-4000-25000
10
4000
25000
289
78
20
460
Certificate
1m to 10m and 10kg to 200kg payload telescopic mast for military shelter
Packaging & Shipping
1m to 10m and 10kg to 200kg payload telescopic mast for military shelter
Products are packed with foam to protect mast and in wooden cases.
Our Services
1m to 10m and 10kg to 200kg payload telescopic mast for military shelter
Professional technical team to address customer's specific needs faster and more effectively.
OEM/ODM service available.
Complete quality control before delivery.
Short lead time.
One year warranty after delivery.
FAQ
How to install a telescopic mast?

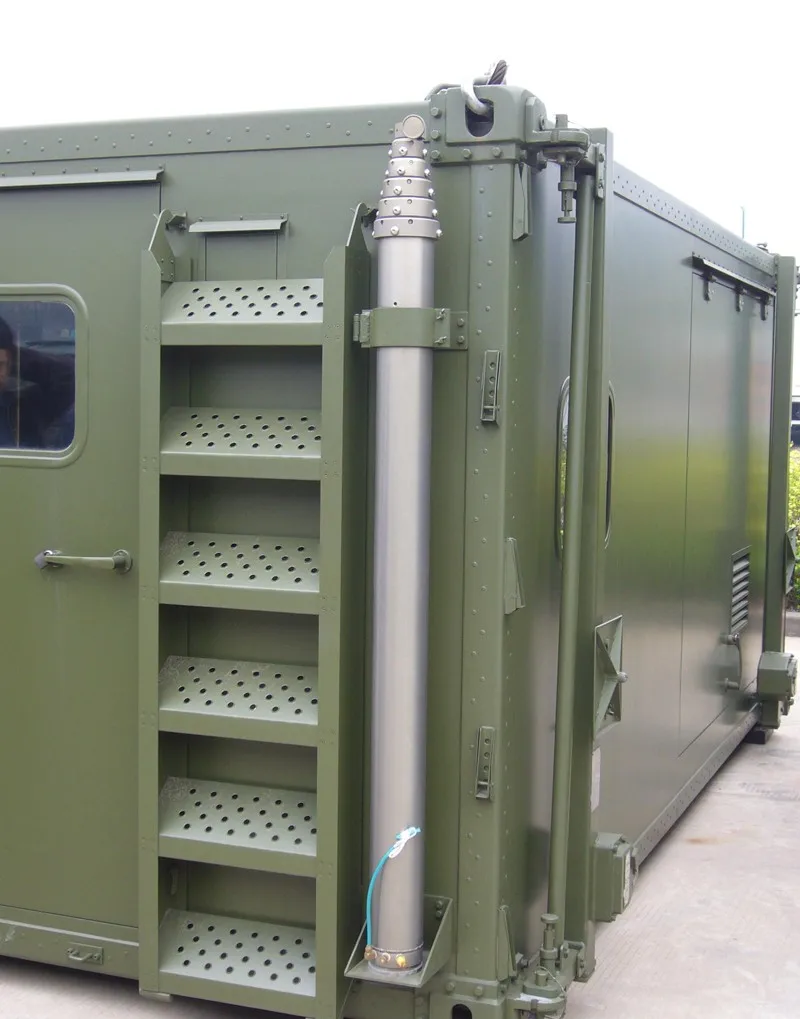

The telescopic mast can be mounted on the ground or mounted on the vehicle. Regardless of where it is installed, ensure that the mast is perpendicular to the ground when in use. if the mast if titled, it will affect the rise and fall of the mast; if the mast if severely tilted or tilted for a long time, it will also cause damage and danger the mast.
The telescopic mast should be mounted on a fixed object, such as a wall, a car body, a foundation pile, and so on. There must be at least two mounting points, one of which is at the bottoms of hte telescopic mast, and the distance between the two points is greater than 2/3 of the initial height of the mast. the connection should be firm and reliable.
