Factory Price EMAX ES3452 Waterproof Metal Gear Digital Servo For Traxxas TRX4 1/18 LaTrax shift servo
Brand : Emax
Model : ES3452 metal digital servo Servo Gross Weight: 30g Usage: RC car / 1/18 LaTrax / Summit / TRX-4,etc
Compatible RC Vehicles:
1/18 LaTrax Desert Prerunner
1/18 LaTrax Rally
1/18 LaTrax Rally VR46
1/18 LaTrax Teton
Summit
TRX-4 1979 Chevrolet Blazer
TRX-4 Ford Bronco
TRX-4 Mercedes-Benz® G 500® 4X4²
TRX-4 Scale and Trail™ Crawler
TRX-4 Sport Unassembled Kit
TRX-4 Sport
TRX-4 Tactical Unit
TRX-4 Unassembled Kit
TRX-4 with All-Terrain Traxx™
And any additional kits that use similar sized servo.
Working Environment
No.
Item
Temperature
1
Storage temperature Range
-20℃~70℃
2
Operating temperature Range
-10℃~60℃
Electrical Specification (Function of the Performance)
No.
Item
4.8V
6V
1
(±10%)Operating speed (at no load)
0.18 sec/60°
0.16 sec/60°
2
Running current (at no load)
280mA Max
350mA Max
3
Stall torque
2.2kg.cm Max
2.6kg.cm Max
4
Maximum current/Stall current (at locked)
0.9A Max
1.1A Max
5
Idle Current
5mA
5mA
Mechanical Specification
NO.
Item
Specification
1

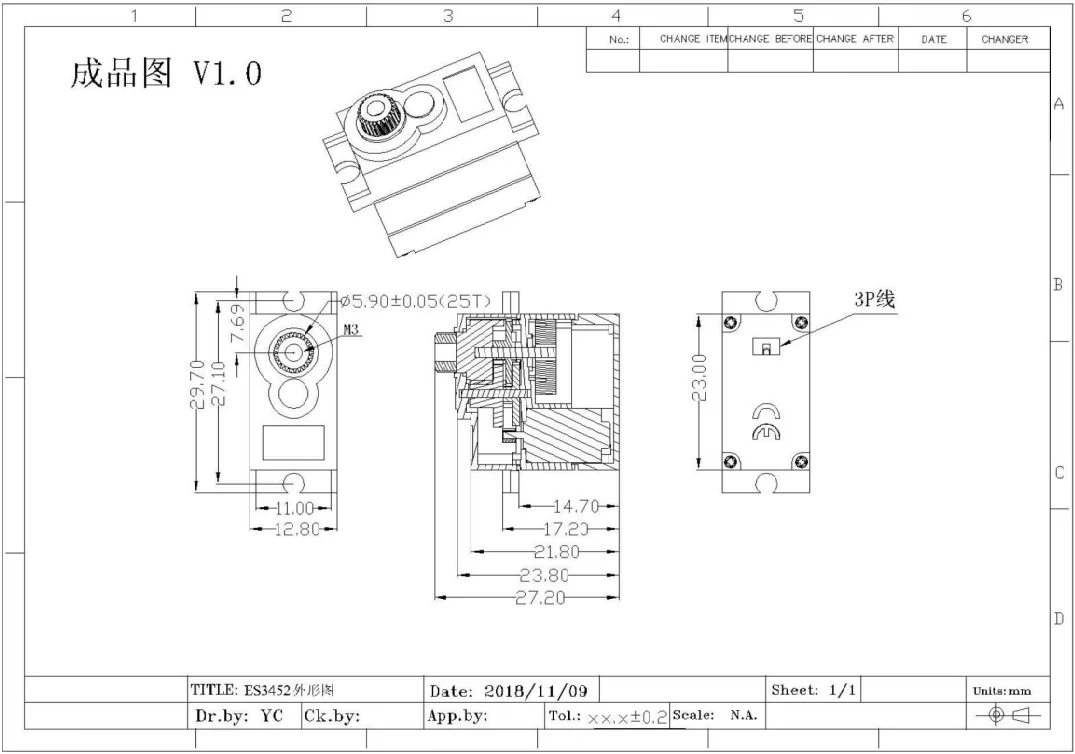

Overall Dimensions
See chart below
2
Weight
15.5±1 g
3
Connector wire gauge
JR
4
3P Connector wire length
330±8(terminal excluded)
5
Flower Head
25T
6
Bearing
NO
7
Gear Type
metal
8
Extreme angle
360°
Control Specification
NO.
Item
Specification
1
Control system
PWM
2
Operating travel
90° ±10°( when 1000-2000 μ sec )
3
Neutral position
1500 μ sec
4
Rotating direction
Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
5
Pulse width range
700-2300 μ sec
6
Maximum travel
145° ±8°( 700-2300μ sec )
