5000Nm3/h Hydrogen H2 90% content 30bar Reciprocating Piston Compressor Hydrogen Gas Booster Compressor
- Category: >>>
- Supplier: Keepwin Technology Hebei Co. Ltd.
Share on (62299867959):
Product Overview
Description
Product Description

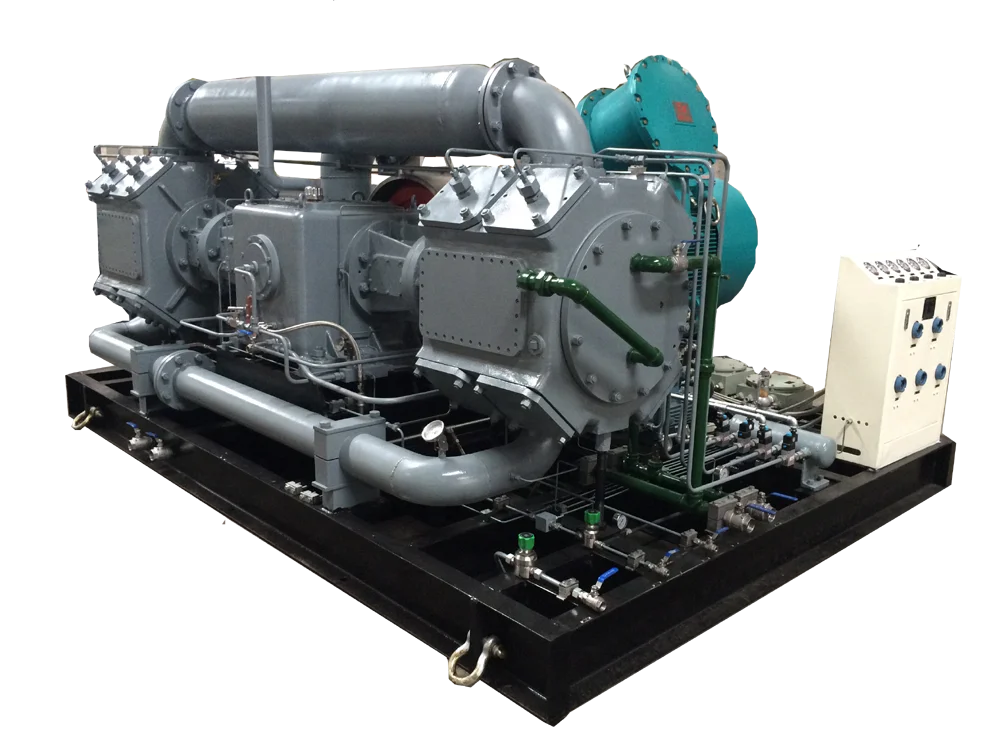

5000Nm3/h Hydrogen H2 90% content 30bar Reciprocating Piston Compressor Hydrogen Gas Booster Compressor

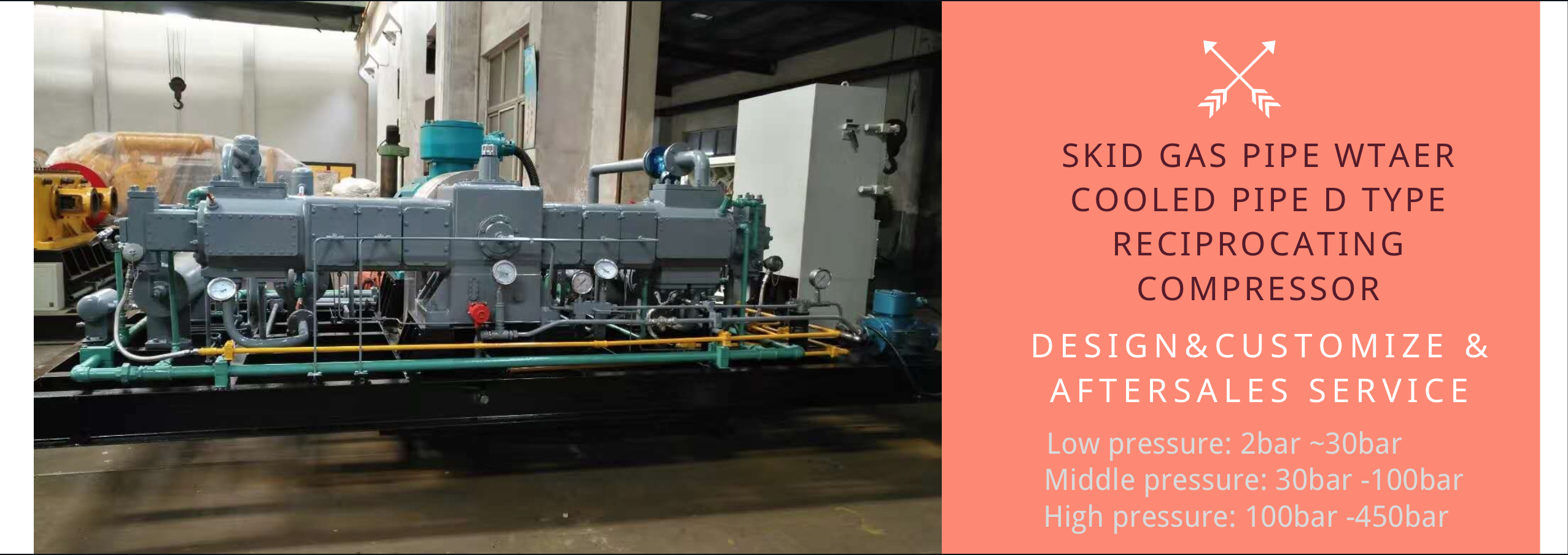

Our D type hydrogen gas Compressor is utilized the structure of D-Type horizontal two-row symmetrical balanced two-cylinder oil-free lubricating Reciprocating Piston Compressor.
Lubrication includes : oil lubrication, low-oil lubrication and oil free lubrication;
Cooling method includes: Water cooling.
Installation type includes: Stationary and Skid Mounting.
KEEPWIN has taken a series of technical measures in aspects such as structure material, explosion prevention, anto-control and protection to guarantee safety and reliability. Products are widely used in variety of industries such as Petroleum, Chemical textile, Gas Separation, Metallurgy Mine Machinery.
Compressor technicalspecifications
Working condition medium | Hydrogen (H2 content ≥90%) |
Volume flow (m3/min.) | 3.7(at 0.1Mpa, 0℃ condition) |
Standard state flow(Nm3/hour) | ≥5000 (at 2.3Mpa, 160℃condition) |
Suction pressure (bar, gauge) | 23 |
Suction temperature ( ℃) | ≤ 110℃ |
Discharge pressure (bar, gauge) | 30 |
Discharge temperature ℃ | ≤160 |
Outlet flow gas temperature after cooling ℃ | Not need cooling |
Circulating cooling water consumption | ≈2.0m3/hour (adjustable) for cooling cylinder |
Noisy grade(SPL) dB(A) | ≤105 (3m beyond) |
Mainstructuralparametersofthecompressor:
Item | Value |
Compressor structure type | Horizontal,2-row 1-stage compression, oil free lubrication,piston reciprocating type |
Crankshaft rotate speed(r/min) | 740 |
Connectionmode b/w motorand compressor | Martin drive |
Compression stages | Double 1 |
Piston stroke (mm) | 92 |
Shaft power (KW) | ≤69 |
Shaft sealing structure | Automatic adjustment of three petal spring seal |
Lubricating mode | Crackshaft, connecting rod, cross-head body:Forcible lubricated; Cylinder, packing assembly: oil-free lubrication |
Pressure of main oil pump | 0.15~0.4Mpa |
Consumption of lub. oil | ≈100g/h |
Power of main, auxiliary oil lub.pump(kw) | 2.2 |
Vibration grade(mm.s) | ≤28 |
Main motor structureparameters
Motor model | YB3-315L1-8 Asynchronous 3-ph ex-proof motor |
Rated power(Kw) | 90 |
Rated rotate speed(r/min) | 740 |
Rated voltage(V) | 415 |
Frequency (Hz) | 50±0.5 |
Explosion-proof grade | DIICT4 |
Insulation grade | F |
Protection grade | IP55, protection grade of conjunction box IP55 |

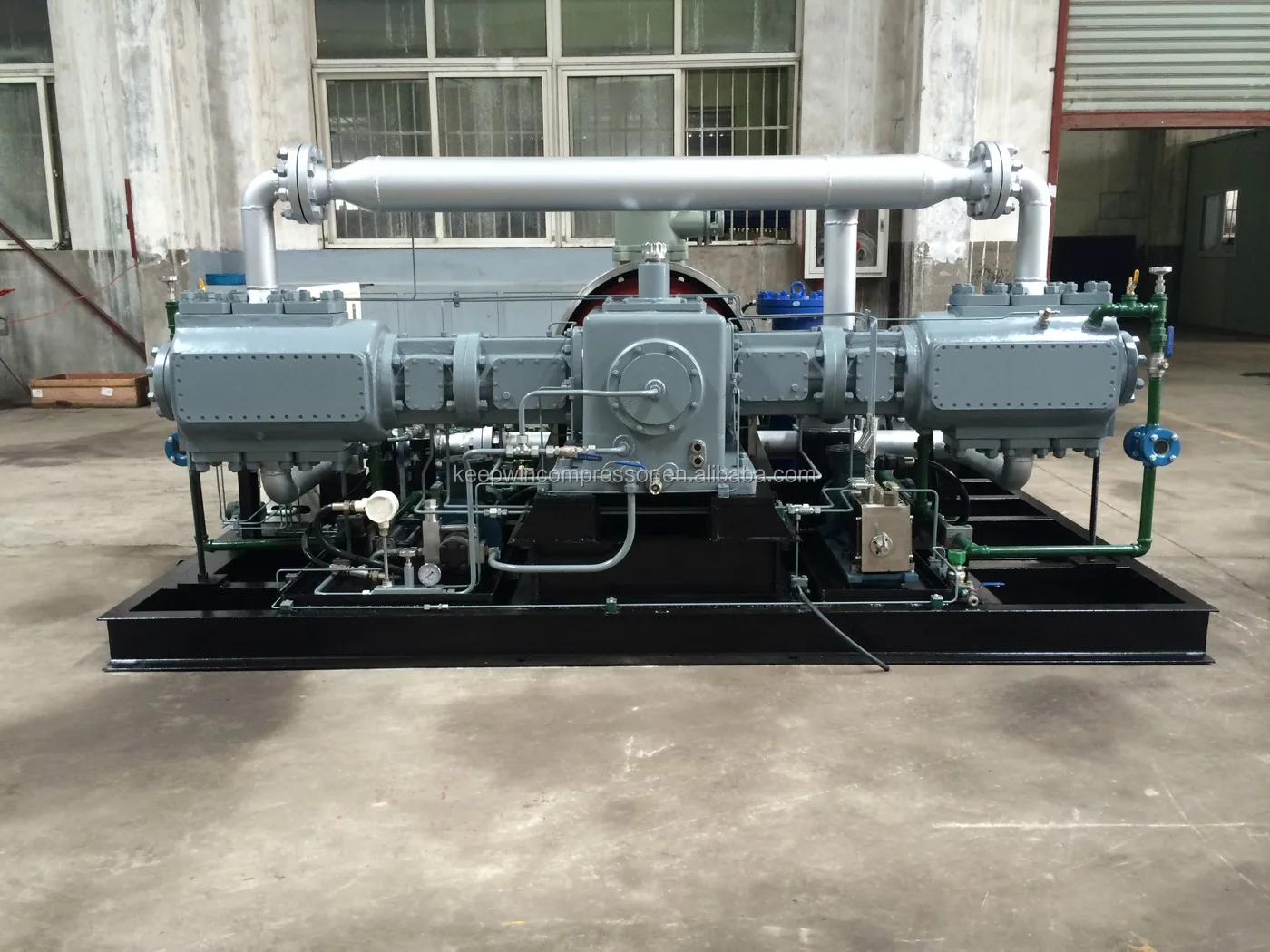

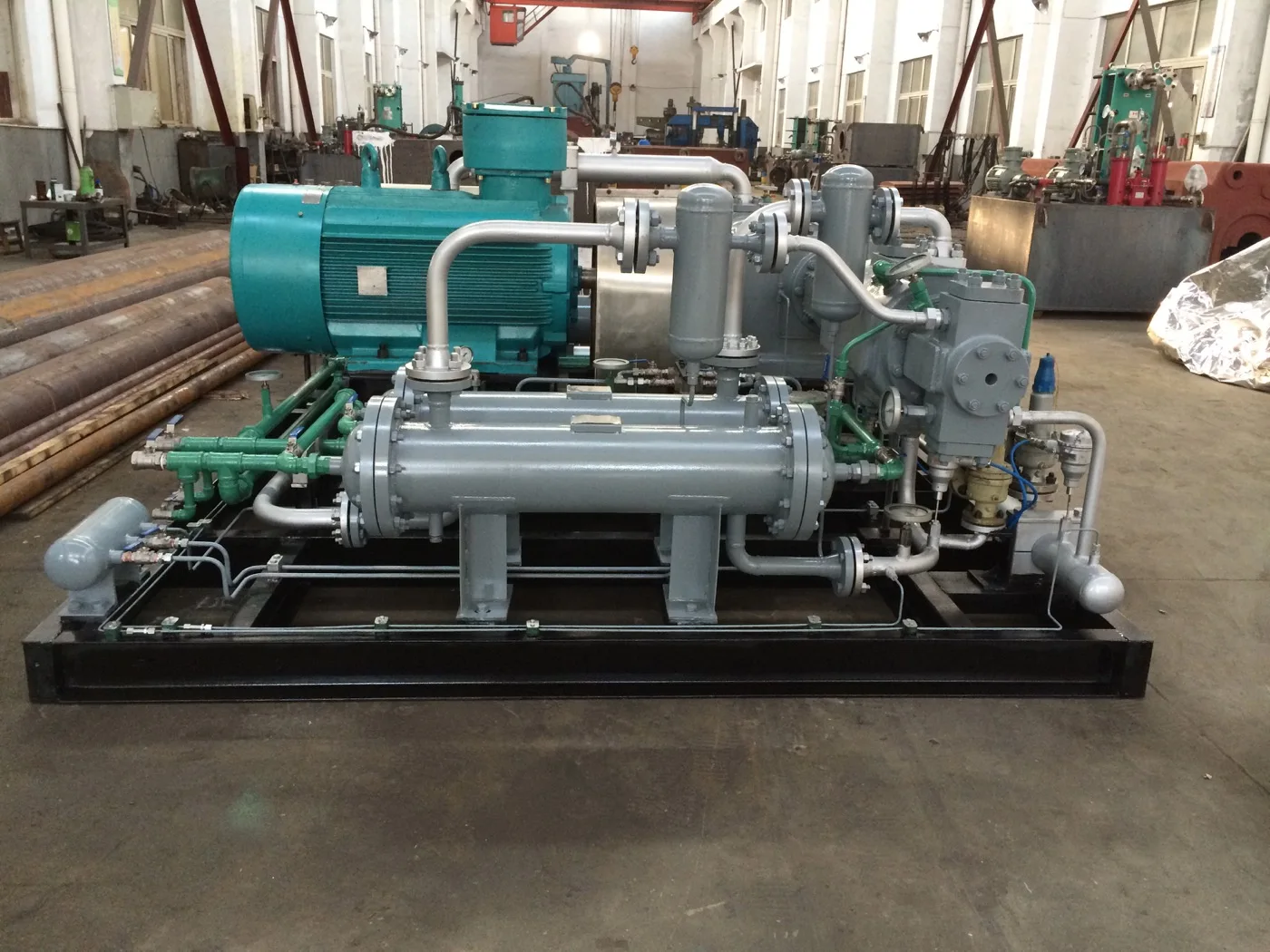

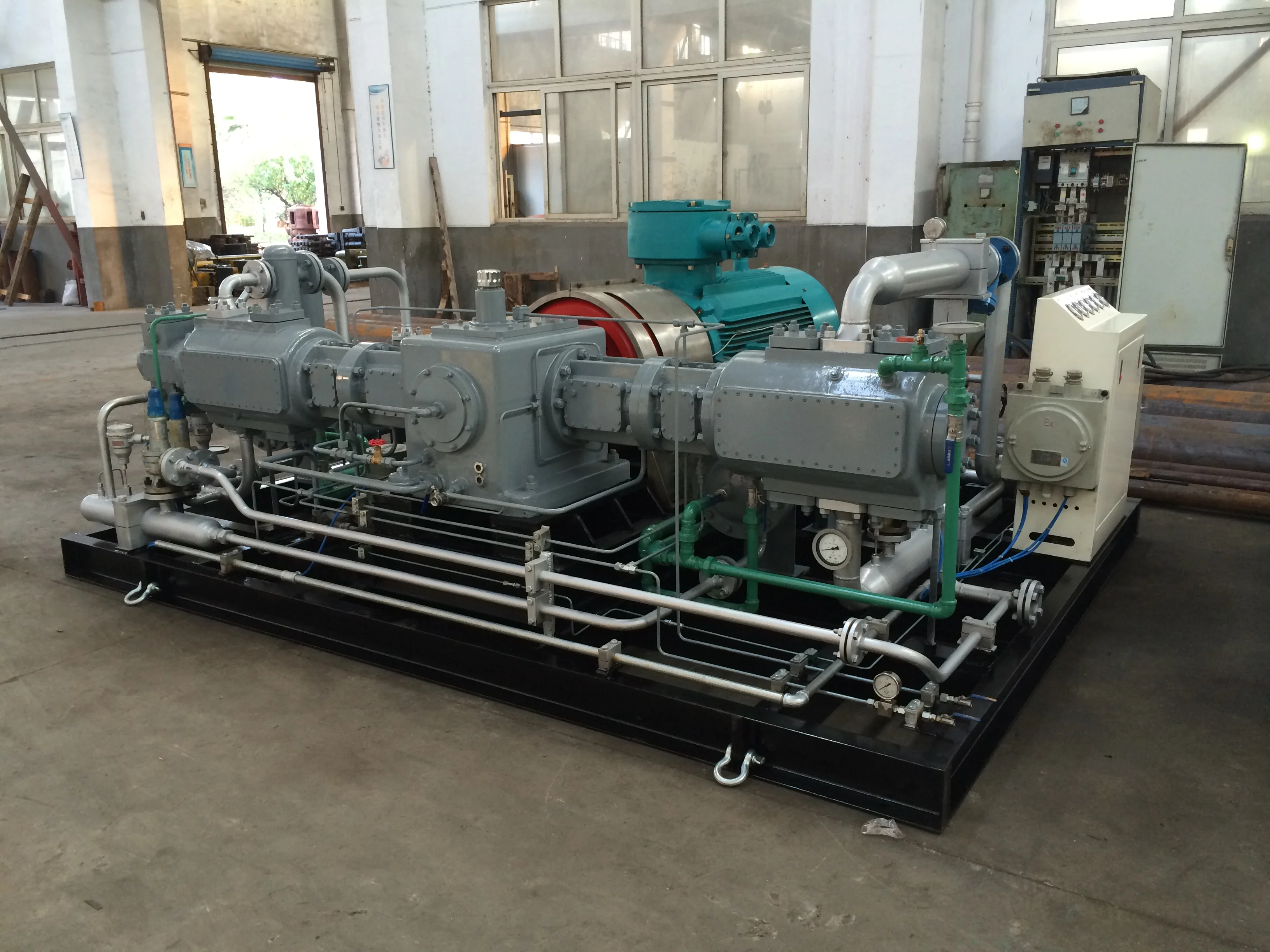

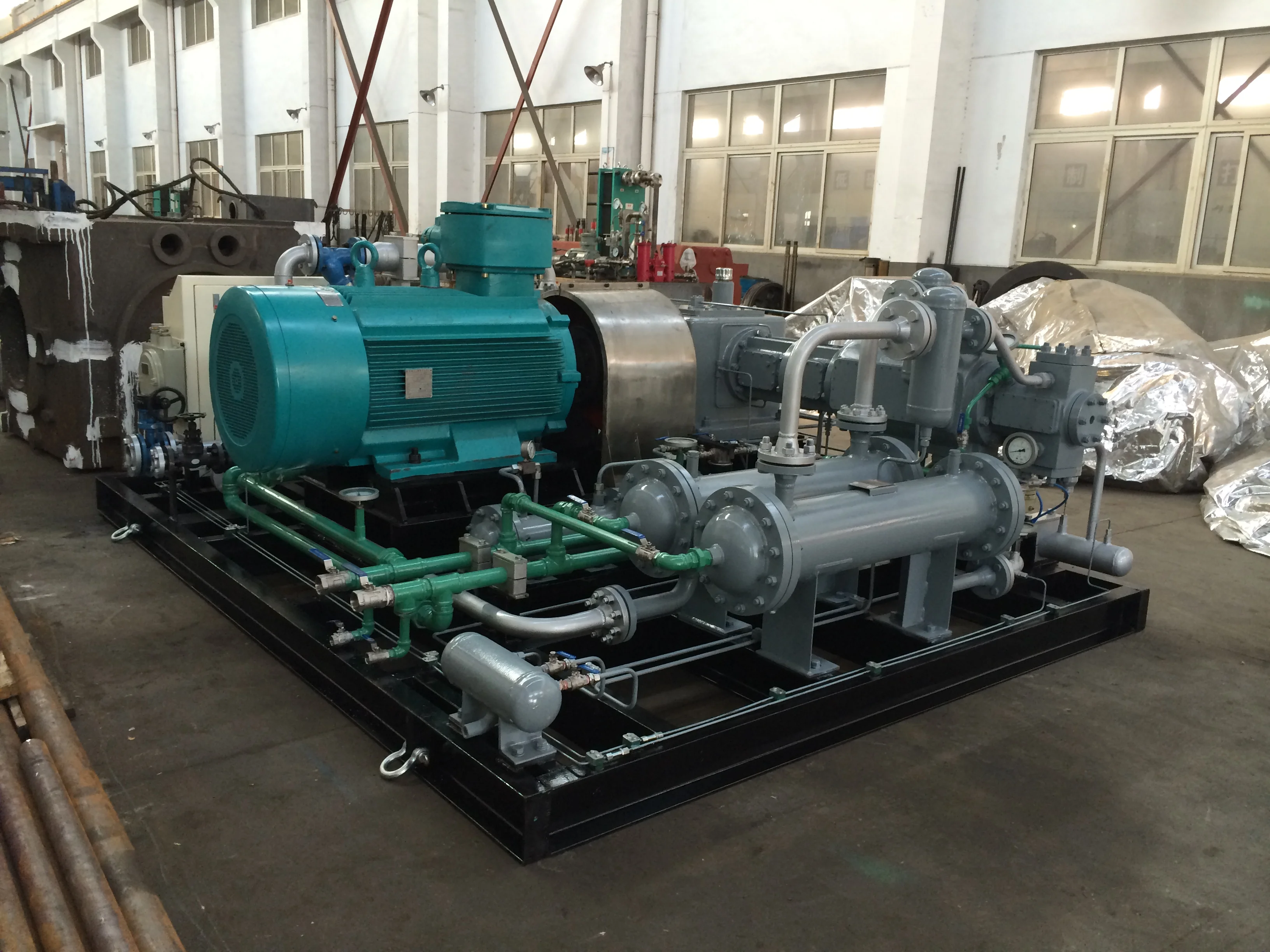

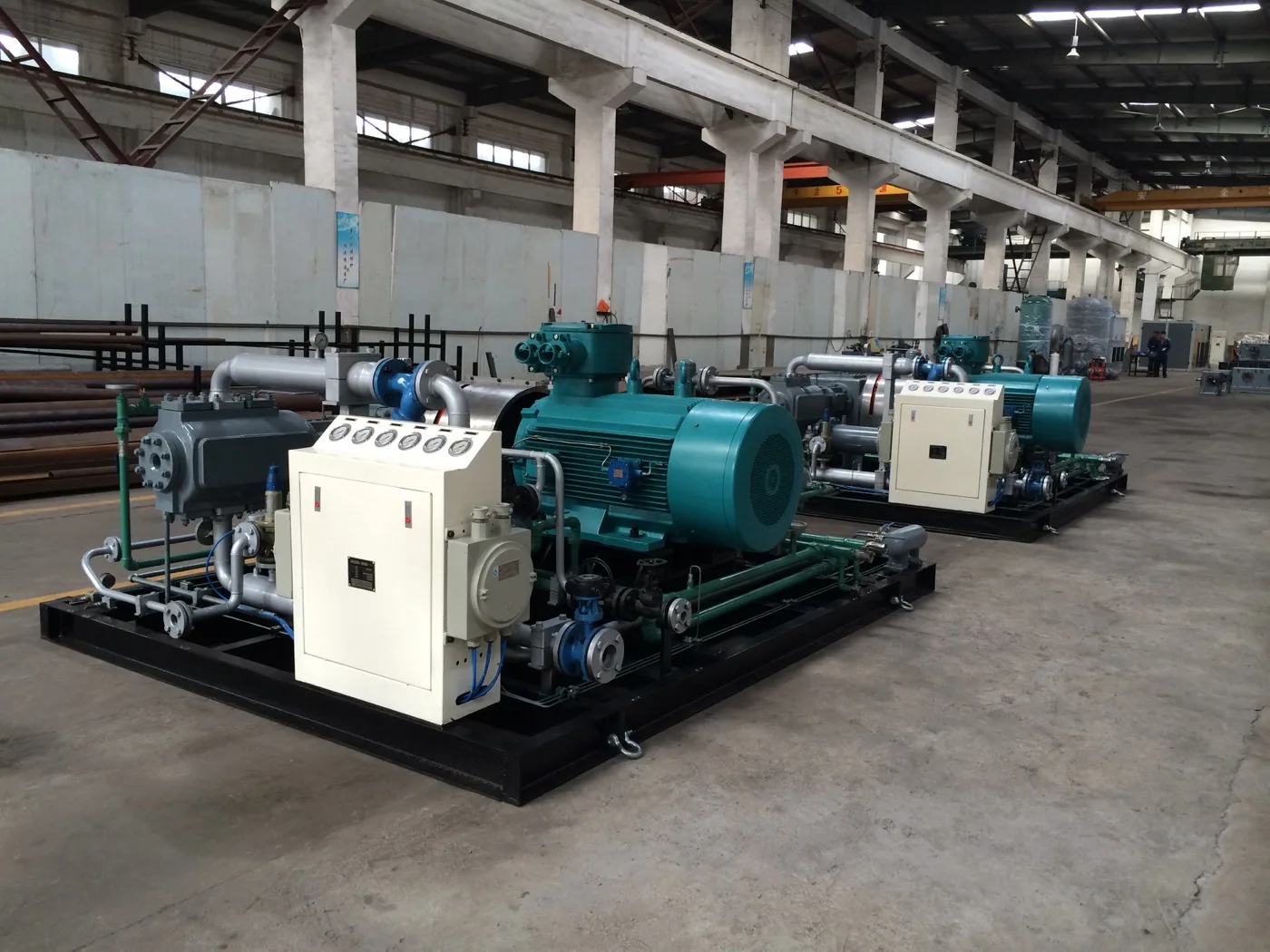

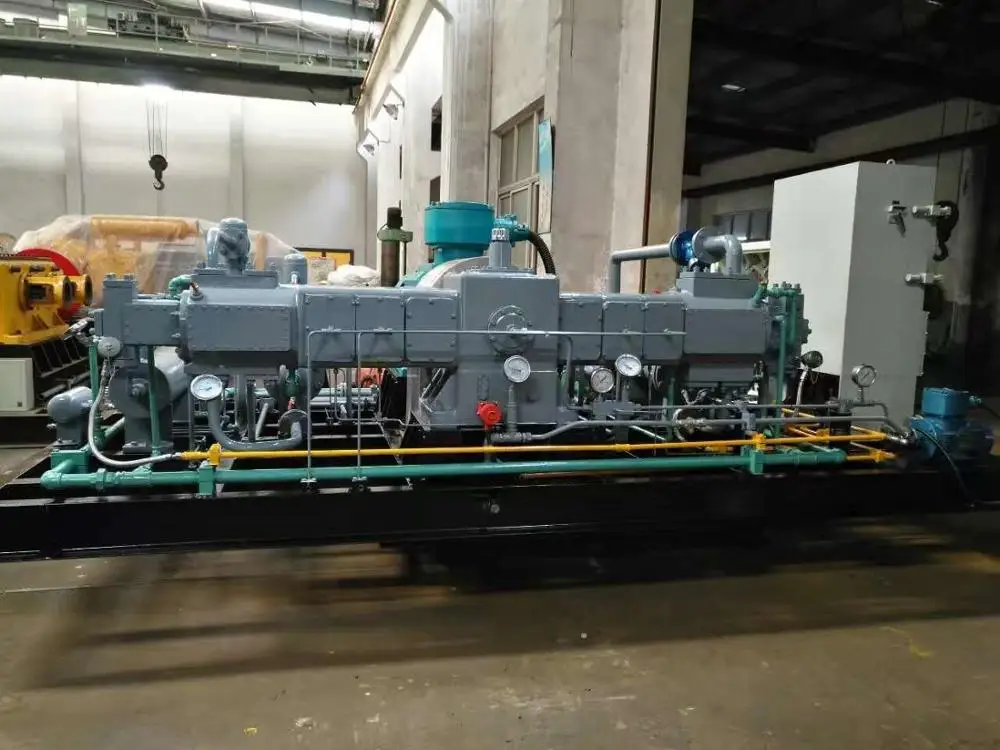

Detailed Images
Welcome your inquiry for more special process gas compressor to KEEPWIN: keepwin at keep-win dot com
Packaging & Shipping
Company Information
KEEPWIN TECHNOLOGY HEBEI CO., LTD is a good stable quality supplier in China compressor factory, located in Hebei Province, China. Our Factory professional in customizing manufacturing high-quality gas compressor above 17years. With advanced assembly, production line and testing equipment to support us to develop, design and Manufacture screw air compressor, reciprocating compressor, Diaphragm compressor that complies with the regulation of ISO9001:2008 quality system. It also specializes in mating remolding and sales service of compressors as well as the corresponding pre-and post-position purifying equipment.
KEEPWIN Offers you a various range of gas compressors like normal standard VSD Two Stage screw compressor, reciprocating piston type & diaphragm compressor of CNG compressor, Natural Gas Compressor, CO2 compressor, Hydrogen compressor, Nitrogen booster compressor, Methane Compressor, etc. for your process handling needs. These products are developed with the highest Level of professionalism and innovation. The products are then sent to the Quality Control Department for stringent quality Tests on various parameters.
Above gas compressor are widely used in each Industry, such as Oil Industry, Chemical, Electronic, Garment, Plastic, Glass, Cement, Water treatment, Agriculture, Food, Construction, Joinery, etc. We view client satisfaction as the witness of our products' utility and application in all environments. High-quality control is our Culture. Fast professional efficient service is our core.
Our Services
Related Products
FAQ
Q1: What's your delivery time?
A: Generally screw compressor with 20-30 days, Reciprocating compressor & diaphragm high pressure gas comrpessor with 12-20weeks to customize producing.
Q2: How long is your air compressor warranty?
A: Usually 1 year /12 Months for whole compressor machine, 2years/24months for air end (except maintenance spare parts.). And we can provide further warranty if necessary.
Q3: How long could your air compressor be used?
A: Generally, more than 10 years.
Q4: Can you do OEM for us?
A: Yes, of course. We have around two decades OEM experience.And also we can do ODM for you.
Q5: What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, Trade Assurance and etc. Also we could accept USD, RMB, GBP, Euro and other currency.
Q6: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.
Q7: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas after-sales service.
Q8. Are you factory?
A4: Absolutely! You have touched the primary sources of Air /Gas Compressor. We are factory.
Q9.Can you customize produce the other CNG/Hydrogen/ Oxygen/ Associated Natural Gas/ Fuel Gas etc Process gas Compressor?
A: Sure, you just need send us some below information then we can give you a professional manufacture design plan offering
Note:
1, In addition on the above-mentioned products we can also provide products used for compression of various gas and other specifications and models upon users' special requirement.
2, Clients' inquiries should contain related parameters as following:
A. The gas compression medium
B. The flow rate: _____Nm3/hr
C. Inlet pressure: _____ Bar
D. Discharge pressure: _____ Bar
E. Inlet temperature & Cooled transmition temperature
F. Cooling water temperature as well as other technical requirement.
G. Local voltage/Phase/Frequency
H. Requirements for the explosion-proof or non-explosion proof control cabinet on site?
